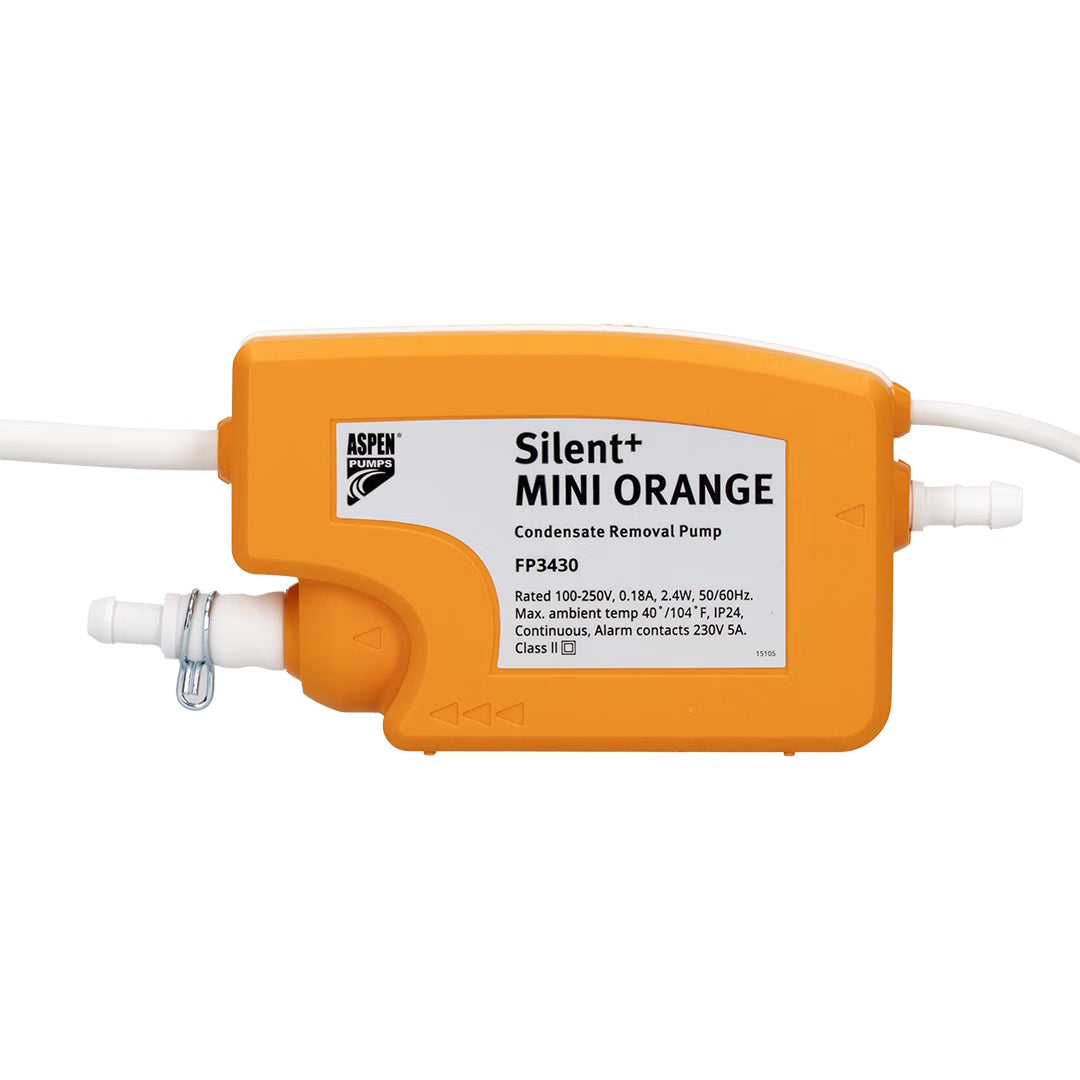

Aspen Silent+ Mini Orange Gen 5 Condensate Pump | FP3430 | 40kW

Description

The Aspen Silent+ Mini Orange 5th Generation condensate pump kit (FP3430) is quiet, powerful and continuously rated. Using capacitance sensing and a rotary diaphragm, it delivers intelligent, adaptive flow rates up to 35 litres per hour, with sound levels as low as 16dB(A)* so extra noise or vibration dampers are not needed.

It handles units up to 40kW / 136,000Btu/h, a maximum recommended head of 10 metres and a 1.5 metre suction lift. A 100-250 V universal voltage supply, IP24 protection and 3 year warranty make it a strong fit for ducted units, floor standing and chassis units and high wall split systems in small commercial and residential installations.

35 L/h

Max flow at 0 m head

16 dB(A)

As low as, at 1 m*

10 m

Max recommended head

40 kW

Max unit output

100-250 V

Universal voltage

3 years

Warranty

Safety and regulations: Isolate the electrical supply before installation or maintenance. Wire the normally closed high level safety switch into the unit's control circuit. Electrical connection must be carried out by a competent person in line with BS 7671.

Compatibility and notes: The Gen 5 plug and play cable is not backwards compatible with earlier Mini Orange models. *The 16dB(A) figure assumes solid wall construction with a 2kW unit. Flush all cleaning chemicals out of the reservoir after use. The UK sheet lists a 5.0 A safety switch rating while the North American sheet lists 3 A; wire to the lower value.

Good to know: Ideally install within a ceiling void or similar area. The optional Silent+ Compact Reservoir (FP3613) is available as an accessory.

Key Features

Ultra quiet

Variable speed, on demand power gives sound levels as low as 16dB(A)* with no acoustic dampers needed.

5th Gen technology

Capacitance sensing and a rotary diaphragm combine silence and power.

Continuously rated

Continuous duty with adaptive flow means less stress on components and low maintenance.

Universal voltage

100-250 V AC, 50/60 Hz, only 2.4 W and 0.18 A.

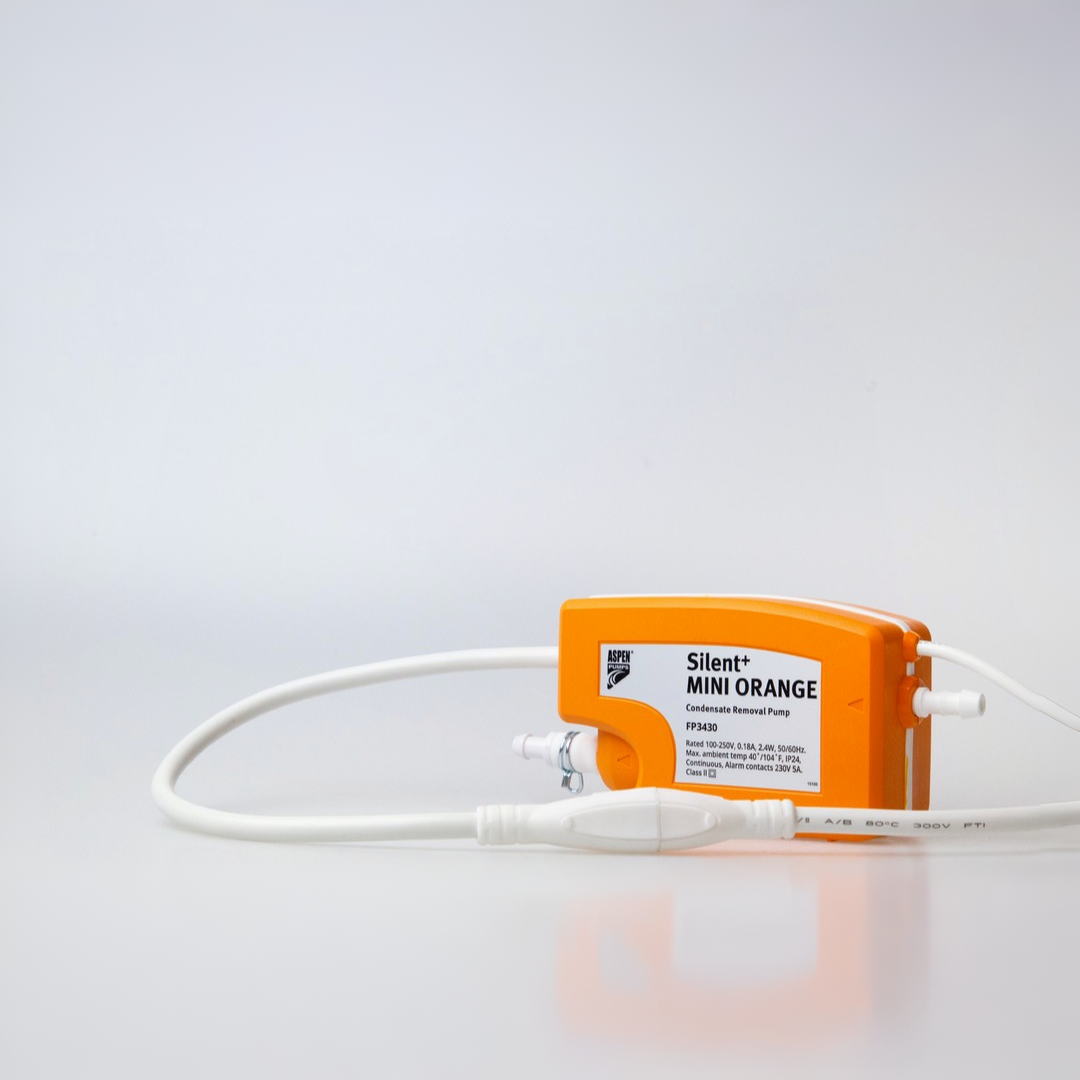

Plug and play

1.5 m plug and play cable allows rapid pump replacement.

3 year warranty

36 month manufacturer warranty for peace of mind.

Technical Specification

Identification

Manufacturer

Aspen Pumps

Part number

FP3430

Model

Silent+ Mini Orange (5th Gen)

EAN

5060144949851

Warranty

36 months

Performance

Maximum flow

35 L/h at 0 m head

Maximum recommended head

10 m

Maximum suction lift

1.5 m

Sound level

As low as 16dB(A) at 1 m*

Maximum unit output

40 kW / 136,000 Btu/h

Self priming

Yes

Electrical and Environmental

Power supply

100-250 V AC, 0.18 A, 2.4 W, 50/60 Hz

Rating

Continuous

Class

Class II

Safety switch

Normally closed, 5.0 A (UK sheet)

IP rating

IP24

Maximum ambient temperature

40 °C / 104 °F

Inlet

Ø16 mm outside diameter

Outlet

Ø6 mm outside diameter

Pump weight

0.391 kg

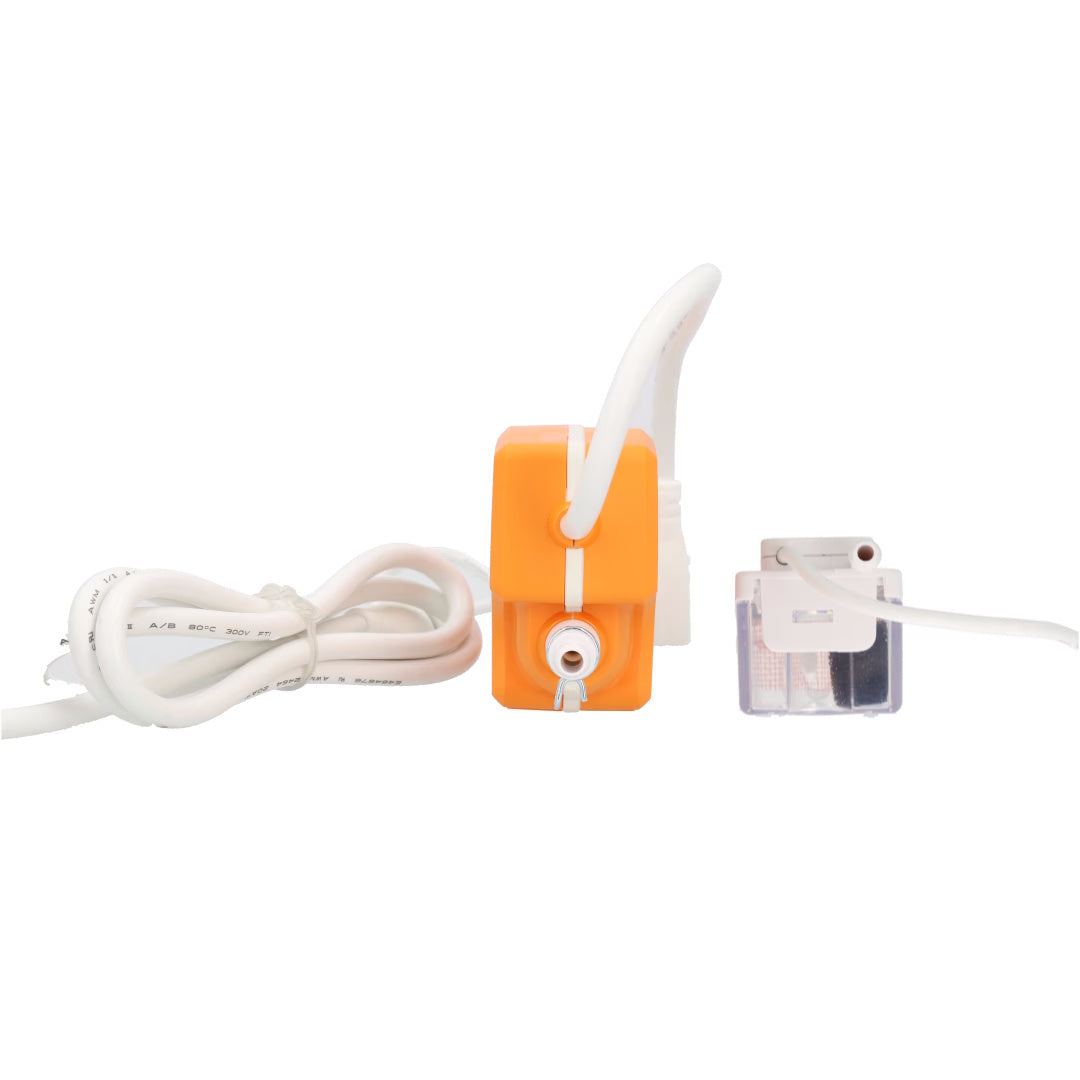

In the Box

Pump

Silent+ Mini Orange 5th Gen pump

Reservoir

Reservoir including filter and lid

Cable and tubing

1.5 m plug and play cable, 1.5 m clear PVC tube, 150 mm clear vent hose, 220 mm orange inlet hose

Fittings

Drain connector kit with straight connector and rubber elbow

Documentation

Quick start guide

Frequently Asked Questions

How quiet is the FP3430?

Sound levels can be as low as 16dB(A) at 1 metre, assuming solid wall construction and a 2kW unit.

What size air conditioning unit can it serve?

Units up to 40kW / 136,000Btu/h, including ducted, floor standing, chassis and high wall split units.

Is it compatible with older Mini Orange pumps?

The 5th Gen plug and play cable is not backwards compatible with earlier models, so check connectors when replacing an older pump.

What voltage does it run on?

It accepts a universal 100-250 V AC, 50/60 Hz supply and is continuously rated.

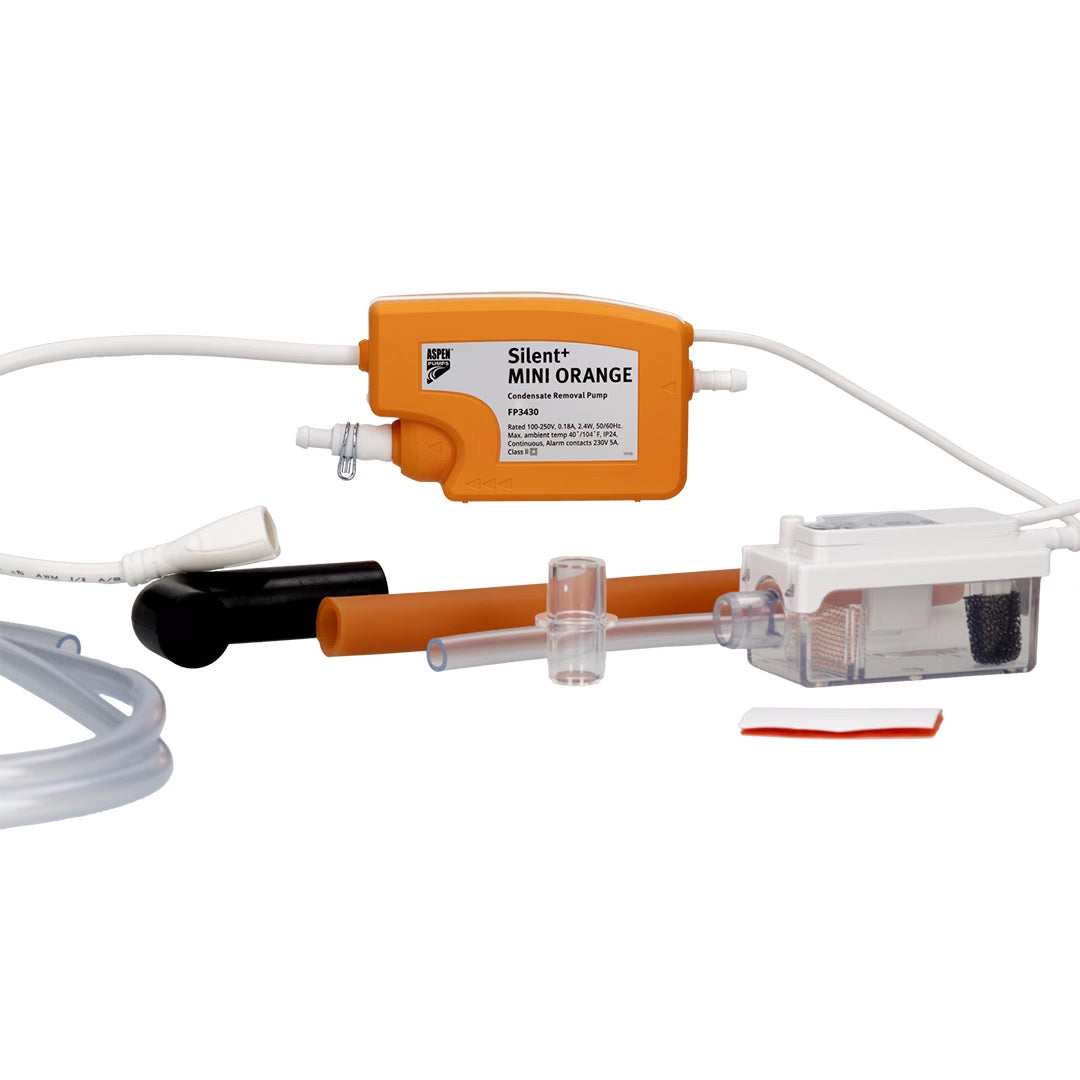

What is included in the kit?

The pump, reservoir with filter and lid, 1.5 m plug and play cable, 1.5 m clear PVC tube, vent hose, orange inlet hose, drain connector kit and quick start guide.
