Ariston Aures Multi 9.5kW Instantaneous Electric Water Heater | Multi-Point | ErP Class A
Save 10%
Regular price
£130.00
Inc. VAT
£108.33 Exc. VAT
£108.33 Exc. VAT
Sale price
£145.00
£130.00
Inc. VAT
£108.33 Exc. VAT Regular price
£108.33 Exc. VAT Regular price
FREE Express Delivery (1-3 days) in UK Mainland on most orders
Excluding: Solar Panels (£59 delivery), Batteries (£49 delivery), Small Items (£4.95 delivery)
Contact Us to check for Next Working Day Delivery or Same-day Delivery options
Contact Us for Click & Collect options
Custom quote available on request
*See checkout or shipping policy for full details
Payment options
9.5kW Multi-Point ErP Class A Instantaneous No Storage Tank ELCB Safety System Good Design Award 2019

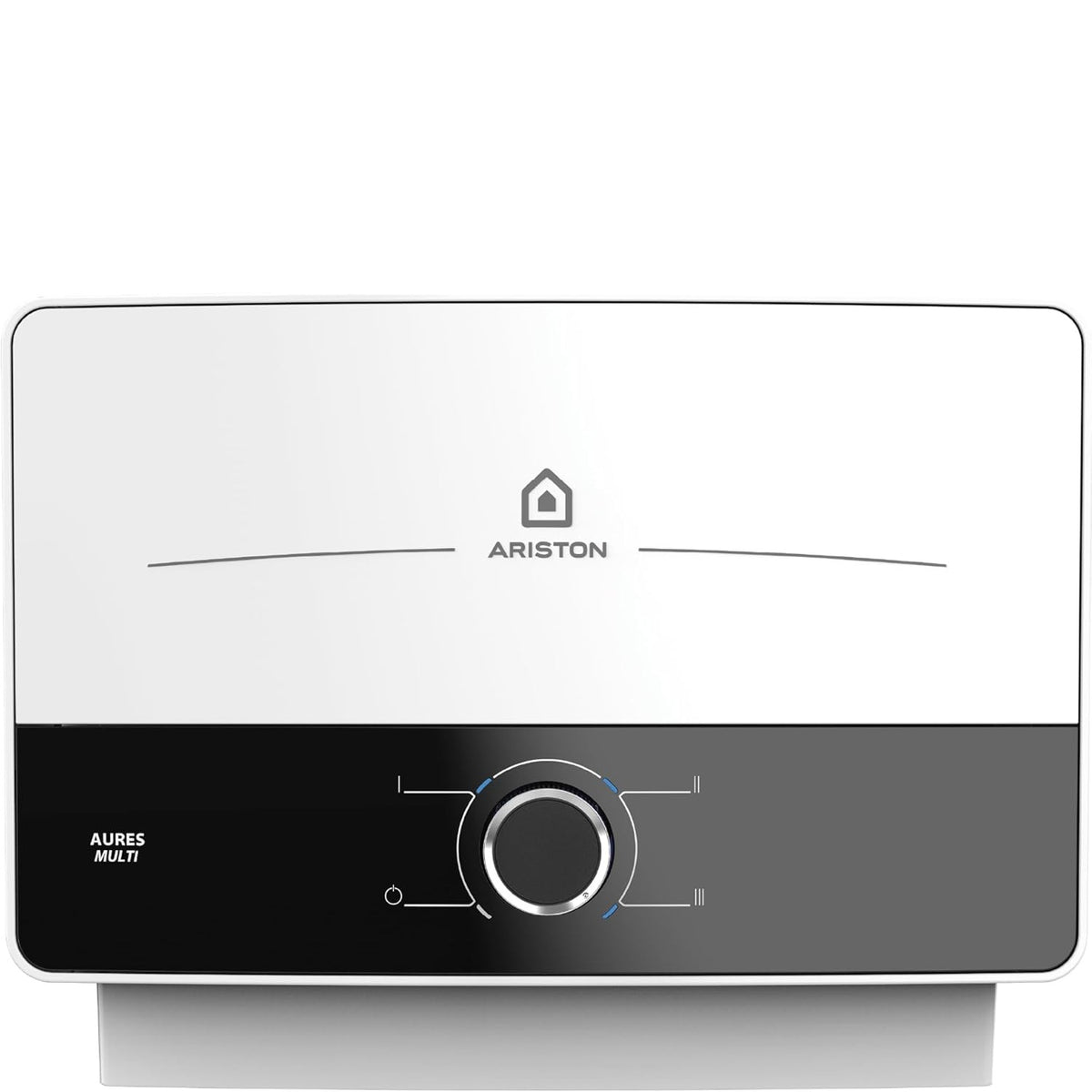

The Ariston Aures Multi 9.5kW is a compact, wall-mounted instantaneous electric water heater that delivers hot water on demand without the need for a storage cylinder or pre-heating time. Designed specifically for the UK market, the Aures Multi heats water as it flows through the unit — providing hot water only when a tap is opened, and stopping as soon as the tap is closed. This eliminates standby heat losses entirely, earning the unit an ErP energy efficiency class A rating.

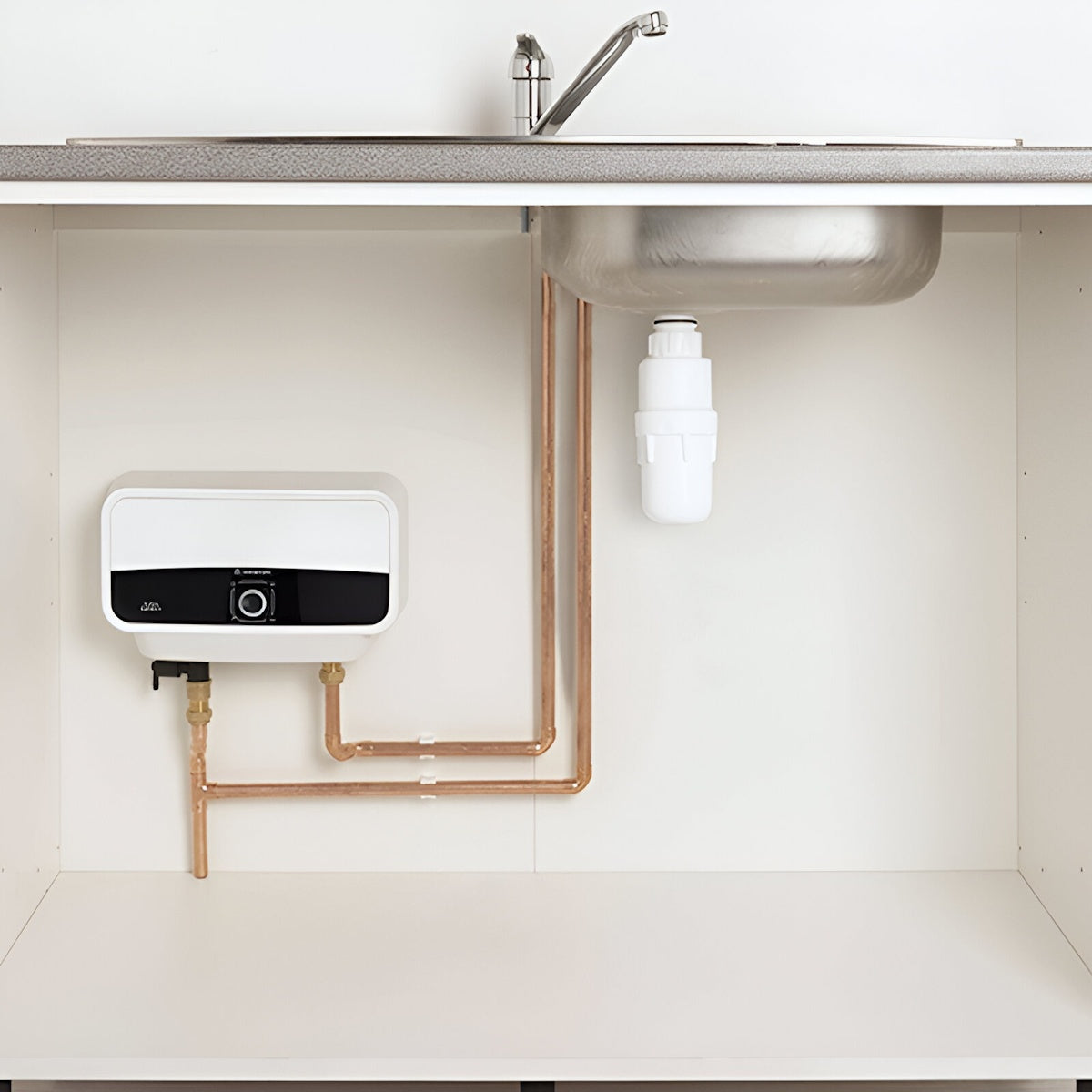

The Multi-Point configuration means the Aures can supply one or several outlets (not simultaneously) from a single unit — suitable for a kitchen sink plus a nearby hand basin, a bathroom wash basin and shower, or multiple hand wash points in a commercial setting. Its compact dimensions (304mm × 220mm × 110mm) make it ideal for installation in narrow utility rooms, under kitchen sinks, in garages, conservatories, en-suites, and annexes where a conventional boiler connection is unavailable or impractical. MPN: 3195216.
💡 Multi-Point vs Single Point — What Does "Multi" Mean?
The Aures Multi can supply hot water to multiple outlets — for example, a kitchen tap and a nearby bathroom hand basin — from a single unit. However, these outlets are served one at a time, not simultaneously. When one tap is open, the unit heats that outlet's water. If a second tap is opened at the same time, flow is shared across both outlets and the temperature from each will be lower. For a layout where simultaneous hot water demand from two outlets is required at full temperature, two separate units (or a storage heater) would be needed.
Key Features
⚡ Instantaneous — No Tank RequiredHeats water only when a tap is opened — no pre-heating wait, no storage tank, no standing heat losses. Hot water available within seconds. Ideal for installations where a boiler or cylinder connection is unavailable.

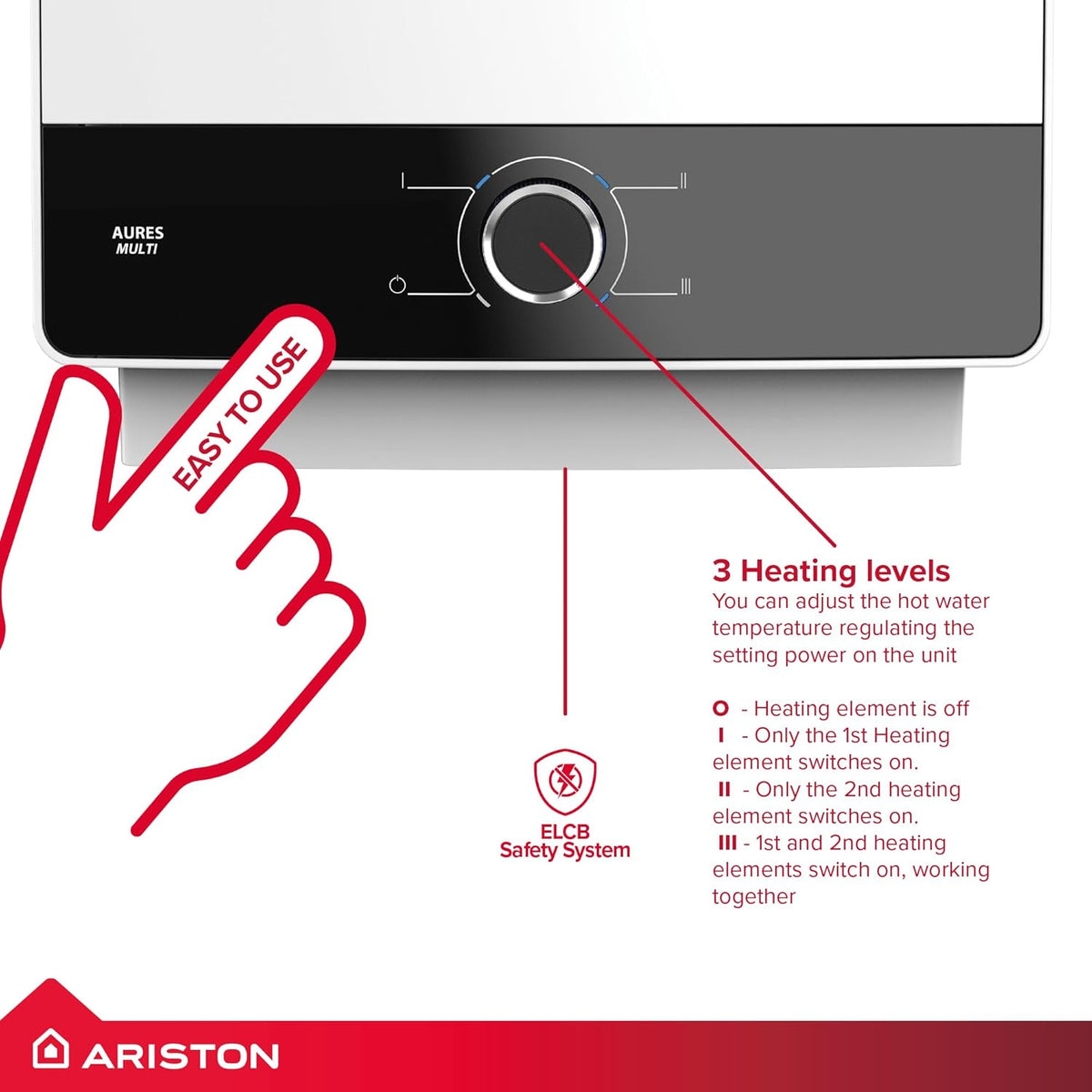

🌡️ 4 Power Settings via Rotary KnobFront-facing rotary dial offers 4 power settings: Off, Low (1 heating element), Medium (2 heating elements), High (both elements combined, 9.5kW total). Changing the setting and/or the flow rate adjusts the delivered water temperature, allowing the user to balance comfort and energy use.
🛡️ Double Thermal Cut-Out (Safety)A double thermal cut-out thermostat prevents the water temperature from exceeding the safe limit, protecting against scalding. The thermostat will cut the heating element if the water temperature reaches the maximum limit — a passive safety feature requiring no action from the user.
⚡ ELCB Safety SystemThe Double Pole Earth Leakage Circuit Breaker (ELCB) protects against electric shock by interrupting the electrical circuit if a dangerous voltage leak is detected — an important safety feature in any appliance combining electricity and water.
🌊 Flow SensorThe Aures Multi includes a flow sensor that activates the heating element only when water actually flows through the unit — the element is off when the tap is closed. This prevents dry-heating of the element and ensures energy is used only when needed.

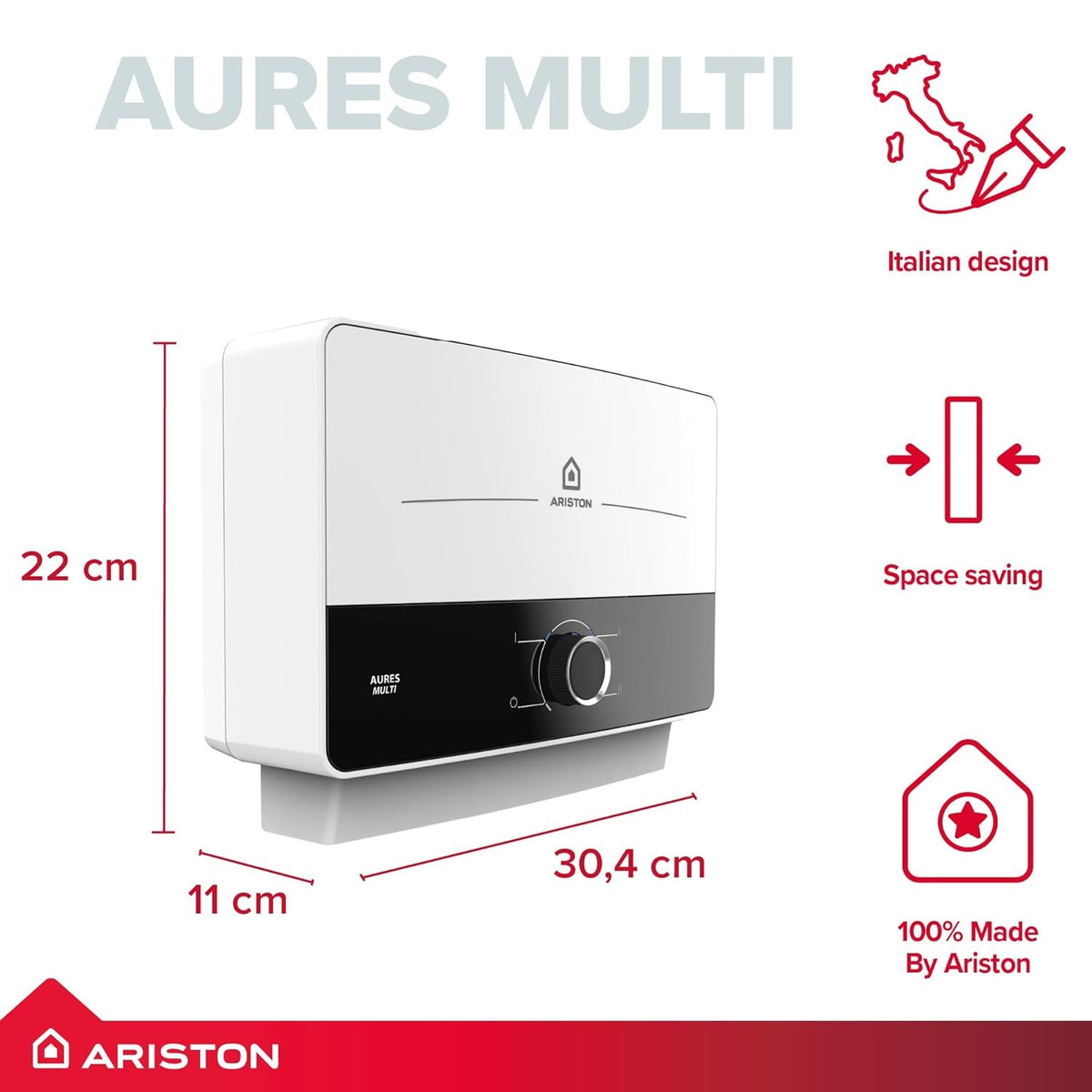

📐 Compact & Space-SavingAt just 304mm wide, 220mm high, and 110mm deep, the Aures Multi is one of the most compact 9.5kW instantaneous heaters available. Designed to fit in small, narrow spaces — under the sink, in a utility cupboard, or on a wall in a garage or conservatory.
🏆 Good Design Award 2019The current Aures Multi design was awarded the Good Design Award in 2019 for its Italian premium aesthetic by designer Umberto Palermo — merging elegant materials, user-friendly interfaces, and a compact form that suits both domestic and commercial interior environments.
💧 External Safety ValveSupplied with an external safety (pressure relief) valve. This must be connected during installation to provide a safe pressure release path in the event of overpressure in the unit — a mandatory installation requirement. Red and blue inlet/outlet pipe rings assist with correct connection polarity during installation.
Typical Applications
| Application | Suitability |
|---|---|
| Kitchen sink (single) | ✅ Excellent — single outlet, ideal flow rate for washing up and hand washing |
| Kitchen sink + hand basin (multi) | ✅ Suitable — two outlets, one at a time; 9.5kW comfortably handles both |

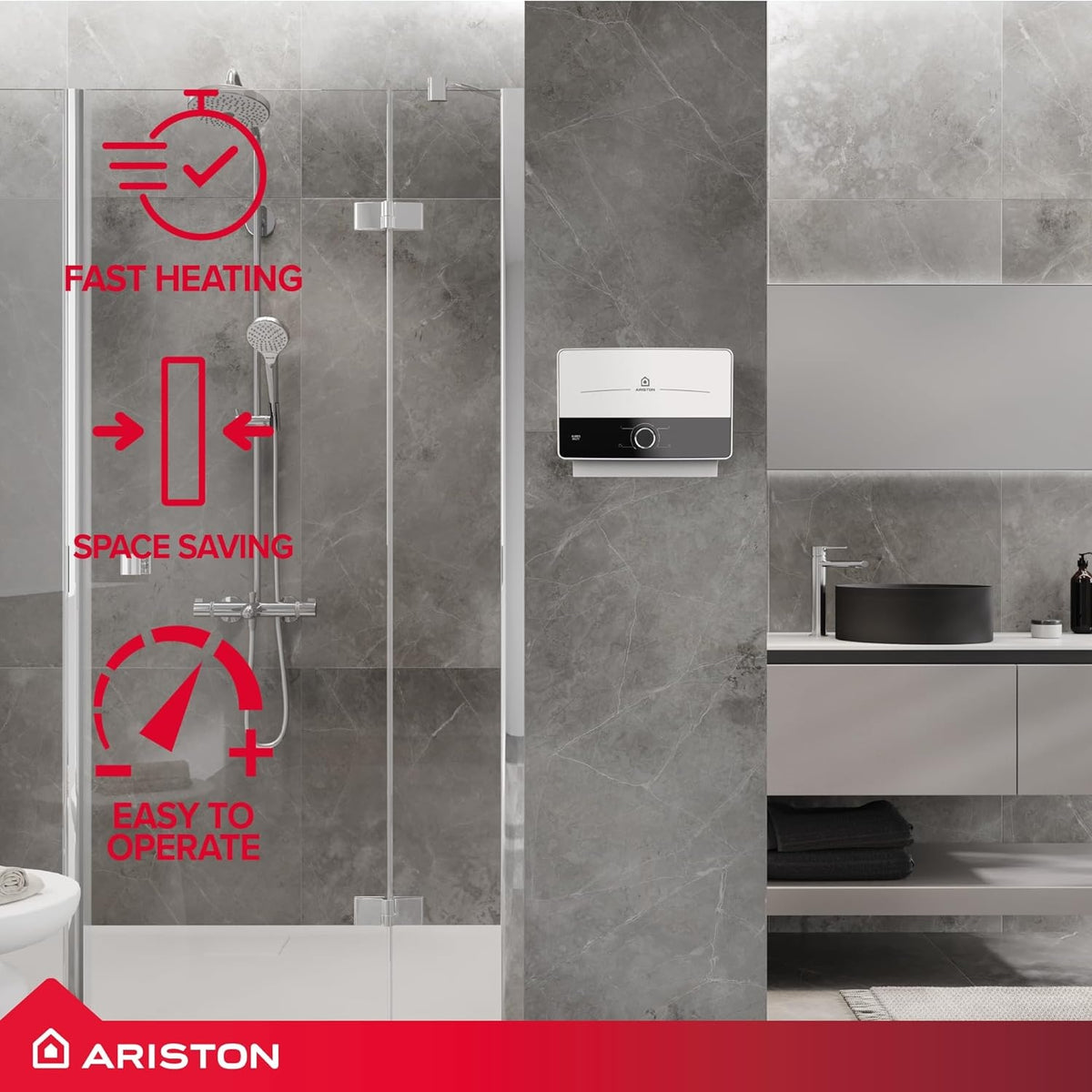

| En-suite / annexe bathroom | ✅ Suitable for wash basin and/or shower (power shower may require higher kW) |
| Garage / workshop sink | ✅ Ideal — no boiler connection required |
| Conservatory / garden room | ✅ Ideal — independent from house hot water system |
| Commercial hand wash (salon, office) | ✅ Suitable for 1–2 hand wash basins (not simultaneously at full temperature) |
| Full domestic bathroom shower | ⚠️ Marginal — 9.5kW at standard mains pressure delivers approx. 2–4 l/min; suitable for an electric shower head but not a high-flow power shower |
| Simultaneous multi-outlet supply | ❌ Not designed for — outlets share flow and temperature drops under simultaneous use |
Technical Specifications
| Specification | Aures Multi 9.5kW Detail |
|---|---|
| MPN | 3195216 |
| Element Rating | 9.5kW total (3kW + 4kW step elements = 3 settings + combined) |
| Power Steps | Off / Low (3kW) / Medium (4kW) / High (7kW) — Note: marketed as 9.5kW total combined element |
| Dimensions (H × W × D) | 220mm × 304mm × 110mm |
| Min Flow Rate | 2.1 l/min |
| Max Working Pressure | 8 bar |
| Max Working Temperature | 55°C |
| IP Protection | IP25 |
| ErP Energy Class | A |
| Tapping Profile | XS |
| Colour | White |
| Electrical Connection | 230V~ (dedicated radial circuit required — 40A minimum recommended for 9.5kW) |
| Safety Features | Double thermal cut-out, ELCB, flow sensor, external pressure relief valve |
| Warranty | 2 years on tank / 1 year electrical components (register within 30 days for extended) |
| Brand | Ariston |
Frequently Asked Questions
What electrical supply does the Aures Multi 9.5kW need?
The Aures Multi 9.5kW requires a dedicated 230V radial circuit, typically protected by a 40A MCB or RCBO (RCD protected). The cable must be sized appropriately for a 9.5kW continuous load — typically 6mm² cable minimum, but this must be confirmed by a qualified electrician for the specific installation. The unit cannot be run from a standard 13A ring main socket. Installation must be carried out or supervised by a qualified electrician in accordance with BS 7671 (IEE Wiring Regulations).
Can the Aures Multi run a shower?
The Aures Multi 9.5kW can supply a shower at moderate flow rates — at 9.5kW and standard UK mains pressure it will deliver approximately 2–4 litres per minute at a comfortable shower temperature (38–42°C), which is similar to a basic electric shower. However, it is not designed or certified as an electric shower unit and is not rated for a power shower (which would typically require 9.5kW or more as a dedicated shower-only device). It is better suited to bath/wash basin or kitchen sink applications, or as a supplementary hot water source for an en-suite hand basin and simple shower combination.
Is the Aures Multi suitable for hard water areas?
Instantaneous water heaters in hard water areas will accumulate limescale on the heating element over time, which can reduce efficiency and eventually lead to failure. In hard water areas, the use of an inline scale inhibitor or water softener upstream of the Aures Multi is recommended to extend service life. Regular descaling as part of periodic maintenance is also advisable in hard water areas.
Does the Aures Multi require a cold water storage tank?
No — the Aures Multi connects directly to the mains cold water supply. No storage tank or header tank is required. Water enters the unit cold and is heated as it flows through the element — an instantaneous (or "tankless") system. This makes it particularly well-suited to modern plumbing systems and direct mains supply installations.
⚠️ Note: Requires a dedicated 230V radial circuit — must be installed by a qualified electrician. Register with Ariston within 30 days of purchase for extended warranty. External pressure relief valve must be connected during installation. Not suitable for simultaneous multi-outlet supply at full temperature. IP25 rated — suitable for Zone 2 bathroom installations. Ariston MPN: 3195216.
- Type Instant Water Heaters
- Vendor Ariston
- SKU 3195216
