Altecnic Robokit 1/2" Sealed System Kit (For 4Ltr to 25Ltr

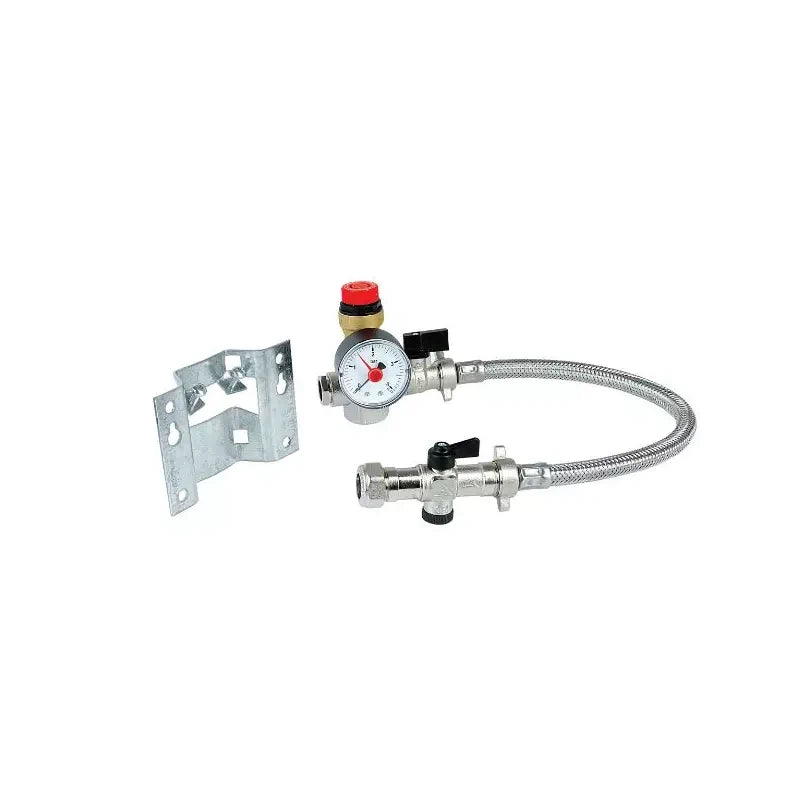

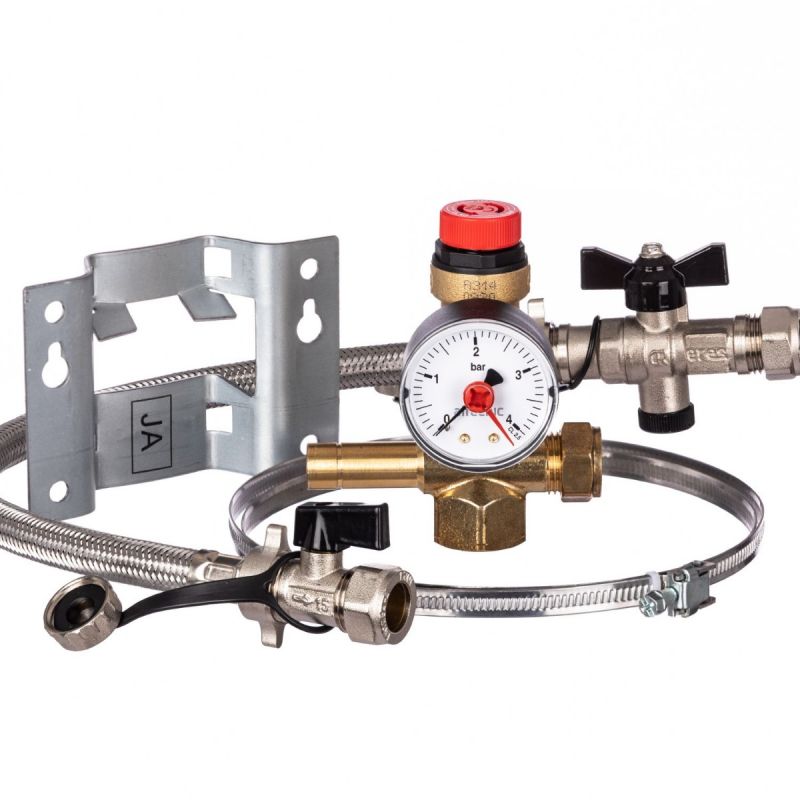

The Altecnic Robokit 1/2" Sealed System Kit (For 4Ltr to 25Ltr) (CA-900000) is a comprehensive sealed system filling kit designed for heating systems with expansion vessels from 4 to 25 litres, including a filling loop, safety relief valve with gauge, mounting bracket, and manifold fitting for compliant and efficient installation.

Product Description

The Altecnic Robokit is a complete kit for sealed heating systems, providing all necessary components for filling, pressure relief, and vessel mounting. It complies with water regulations G24.1 and G24.2, making it suitable for domestic and light commercial applications. The kit simplifies installation and ensures system safety, ideal for use with heating expansion vessels up to 25 litres.

Key Features

• Complete kit: Includes filling loop, safety relief valve with gauge, mounting bracket, and manifold fitting.
• Compliant design: Meets water regulations G24.1 and G24.2 for safety.
• Vessel compatibility: Suitable for 4 to 25 litre heating expansion vessels.
• Easy installation: Pre-assembled components reduce setup time.
• Pressure management: Safety relief valve protects against over-pressure.
• Wall mounting: Bracket for secure vessel fixation.

Technical Specifications

• Model: CA-900000 – Robokit Sealed System Kit 1/2".
• Filling loop: 1/2" connections with check valve.
• Safety relief valve: 3 bar with pressure gauge.
• Mounting bracket: For vessels up to 25 litres.
• Manifold fitting: For 8 to 25 litre vessels.
• Certifications: Compliant with G24.1, G24.2, and CPR.

Dimensions & Weights

• Bracket width: Approx. 200 mm.
• Bracket depth: Approx. 150 mm.
• Bracket height: Approx. 300 mm.
• Weight: ~2 kg (total kit).

System & Application Notes

• Ideal for sealed central heating systems in homes and small commercial properties.
• Compatible with boilers, heat pumps, and underfloor heating.
• Suitable for systems with 4-25 litre expansion vessels.
• Installation by qualified heating engineers; wall mount bracket for vessels.
• Supports system filling, pressure relief, and maintenance.
• Warranty: 2 years.
