Altecnic 519 Auto Bypass Valve ¾" 10-60kPa | 519500 | WRAS

Description

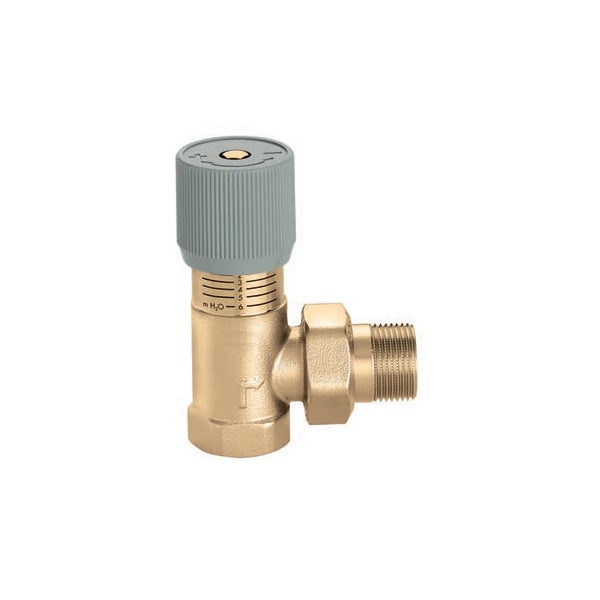

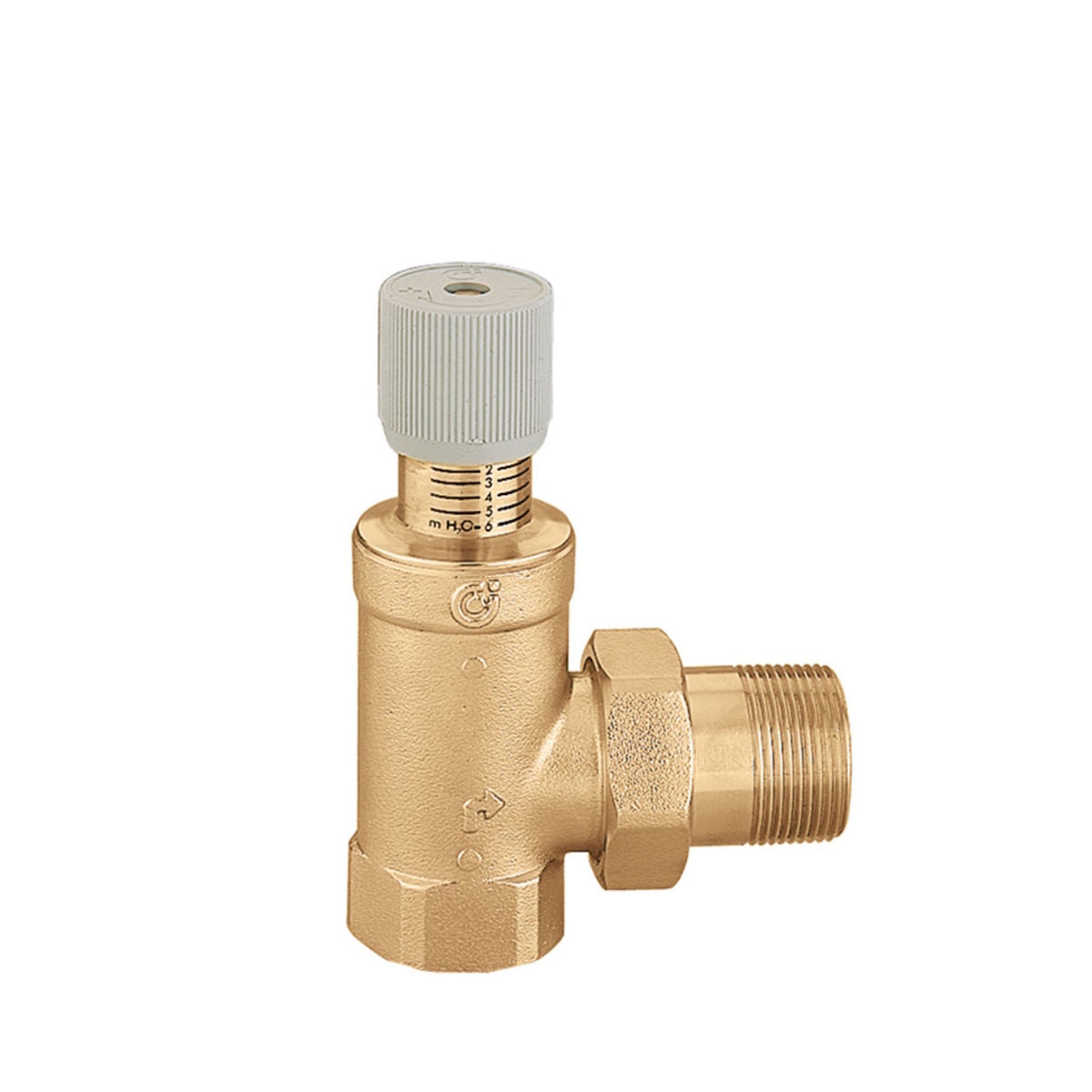

The Altecnic 519 automatic differential bypass valve (519500) with ¾" connections and an adjustable 10 to 60kPa setting range is WRAS approved. Fitted between the flow and return pipes, it opens on rising differential pressure to maintain minimum flow through the heat pump when zone valves or thermostatic radiator valves close.

The stainless steel compression spring is adjusted with the control knob (1 to 6m head) and the setting is locked with a side screw to prevent unauthorised adjustment. The valve has a female threaded inlet and male union outlet, works with water and up to 30% glycol, and can be fitted in any orientation.

10 to 60kPa

Adjustable setting range

¾"

Inlet and outlet

10 bar

Max working pressure

0 to 110°C

Temperature range

30% glycol

Maximum

WRAS

Approved

Check the setting range

This valve covers 10 to 60kPa. Other valves in the 519 range have different sizes and settings, so confirm the code and the differential pressure your system needs before ordering.

Installation

Follow the direction arrow on the body. Only two joints are needed, and the valve can be fitted in any orientation.

Commissioning

Set the differential pressure during commissioning by a competent person, then lock the setting with the locking screw.

Key features

Automatic bypass

Opens on rising differential pressure to keep flow through the heat pump.

Adjustable setting

10 to 60kPa (1 to 6m head) set by the control knob.

Lockable

A locking screw secures the setting against unauthorised adjustment.

WRAS approved

WRAS approved brass construction with EPDM disc facing.

Glycol compatible

Suitable for water and glycol solution up to 30%.

Simple installation

Two joints to make, fitted in any orientation.

Technical specification

General

Parameter

Specification

Brand

Altecnic

Product code

519500

Range

519 Ecopas differential bypass valve

Inlet

G¾ threaded female

Outlet

G¾ threaded male union

Weight

0.45kg

Performance

Parameter

Specification

Medium

Water, glycol solution (max. 30% glycol)

Temperature range

0 to 110°C

Maximum working pressure

10 bar

Setting range

1 to 6m head (10 to 60kPa)

Approval

WRAS approved

Materials and dimensions

Parameter

Specification

Body

Brass, BS EN 12165 CW617N

Disc

Brass, BS EN 12164 CW614N

Disc facing and O-rings

EPDM

Union joint gasket

Asbestos-free NBR

Control knob

ABS polymer

Spring

Stainless steel

Dimensions C / D / E

59 / 26 / 104mm

Frequently asked questions

What does an automatic bypass valve do?

It opens as differential pressure rises so flow can pass between flow and return, keeping the differential pressure at the set value and guaranteeing minimum flow through the heat pump.

What setting range does it have?

10 to 60kPa, equivalent to 1 to 6m head, adjusted with the control knob and locked with the side screw.

Can it be used with glycol?

Yes, with water or glycol solution up to 30% glycol, across a 0 to 110°C temperature range.

Does orientation matter?

No. It can be fitted in any orientation, but flow must follow the direction arrow on the body.

What connections does it have?

A G¾ threaded female inlet and a G¾ threaded male union outlet.
