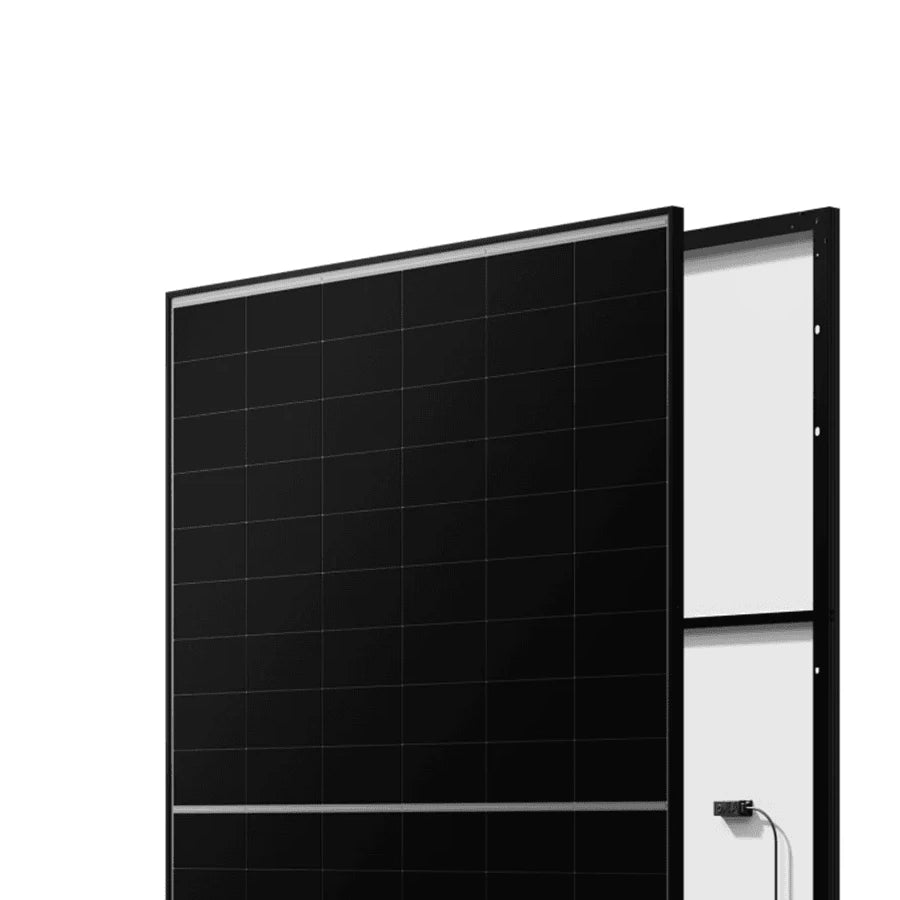

Aiko Nebular 2P 445W, Ultra-lightweight N-Type ABC, 54 Cell, Black Frame
Exc. VAT
Inc. VAT
Regular price
£159.00
(Inc. VAT)
inc. VAT
FREE Express Delivery (1-3 days) in UK Mainland on most orders
Excluding: Solar Panels (£59 delivery), Batteries (£49 delivery), Small Items (£4.95 delivery)
Next Working Day Delivery options if ordered before 12.00 pm — Contact Us
Same-day Delivery options — Contact Us
Click & Collect available — Contact Us
Custom quote available on request
*See checkout or shipping policy for full details
Payment options
AIK-A-MAH54-445-TM | Ultra-lightweight 445W N-Type ABC module with 22.3% efficiency and black frame, ideal for premium residential and commercial rooftops.
Key Features
- 445W rated power with 22.3% module efficiency for high energy yield.
- N-Type ABC (All Back Contact) cells with no front busbars for maximum light capture and sleek aesthetics.
- Lightweight construction at only 8.6 kg, reducing roof load and easing handling.
- 54-cell, black-frame design for a clean, modern look on visible roof areas.
- Excellent temperature coefficient of -0.26%/°C for strong performance in hot conditions.
- Cell-level shade optimisation for improved output under partial shading and low light.
- Long-life design with 15-year product warranty and 30-year performance warranty.
Electrical Characteristics (STC)
| Nominal Power Pmax | 445 W |
| Module Efficiency | 22.3% |
| Voltage at Pmax (Vmpp) | 34.44 V |
| Current at Pmax (Impp) | 12.93 A |
| Open Circuit Voltage (Voc) | 40.88 V |
| Short Circuit Current (Isc) | 14.02 A |
| Max System Voltage | 1500 V DC |
| Pmax Temp. Coefficient | -0.26%/°C |
Mechanical Specifications
| Dimensions (L×W×T) | 1762 × 1134 × 30 mm |
| Weight | 8.6 kg |
| Cell Type / Count | N-Type ABC monocrystalline, 54-cell format |
| Frame | Black anodised aluminium |
| Connector | Staubli MC4-Evo2 |
| Cable Length | Approx. 1.2 m |
| Clamp Zones | Long and short side mounting |
Reliability & Warranty
- Product warranty: 15 years (AIKO residential 54 black modules range).
- Performance warranty: 30 years with extended power output guarantee (low annual degradation).
- MCS certified (e.g. reference R 50638450 0001/076) for UK installations.
- Tested for PID, salt mist, ammonia, dust and sand for long-term durability.
MPN: AIK-A-MAH54-445-TM
Model: Nebular 2P 445W N-Type ABC 54 Cell Black Frame
Award-winning lightweight N-Type ABC module combining top-tier efficiency, elegant black-frame aesthetics and advanced shade tolerance, ideal where roof load, performance and appearance all matter.
- Type Solar
- Vendor Aiko Solar
- SKU AIK-A-MAH54-445-TM
