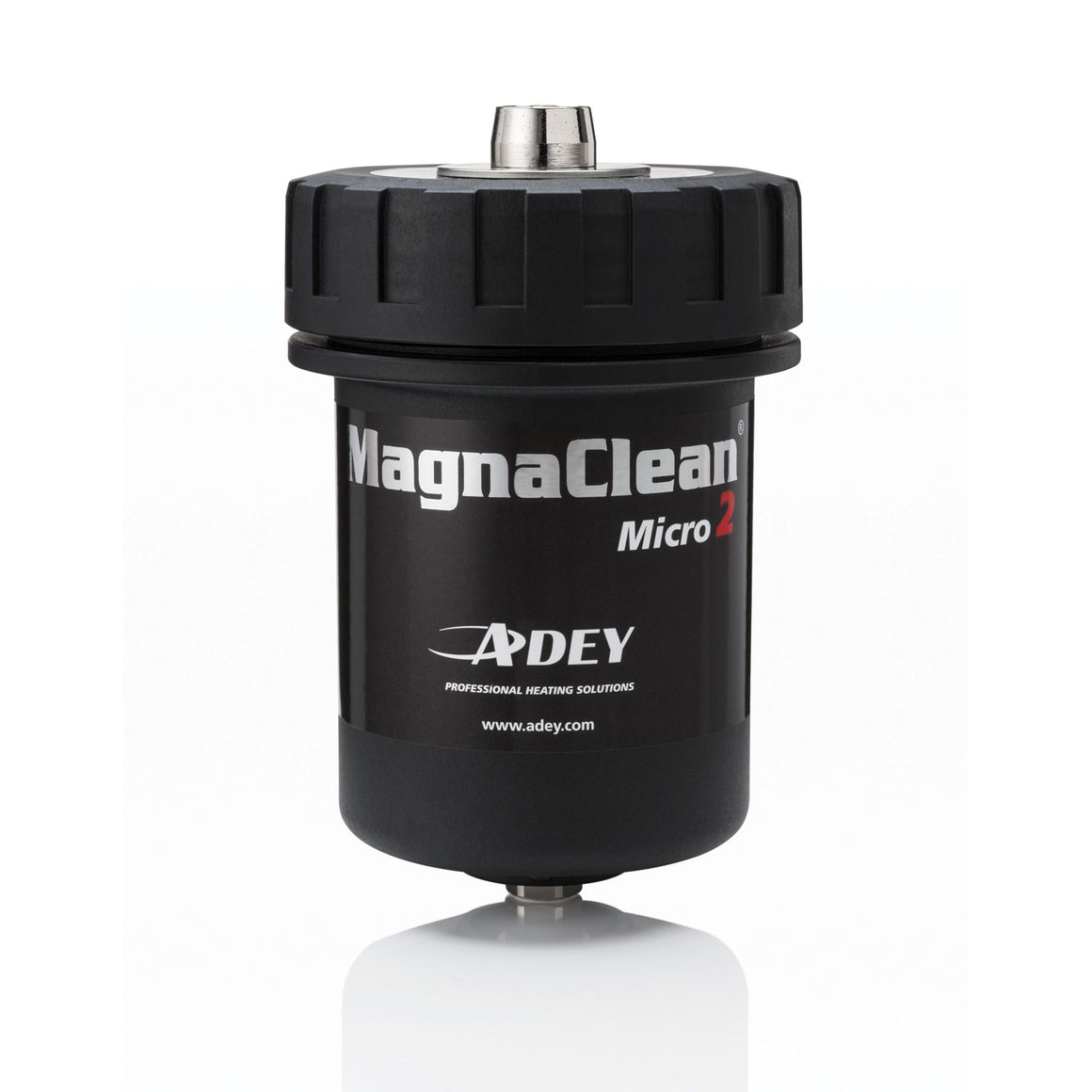

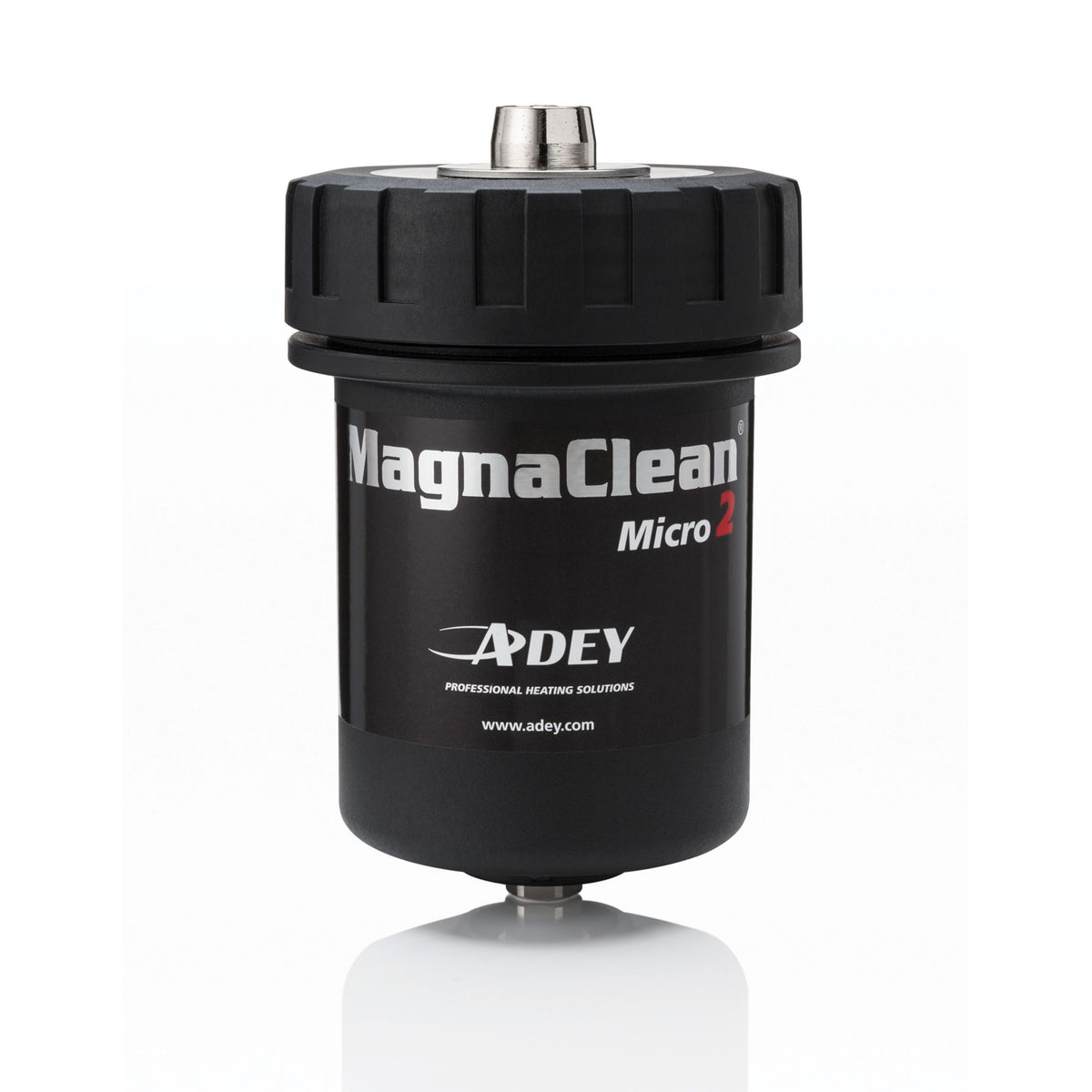

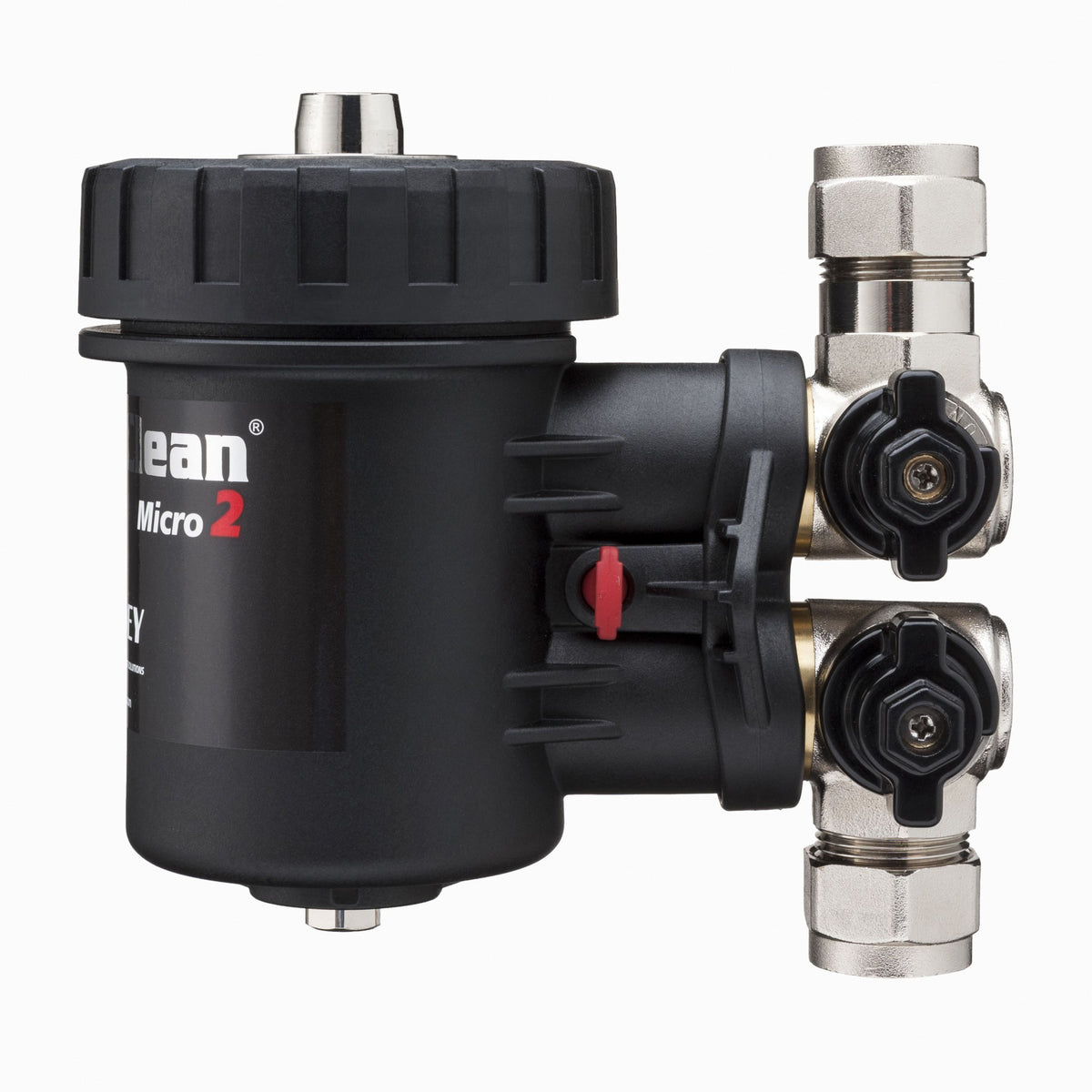

ADEY MagnaClean Micro2 22mm System Filter
Couldn't load pickup availability
Payment details
ADEY MagnaClean Micro2 22mm System Filter
The MagnaClean Micro2 is ADEY’s smallest and most compact magnetic filter, designed specifically for smaller domestic central heating systems such as apartments, flats, and small bungalows. Despite its compact size, it delivers exceptional protection by removing virtually 100% of black iron oxide sludge and non-magnetic debris, helping to extend boiler life, reduce maintenance costs, and improve heating efficiency.
Key Features
- Smallest installation and servicing height in the industry – ideal for tight spaces
- Compact in-line design allows installation in just a couple of minutes
- High-performance magnetic and dual non-magnetic debris chambers for thorough filtration
- Twin reverse flow maximises debris capture for improved system protection
- Low-profile drain valve for easier servicing and chemical dosing
- Speed-fit connectors for faster installation and servicing
- Improved valves and high-performance seals for greater reliability and leak prevention
- Multiple installation options – horizontal or vertical pipework
- Air vent assembly included for quick air removal
Customer Benefits
- Immediate and ongoing system protection against damaging sludge
- Helps reduce heating bills by up to 6% annually through improved efficiency
- Reduces maintenance costs by up to 33%
- Extends the operational life of your heating system
- No ongoing running costs
- Helps reduce carbon emissions
Technical Specifications
| Filter Model | MagnaClean Micro2 |
|---|---|
| Connection Size | 22mm compression |
| Maximum Working Pressure | 6 bar |
| Maximum Working Temperature | 95°C |
| Maximum Flow Rate | 50 litres/minute |
| Canister and Lid Material | Glass-reinforced nylon |
| Magnet Housing | Stainless steel |
| Magnet Length | 97.5 mm |
| Magnet Diameter | 19 mm |
| Fluid Capacity | 250 ml |
| Valve Material | Nickel plated brass with PTFE seals |
| Thread Interface | M6 (bleed valve), M8 (drain plug) |
| Flow Configuration | Bi-directional (either port can be inlet) |
| Height Required for Servicing | Smallest in the industry |
| Warranty | 1 year (subject to manufacturer’s terms and conditions) |
| EAN | 5060106370563 |
Installation Advice

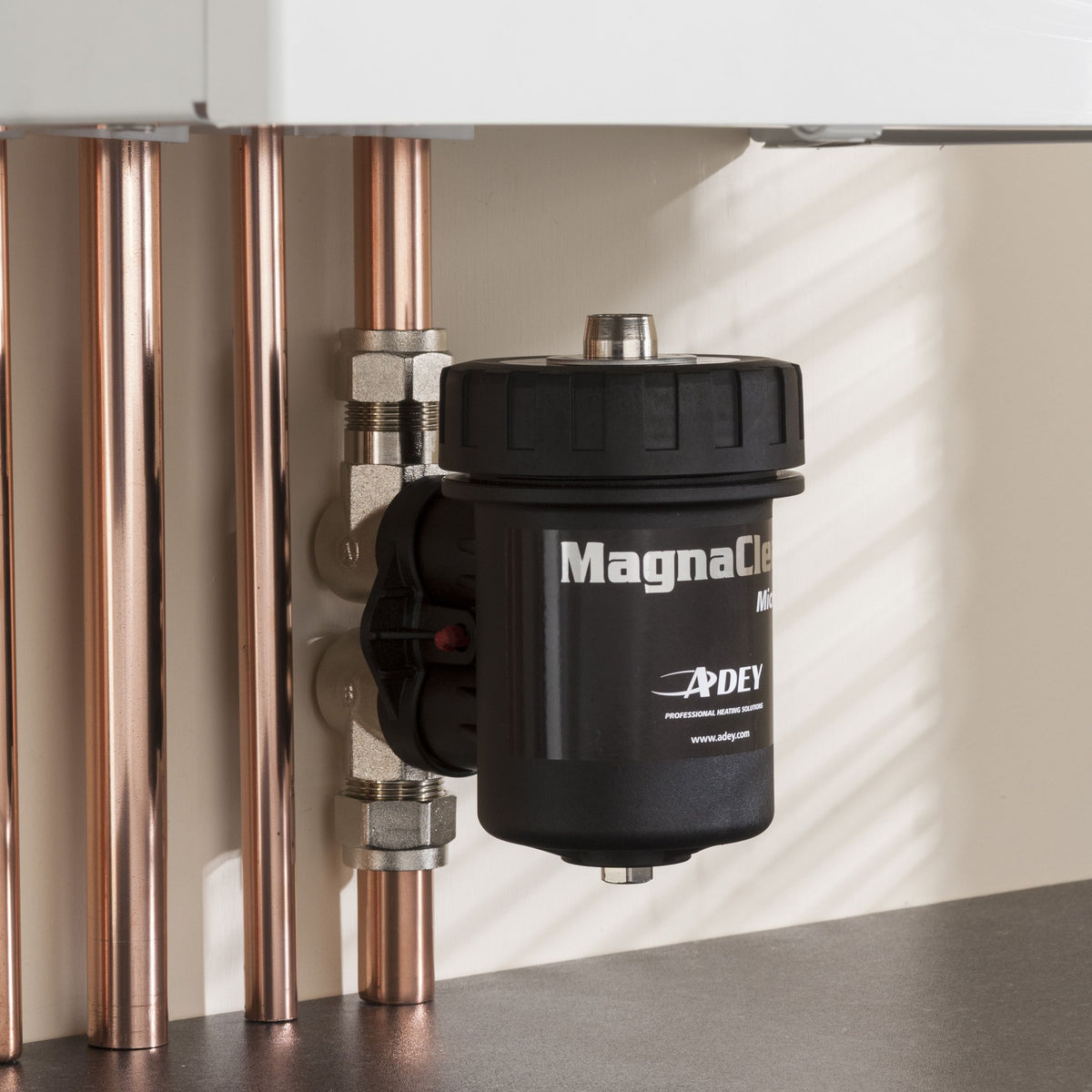

The MagnaClean Micro2 is designed for rapid, in-line installation with multiple orientation options to suit your pipework layout. Its compact size makes it perfect for installations where space is limited. For best results, it is recommended to use alongside ADEY MC1+ Protector chemical and to perform a system clean if the system is dirty before installation.
Protect your smaller heating system effectively with the ADEY MagnaClean Micro2 – compact, powerful, and reliable.
- Type Boiler filters
- Vendor ADEY
- SKU MICROMAG2
