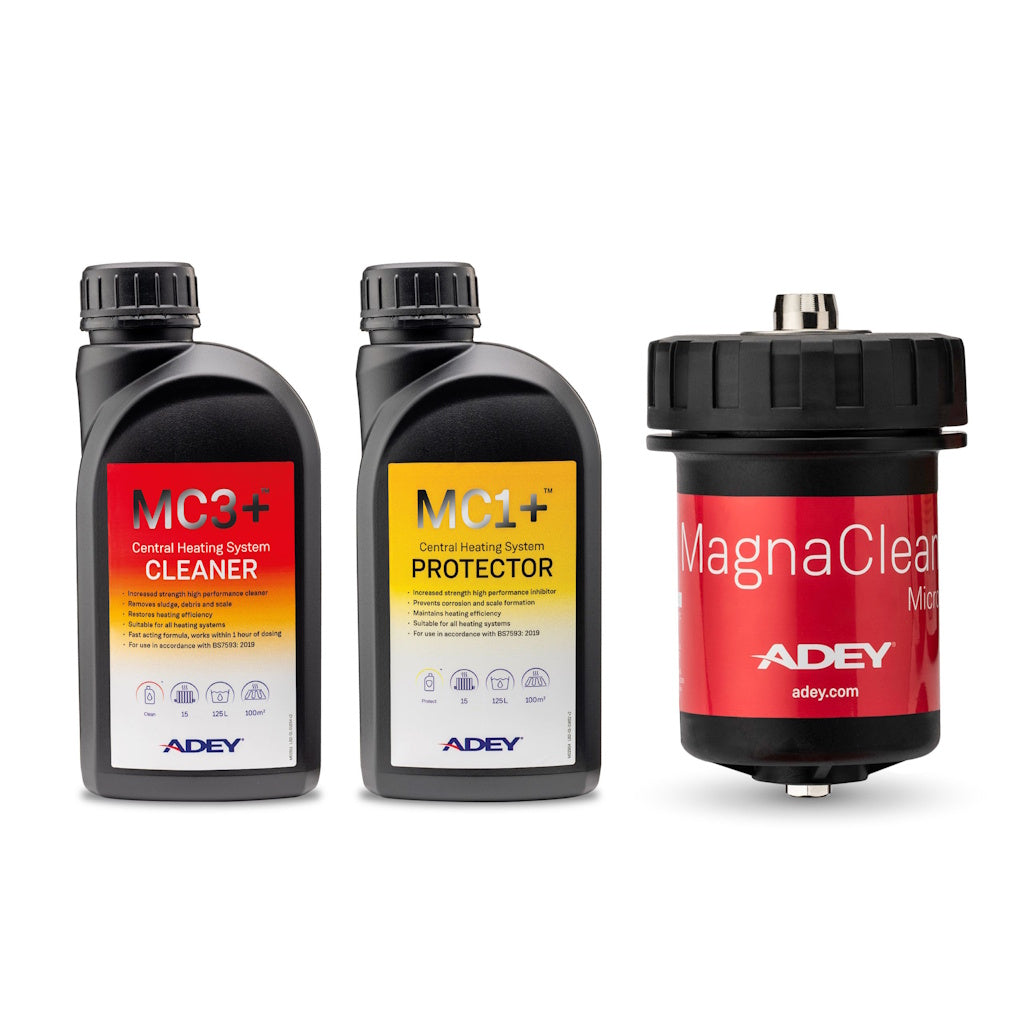

The Adey MagnaClean Micro 22mm Filter & Chemical Kit (FL1-03-07526) pairs Adey’s compact MagnaClean Micro magnetic filter with a 500ml bottle each of MC1 Protector and MC3 Cleaner (supplied as MC1P and MC3P), giving you everything needed to clean and protect a new or existing 22mm heating system in one pack.
The Micro is built for tight installations: a 98mm pipe cut-out, in-line 360° rotational valves with slip-coupling sockets, built-in vent and drain points and magnetic and non-magnetic debris capture. A fully removable canister lets you take out captured magnetite completely, and the filter is fully compatible with ADEY MagnaCleanse for a faster hot flush with the boiler in place.
22mm
Compression inlet/outlet
50 L/min
Maximum flow rate
95°C
Maximum water temperature
2 x 500ml
MC1 + MC3 chemicals
Clean first, then protect
Clean the system as recommended in BS 7593 using MagnaCleanse and MC3 Cleaner, fit the filter, then dose MC1 Protector for ongoing protection. Each 500ml bottle treats up to 125 litres or 15 single panel radiators. MC3 starts working within about an hour and can stay in the system for up to 28 days.
Compatibility notes
This kit contains the MagnaClean Micro (22mm). Fit it on the return pipe where possible, indoors only; it is not suitable for external use. MC1 and MC3 are not for single feed indirect (prismatic) cylinders, and chemical doses need adding in proportion to larger systems.
Safety and installation
Adey recommends installation by a qualified heating engineer, following relevant electrical and safety standards. The chemicals are non-hazardous, but avoid contact with eyes and skin and keep them out of reach of children. Store the pack dry and frost-free in its original packaging until fitted.
Key features
Compact 22mm footprint
Only a 98mm pipe cut-out with a filter height of 150mm and width of 80mm, so it fits boiler cupboards and other tight spaces.
In-line 360° rotational valves
Slip-coupling sockets and valves that rotate through 360° give multiple orientations for faster, simpler installation and retrofit. Valve bodies are nickel-plated brass with long-life PTFE ball seals.
Magnetic and non-magnetic capture
A 97mm x 19mm magnet captures magnetite, while the canister also traps non-magnetic debris. The fully removable canister stops captured magnetite re-entering the system.
Built-in vent and drain
An air bleed valve on top and a drain plug below make venting, draining and flushing quick, with just 30mm servicing clearance above and below.
MagnaCleanse compatible
Stays fully compatible with ADEY MagnaCleanse, so you can hot flush the system with the existing boiler in place.
Chemicals included
MC1 Protector guards against corrosion and scale, and MC3 Cleaner removes sludge, debris and fluxes. Both treat 125 litres or 15 single panel radiators per bottle.
Specifications
Product
Range
MagnaClean Micro Chemical Pack
Manufacturer part code
FL1-03-07526

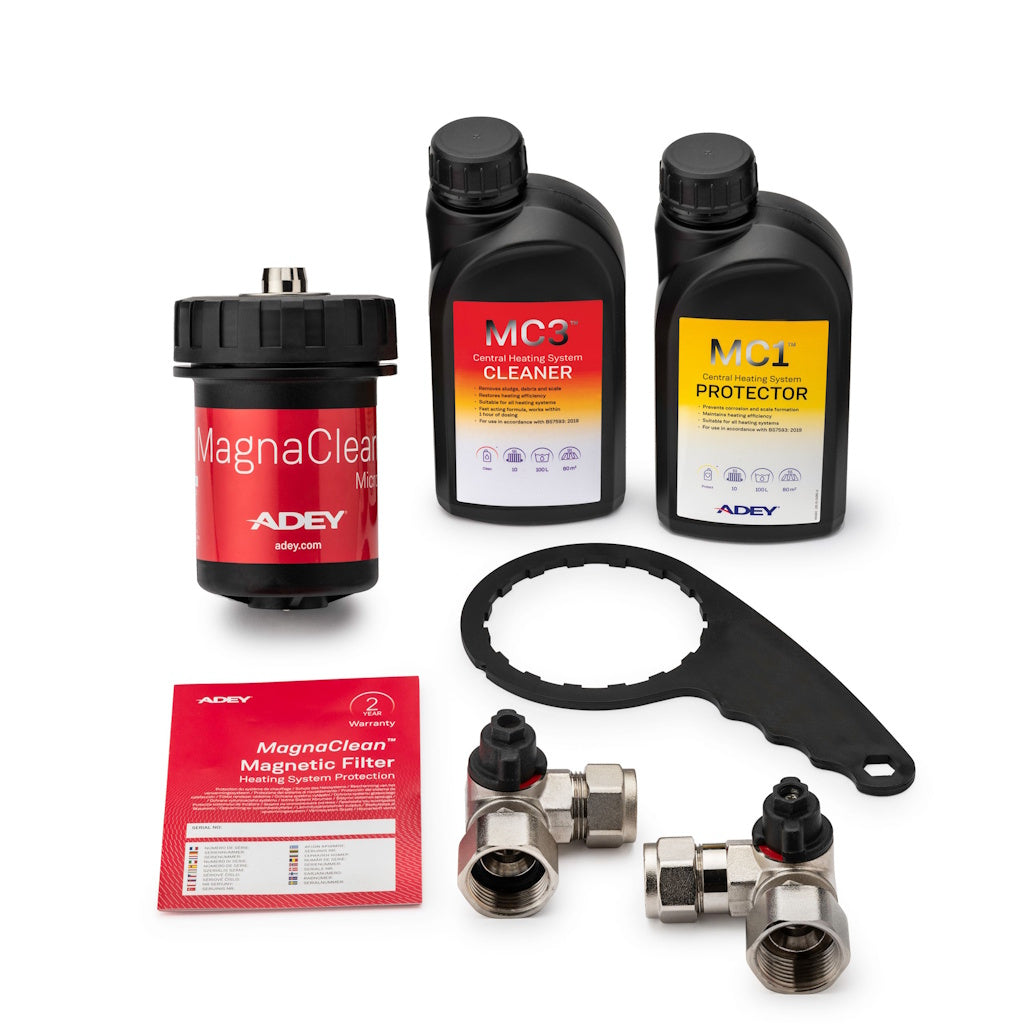

Kit contents
MagnaClean Micro magnetic filter, MC1 Protector 500ml (MC1P), MC3 Cleaner 500ml (MC3P)
Packaging
Packed with all components included
Filter performance
Inlet / outlet
22mm compression
Maximum flow rate
50 L/min
Water operating temperature
3°C to 95°C
Operating pressure
Up to 5 bar
Flow configuration
Directional inlet on bottom port
Installation
Indoors only; fit in-line on the return pipe where possible
Dimensions
Depth from pipe centre
138mm
Servicing clearance
30mm above (air vent) and 30mm below (drain plug)
Materials
Canister and threaded ring
Glass-reinforced polymer, black
Valve body
Nickel-plated brass
Valve seals
Long-life PTFE ball seals
O-rings and canister seal
EPDM
Magnet
97mm long x 19mm diameter
Air bleed valve
Nickel-plated brass, M6 thread, EPDM seals
Drain port
Nickel-plated brass, M8 plug thread, EPDM seals
Chemicals (500ml each)
MC1 Protector
Yellow liquid, pH 8.0; corrosion and scale inhibitor for sealed and open-vented systems
MC3 Cleaner
Brown liquid, non-hazardous cleaner; removes sludge, debris and fluxes; max 28 days in system
Dose
500ml of each treats up to 125 litres or 15 single panel radiators
Warranty
Warranty
2 years when registered within 30 days of installation
Frequently asked questions
What is included in the kit?
The kit includes the MagnaClean Micro 22mm magnetic filter, a 500ml bottle of MC1 Protector and a 500ml bottle of MC3 Cleaner, packed with all components included.
Where should the MagnaClean Micro be fitted?
Adey recommends fitting it in-line on the return pipe. If that is not available, alternative locations are given in the installation guide. It must always be installed indoors.
Can I use it with a MagnaCleanse flush?
Yes. The Micro remains fully compatible with ADEY MagnaCleanse, allowing a faster and more efficient hot system cleanse with the existing boiler in place.
How much system does one kit cover?
Each 500ml bottle of MC1 and MC3 treats up to 125 litres or 15 single panel radiators. For larger systems you will need additional bottles in proportion to system volume.
How long can MC3 Cleaner stay in the system?
MC3 starts to work within about an hour and can be left in for up to a maximum of 28 days. Raising the system water temperature improves its performance.
How do I service the filter?
Use the built-in vent and drain points to isolate, drain and vent, then remove the canister to clear captured magnetite. MC1 levels should be checked at the annual system service.
