160mm Equal Tee Piece Galvanised Spiral Duct SPIRT160

AIZO - Quality Heating
£79.00 Inc. VAT £65.83 Exc. VAT
  • FREE Express Delivery (1-3 days) in UK Mainland on most orders
  • Excluding: Solar Panels (£170 delivery / free above £2,500), Batteries (£49 delivery), Small Items (£4.95 delivery / free above £500)
  • Contact Us to check for Next Working Day Delivery or Same-day Delivery options
  • Contact Us for Click & Collect options
  • Custom quote available on request
*See checkout or shipping policy for full details

Payment options

  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Do you have a question
about this product?

One of our expert advisors will be happy to help you!

Contact Us
Question Image

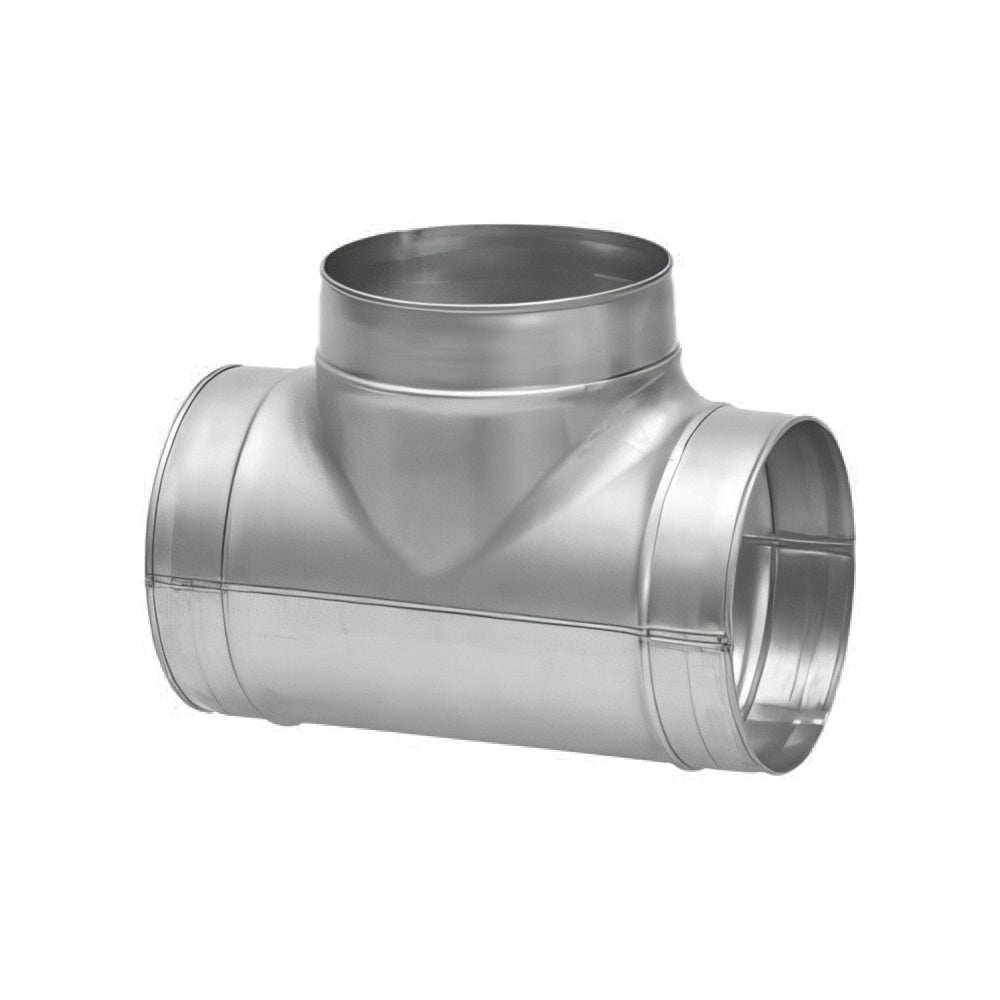

The SPIRT160 is a 160mm equal tee piece for galvanised spiral ducting, providing a three-way branch connection in a 160mm metal duct system. All three ports are 160mm and male, allowing the fitting to slip directly into the female ends of SPIR160 duct lengths. Manufactured from galvanised steel to DW144 specification, the equal tee is the key fitting for branching a main duct run into two directions, or combining two branches into one — commonly used in MVHR, MEV, and general extract distribution systems.

160mm
All Three Ports
Equal Tee
3-Port Branch
Male
All Ports
Galvanised Steel
Material
DW144
Manufacturing Spec
Airflow Balancing: When branching a duct run with an equal tee, airflow divides between the two branch legs according to their relative resistance. Account for this in your system design, and use balancing dampers at branch terminals if precise flow distribution is required.
Connecting to Duct Lengths: Each 160mm port on the SPIRT160 is male and slips directly into the female end of a SPIR160 duct length — no separate connector is needed at this joint. Secure with self-drilling screws or rivets and seal as required.
Key Features
Three-Port Equal Branch
Provides a 1-into-2 or 2-into-1 duct split in a single galvanised fitting — the standard component for branching a 160mm spiral duct run.
All-Male Spigot Construction
All three 160mm ports are male, slipping directly into the female ends of SPIR160 duct lengths for a fast, tool-minimal connection at each port.
Galvanised Steel to DW144
Manufactured from galvanised steel to HVCA/BESA DW144 specification, matching the corrosion resistance and structural standard of the rest of the 160mm range.
Bidirectional Use
The equal tee can be used to split one run into two, or combine two runs into one, depending on the direction of airflow in your system design.
MVHR & MEV Branch Point
A core fitting for multi-room MVHR distribution and centralised MEV systems, where a main spine duct branches to serve individual room terminals.
System-Wide Compatibility
Compatible with all 160mm galvanised spiral components — straight duct, bends, reducers, connectors, and insulated flexible hose via worm-drive clips.
Specifications
Reference SPIRT160
Diameter 160 mm (all three ports)
Configuration Equal tee — 3 × 160mm male ports
Material Galvanised mild steel
Manufacturing Standard HVCA / BESA DW144
Fixing Method Self-drilling screws or pop rivets at each port
Use With SPIR160 duct lengths and 160mm spiral fittings range
Frequently Asked Questions
Can the equal tee be used to combine two duct runs into one?
Yes. The SPIRT160 is symmetrical and can function as either a 1-into-2 splitter or a 2-into-1 collector, depending on which direction air flows through the system.
Does the tee come with connectors for the duct joints?
No — each port is male and inserts directly into the female end of a SPIR160 duct length, so no separate connector is required at a tee-to-duct joint. Connectors (SPIRC160) are only needed for duct-to-duct (female-to-female) joints.
How is the joint secured and sealed?
Once the male port is inserted into the female duct end, secure with self-drilling screws or pop rivets through the overlap, then seal with foil tape or duct sealant if a higher airtightness class is required.
Is there a reducing tee available if my branch is a different diameter?
The SPIRT160 is an equal tee — all three ports are 160mm. If your branch run needs to step down to a smaller diameter, fit a separate reducer (e.g. VEL12/0016 for 160mm to 150mm) on the branch port after the tee.
