15mm Inline Electrolytic Scale Reducer | SI15HAV | WRAS

Description

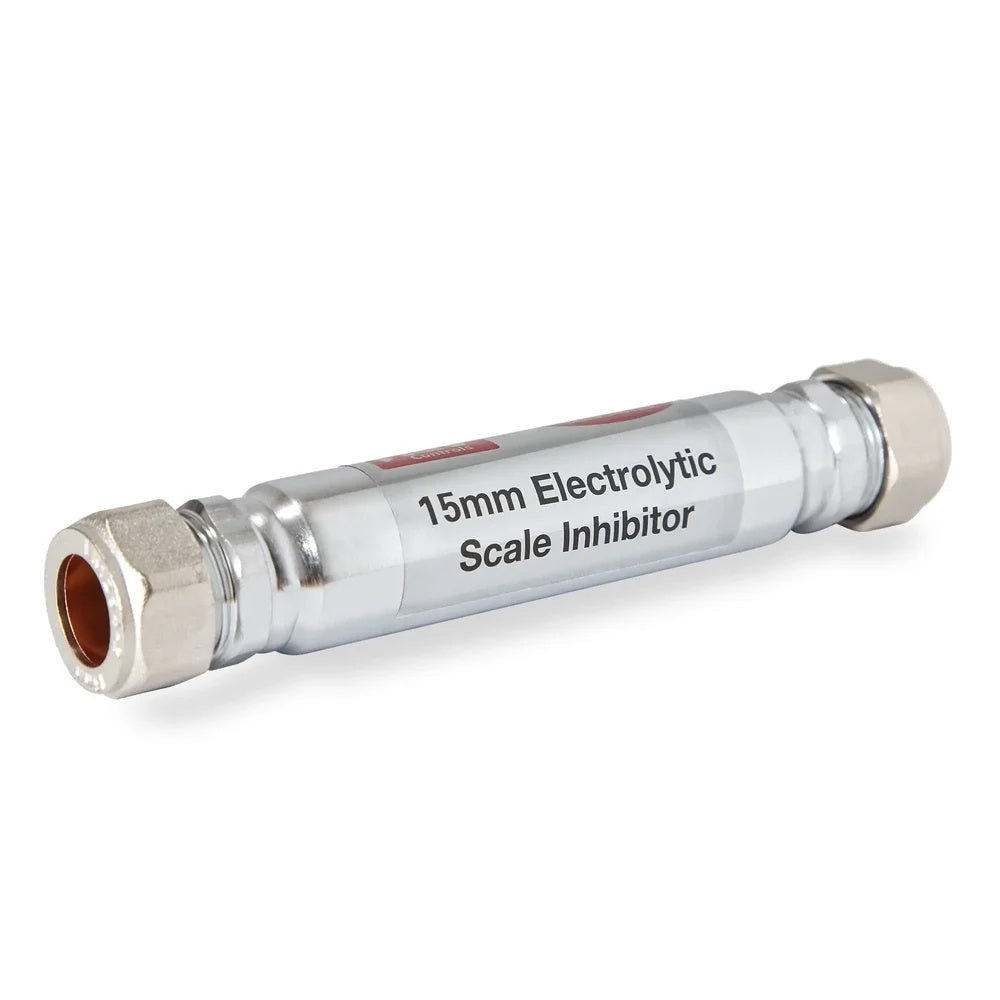

The Calmag SI15HAV is a 15mm inline electrolytic scale reducer that helps prevent limescale build-up throughout a home plumbing system. Using electrolytic principles, it changes how the hardness minerals in the water behave so scale is far less inclined to stick to the inside of pipes and appliances. Once fitted, it needs no electricity supply, batteries, magnets or salt, so there is nothing to top up and no ongoing running cost.

Built with a full metal, nickel-plated body and 15mm compression connections, it is a compact, WRAS approved addition to the cold water supply for whole house protection in hard water areas. It is made in Great Britain and gives up to 10 years of service life, depending on local water hardness.

15mm

Bore and compression ends

12 bar

Max working pressure at 30°C

Up to 10 yrs

Service life

Zero

Power, chemicals or salt

WRAS

Approved for potable water

Made in GB

Full metal nickel-plated body

Scale reducer, not a water softener

Electrolytic scale reducers do not soften water. They induce coagulation of the hardness minerals while the overall hardness stays constant. Any scale that does form is less tenacious and easier to remove from showerheads, taps and kettle elements.

Cold water supply installation

This unit is rated for a maximum working pressure of 12 bar at 30°C. Fit it on the cold water supply, not on hot water or heating circuits.

Installation and regulations

Fit in line with good plumbing practice and the Water Supply (Water Fittings) Regulations. Check for leaks and correct operation on commissioning.

Key Features

Electrolytic Scale Control

Alters the way hardness minerals behave so scale does not bake onto pipe walls and appliance surfaces.

No Power, No Maintenance

No electricity, batteries, magnets, salt or chemicals and no moving parts. Fit it once and leave it working.

No Earth Bonding Required

Unlike some scale inhibitors, there is no earth bonding or earth bond strap needed, which keeps installation quick and simple.

Full Metal Nickel-Plated Body

A durable nickel-plated full metal body with hexagon supports at both ends makes it easier to hold and tighten during fitting.

15mm Compression Connections

15mm compression fittings and a 15mm internal bore suit standard 15mm pipework with no adaptors.

Whole House Protection

Helps protect boilers, showers, kettles and appliances from scale, keeping the water potable and the unit WRAS approved.

Technical Specification

General

Manufacturer

Calmag

Model / MPN

SI15HAV

EAN

5060055232851

Product type

Inline electrolytic scale reducer

Country of manufacture

Great Britain

Performance

Internal bore

15mm

Connection

15mm compression

Max working pressure

12 bar at 30°C

Service life

Up to 10 years (2 to 10 years depending on local water hardness)

Power / chemicals

None required

Earth bonding

Not required

Construction and Approvals

Body

Full metal, nickel plated

Length

130mm

Diameter

25mm

Water regulations

WRAS approved

Frequently Asked Questions

Does this scale reducer soften my water?

No. It is a scale reducer, not a water softener. The hardness of the water stays the same, but the scale that forms is softer and far less likely to stick to pipes and heating elements.

Does it need power or earth bonding?

No. It needs no electricity, batteries, magnets or salt and no earth bonding. It also has no moving parts and needs no routine maintenance.

Can I fit it on the hot water pipe?

No. It is rated at 12 bar at 30°C, so it should be installed on the cold water supply only.

How long does it last?

Service life is up to 10 years, typically between two and ten years depending on local water hardness. When the internal anode is spent the conditioning effect fades and the unit should be replaced.

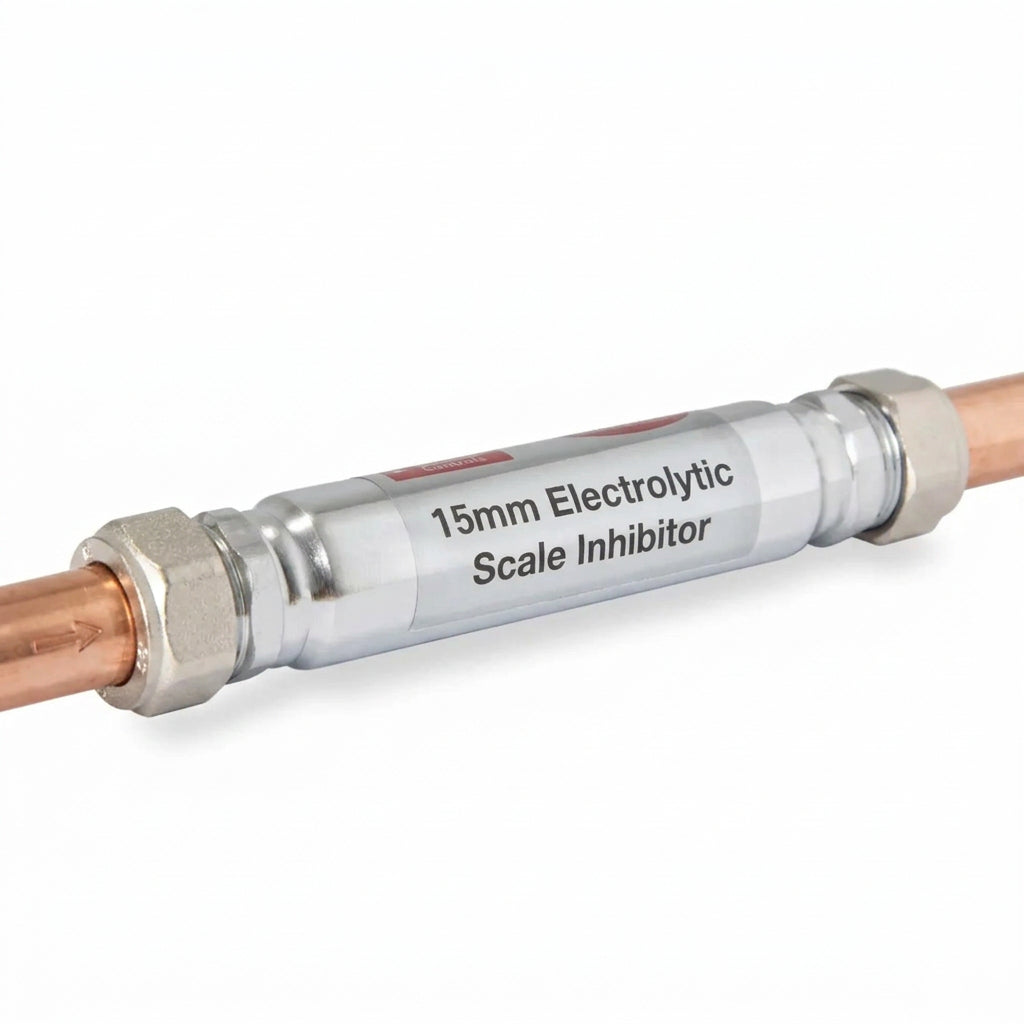

How do I fit it?

Turn off and drain the relevant pipework, cut the pipe to suit the unit length (130mm), then tighten the 15mm compression fittings to make a seal. Re-open the supply slowly and check for leaks.
