Red Solar PV DC Cable 4/6/10mm² | H1Z2Z2-K | 1500V DC

Description

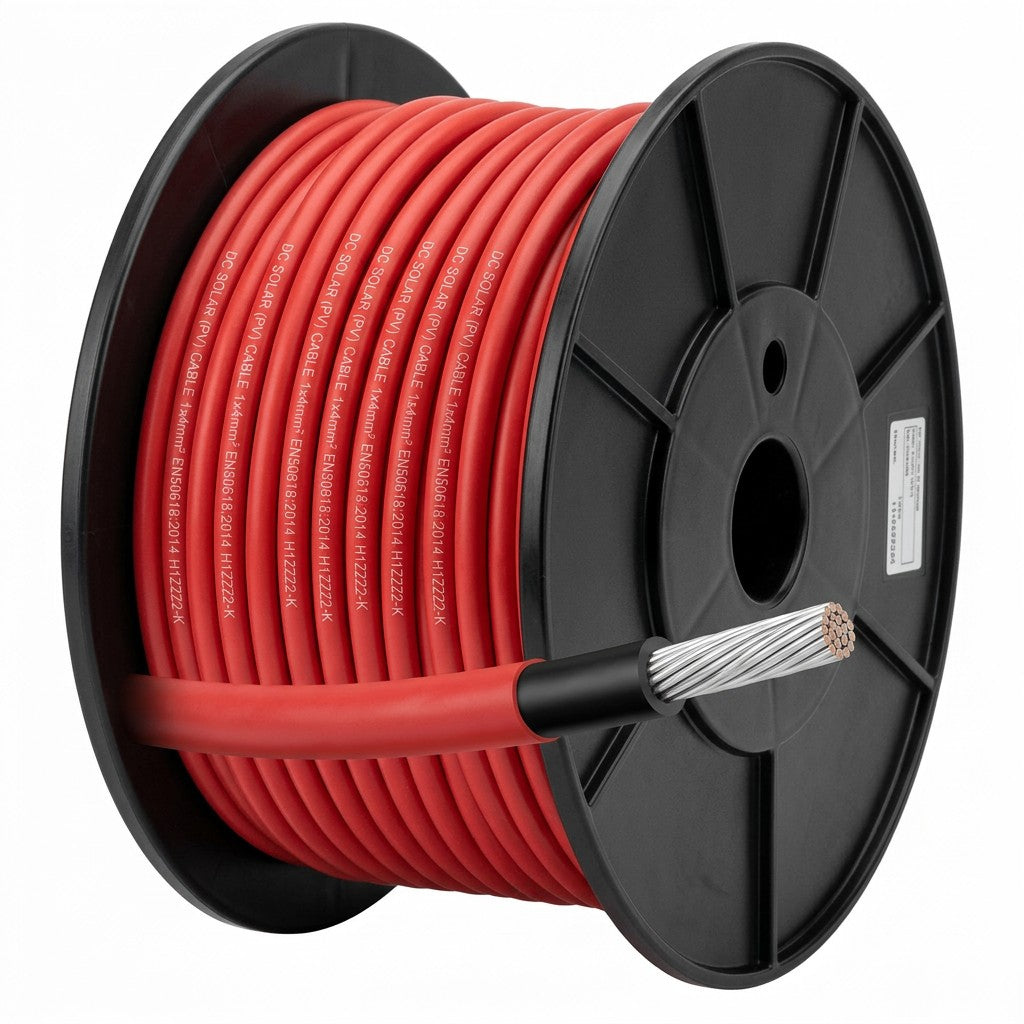

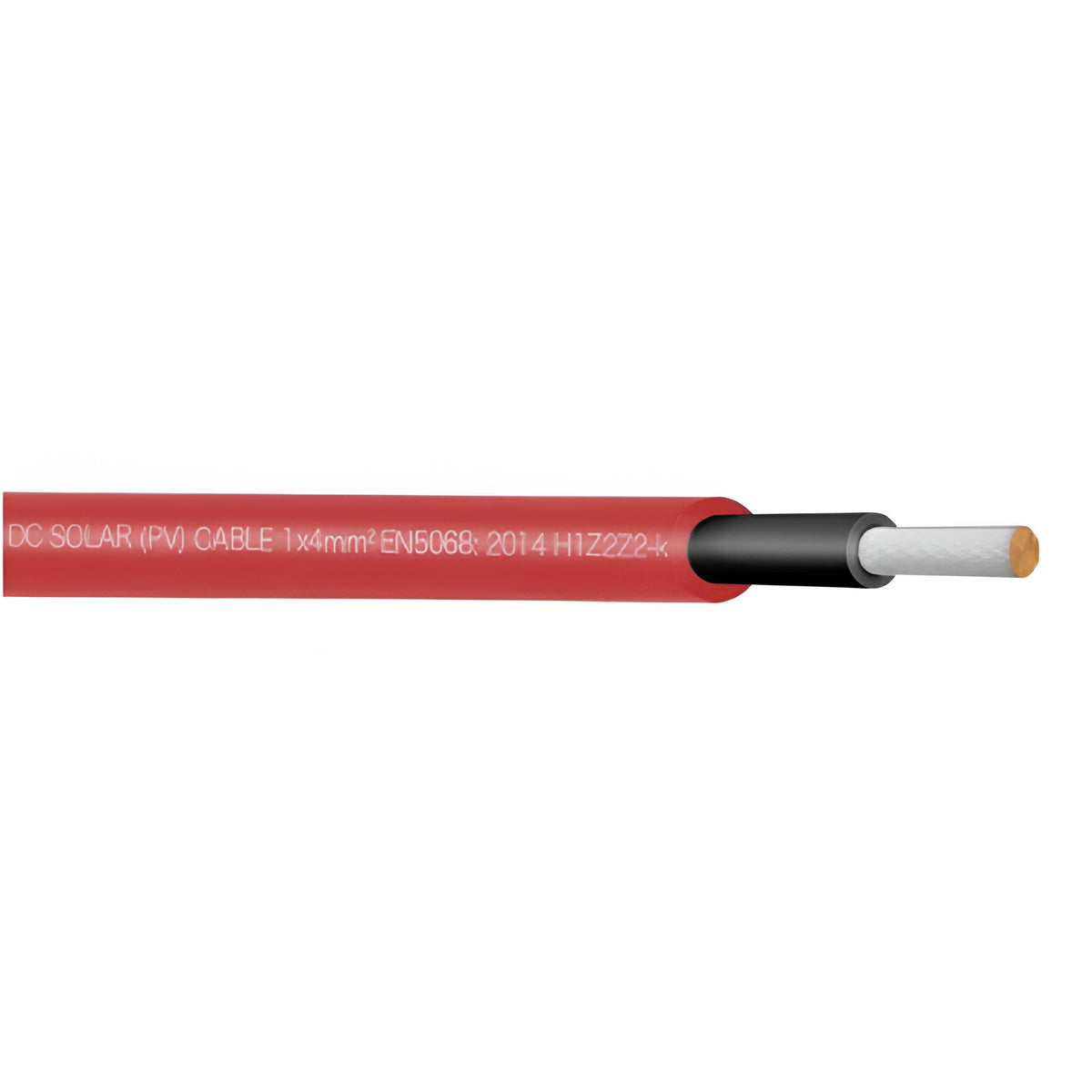

Single-core Kuka H1Z2Z2-K red solar PV DC cable for connecting PV modules to each other and to the inverter or DC main cable. Built from class 5 flexible tinned copper with electron-beam cross-linked XLPO insulation and sheath, it is TÜV approved to EN 50618 and rated for 1500V DC systems. The red sheath makes positive runs easy to identify on site, and the cable is supplied on 100m and 500m reels in 4mm², 6mm² and 10mm² cross-sections.

The cable is halogen free, low smoke and flame retardant, so it does not give off halogen-based toxic emissions in a fire, and it is UV, ozone and weather resistant for long outdoor runs on roofs and ground-mount arrays. Choose your cross-section and reel length from the options on this page.

1500V DC

Rated voltage

-40 to +90°C

Operating temperature

+120°C

Max. conductor temperature

4 / 6 / 10mm²

Cross-sections

100m / 500m

Reel lengths

Halogen free

Low smoke, flame retardant

Safety and compliance

PV DC circuits stay live whenever the modules are exposed to light. Installation, cable sizing and protection must be carried out by a competent person in line with BS 7671 and the system design. Always check voltage drop and apply the correct installation-condition derating for your cable route.

Matching connectors

Use PV connectors rated for the cable cross-section and outer diameter you select, and keep the same connector type and manufacturer on both halves of each mated pair.

Key features

Tinned class 5 copper

Flexible stranded tinned copper to IEC 60228 class 5 for easy routing and corrosion-resistant terminations.

Cross-linked XLPO

Electron-beam cross-linked XLPO on both insulation and sheath for a tough, double-layer build.

1500V DC rated

TÜV EN 50618 H1Z2Z2-K cable rated 1.5kV DC, with a maximum permitted 1.8kV DC.

Outdoor durable

UV, ozone and weather resistant (EN 50289-4-17, EN 50396), built for long-term outdoor exposure.

Fire performance

Halogen free, low smoke and flame retardant (EN 60754-1, EN 60332-1-2).

Wide temperature range

Operates from -40°C to +90°C, with +120°C at the conductor and 250°C short-circuit capability for 5s.

Available variants

Variant

Cross-section

Reel length

Outer diameter

Current rating

Red 4mm² Solar PV DC Cable, 100M Reel

4mm²

100m

5.6mm

55 A

Red 4mm² Solar PV DC Cable, 500M Reel

4mm²

500m

5.6mm

55 A

Red 6mm² Solar PV DC Cable, 100M Reel

6mm²

100m

6.1mm

70 A

Red 6mm² Solar PV DC Cable, 500M Reel

6mm²

500m

6.1mm

70 A

Red 10mm² Solar PV DC Cable, 100M Reel

10mm²

100m

7.5mm

98 A

Red 10mm² Solar PV DC Cable, 500M Reel

10mm²

500m

7.5mm

98 A

Technical specification

Construction

Parameter

4mm²

6mm²

10mm²

Conductor

Class 5 flexible tinned copper (IEC 60228)

Class 5 flexible tinned copper (IEC 60228)

Class 5 flexible tinned copper (IEC 60228)

Cross-section

4mm²

6mm²

10mm²

Stranding

56 × 0.29mm

84 × 0.285mm

142 × 0.285mm

Conductor diameter

2.6mm

3.0mm

4.4mm

Insulation

XLPO, e-beam cross-linked, 0.7mm, black

XLPO, e-beam cross-linked (LSHF), 0.7mm, black

XLPO, e-beam cross-linked (LSHF), 0.7mm, black

Outer sheath

XLPO, e-beam cross-linked, 0.8mm, red

XLPO, e-beam cross-linked (LSHF), 0.8mm, red

XLPO, e-beam cross-linked (LSHF), 0.8mm, red

Overall diameter

5.6 ± 0.30mm

6.1 ± 0.2mm

7.5 ± 0.2mm

Datasheet part no.

PV562904

PV842960

PV842910

Electrical

Parameter

4mm²

6mm²

10mm²

Rated voltage

1.5kV DC / 1.0kV AC

1.5kV DC / 1.0kV AC

1.5kV DC / 1.0kV AC

Max. permitted voltage

1.8kV DC

1.8kV DC

1.8kV DC

Test voltage

6.5kV AC

6.5kV AC, 50Hz, 5 min

6.5kV AC, 50Hz, 5 min

Spark test

10kV AC

10kV AC

10kV AC

Conductor resistance at 20°C

≤ 5.09 Ω/km

≤ 3.39 Ω/km

≤ 1.95 Ω/km

Insulation resistance

≥ 1000 MΩ·km

500 MΩ·km

≥ 420 MΩ·km (min. at 20°C)

Mechanical and environmental

Parameter

4mm²

6mm²

10mm²

Operating temperature

-40°C to +90°C

-40°C to +90°C

-40°C to +90°C

Max. conductor temperature

+120°C

+120°C

+120°C

Short-circuit temperature

250°C for 5s

250°C for 5s

250°C for 5s

Min. bending radius, fixed

4 × overall diameter

4 × overall diameter

4 × overall diameter

Min. bending radius, flexing

5 × overall diameter

5 × overall diameter

5 × overall diameter

UV / weather resistance

EN 50289-4-17

EN 50289-4-17

EN 50289-4-17

Ozone resistance

EN 50396 cl. 8.1.3

EN 50396 cl. 8.1.3

EN 50396 cl. 8.1.3

Halogen free

IEC 60754-1

EN 60754-1

EN 60754-1

Flame retardant

IEC 60332-1-2

EN 60332-1-2

EN 60332-1-2

Current-carrying capacity (60°C ambient, 120°C at conductor)

Installation condition

4mm²

6mm²

10mm²

Exposed (free air)

55 A

70 A

98 A

On surface, without contact

Not stated

67 A

93 A

On surface, with contact

Not stated

57 A

79 A

In conduit, pipe or duct

Not stated

44 A

61 A

Frequently asked questions

Which cross-section should I choose?

It depends on string current, run length, installation conditions and the voltage drop allowed in your design. 4mm² is the common string cable, while 6mm² and 10mm² suit longer runs or lower voltage drop. Confirm the size with your PV design and BS 7671 calculations.

What is the difference between the 100m and 500m reels?

The cable is identical. Only the length supplied differs, so pick the reel that best matches the total cable you need for the job.

What does the red sheath mean?

Red is the conventional colour used to identify the positive DC conductor, with black used for negative. Order red and black cable to suit your string layout.

Is it suitable for outdoor use?

Yes. The cable is UV, ozone and weather resistant and is made for outdoor PV installations. Keep it supported and clear of sharp edges and standing water along the route.

What bending radius should I allow?

Allow at least 4 × the overall diameter for fixed installation and 5 × the overall diameter where the cable flexes.

Can it be buried directly?

The datasheets give ratings for installation in conduit, pipe or duct but do not cover direct burial. For buried runs, install the cable inside suitable ducting.
