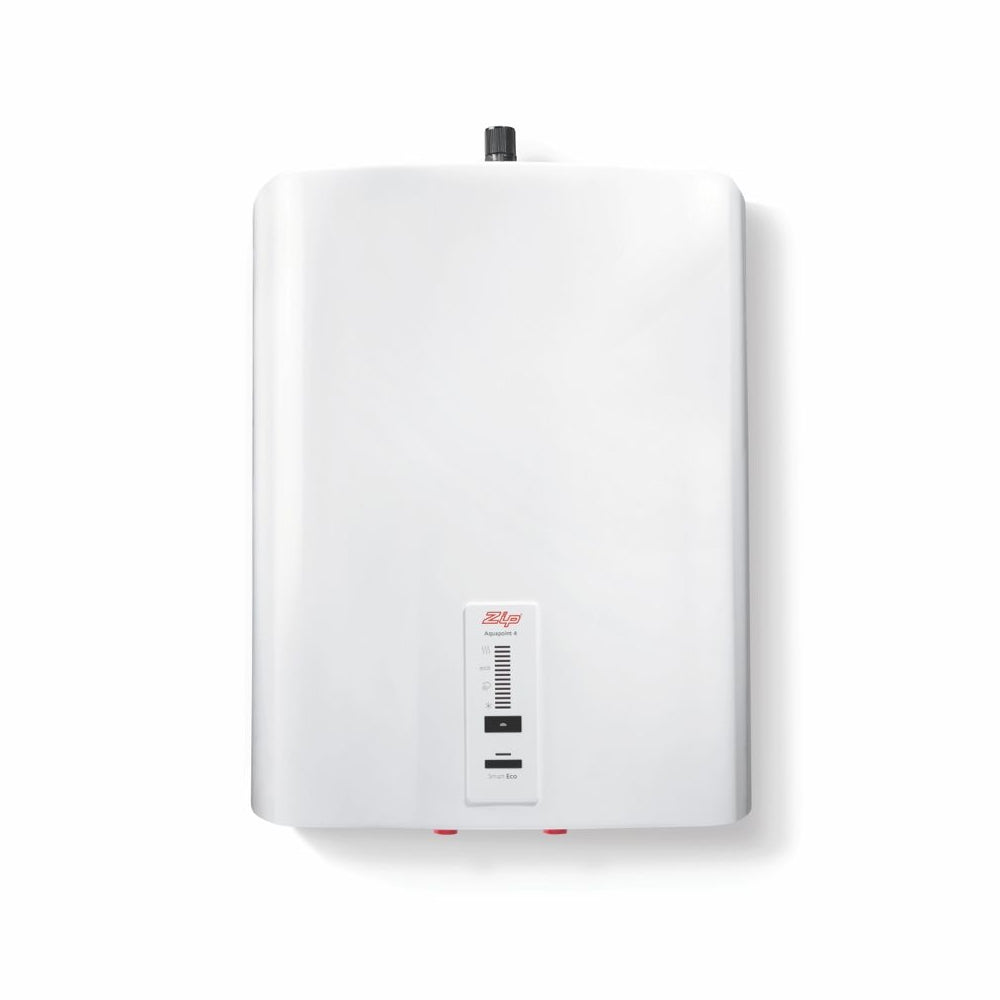

Zip Aquapoint AP430S 30L Unvented Overbasin Water Heater – 2kW SmartEco, WRAS Approved

Description

• Efficient Electric Water Heating: Unvented 30-litre (31L actual) wall-mounted hot water solution, suitable for workplace and home.
• SmartEco Mode: Advanced energy-saving and anti-legionella functions for safety and sustainability.
• Quality Construction: Glass-lined steel inner container, high-performance foam insulation, and corrosion-resistant sacrificial anode.
• External Temperature Control: Easy adjustment for user comfort and protection.
• WRAS Approved & CE Marked: Fully certified for UK installation and water safety.

Technical Specifications:

Capacity	31 Litres
Dimensions (WxDxH)	420 x 445 x 510 mm
Weight (Empty/Filled)	19 kg / 49 kg
Nominal Power Rating	2 kW, 230V AC
Current Draw	8.7 amps
Energy Class	B (496 kWh/year)
IP Rating	IP24
Water Connections	½ BSP inlet/outlet; operates 1 to 5.5 bar supply pressure
Pressure Tested	13 bar

Typical Applications:

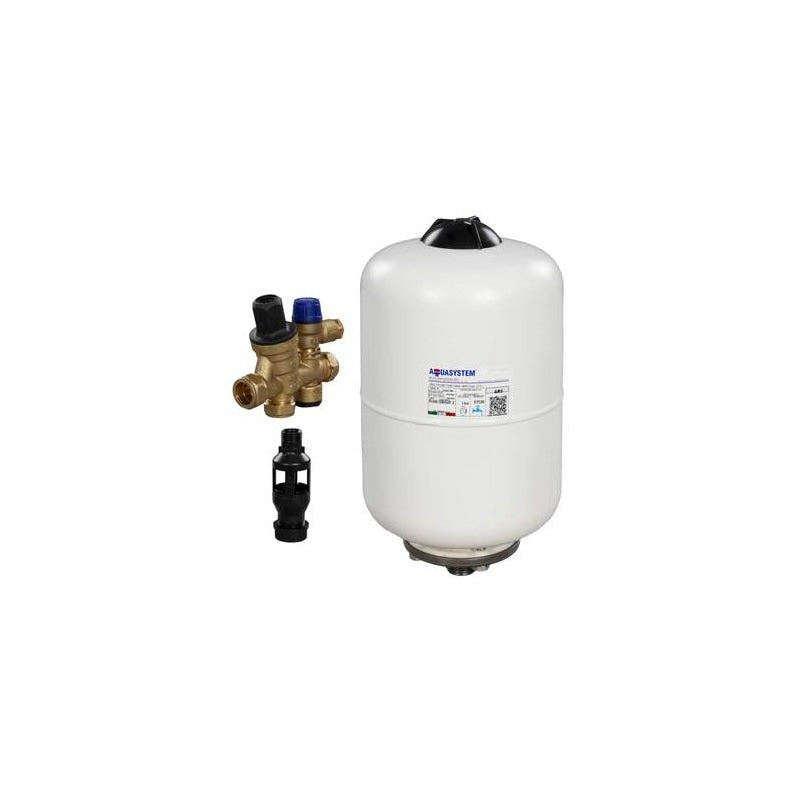

Provides reliable, safe hot water for sinks and handwash stations in offices, domestic kitchens, and bathrooms. Designed for easy wall-mounting and connection to closed pressure systems, it includes safety features like temperature and pressure relief valves, expansion vessel, and external control for peace of mind.
