Zilmet Zil-B Insulated Buffer Tank – 100L for Heat Pumps
Exc. VAT
Inc. VAT
Regular price
£450.00
(Inc. VAT)
inc. VAT
FREE Express Delivery (1-3 days) in UK Mainland on most orders
Excluding: Solar Panels (£59 delivery), Batteries (£49 delivery), Small Items (£4.95 delivery)
Next Working Day Delivery options if ordered before 12.00 pm — Contact Us
Same-day Delivery options — Contact Us
Click & Collect available — Contact Us
Custom quote available on request
*See checkout or shipping policy for full details
Payment options
Zilmet Zil-B Insulated Buffer Vessel – 100L
The Zilmet Zil-B 100L Insulated Buffer Vessel is the largest in the range, designed for high-demand systems requiring maximum buffer capacity and hydraulic separation. It includes premium insulation and mounting hardware for easy installation.
Key Features
- Capacity: 100 litres
- Acts as a buffer and hydraulic separator
- Premium polyurethane foam insulation (41mm)
- Max. inlet pressure: 4 bar
- Max. inlet temperature: 95°C
- Glycol mix: up to 50%
- Material: Mild steel
- Supplied with wall mounting brackets

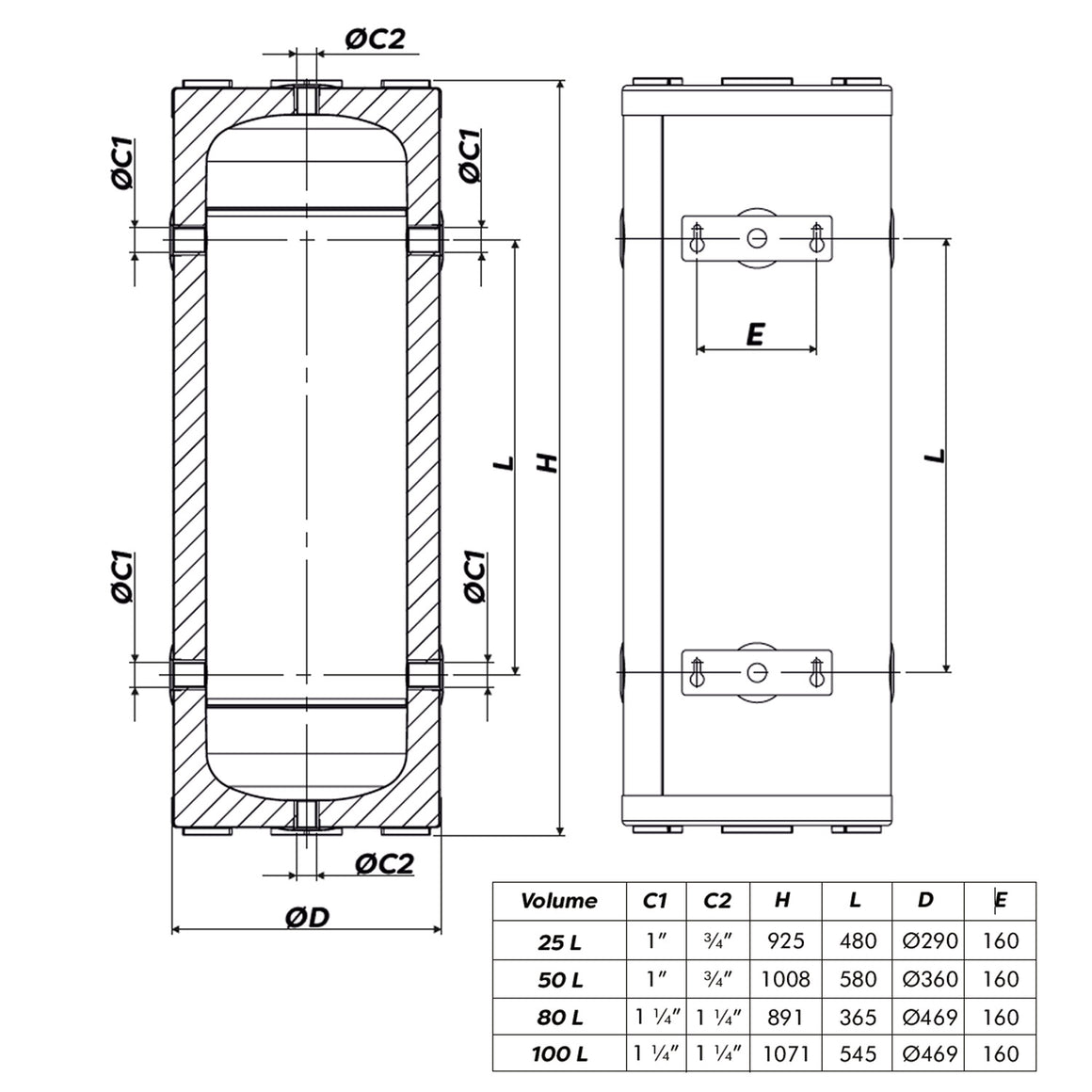

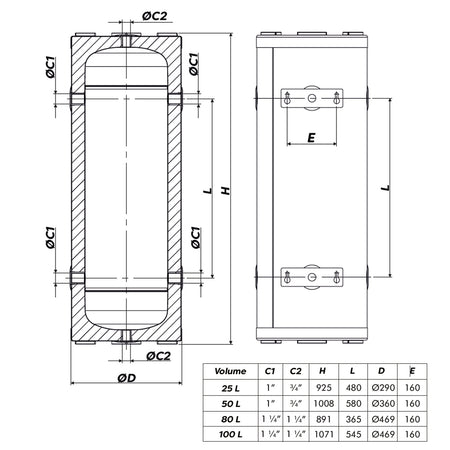

Technical Specifications
| Capacity | 100L |
|---|---|
| Connections | C1/C2: 1 ¼” |
| Height | 1071 mm |
| Length | 545 mm |
| Diameter | 469 mm |
| MPN | BUFF100 / 16B0001000 |
| EAN | Not published |
- Type Buffer tank
- Vendor Zilmet
- SKU BUFF100
