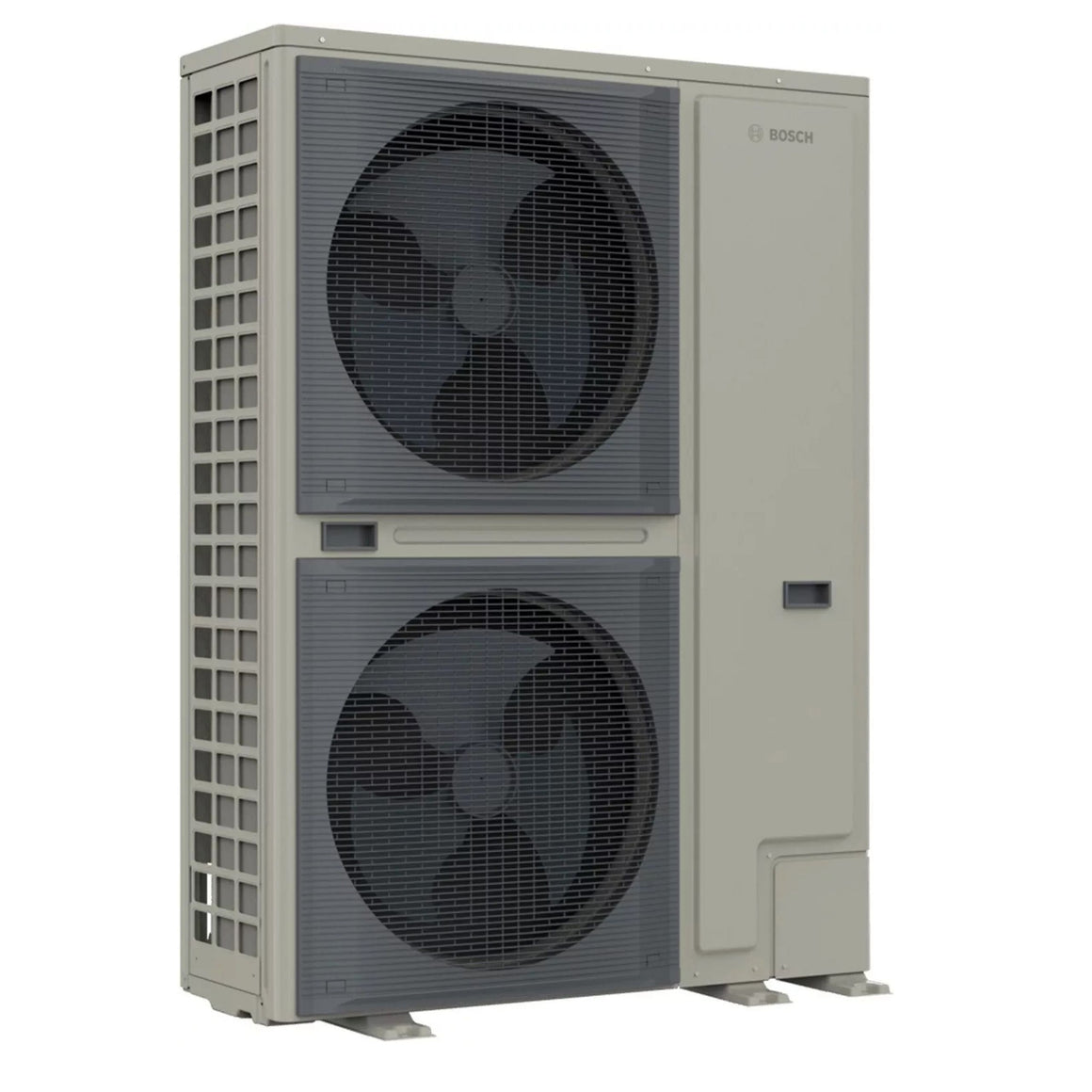

Worcester Bosch Compress 2000 AWF 3Phase 30kW Air Source Heat Pump

The Worcester Bosch Compress 2000 AWF 3Phase 30kW Air Source Heat Pump (MPN: 7738602290) is a three-phase full monobloc air-to-water heat pump designed for efficient, low-carbon heating and hot water in UK commercial properties and large homes, featuring R32 refrigerant and a compact design for easy installation without planning permission.

Product Description

The Compress 2000 AWF Heat Pump is an all-in-one full monobloc heat pump solution with a volume less than 0.6 cubic meters, built to speed up and simplify installation. It achieves an A+++ ErP rating with SCOP 4.54 and COP 3.59, providing 30kW heating capacity for large homes up to 500m² or small commercial spaces. Hybrid compatible and weather-optimised for UK climates down to -25°C, it harnesses outdoor air for lower carbon heating and hot water. The compact outdoor unit requires no planning permission, making it ideal for retrofits and new builds.

Key Features

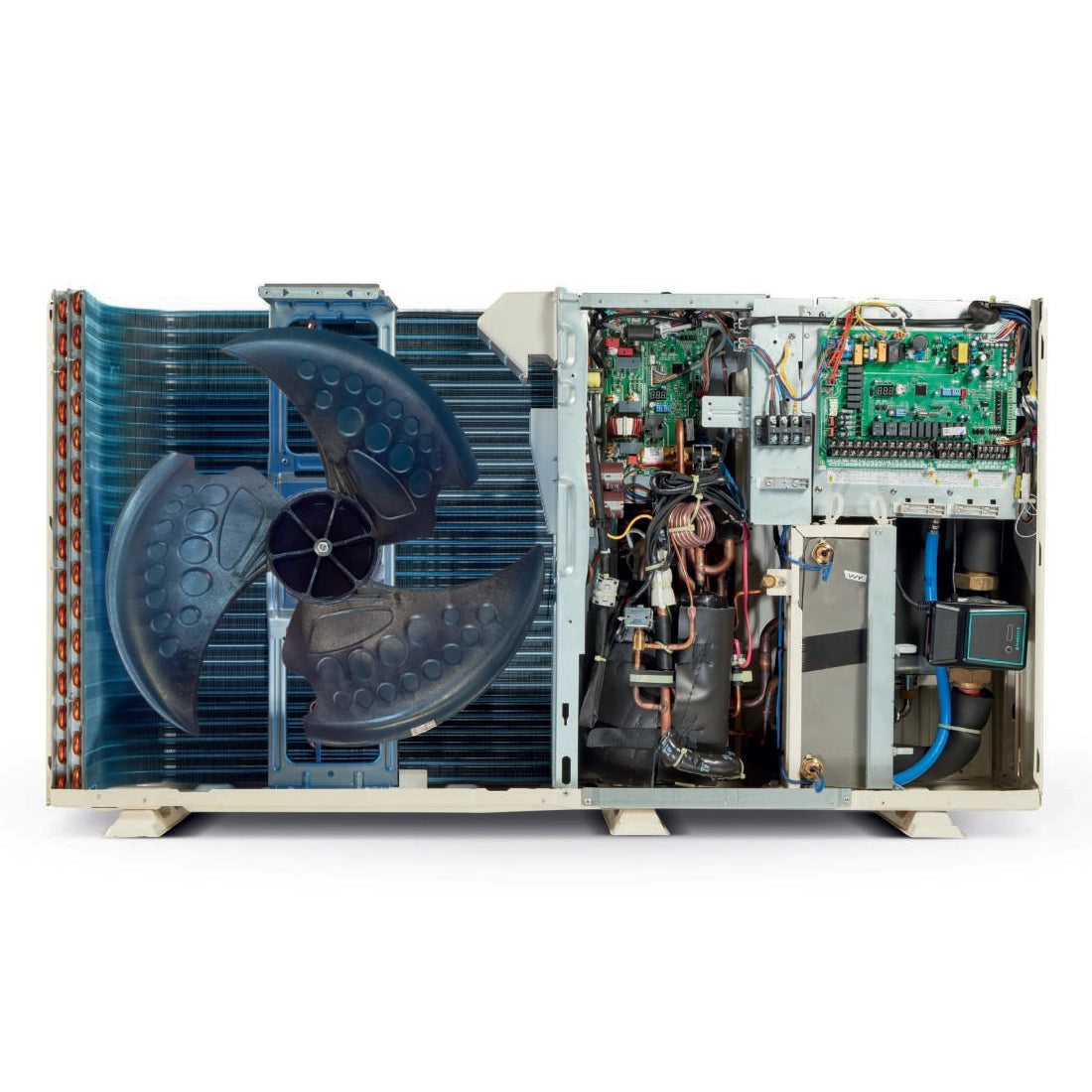

• Monobloc design: All-in-one unit with refrigeration components in the outdoor unit for simple plumbing and installation.
• R32 refrigerant: Low-GWP for eco-friendly, future-proof operation.
• A+++ ErP rated: High efficiency with SCOP 4.54 for reduced energy bills.
• Compact size: Less than 0.6m³ volume, no planning permission required for outdoor unit.
• Hybrid compatible: Works with existing boilers for seamless upgrades.
• Quiet operation: Low noise level suitable for residential areas.
• Easy commissioning: Guided setup for installers.
• Boiler Upgrade Scheme eligible: Up to £7,500 grant available.

Technical Specifications

• Model: CS2000AWF 30 R-T – Compress 2000 AWF 30kW Full Monobloc.
• Heating capacity: 30 kW.
• COP (A7/W35): 3.59.
• SCOP (average climate): 4.54.
• Refrigerant: R32 (GWP 675).
• ErP rating: A+++ (35°C), A++ (55°C).
• Power supply: 400V 3ph 50Hz.
• Noise level: <50 dB(A) at 1m.
• Operating temperature: -25°C to +43°C.
• Max flow temp: 65°C.

Dimensions & Weights

• Width: 1385 mm.
• Depth: 523 mm.
• Height: 864 mm.
• Weight: 143 kg.
• Clearances: Front min 800 mm, Sides min 200 mm for service.

System & Application Notes

• Ideal for large homes up to 500m² or small commercial spaces with underfloor heating or radiators.
• Requires compatible indoor unit (e.g., pre-plumbed cylinder or wall-hung) for full system.
• Suitable for new builds and retrofits; integrates with smart controls.
• Installation by qualified MCS-certified engineers; qualifies for grants.
• 7-year warranty on unit; 10-year on compressor.
