16-Way Enclosure 100A Main Switch | WME16/MS100

Description

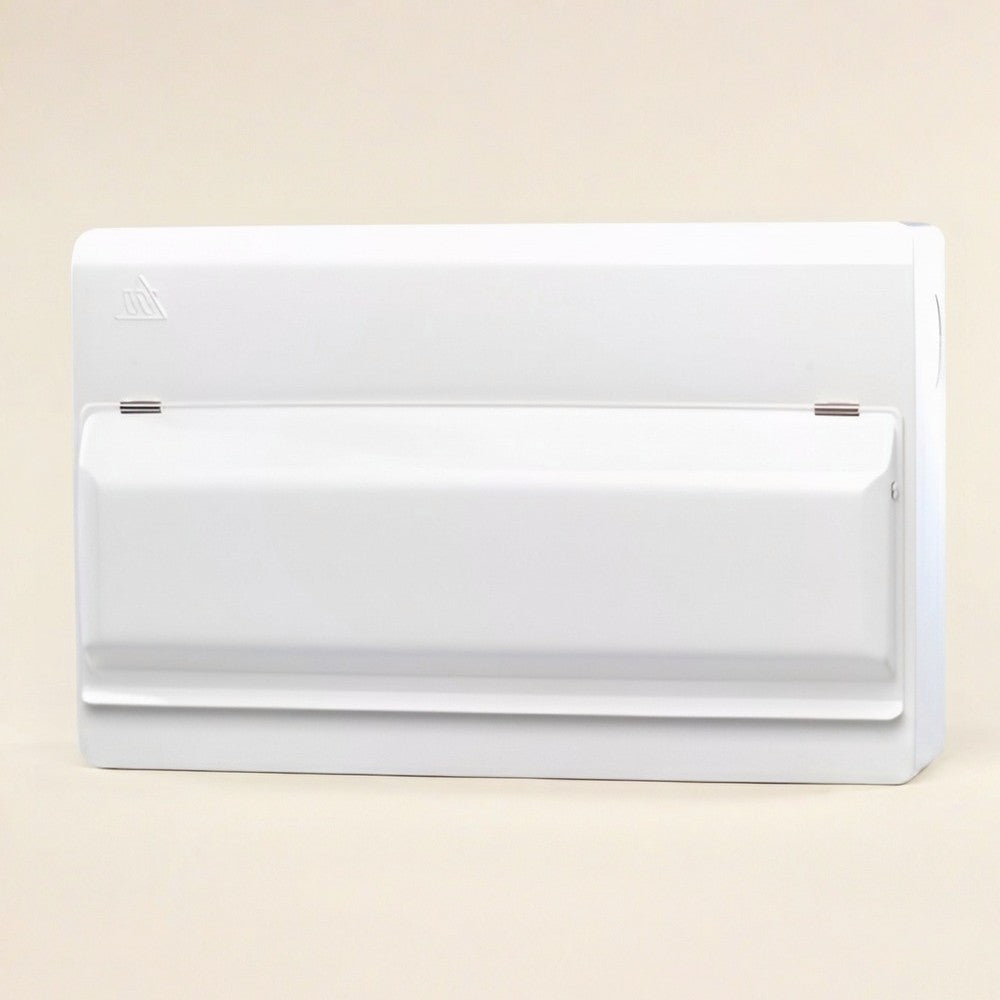

The WCED 16-way maintenance isolation enclosure with 100A main switch is a metal consumer unit enclosure supplied with a pre-installed 100A main switch, offering 14 usable ways. It is suited to solar installations in flats where a lockable point of isolation is required.

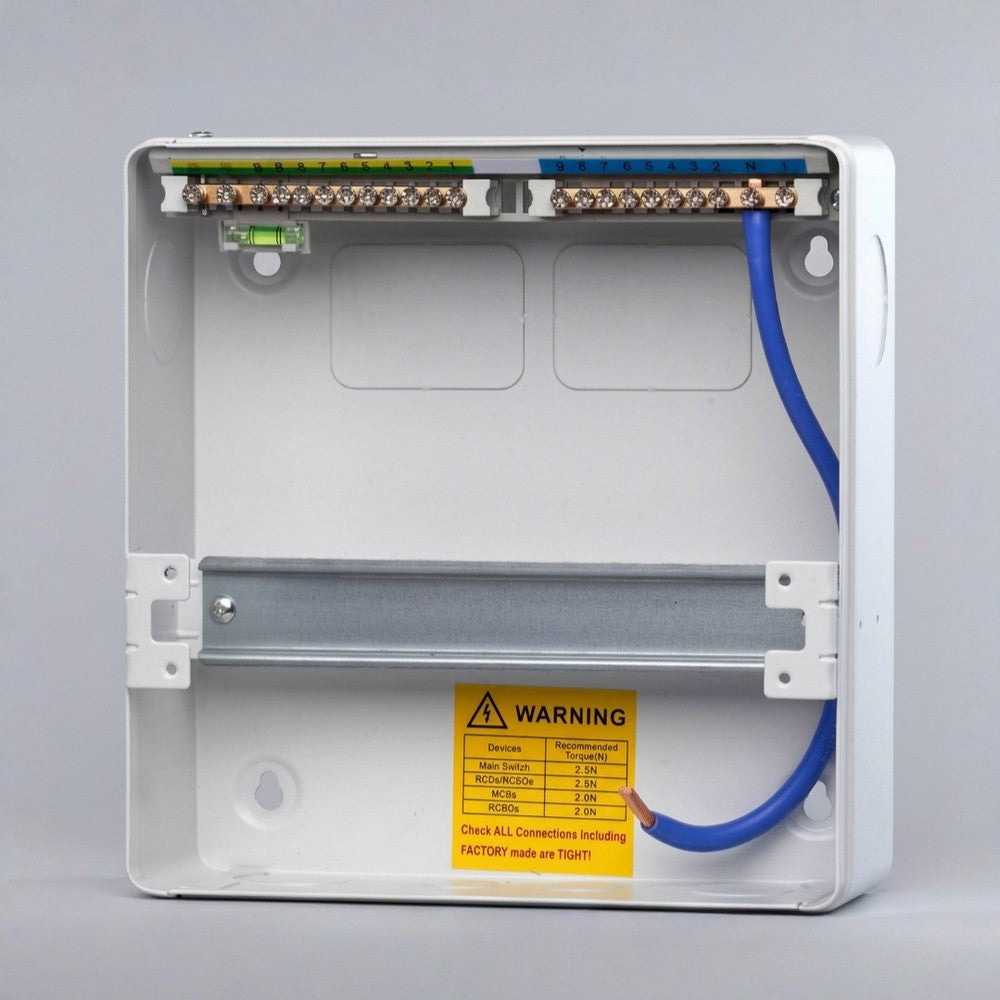

The IP40 indoor-rated metal enclosure is finished in polyester powder coat and features a raised DIN rail for improved cable routing, raised keyholes and a level for secure installation, and multiple cable entry knock-outs. Neutral and earth terminal bars are supplied.

100A

Pre-installed main switch

16-way

Enclosure size

14

Usable ways

IP40

Indoor rated

376mm

Width

Powder coat

Polyester finish

Safety and compliance

Installation and testing must be carried out by a competent person in line with BS 7671 and the SolShare system requirements. The enclosure is IP40 and for indoor use only.

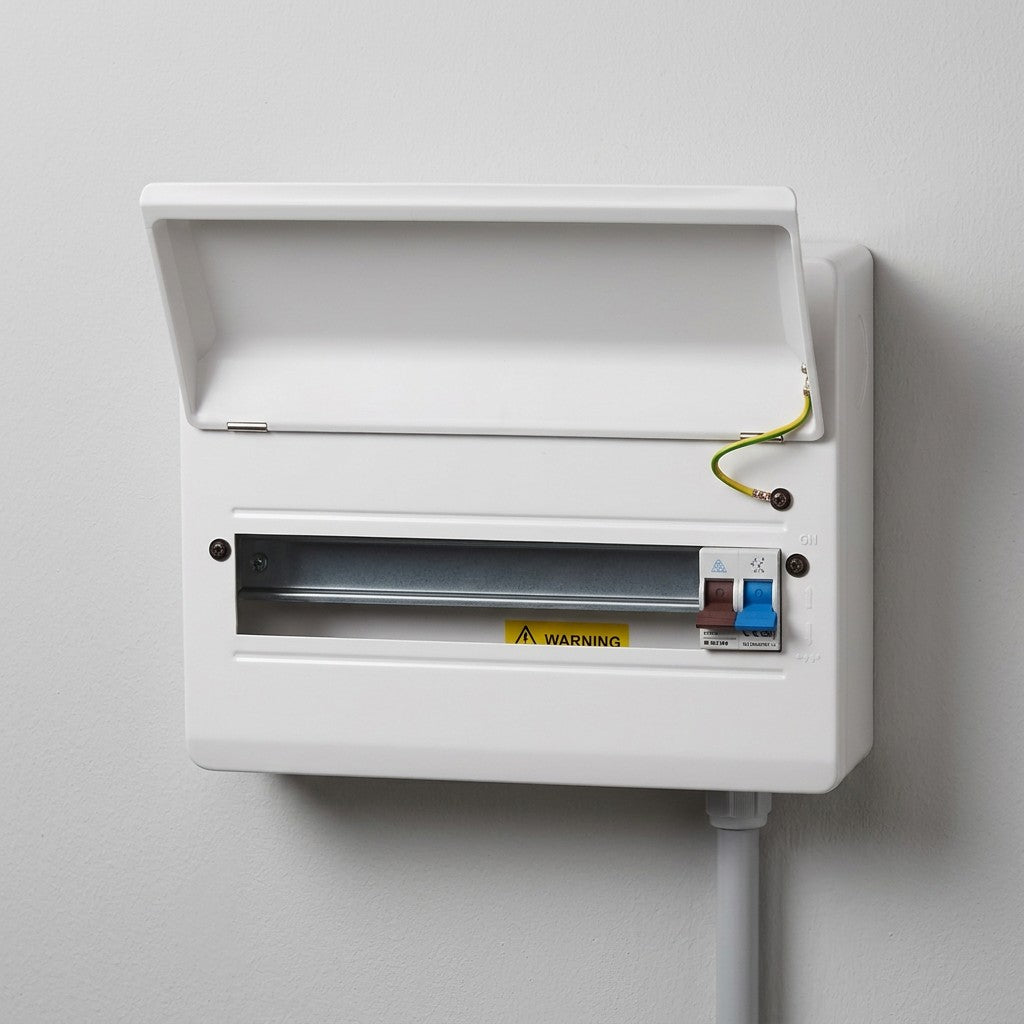

Pre-fitted main switch

The 100A main switch is already installed, so the enclosure is ready for you to fit the circuit protection devices you need.

Usable ways

Two of the 16 ways are taken by the main switch, leaving 14 usable ways for protective devices.

Key features

Pre-installed main switch

A 100A main switch is factory fitted for isolation of the whole board.

14 usable ways

16-way enclosure with 14 usable ways available for devices.

IP40 metal enclosure

IP40 indoor-rated metal enclosure with a polyester powder coat finish.

Raised DIN rail

A raised DIN rail improves cable routing and wiring access.

Secure installation

Raised keyholes and a level make fixing straight and secure.

Flexible cable entry

25mm and 32mm knock-outs top and bottom, 40mm on the sides and larger rear slots.

Technical specification

General

Parameter

Specification

Brand

WCED

Type

16-way metal enclosure with pre-installed main switch

Main switch

100A

Usable ways

14

Protection class

IP40, indoor rated

Finish

Polyester powder coat

Dimensions (W × H × D)

376 × 240 × 112mm

Supplied with

Neutral and earth terminal bars

Cable entry

Parameter

Specification

Top and bottom

25mm and 32mm circular knock-outs

Sides

40mm circular knock-outs

Rear

Larger rear slots

Frequently asked questions

Is the main switch already fitted?

Yes. The enclosure comes with a pre-installed 100A main switch.

How many ways can I use?

It is a 16-way enclosure with 14 usable ways once the main switch is accounted for.

Can it be installed outdoors?

No. It is IP40 indoor rated, so mount it in a suitable indoor location.

What is supplied with the enclosure?

Neutral and earth terminal bars and a raised DIN rail are supplied.

What is it used for?

It is offered as a maintenance isolation enclosure for SolShare shared solar installations in flats.
