Water Heaters Fitting Kit 6 Bar

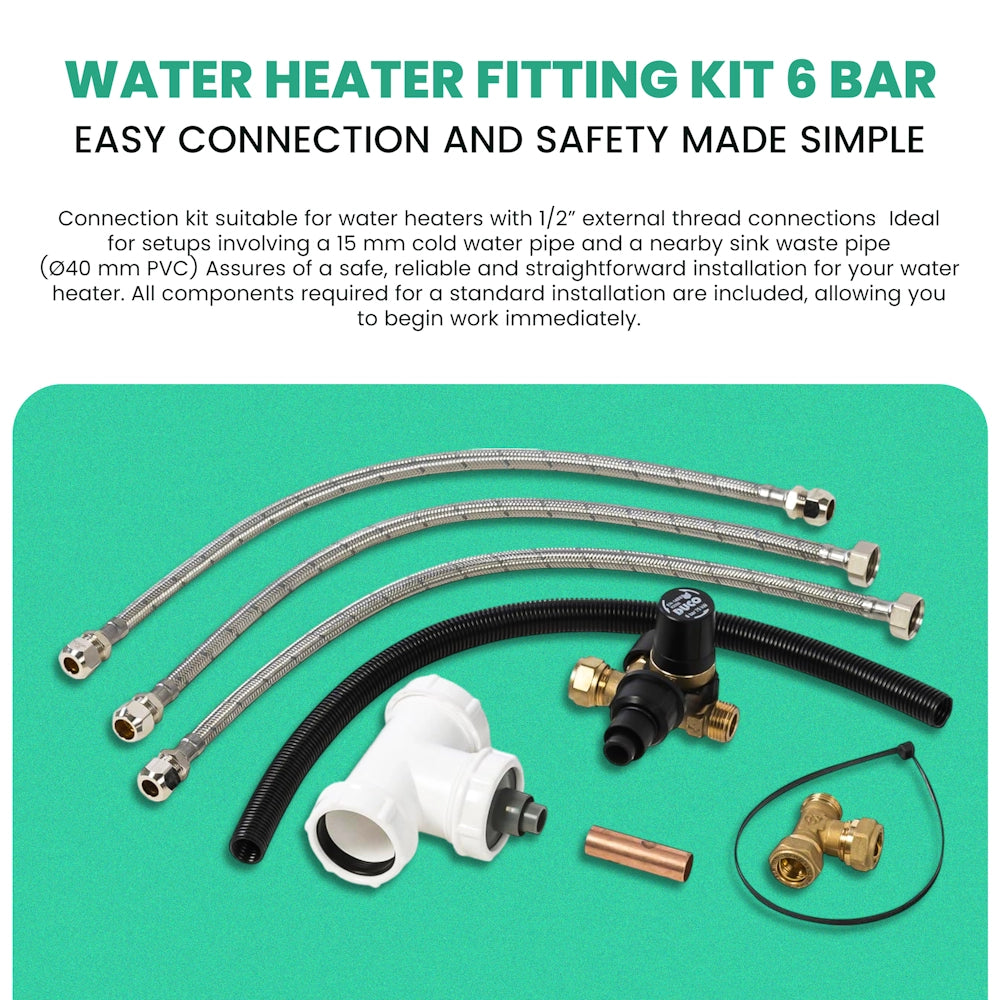

This connection kit is suitable for water heaters with 1/2” external thread connections and is ideal for setups involving a 15 mm cold water pipe and a nearby sink waste pipe (Ø40 mm PVC).
With this connection kit, you are assured of a safe, reliable and straightforward installation for your water heater. All components required for a standard installation are included, allowing you to begin work immediately.

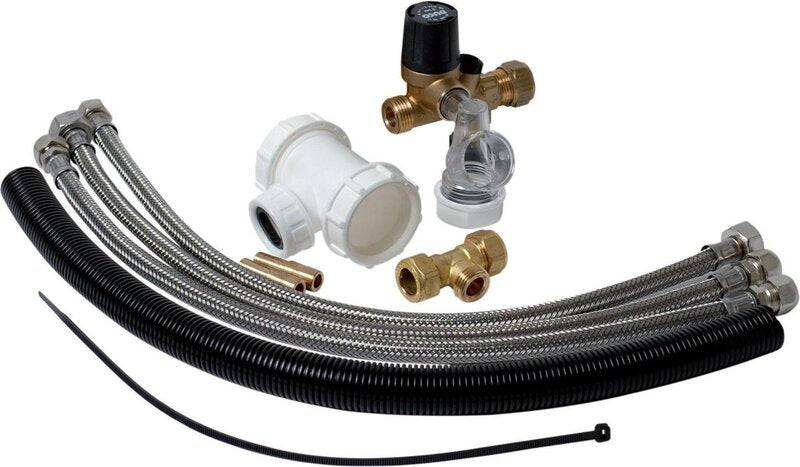

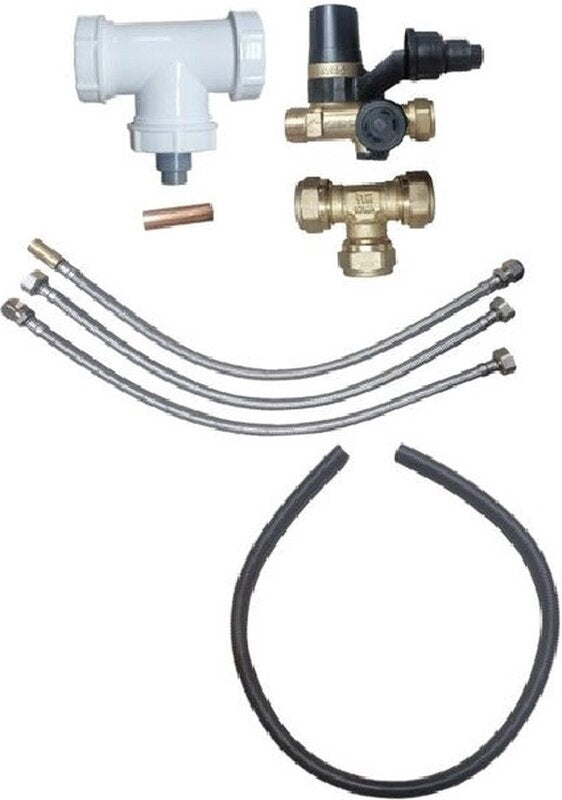

Box Contents

• High-pressure water hose, 0.5 m, 10 mm clamp – 1/2” union nut*
• High-pressure water hose, 0.5 m, 10 mm clamp – Ø15 pipe
• High-pressure water hose, 0.5 m, Ø15 pipe – 1/2” union nut*
• Copper pipe, Ø15, length 50 mm

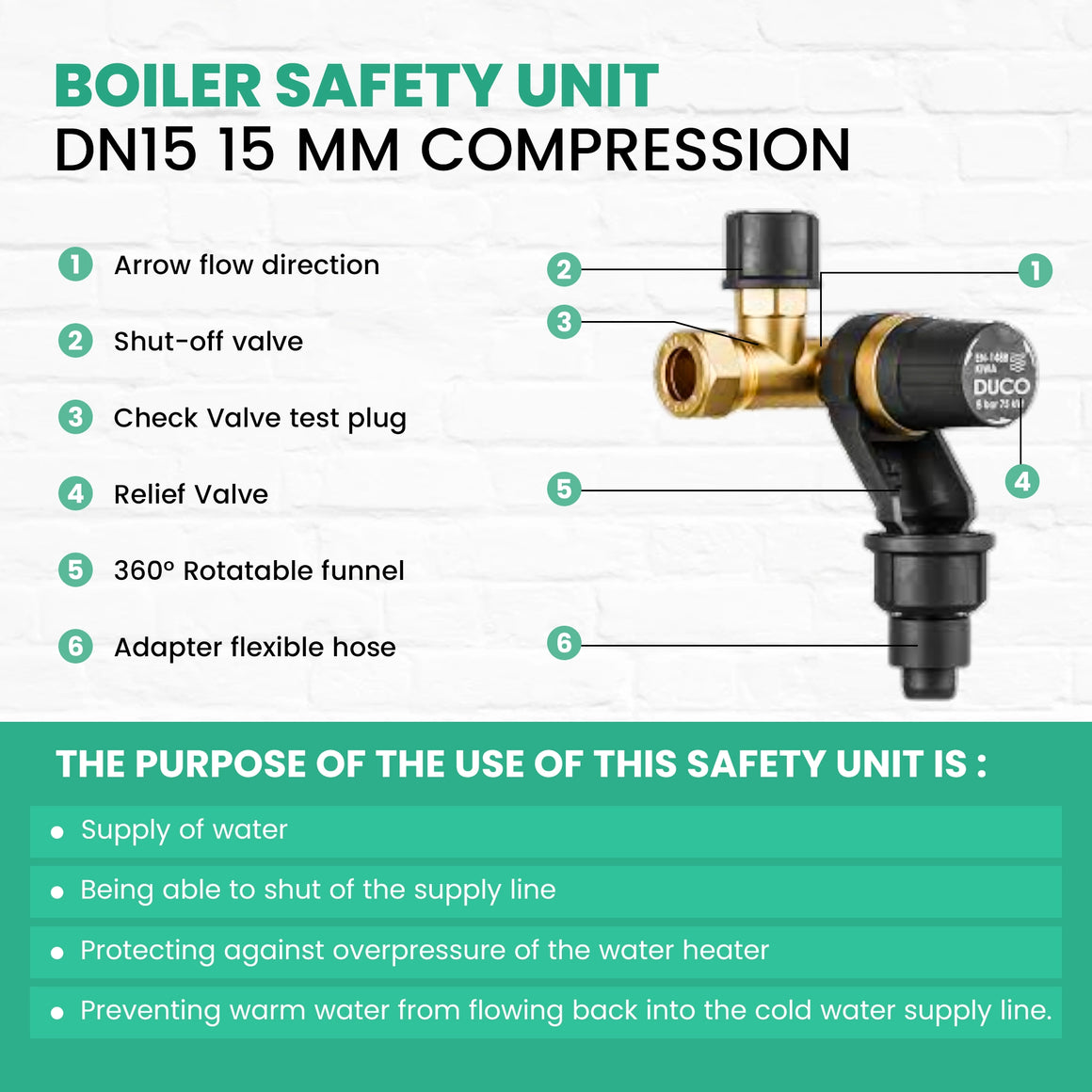

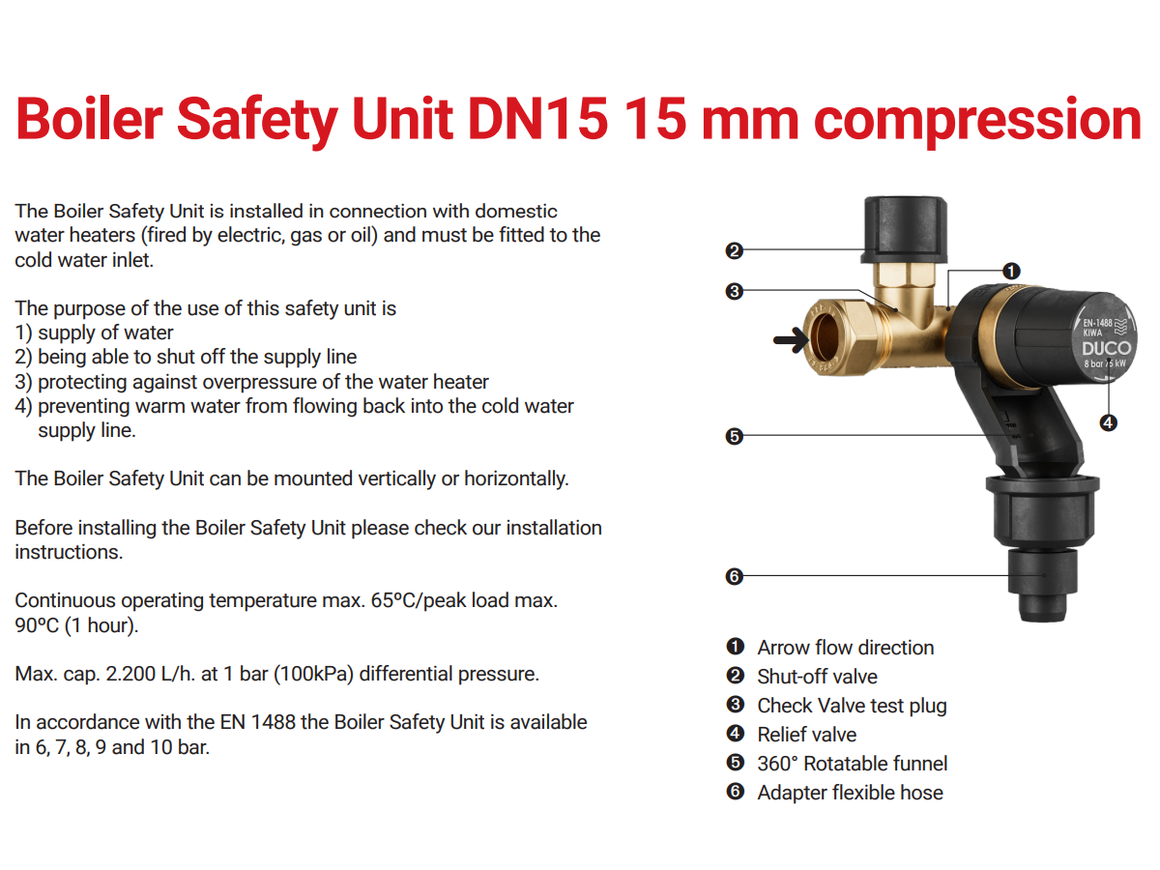

• Pressure Relief Release Valve, with a 360 degrees rotable tundish (funnel), Inlet combination DN15, 15 mm compression fitting, pressure rating: 6 bar, 1/2” male thread (Potable Water 1/2″ MBSP x 15mm)
• Brass T-piece, 3 x 15 mm compression fitting
• Flexible plastic hose
• Reducer to funnel
• Tie wrap
• Plastic T-piece, 40 x 40 x 40 mm, including adaptor*
• 2 fibre rings included for 1/2” flat couplings

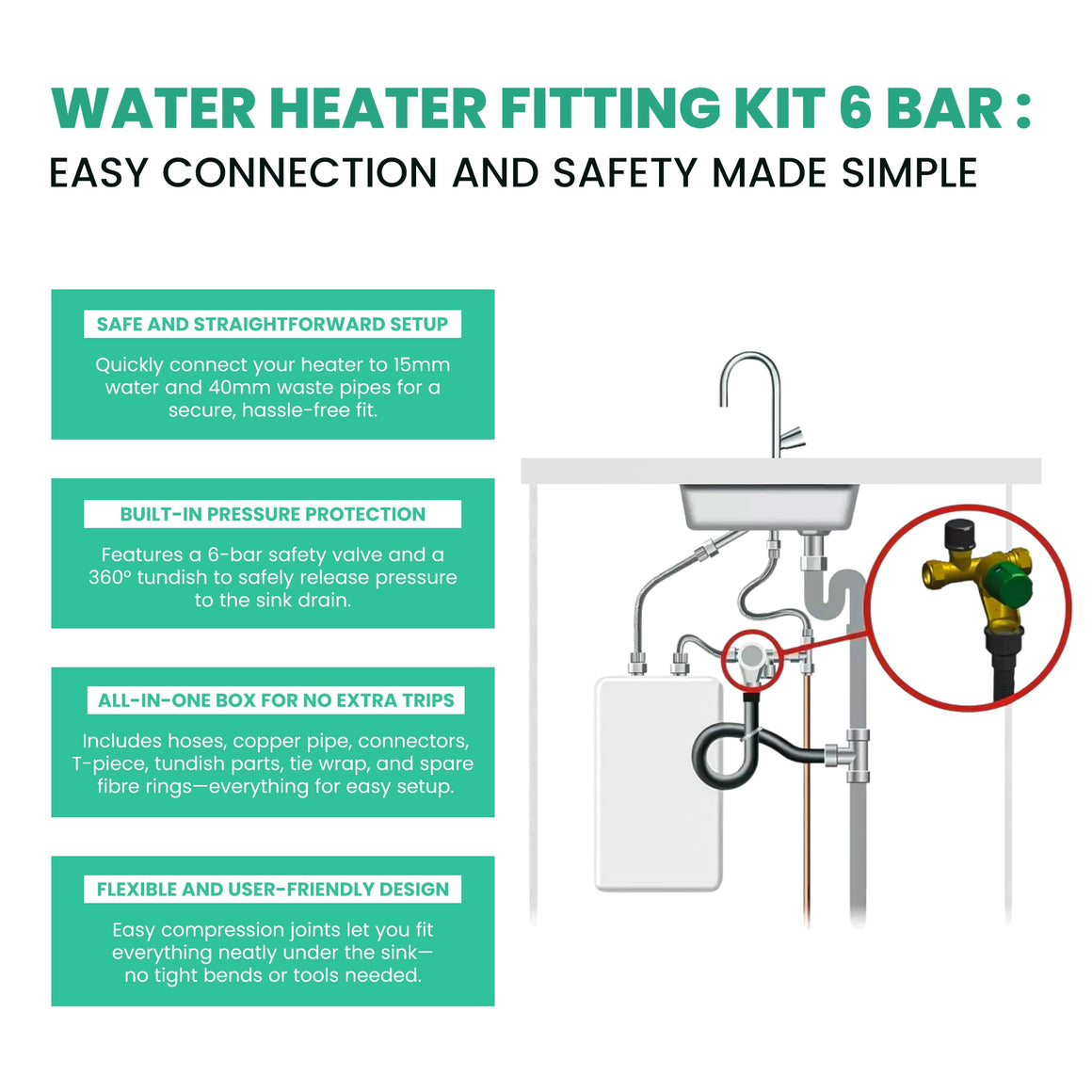

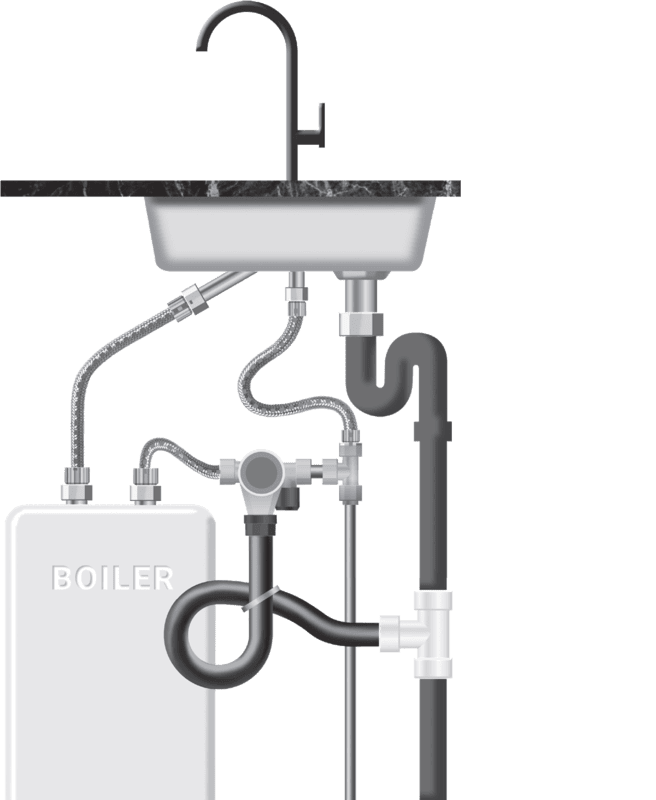

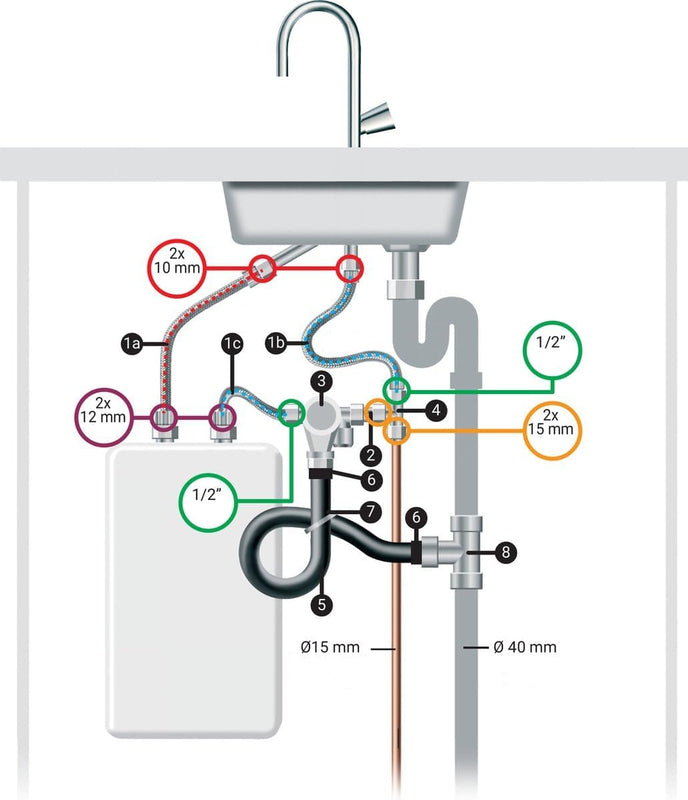

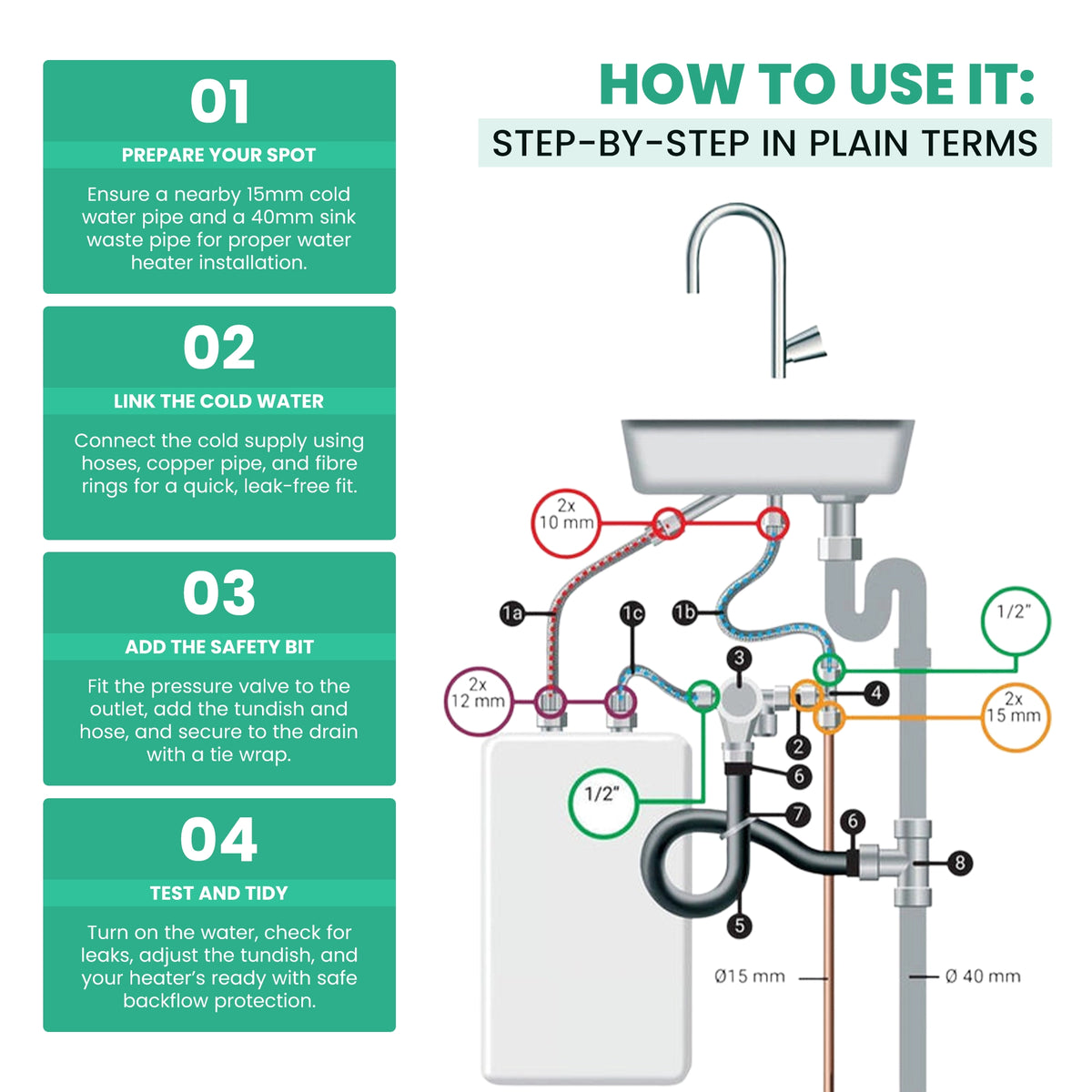

The following standard setup is assumed:

• A 15 mm cold water pipe leading to the clamp connection of the inlet combination.
• A sink waste pipe (Ø40 mm PVC) located directly adjacent to the water heater.
• Water heater connections with 1/2” male thread.
• Potable Water 1/2″ MBSP x 15mm.
