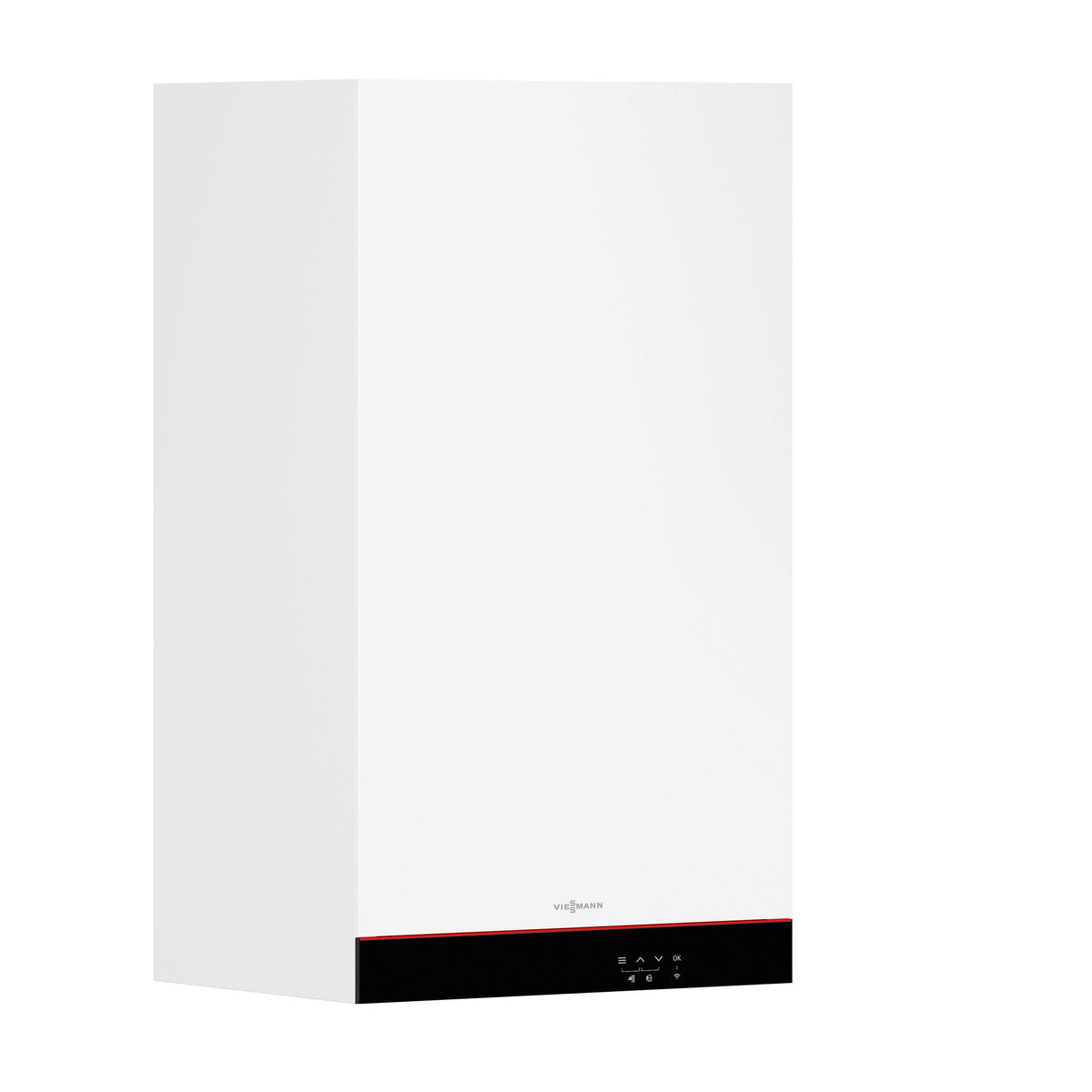

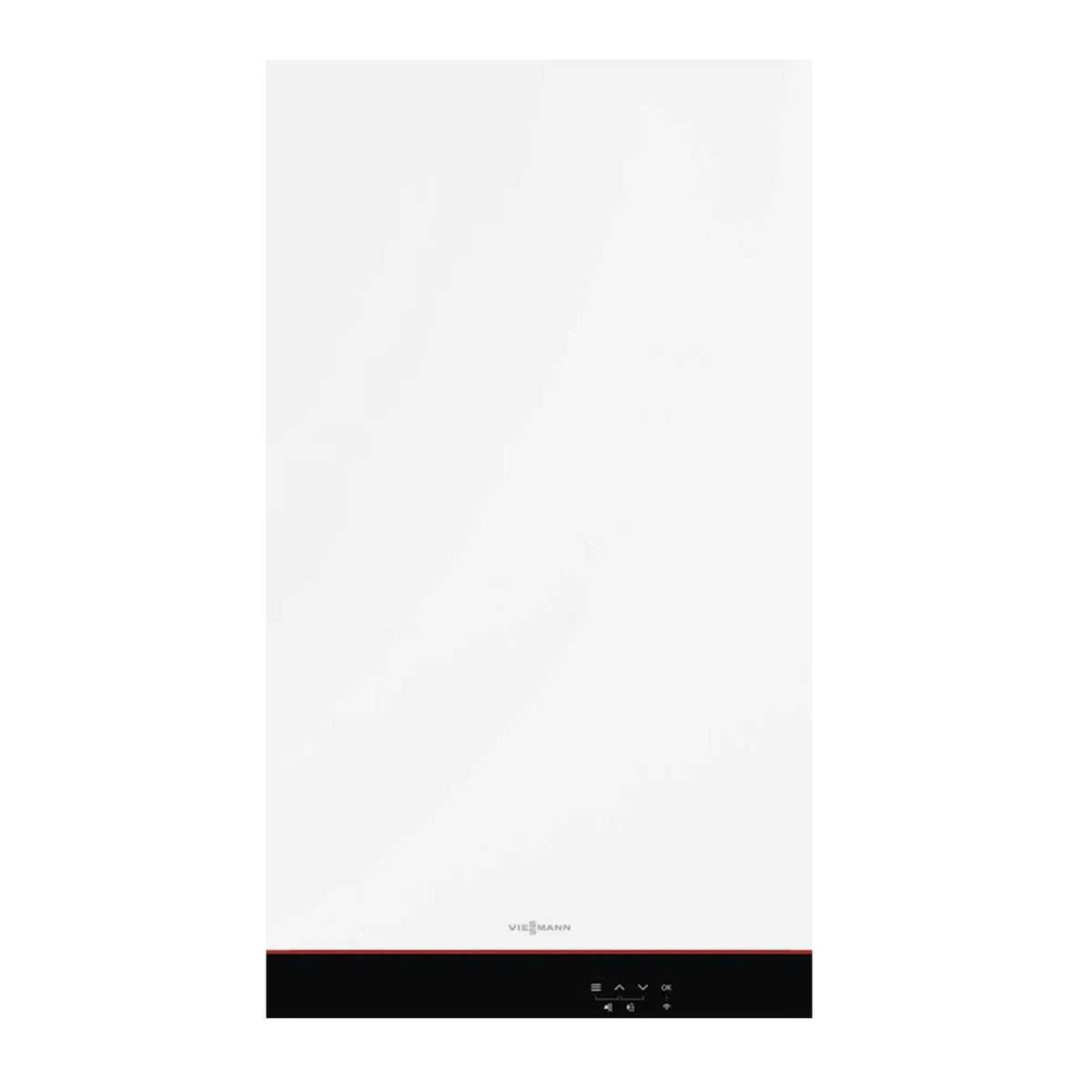

Viessmann Vitodens 050-W 19kW B0HA System Boiler

Description

The Viessmann Vitodens 050-W 19kW system boiler is an attractively priced wall-mounted gas condensing boiler designed to work with a separate hot water cylinder, sharing the same Inox-Radial heat exchanger and MatriX cylinder burner as the rest of the Vitodens 050-W range.

Compact at 700mm high and 300mm deep, it suits smaller properties with a cylinder-fed hot water system, or replacement projects where an existing cylinder is being retained.

19kW

System output

Class A

Energy efficiency

4-pipe

System configuration

700mm

Height

300mm

Depth

WiFi

Connectivity

🛈

Please Note: This boiler must be connected using the Viessmann 60/100mm concentric flue system, tested and CE-designated as one structural unit with the boiler in accordance with DVGW-VP 113. Only this flue system may be used.

🛈

Please Note: A ViCare Thermostat (load compensation) or an outdoor temperature sensor (weather compensation) will typically be required to complete this installation — the two accessories are not intended to be used together on the same heating circuit.

Inox-Radial stainless steel heat exchanger

Delivers high operational reliability and a long service life on a compact footprint.

Modulating MatriX cylinder burner

Consumes relatively little natural gas with lower CO2 emissions across the boiler's modulation range.

Integral WiFi control unit

Built-in wireless interface supports the ViCare app for remote heating control, with no separate modem required.

Compact 700 x 400 x 300mm footprint

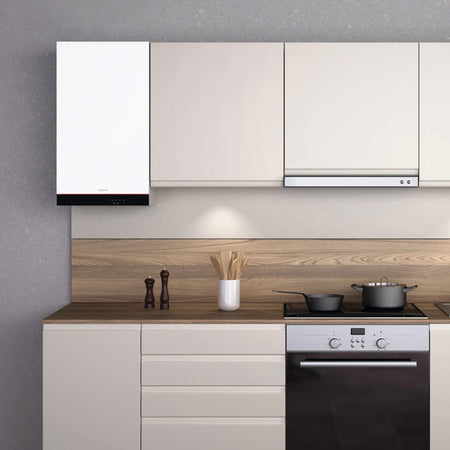

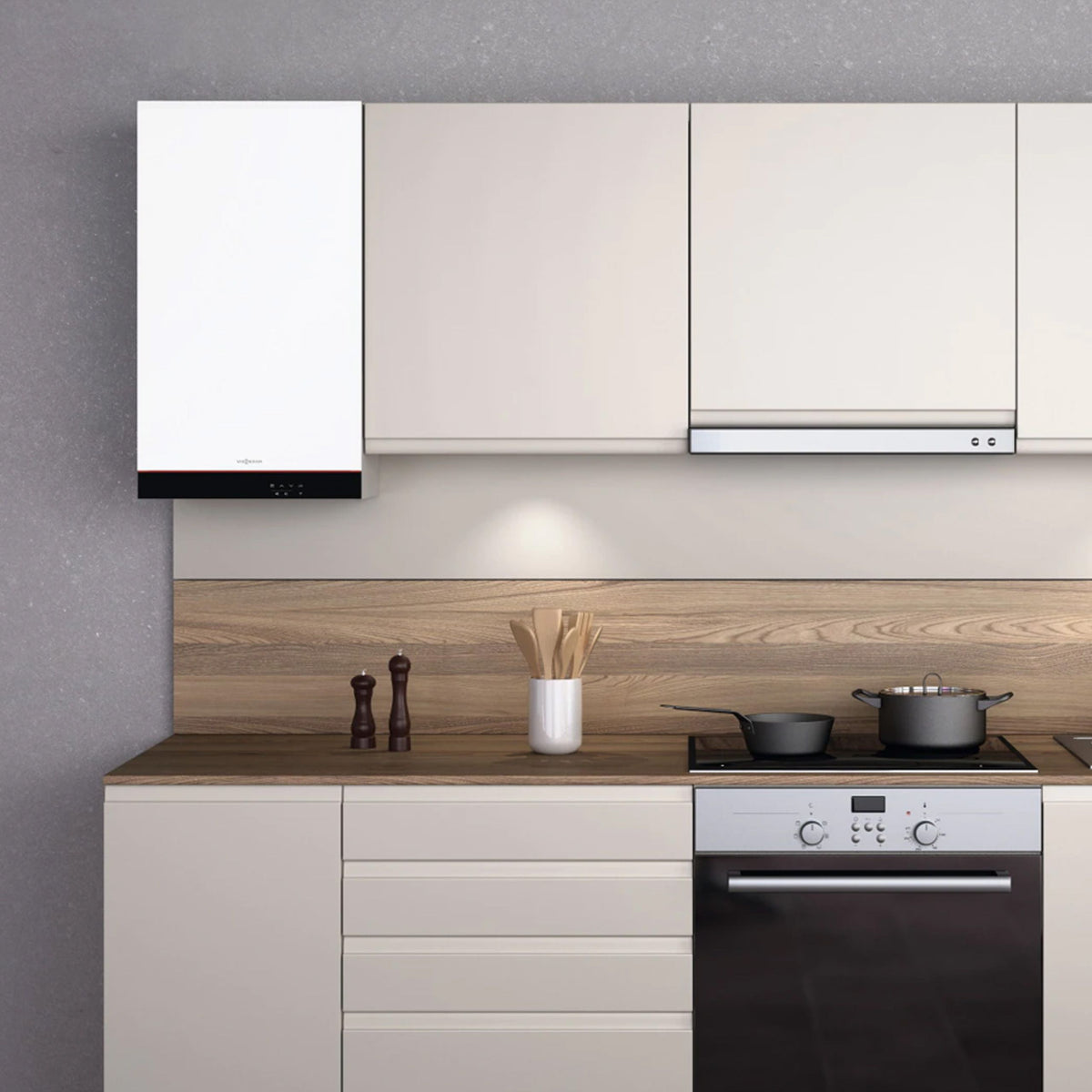

Small enough to be fitted inside a kitchen cupboard, ideal for flats and space-constrained properties.

Variable speed circulation pump and 3-way valve

Integral high-efficiency pump and valve are fully plumbed and wired from the factory.

LPG compatible with no conversion kit

The gas type is reconfigured entirely at the control unit, avoiding a separate LPG conversion kit.

Specification

Performance

Boiler type

Gas condensing system boiler (Type BPJD)

Rated heat output (50/30°C)

3.2 – 19.0 kW

Rated heat output (80/60°C)

2.9 – 17.0 kW

ERP efficiency

92% (Class A)

Energy efficiency class

A

Gas & Electrical

Gas types

Natural gas and LPG (no conversion kit required)

Electrical supply

230V~, 50Hz

Dimensions

Height

700mm

Width

400mm

Depth

300mm

Flue gas connection

60mm

Ventilation air connection

100mm

Standard Delivery

Burner

Modulating, fan-assisted premix burner with Lambda Pro

Control unit

Integral WiFi interface

Circulation pump & valve

Variable speed high efficiency pump and 3-way valve

Expansion vessel

8 litres

Wall mounting bracket

Included, fully plumbed and wired

What's the difference between the system boiler and the combi version?

The system boiler heats a separate hot water cylinder rather than providing instantaneous hot water directly, and is used where a stored hot water solution suits the property — such as multi-bathroom homes or where mains water pressure is low.

Do I need a cylinder to use this boiler?

Yes, a system boiler requires a compatible unvented or vented hot water cylinder connected via the 4-pipe configuration to provide domestic hot water.

Do I need a ViCare Thermostat with this boiler?

A ViCare Thermostat for load compensation, or an outdoor sensor for weather compensation, is generally recommended to complete the control setup and meet Boiler Plus requirements — the two should not be combined on the same circuit.

Is this boiler suitable for LPG?

Yes, LPG compatibility is built in and configured at the control unit, with no separate conversion kit required.
