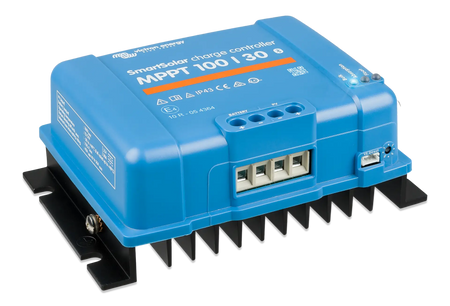

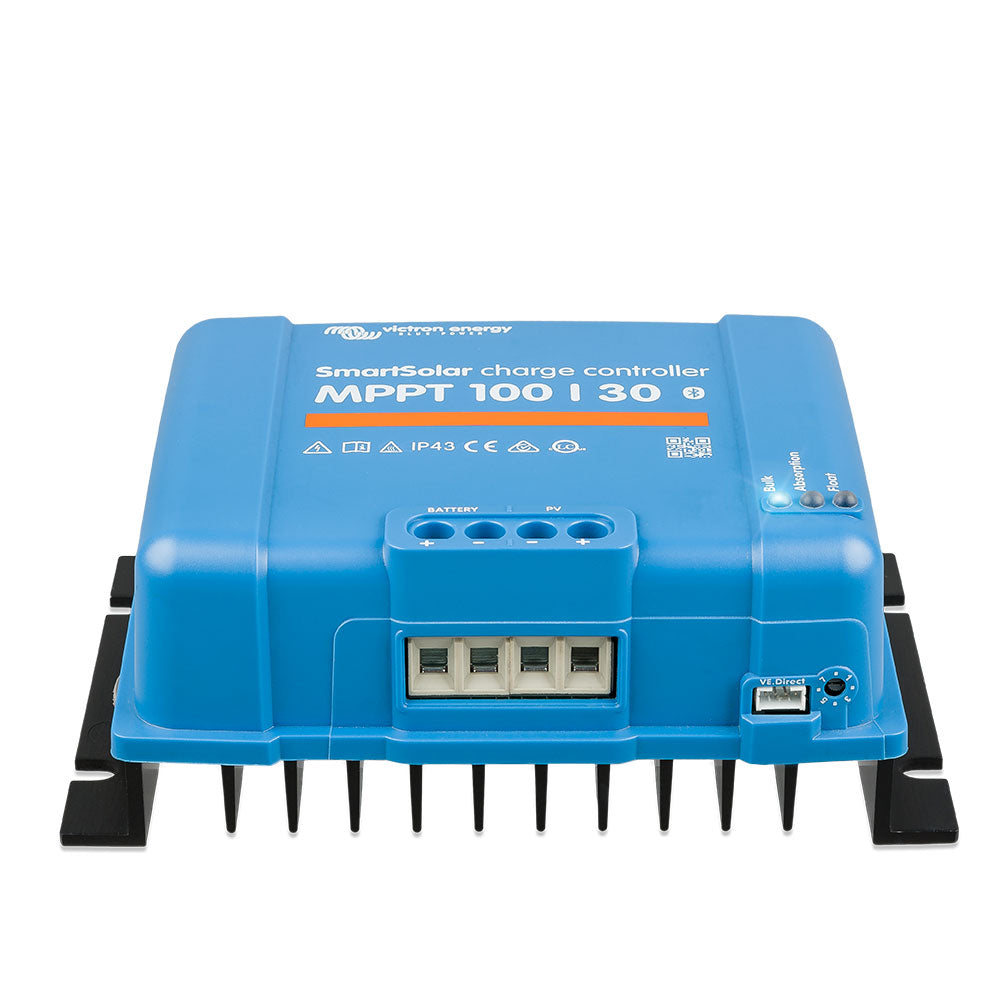

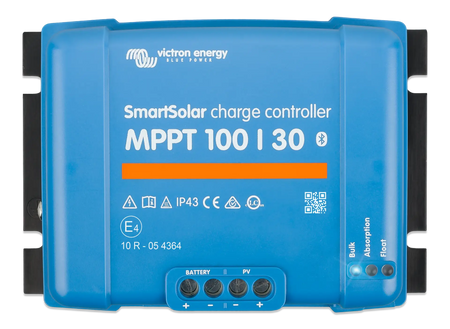

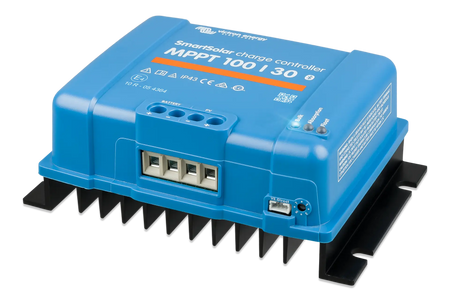

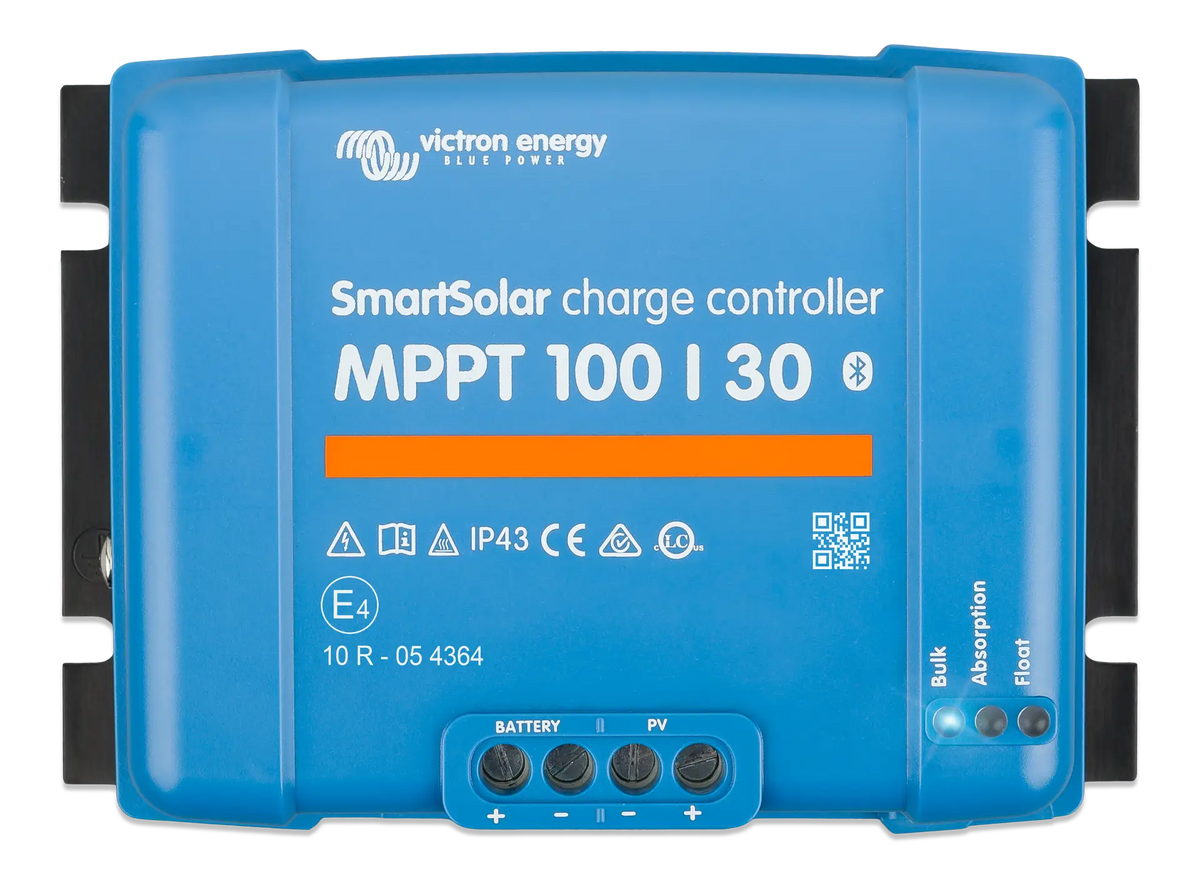

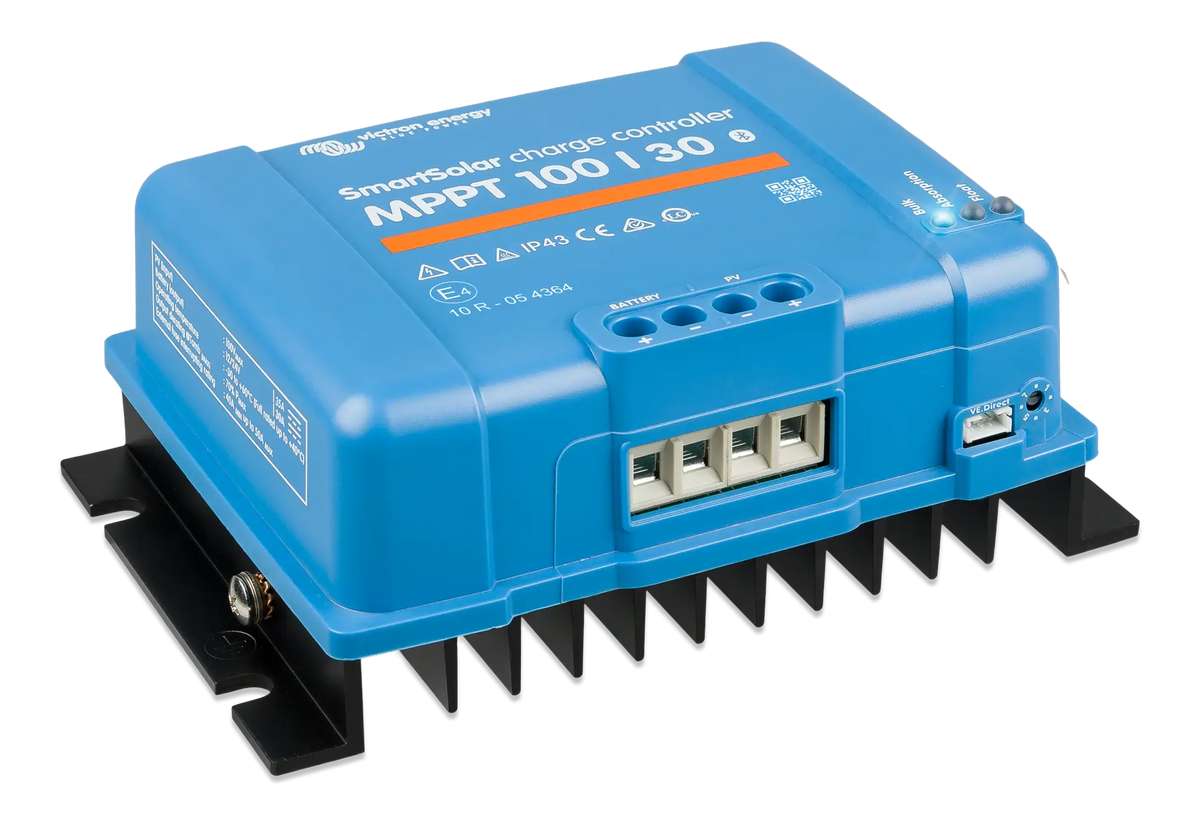

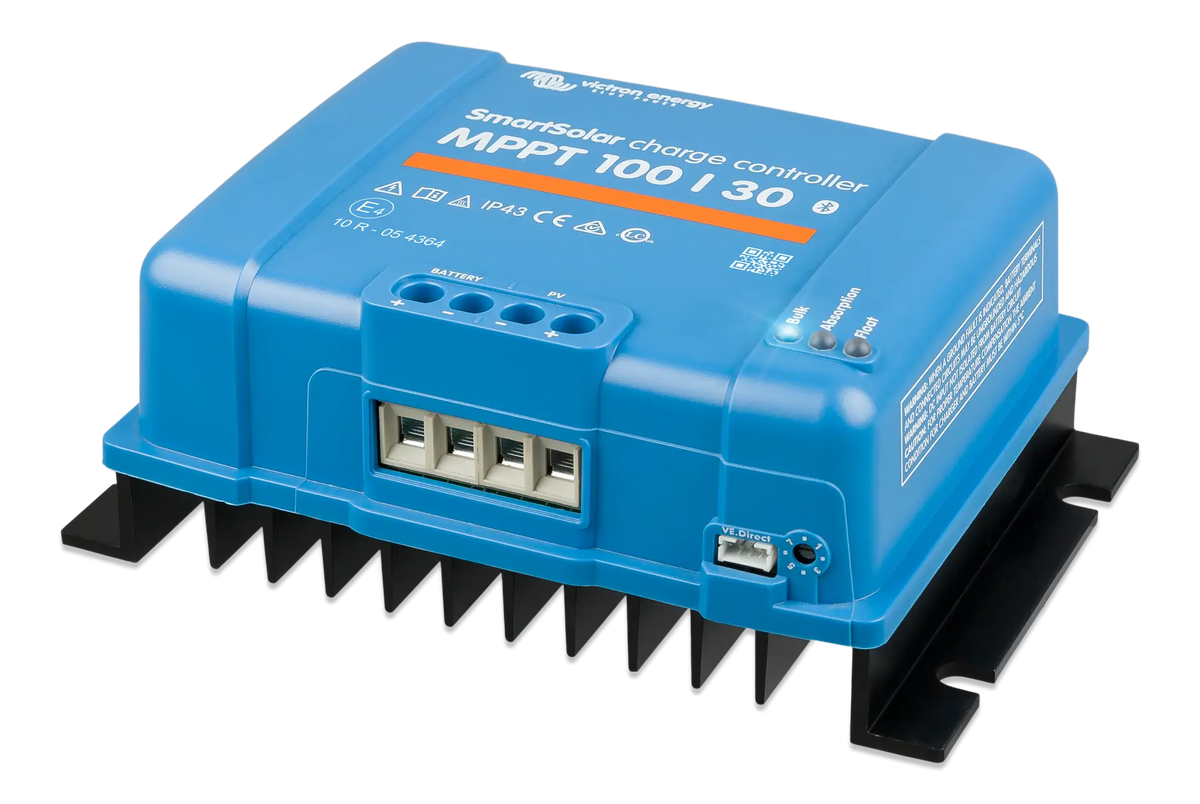

Victron SmartSolar MPPT 100/30 30A Solar Charge Controller (Bluetooth)

MPN: SCC110030210 | 30A ultra‑fast MPPT solar charge controller with integrated Bluetooth, for 12V and 24V battery systems and solar arrays up to 440W (12V) / 880W (24V) with a maximum PV open‑circuit voltage of 100V.

Why Choose This Controller?

• Delivers significantly higher solar yield than PWM and slower MPPT controllers, especially in changing or low‑light conditions.
• Handles sizeable arrays for medium systems: up to 440W on 12V or 880W on 24V, ideal for off‑grid cabins, vans, boats and small home systems.
• Integrated Bluetooth for simple setup, monitoring and firmware updates via the VictronConnect app (phone, tablet or PC).
• Advanced charge algorithms and BatteryLife‑style management (bulk/absorption/float) to protect and extend battery life.
• Victron‑grade reliability, with robust electronics, extensive protection and a 5‑year manufacturer’s warranty.

How Many Solar Panels Can I Use?

The controller is limited by 440W/880W power and 100V PV open‑circuit voltage. Typical examples:

• 12V battery bank (max 440W) – 2 × 200–220W panels in parallel, or – 3 × 150W panels (450W total, acceptable with minor clipping), or – Higher‑voltage strings (e.g. 2 × 220W in series) as long as cold‑weather V_oc stays below 100V.
• 24V battery bank (max 880W) – 3–4 × 260–300W panels in series/parallel combinations, staying under 880W and 100V V_oc, or – 2 × 400–440W “large” modules in series or parallel as design allows.

Always check your specific panel wattage and V_oc (including cold‑temperature V_oc) to keep within 100V and the relevant W limit for your battery voltage.

Key Electrical Specifications

Connectivity & Control

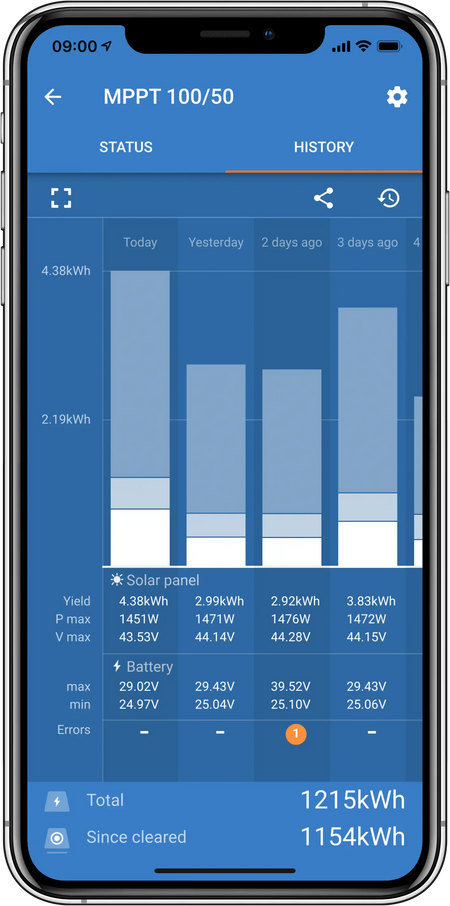

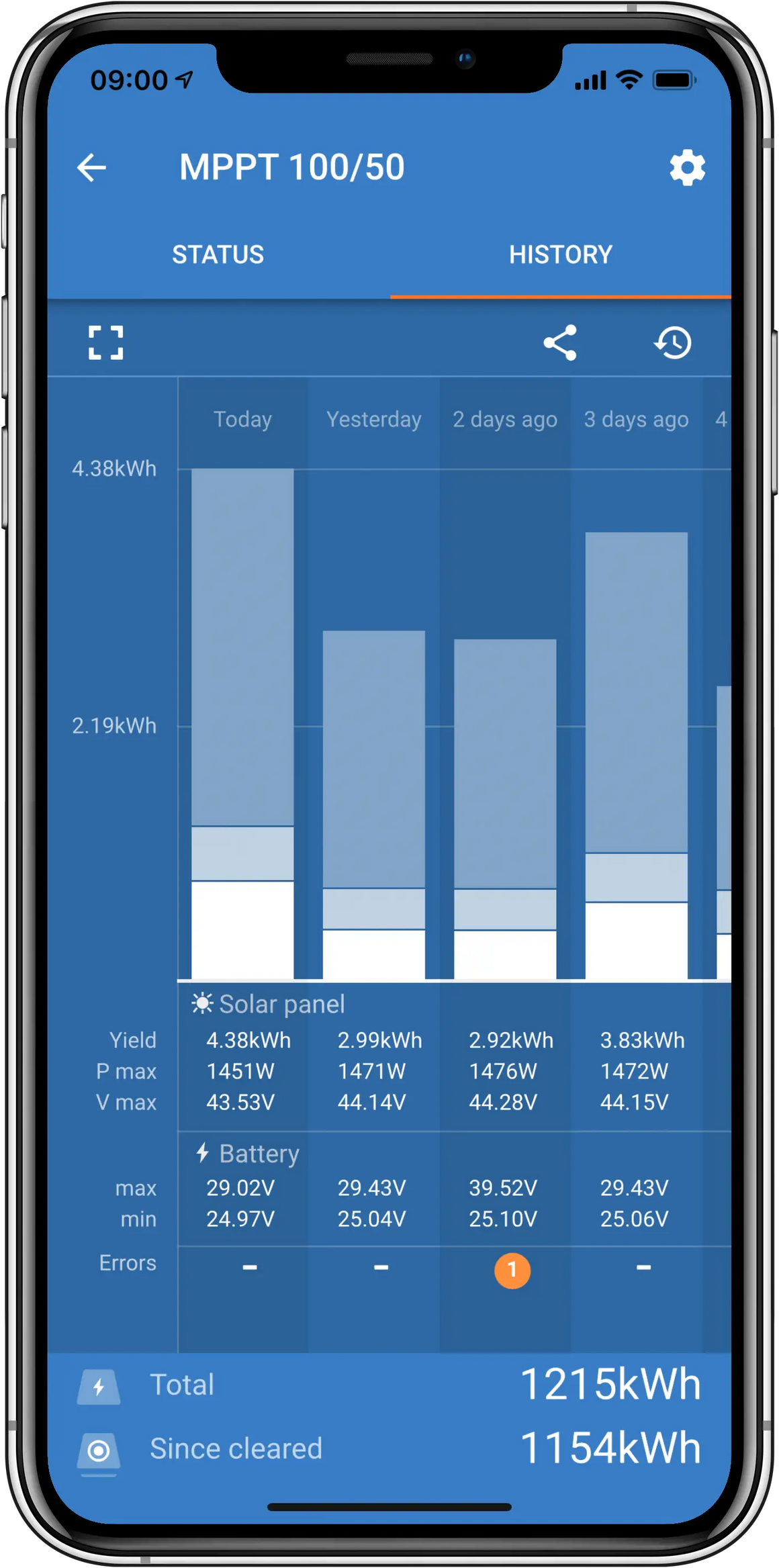

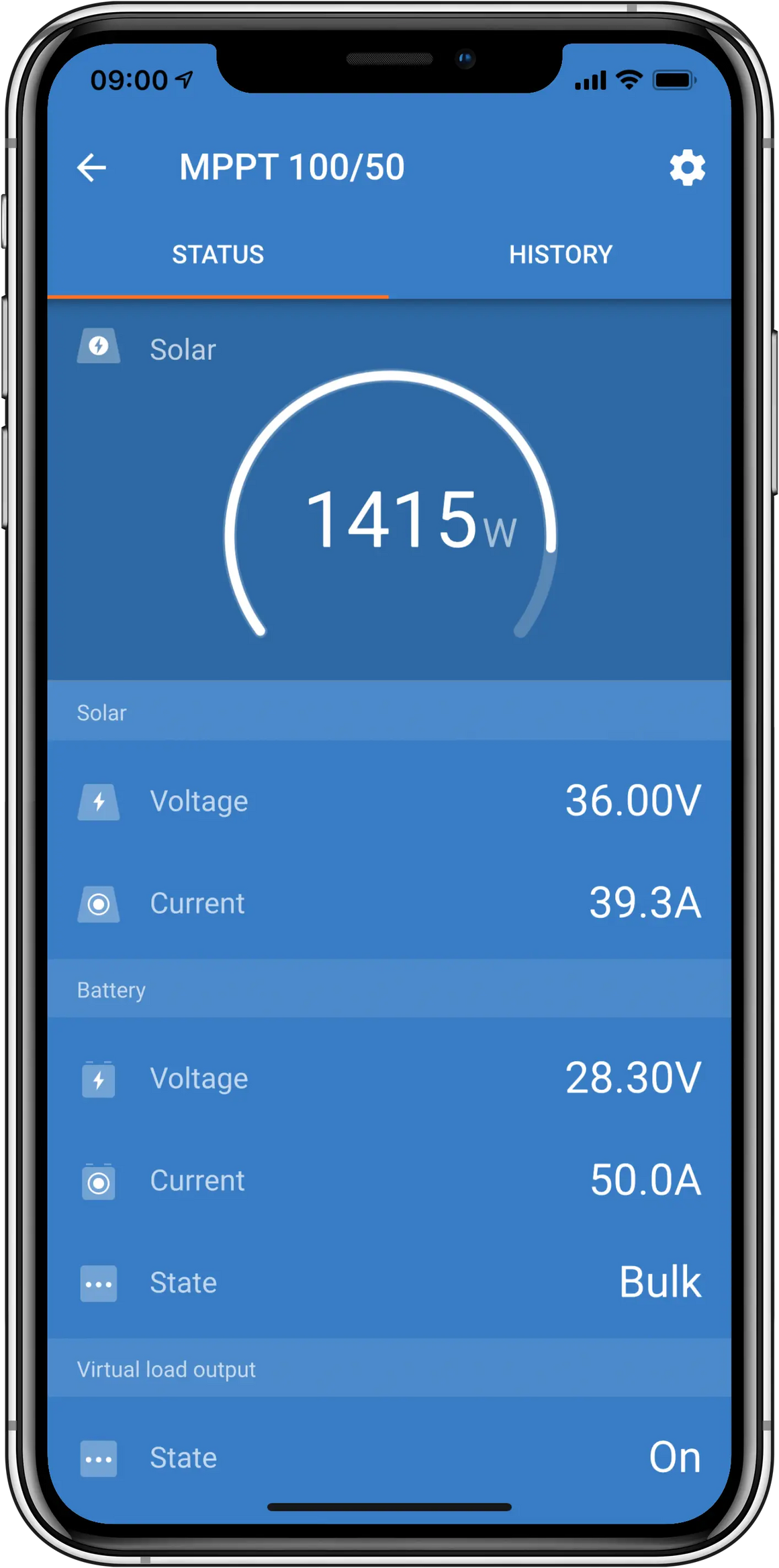

• Built‑in Bluetooth for VictronConnect: live data (PV, battery volts/amps, state of charge), 30‑day history, advanced configuration and firmware updates.
• VE.Direct communication port for optional cabled displays (e.g. MPPT Control) or external monitoring/data‑logging equipment.
• Configurable load algorithms and optional lighting / street‑light functions via VictronConnect.

Protection & Construction

• Protection against PV reverse polarity, PV short‑circuit, PV reverse current, battery reverse polarity and overheating (with derating).
• Comprehensive electronic safeguards and self‑diagnostics with LED fault indication.
• Enclosure: IP43 for electronic components, IP22 at the connection area; pollution degree PD3.
• Operating temperature: −30°C to +60°C (with automatic output derating at high temperatures).

Physical

With high power handling, outstanding efficiency and full Bluetooth connectivity, the Victron SmartSolar MPPT 100/30 is a go‑to choice for robust, medium‑sized off‑grid and marine solar systems where performance and reliability matter.
