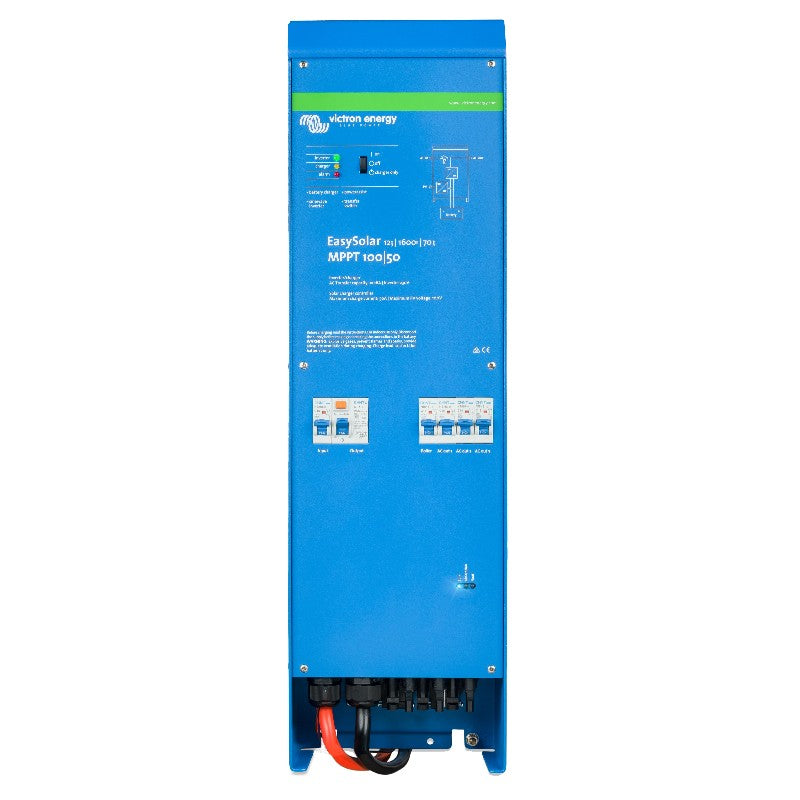

The Victron EasySolar 12/1600/70-16 is a compact all-in-one solar power system that integrates a high‑efficiency MPPT solar charge controller, pure sine wave inverter/charger and full AC distribution into a single enclosure.
Designed for fast, tidy installation with minimal wiring, it is ideal for off‑grid homes, cabins, workshops, vans and professional projects where reliability, safety and ease of use are essential.
Key Benefits
- All‑in‑one unit combining MPPT solar controller, inverter/charger and AC distribution to save space, wiring time and installation cost.
- Pure sine wave 1600VA inverter (1300W continuous) for reliable power to sensitive household and professional equipment.
- High‑performance MPPT 100/50 controller to maximise solar harvest, even in cloudy or variable conditions.
- Integrated RCD and circuit breakers for safer AC distribution straight from the unit.
- Victron PowerAssist technology helps prevent generator or grid overloading by adding inverter power when demand peaks.
- Neat wall‑mounted design with just a few connections required for a clean, professional installation.
Why Buy
- Reduce installation complexity: one professional‑grade unit replaces multiple separate components, reducing wiring errors and labour.
- Enhance system reliability: matched Victron components in a single enclosure ensure optimised performance and proven long‑term durability.
- Optimise energy use: intelligent charging and efficient inversion help you get more usable power from your batteries and solar array.
- Protect your supply: built‑in PowerAssist and AC protection hardware support safe, stable operation with generators or grid input.
- Future‑ready system: suitable for a wide range of 12V battery types, including lithium, for easy upgrades later.
Suitable For
- Off‑grid homes, cabins and garden offices needing a compact, centralised power system.
- Campervans, motorhomes and marine applications where space and weight are at a premium.
- Workshops, small business premises and site offices requiring dependable backup or hybrid solar power.
- Hybrid systems using a generator or utility connection alongside solar and batteries.
Key Features
- Integrated BlueSolar MPPT 100/50 charge controller with up to 700W PV power on 12V systems.

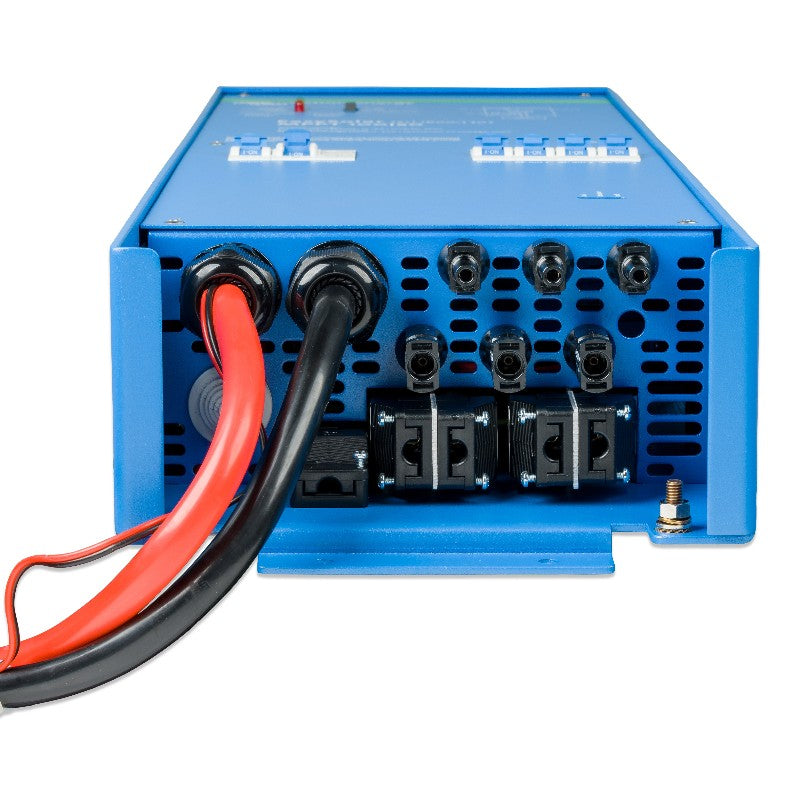

- Up to three PV strings via MC4 connectors for flexible array design and easy connection.
- MultiPlus Compact 12/1600/70 inverter/charger sharing DC battery cables with the MPPT to simplify wiring.
- AC distribution with 30mA/16A RCD and four protected outputs (two 10A and two 16A breakers).
- Dedicated 16A output switched only when AC input is present, ideal for non‑essential loads.
- Advanced PowerAssist and PowerControl functions to manage limited generator or grid capacity.
- High efficiency up to 93% with low standby consumption for better overall energy performance.
- Adaptive multi‑stage battery charging with temperature compensation for longer battery life.
- Extensive electronic protections including over‑temperature, short‑circuit and reverse polarity on PV side.
- 5‑year manufacturer’s warranty for long‑term peace of mind.
- MPN: CEP121621000.
- EAN: 8719076021599.
Technical Specifications
| General |
| Product name |
Victron EasySolar 12/1600/70-16 230V MPPT 100/50 |
| MPN |
CEP121621000 |
| EAN |
8719076021599 |
| System type |
All‑in‑one inverter/charger with MPPT solar charge controller and AC distribution |
| Nominal battery voltage |
12V DC |
| AC output voltage |
230V AC, 50Hz pure sine wave |
| Inverter |
| Continuous output power |
1600VA / 1300W at 25 °C |
| Peak power |
3000W |
| Input voltage range |
9.5 – 17V DC |
| Efficiency (max) |
Up to 93% |
| No‑load power consumption |
Approx. 8 – 10W |
| Waveform |
Pure sine wave |
| Charger |
| AC input voltage |
187 – 265V AC, 45 – 65Hz |
| Maximum charge current |
70A (12V) |
| Charge algorithm |
Adaptive multi‑stage with temperature compensation |
| Solar MPPT Controller |
| Model |
BlueSolar MPPT 100/50 |
| Maximum PV open‑circuit voltage |
100V DC |
| Maximum PV array power (12V) |
700W |
| Maximum output current |
50A |
| PV connections |
Up to three strings via three sets of MC4 connectors |
| AC Distribution |
| RCD |
30mA / 16A residual current device |
| AC outputs |
4 outputs: 2 × 10A and 2 × 16A circuit breakers |
| Switched output |
1 × 16A output active only when AC input is available |
| Protection & Control |
| Key protections |
Over‑temperature, PV short‑circuit, PV reverse polarity and reverse current protection
|
