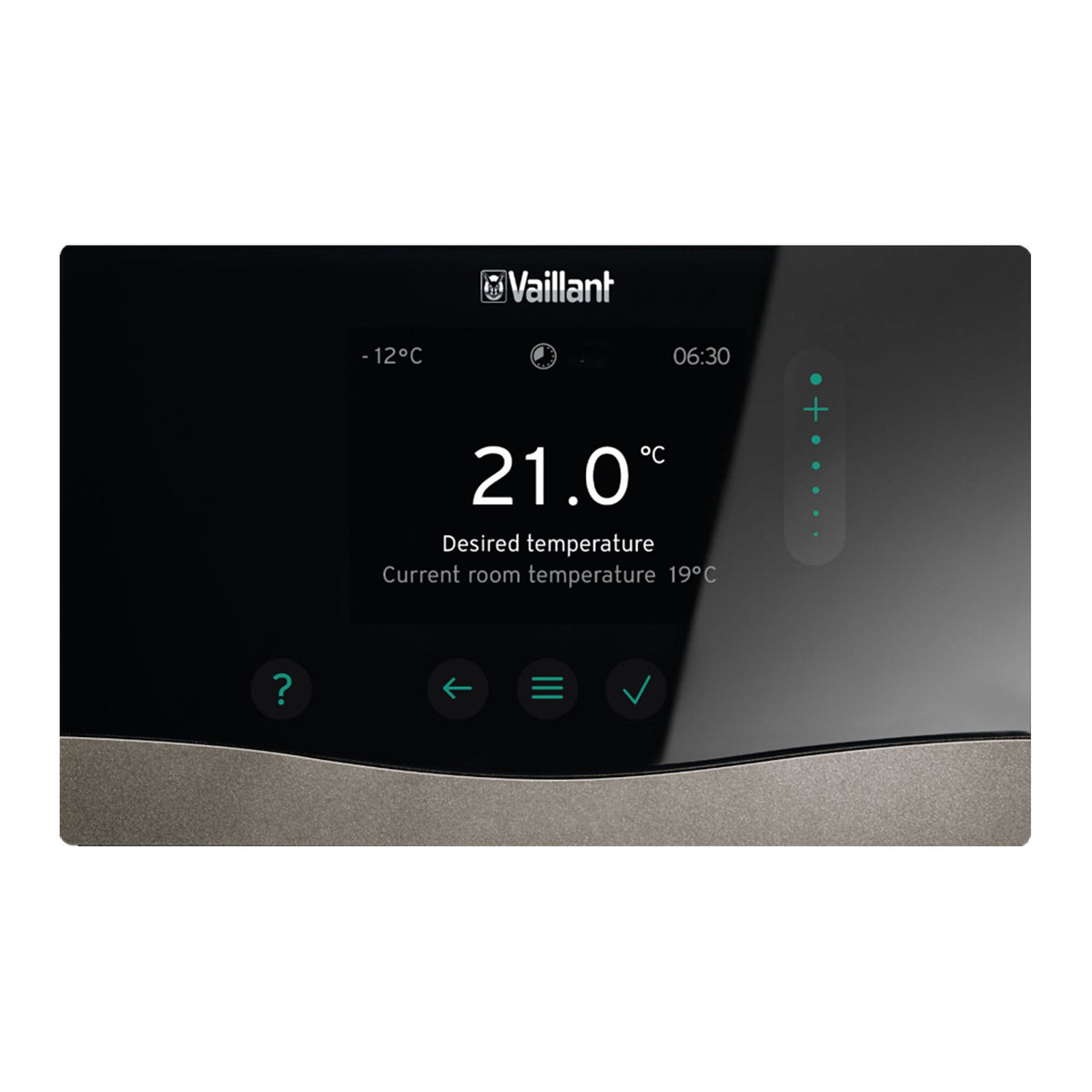

Vaillant VR92f Wireless RF Remote Control | 0020260940

Description

The Vaillant VR92f is a wireless RF remote control that allows an additional heating or cooling zone to be operated remotely through a compatible Vaillant sensoCOMFORT VRC720f system control. With its clear display, intuitive controls and 868 MHz radio communication, it provides convenient room by room comfort management without the need for a wired connection to the remote control position.

Ideal for multi zone heating systems, the VR92f enables separate temperature schedules and settings for individual areas such as living spaces, bedrooms or annexes. It is battery powered, wall mountable and designed for straightforward pairing with the system’s radio receiver unit.

RADIO FREQUENCY

868 MHz

INDOOR RANGE

Up to 25 m

OUTDOOR RANGE

Up to 100 m

POWER SUPPLY

4 x LR06

PROTECTION

IP20

MPN

0020260940

Important: The VR 92f is intended for use with a Vaillant sensoCOMFORT VRC 720f system control and its associated FM5 functional module. Installation, commissioning and configuration must be carried out by a competent person.

Compatibility note: This wireless remote control is designed for use with the VRC720f wireless system control. It is not a standalone room thermostat and should not be substituted for a wired VR92 remote control without confirming system compatibility.

Helpful information: For reliable operation, install the remote control approximately 1.30 m above floor level, away from draughts, direct sunlight, heat sources and obstructions such as furniture or curtains.

Wireless Multi Zone Control

Adds convenient remote operation for an additional heating or cooling zone, helping create tailored comfort in different areas of the property.

Reliable 868 MHz Communication

Uses the 868.0 to 868.6 MHz radio band, with an indoor range of up to 25 m and an outdoor range of up to 100 m.

Flexible Time Programming

Supports up to 12 time periods and temperature settings per day, allowing heating or cooling to match daily routines.

Clear Display and Controls

An easy to read display shows room temperature, humidity, signal strength, battery status, faults and maintenance prompts.

Battery Powered Installation

Operates using 4 x LR06 batteries, which are included, making it suitable where running a cable to the preferred control location is impractical.

Compact Wall Mounted Design

Measuring just 109 x 175 x 26 mm, the unit mounts neatly on the wall using the supplied bracket and fixing materials.

General Specifications

Brand

Vaillant

Product range

sensoCOMFORT

Model

VR92f

Manufacturer part number (MPN)

0020260940

Product type

Wireless RF remote control

Communication interface

Wireless RF / eBUS system compatibility

Colour

Black and silver

Technical Specifications

Frequency band

868.0 to 868.6 MHz

Maximum transmission power

Less than 25 mW

Range outdoors

Up to 100 m

Range indoors

Up to 25 m

Rated surge voltage

330 V

Battery type

4 x LR06 batteries (included)

Protection class

III

Ingress protection

IP20

Pollution degree

2

Operating temperature

0 to 45 °C

Operating humidity

35 to 95% relative humidity

Mode of operation

Type 1

Dimensions and Mounting

Height

109 mm

Width

175 mm

Depth

26 mm

Mounting

Wall mounted with supplied bracket, screws and wall plugs

Recommended mounting height

Approximately 1.30 m above floor level

Compatibility and Certification

Required system control

Vaillant sensoCOMFORT VRC 720f

Required functional module

Vaillant FM5 functional module

Application

Remote control of one additional heating or cooling zone

Certification

CE marked, compliant with Directive 2014/53/EU

Warranty

Manufacturer’s warranty applies, see Vaillant UK guarantee terms for full details

What is the Vaillant VR92f used for?

The VR92f is a wireless remote control for operating an additional heating or cooling zone through a compatible Vaillant sensoCOMFORT VRC 720f system control. It allows users to manage temperature settings and schedules for a separate area of the property.

Which Vaillant controls is it compatible with?

It is designed for use with the Vaillant sensoCOMFORT VRC 720f wireless system control and requires the associated FM5 functional module. Always confirm compatibility with the installed heating or cooling system before purchase.

Does the VR92f need wiring?

No. The VR92f communicates wirelessly using the 868 MHz radio band and is powered by 4 x LR06 batteries. It is wall mounted using the supplied bracket and fixings.

What is the wireless range?

Vaillant specifies an indoor range of up to 25 m and an outdoor range of up to 100 m. Actual performance can be affected by building construction, walls, interference and the position of the radio receiver unit.

Can it be used for cooling as well as heating?

Yes. Where the connected Vaillant system supports cooling, the VR 92f can be used to set cooling modes, schedules and desired temperatures, as well as heating functions.

Who should install and configure the unit?

Installation, commissioning, pairing and system configuration should be completed by a competent heating or renewables installer. This helps ensure correct zone assignment, radio signal strength and safe operation.
