Vaillant sensoCOMFORT VRC720f Wireless Room Thermostat | 0020260937 | Multi-Zone

Description

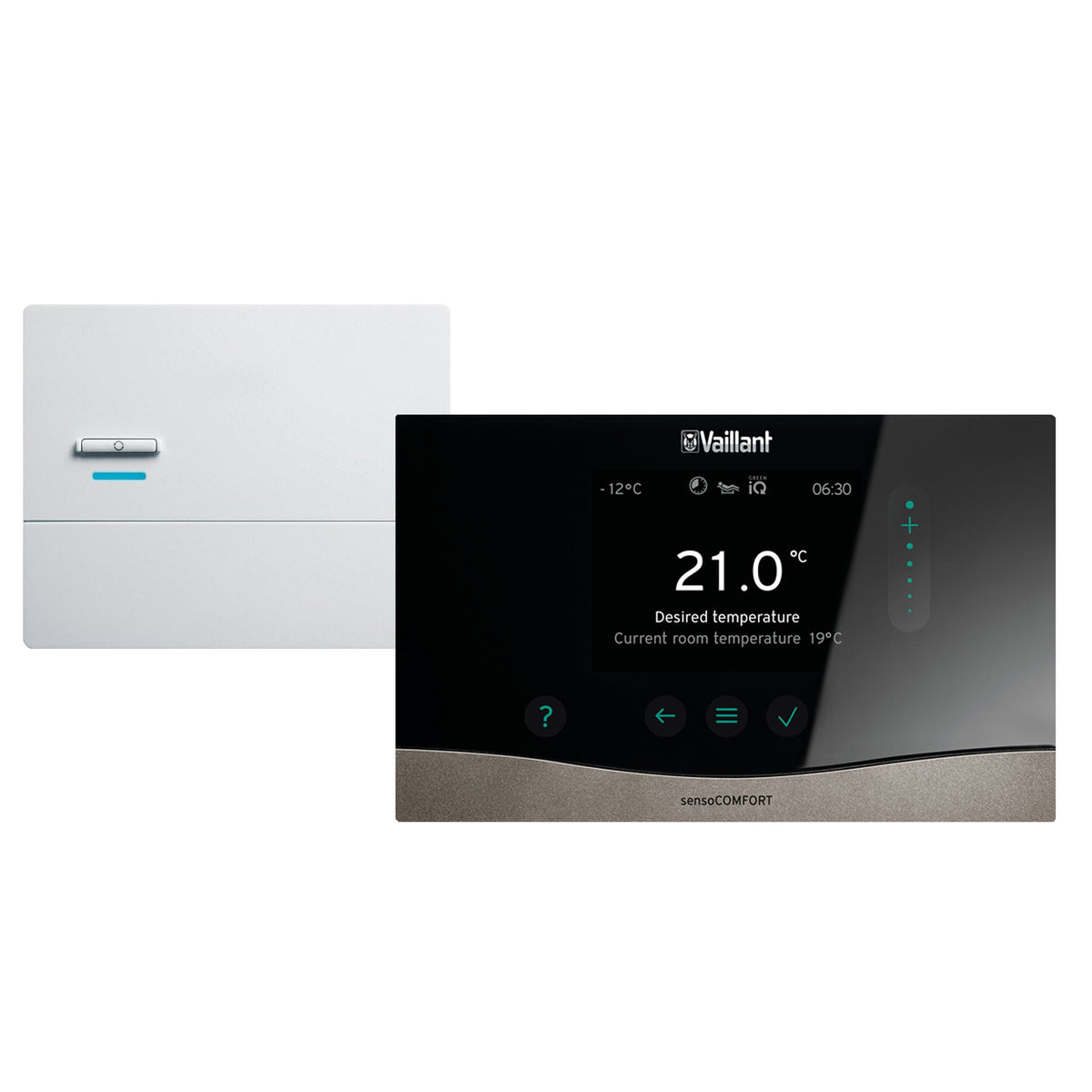

The Vaillant sensoCOMFORT VRC720f (MPN 0020260937) is a wireless, weather-compensating system control for multi-zone Vaillant heating installations. Supplied as a complete kit with a wireless master thermostat, receiver module and wired outdoor temperature sensor, it's built for gas, hybrid and renewable (heat pump) systems that need more sophisticated control than a single-zone room thermostat can offer.

Operating over Vaillant's proprietary eBUS communication protocol, the sensoCOMFORT RF automatically detects connected eBUS components during a guided commissioning routine, proposing pre-defined settings so installers no longer need to manually configure every part of the system. The included outdoor sensor delivers weather-compensated control as standard, continuously adjusting boiler flow temperature to match outdoor conditions for consistent comfort at maximum efficiency.

3 Zones

Max Heating Circuits

20 Rooms

With ambiSENSE TRVs

≤100m

Outdoor Comms Range

ErP Class 6

Efficiency Contribution

7 Boilers

Max Cascade

175×109mm

Thermostat (W×H)

Guided Commissioning

The system automatically detects connected eBUS components and proposes pre-defined settings, removing the need to manually configure each part of the installation.

Weather Compensation

The included outdoor sensor automatically adjusts boiler flow temperature based on outside conditions, keeping the home comfortable while running the system at its most efficient point.

Load Compensation as Standard

Built-in load compensation keeps the boiler modulating at lower, more efficient temperatures as the target room temperature is approached, rather than cycling on and off at full output.

Energy Dashboard

Provides insight into energy consumption over a two-year period, including an overview of renewable energy gain where a Vaillant heat pump forms part of the system.

Multi-Zone Control

Supports up to three wireless heating zones, with additional VR 92f room thermostats available to control individual zones as the system grows.

App Control Ready

Paired with the myVAILLANT connect internet gateway (sold separately), the system can be managed remotely via the myVAILLANT app for heating and hot water control on the go.

System Capability

Maximum Heating Zones

3 (wireless)

Maximum Individually Controlled Rooms (with ambiSENSE)

20

Maximum Boiler Cascade

7

Communication Protocol

eBUS (Vaillant proprietary)

Physical (Thermostat)

Dimensions (H × W × D)

109 × 175 × 27 mm

Power Supply

eBUS 24V

Current Consumption

<50 mA

Level of Protection

IP20

Adjustable Temperature Range

5–30°C

Maximum Ambient Temperature

45°C

Wireless Performance

Transmission Frequency

868.0–868.6 MHz

Maximum Transmission Power

<25 mW

Maximum Communication Range (Outdoor)

≤100 m

Maximum Communication Range (Indoor)

≤25 m

Wiring & Installation

Frequency (Mains)

50/60 Hz

Minimum Cross-Section, Connection Lines

1.5 mm²

Minimum Cross-Section, eBUS & Sensor Wire

0.75 mm²

Efficiency & Compliance

ErP Class

6

ErP Contribution

4%

Manufacturer Part Number (MPN)

0020260937

Supplied With

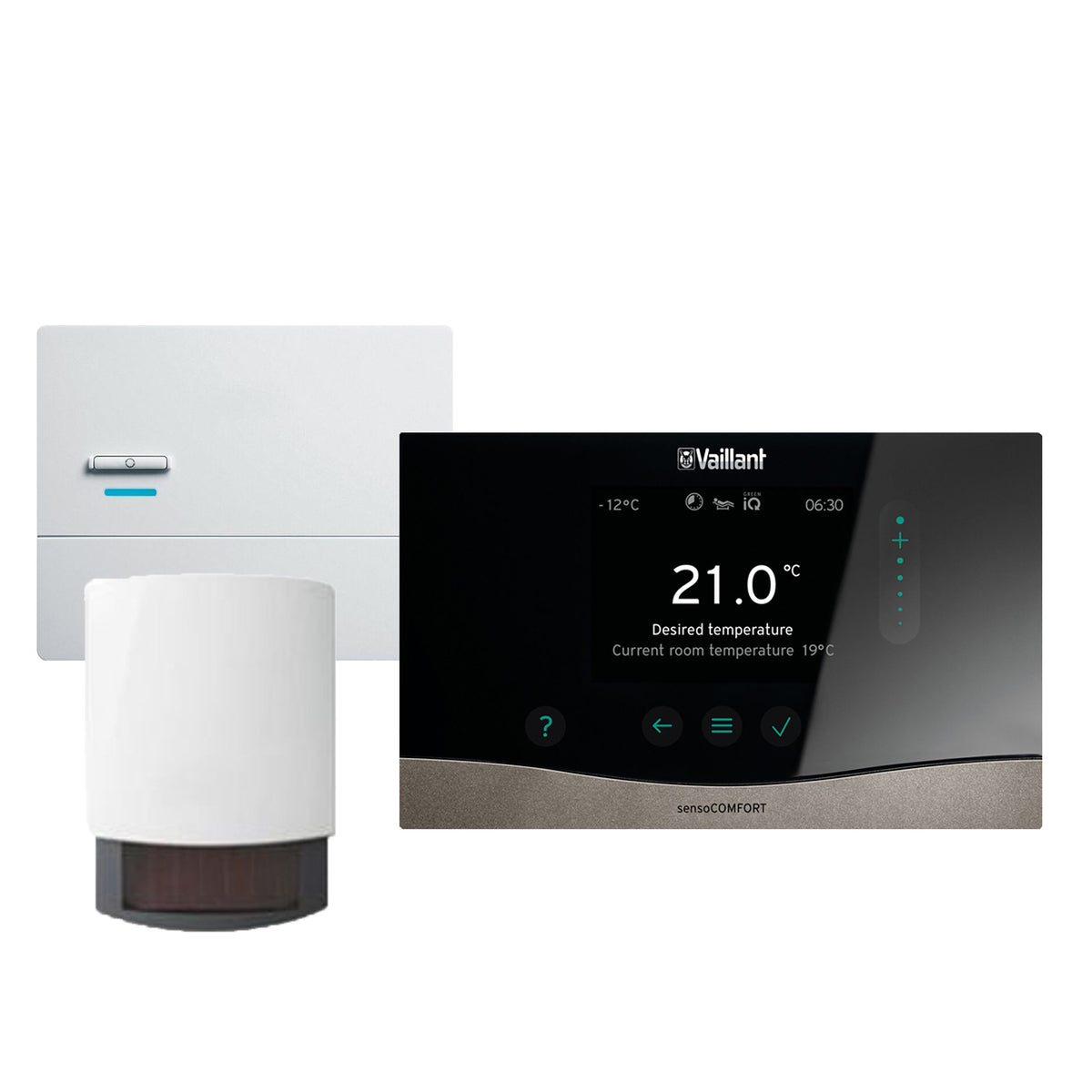

Wireless master thermostat, receiver module, wired outdoor temperature sensor

What's the difference between the wired sensoCOMFORT and this wireless RF version?

The wired sensoCOMFORT supports up to 5 heating zones, while the wireless sensoCOMFORT RF (this product) supports up to 3. The wireless version is well suited to retrofit installations where running new cabling to a thermostat location isn't practical.

Is the outdoor sensor included, or sold separately?

The outdoor sensor is included as standard in this kit, alongside the wireless master thermostat and receiver module, enabling weather-compensated control straight out of the box.

Can I control more than three zones with additional accessories?

The wireless sensoCOMFORT RF is limited to 3 heating zones maximum. Individual rooms within a zone can be further controlled using Vaillant ambiSENSE thermostatic radiator valves, extending control down to room level — up to 20 rooms — without adding another heating zone.

Do I need the myVAILLANT connect gateway to use this thermostat?

No, the sensoCOMFORT RF operates fully as a standalone system control. The myVAILLANT connect internet gateway is an optional add-on, needed only if remote app control and monitoring via the myVAILLANT app is wanted.

What types of heating systems is this compatible with?

The sensoCOMFORT RF is compatible with Vaillant's gas boiler, hybrid, and renewable heat pump systems that support the eBUS communication protocol, making it suitable for multi-zone gas-fuelled, hybrid, or fully renewable installations.
