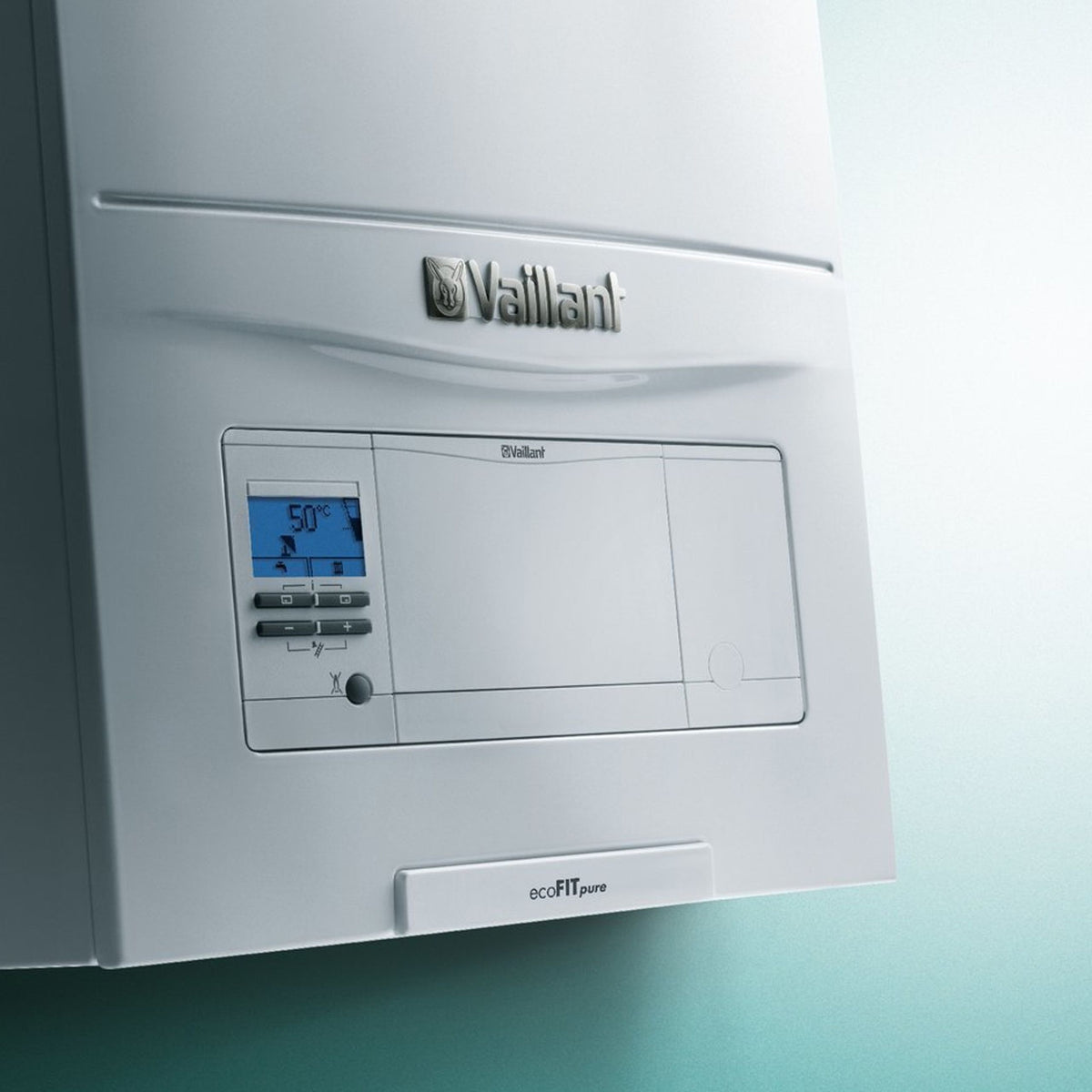

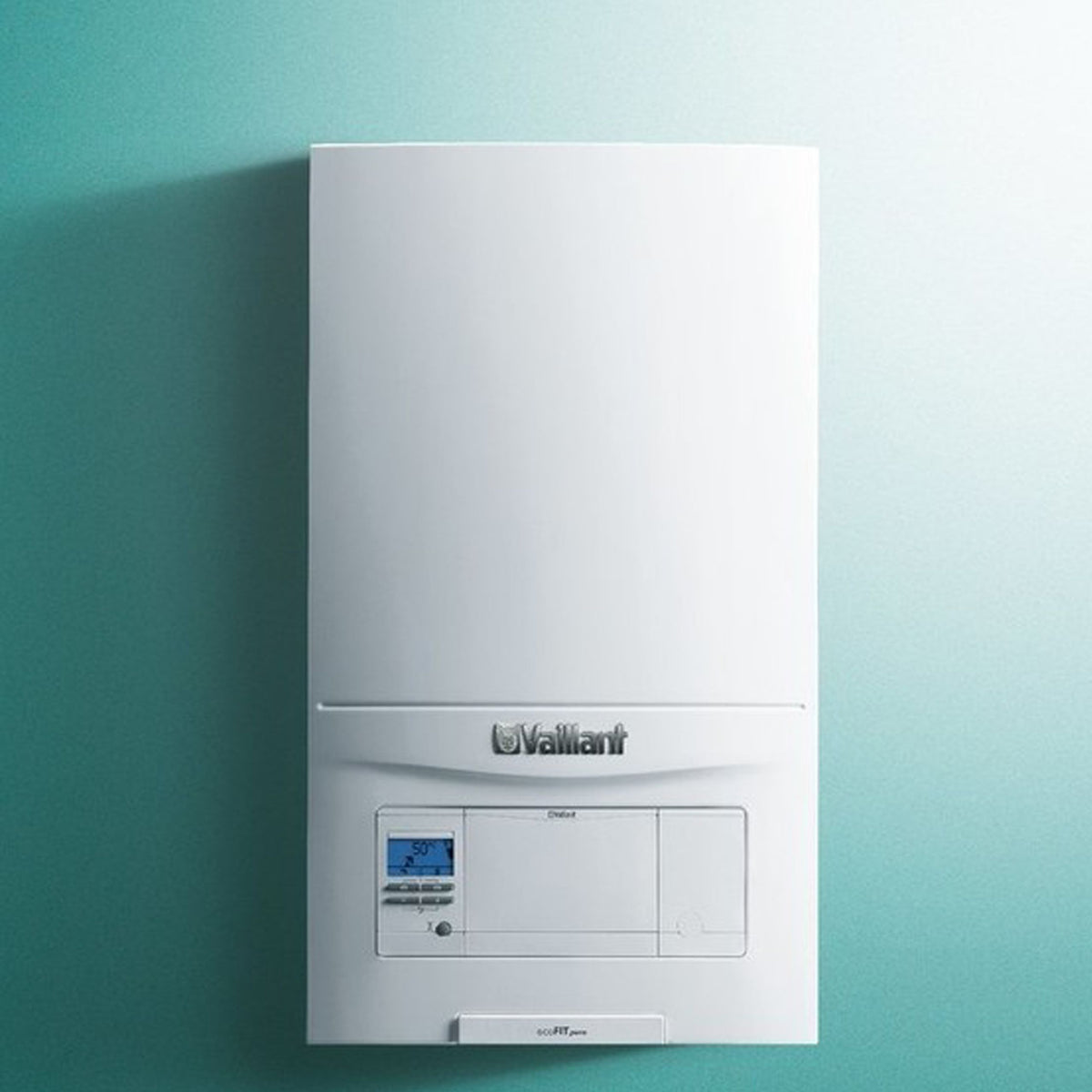

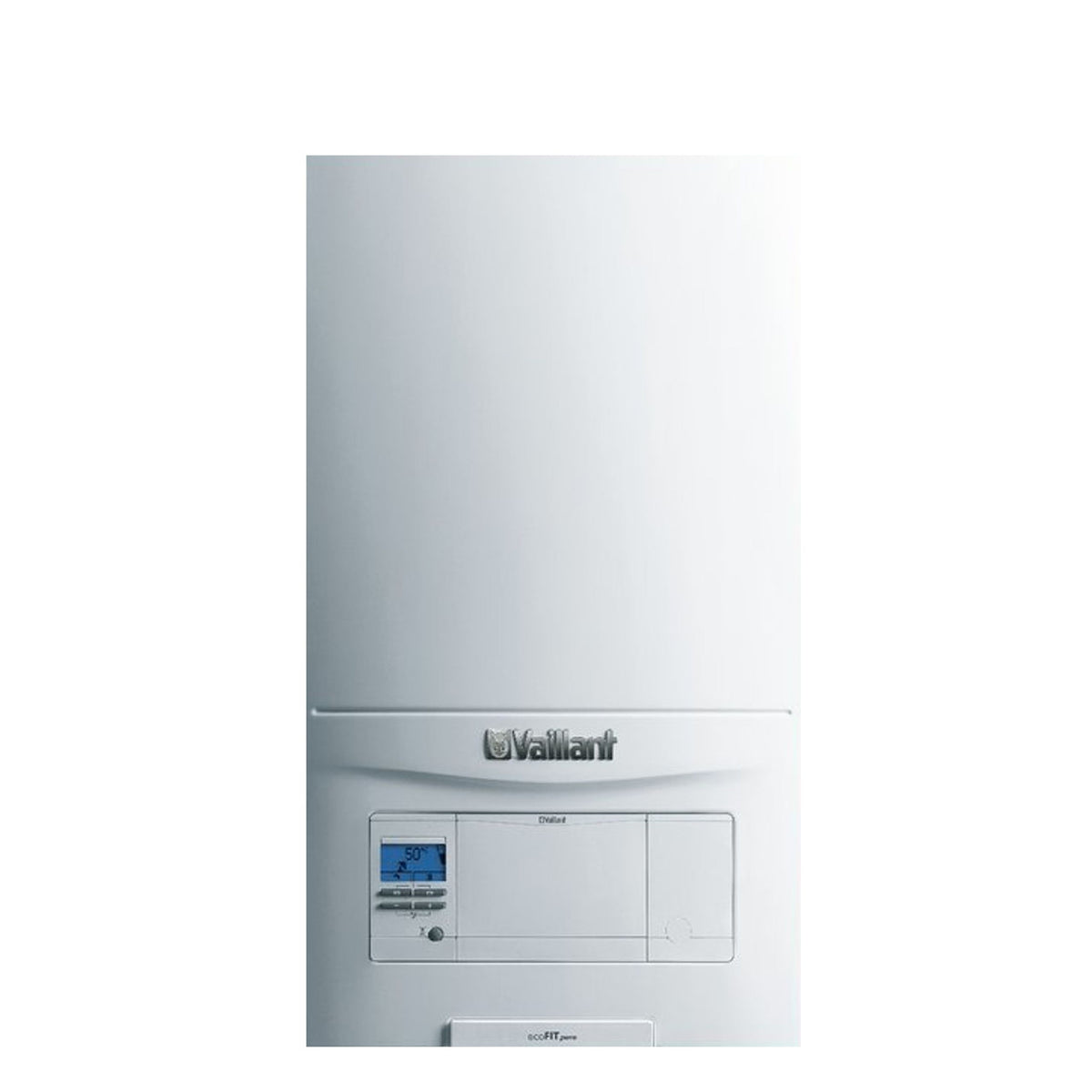

Vaillant ecoFIT Pure 415 Open Vent Heat Only Boiler | 10020401 | 15kW

Description

The Vaillant ecoFIT Pure 415 (MPN 10020401) is a 15kW open vent (regular/heat-only) gas boiler, built for homes with a traditional heating system comprising a hot water storage cylinder and, where needed, a cold water feed and expansion tank in the loft. It suits smaller properties replacing an older open vent system, or installations where low incoming mains water pressure makes a combi boiler impractical.

A high-specification aluminium heat exchanger is designed for long service life and easier maintenance, while wide modulation of up to 1:5 lets the boiler adapt closely to system demand across a range of installations. The compact cupboard-fit footprint, combined with top and rear flue options, gives installers real flexibility over where the boiler is sited.

94%

ErP Efficiency

18kW

Max Water Generation

1:5

Modulation Ratio

7 Yrs

Warranty (Advance)

10m

Max Flue Length

22kg

Boiler Lift Weight

Gas Safe installation required. This is a mains gas appliance and must be installed, commissioned and serviced by a Gas Safe registered engineer, in line with Building Regulations Part L and current Gas Safety (Installation and Use) Regulations.

Boiler-only, open vent system required: This is a heat-only (regular) boiler, not a combi. It must be installed with an existing or new open-vented hot water cylinder and cold water storage tank and cannot function as a standalone unit.

Compact Cupboard Fit

A smaller boiler footprint than many open vent alternatives gives real flexibility of siting, including installation inside a standard kitchen cupboard.

Top and Rear Flue Options

Supports both top and rear flue outlets, giving installers the flexibility to fit the boiler in more property layouts than a top-only design allows.

Boiler Plus Compliant

Installed alongside a VRT 15, timeSWITCH 160 and VR 66 wiring centre, this boiler meets UK Boiler Plus requirements for time and temperature control.

Front-Accessible Servicing

An accessible internal layout allows all major components to be replaced from the front, reducing service and repair time for engineers.

High-Spec Heat Exchanger

A quality aluminium heat exchanger is engineered for a long service life, easier maintenance and reduced running costs over time.

App-Ready Controls

Compatible with Vaillant's vSMART app-based control, allowing heating control on the go alongside Vaillant's wider range of intelligent controls.

Heating Performance

Nominal Heat Output (50/30°C, condensing)

4.7–15.9 kW

Nominal Heat Output (80/60°C, non-condensing)

4.5–15.2 kW

Flow Temperature Range

10–80°C

Flow Temperature Factory Setting

75°C

Water Generation

Maximum Heat Output for Water Generation

18 kW

Approximate Condensate Volume (50/30°C)

1.53 litres/hr

Physical & Connections

Dimensions (H × W × D)

602 × 375 × 295 mm

Boiler Lift Weight (dry)

22 kg

Heat Exchanger Material

Aluminium

Emissions & Noise

NOx Emissions (EN 15502-2-1)

33 mg/kWh

ErP Efficiency

94% (Heating: A / DHW: A+)

ErP Sound Power

48 dB(A)

Flueing & Clearances

Max Horizontal Flue (60/100)

10 m

Rear Flue Option

Yes

Side Clearance (Left / Right)

5 mm

Top Clearance

150 mm (20mm if using rear flue)

Bottom Clearance

150 mm

Compliance & Coverage

Manufacturer Part Number (MPN)

0010020401

Warranty

Standard warranty; up to 7 years with Vaillant Advance registration

What's the difference between an open vent boiler and a combi boiler?

An open vent (regular) boiler only heats water — it needs a separate hot water cylinder and, where required, a cold water feed tank, typically in the loft. A combi boiler heats water on demand with no cylinder needed. Open vent systems work well for homes with low mains water pressure or where a like-for-like replacement of an existing system is preferred.

Do I need a cylinder and tank to use this boiler?

Yes. This is a heat-only boiler supplied without a cylinder — it must be connected to an existing or new open-vented hot water cylinder and cold water storage tank to provide domestic hot water.

How do I get the full 7-year warranty?

The standard guarantee period applies out of the box. To extend this to up to 7 years, the boiler must be registered with Vaillant Advance by a registered Advance partner installer — confirm current eligibility and steps with Vaillant before completing the installation.

Can the flue exit through the rear instead of the top?

Yes. The ecoFIT Pure 415 supports both top and rear flue outlets, giving installers flexibility when siting the boiler in properties where a top exit isn't practical.

Who can install this boiler?

Installation, commissioning and servicing must be carried out by a Gas Safe registered engineer, in line with UK Gas Safety (Installation and Use) Regulations and Building Regulations Part L.
