V&G Compression Stopcock 15/22/28mm | VG15SC VG22SC VG28SC

Description

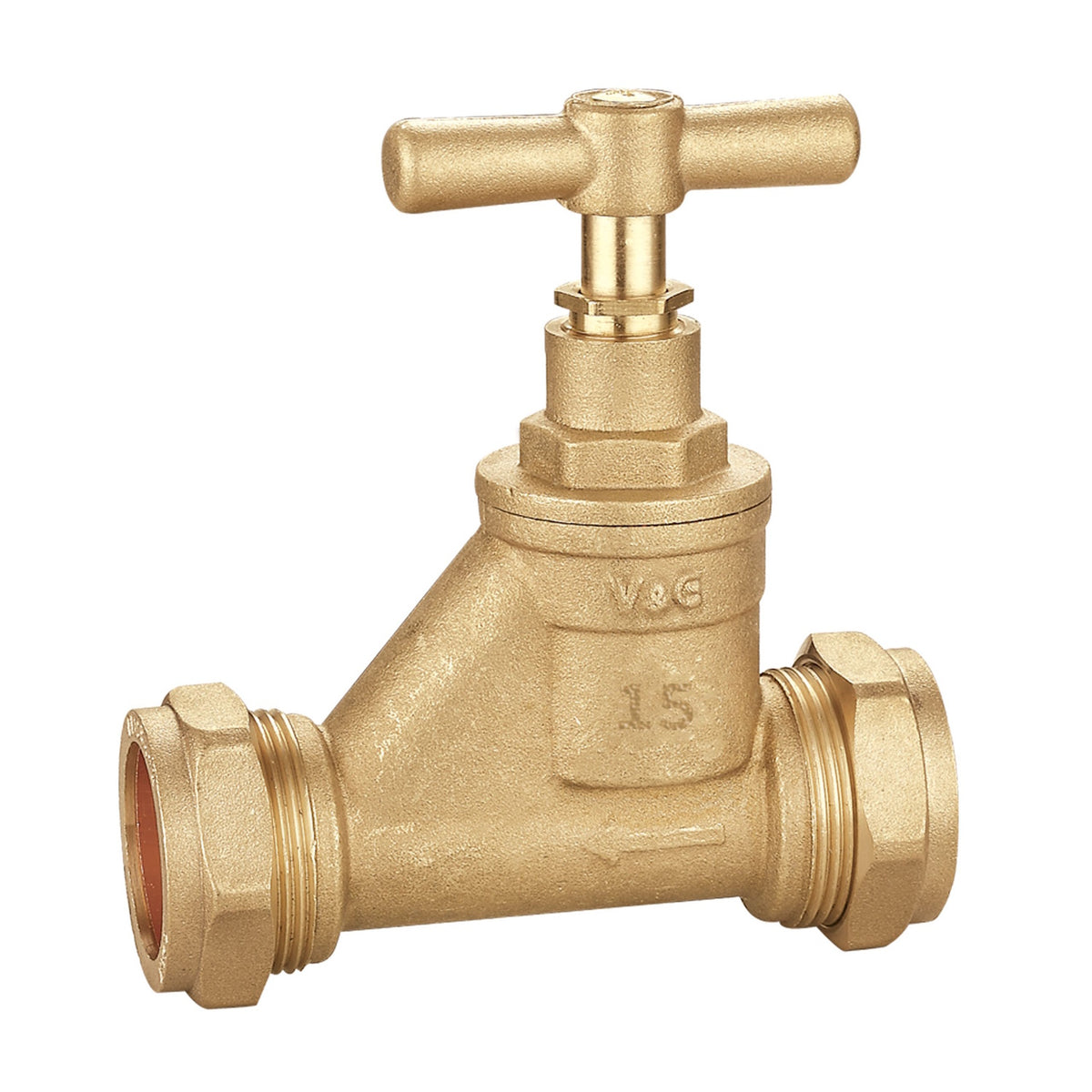

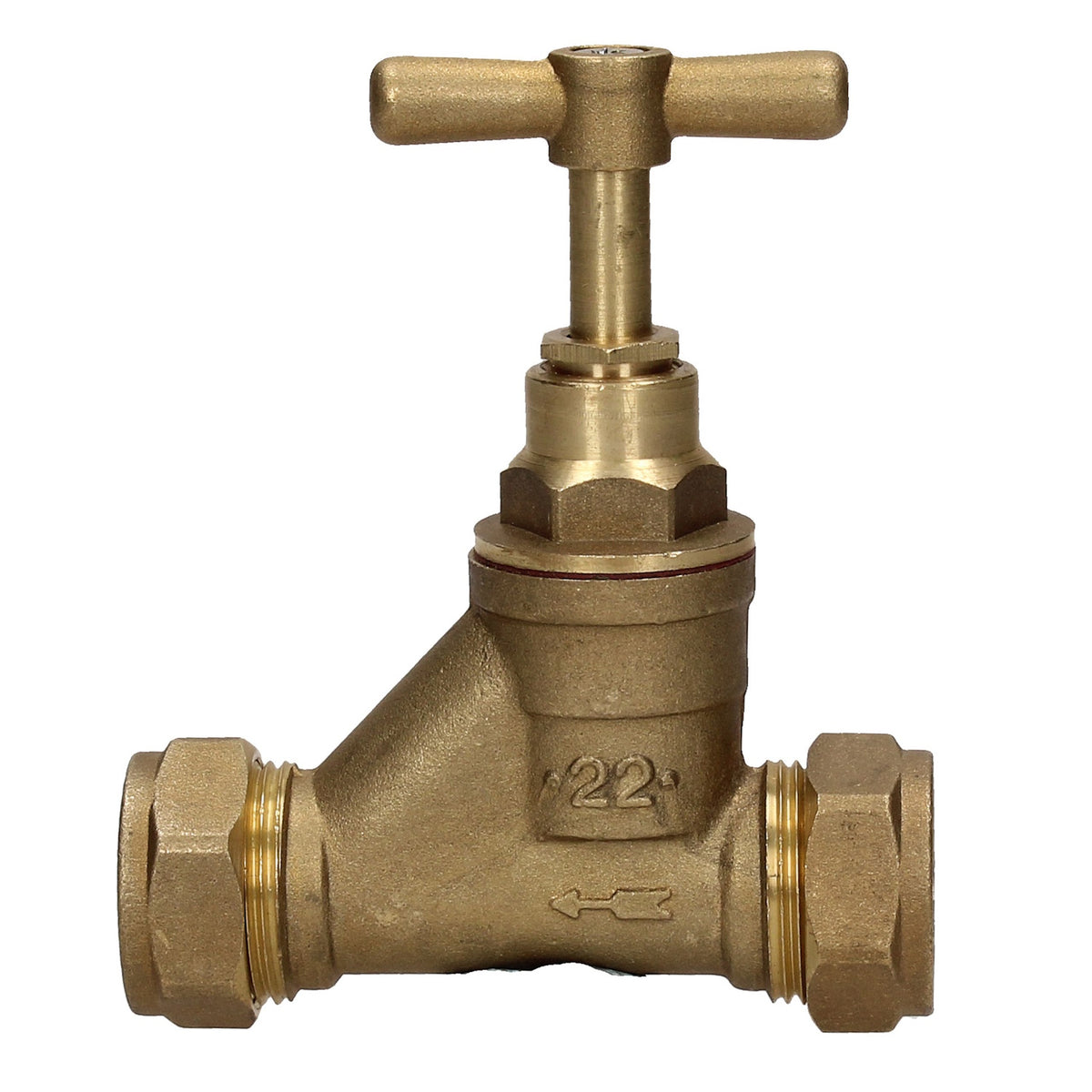

The V&G brass compression stopcock is a dependable isolating valve for water and heating systems, supplied in three sizes to suit common copper pipework: VG15SC (15 mm), VG22SC (22 mm) and VG28SC (28 mm).

Built from corrosion-resistant brass with compression ends to EN 1254, it fits without heat or solder, so installation and later removal are quick and straightforward. It carries WRAS approval for potable water use, is rated for -20°C to 120°C, and suits domestic, commercial and industrial installations. Whether you are fitting a new water supply shut-off or isolating a branch for maintenance, one range covers every common pipe size.

3 sizes

15 mm | 22 mm | 28 mm

Brass

Corrosion-resistant body

WRAS

Approved for potable water

EN 1254

Compression ends

-20°C to 120°C

Working temperature

Up to PN16

Range pressure rating

Water systems only

Use this stopcock on water and heating pipework only, never on gas or fuel lines. Installations connected to the mains supply must comply with the Water Supply (Water Fittings) Regulations 1999 (or the Scottish Water Byelaws) and should be carried out by a competent installer.

Fit without heat

Compression ends mean no blowtorch, no solder and no flux. That makes the V&G stopcock a practical choice where hot work is restricted, and it can be disconnected quickly when pipework needs altering.

Key features

Durable brass body

Solid brass construction resists corrosion and wear for long service life in plumbing and heating systems.

WRAS approved

WRAS approval confirms suitability for use with potable water supplies.

EN 1254 compression ends

Compression connections to EN 1254 create a secure, leak-resistant joint and simplify installation and maintenance.

Wide temperature range

Operates from -20°C to 120°C, covering both cold and hot water duties.

Water and heating

Designed to regulate and isolate flow in water and heating systems, in domestic and commercial settings.

Three common sizes

Available as 15 mm, 22 mm and 28 mm to match standard copper pipe sizes without adaptors.

Specification

General

Brand

V&G

Range code

H-02201

Part codes

VG15SC (15 mm), VG22SC (22 mm), VG28SC (28 mm)

Product type

Brass compression stopcock (isolating valve)

Body material

Brass

End connections

Compression to EN 1254

Approvals

WRAS approved

Applications

Water and heating systems; domestic, commercial and industrial installations

Performance

Working temperature

-20°C to 120°C

Working pressure

Up to PN16 (range rating; see pressure note above)

Available sizes

Part code

Size

Connection

VG15SC

15 mm

Compression x compression

VG22SC

22 mm

Compression x compression

VG28SC

28 mm

Compression x compression

Frequently asked questions

Which size stopcock do I need?

Match the stopcock to your pipe: VG15SC for 15 mm, VG22SC for 22 mm and VG28SC for 28 mm pipework. Compression ends are sized for the corresponding pipe diameter.

Do I need solder or a blowtorch to fit it?

No. The compression ends are tightened onto the pipe, so no heat, solder or flux is needed.

Can it be used on hot water and heating pipework?

Yes. The stopcock is designed for water and heating systems and is rated for working temperatures from -20°C to 120°C.

Is it approved for drinking water?

Yes. The manufacturer states WRAS approval for potable water applications.

Can I use it on a gas supply?

No. It is intended for water and heating systems only. Use a purpose-made, approved valve for gas pipework and have it fitted by a Gas Safe registered engineer.
