Underfloor Heating Plastic Castellated Floor Panel for 15mm and 16mm Pipe

Description

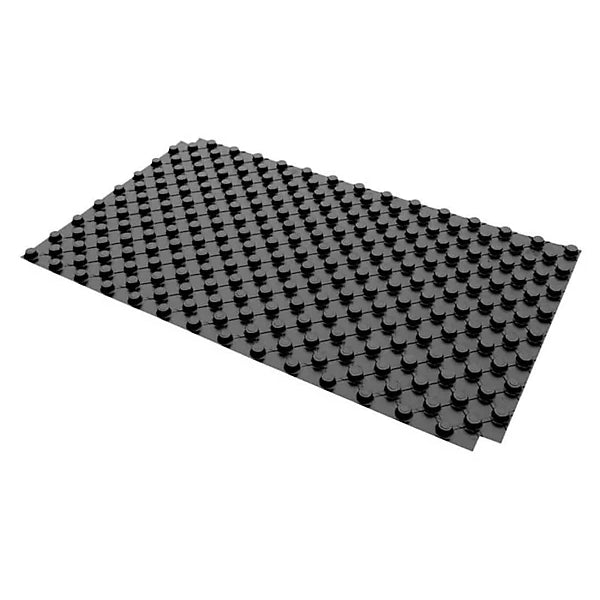

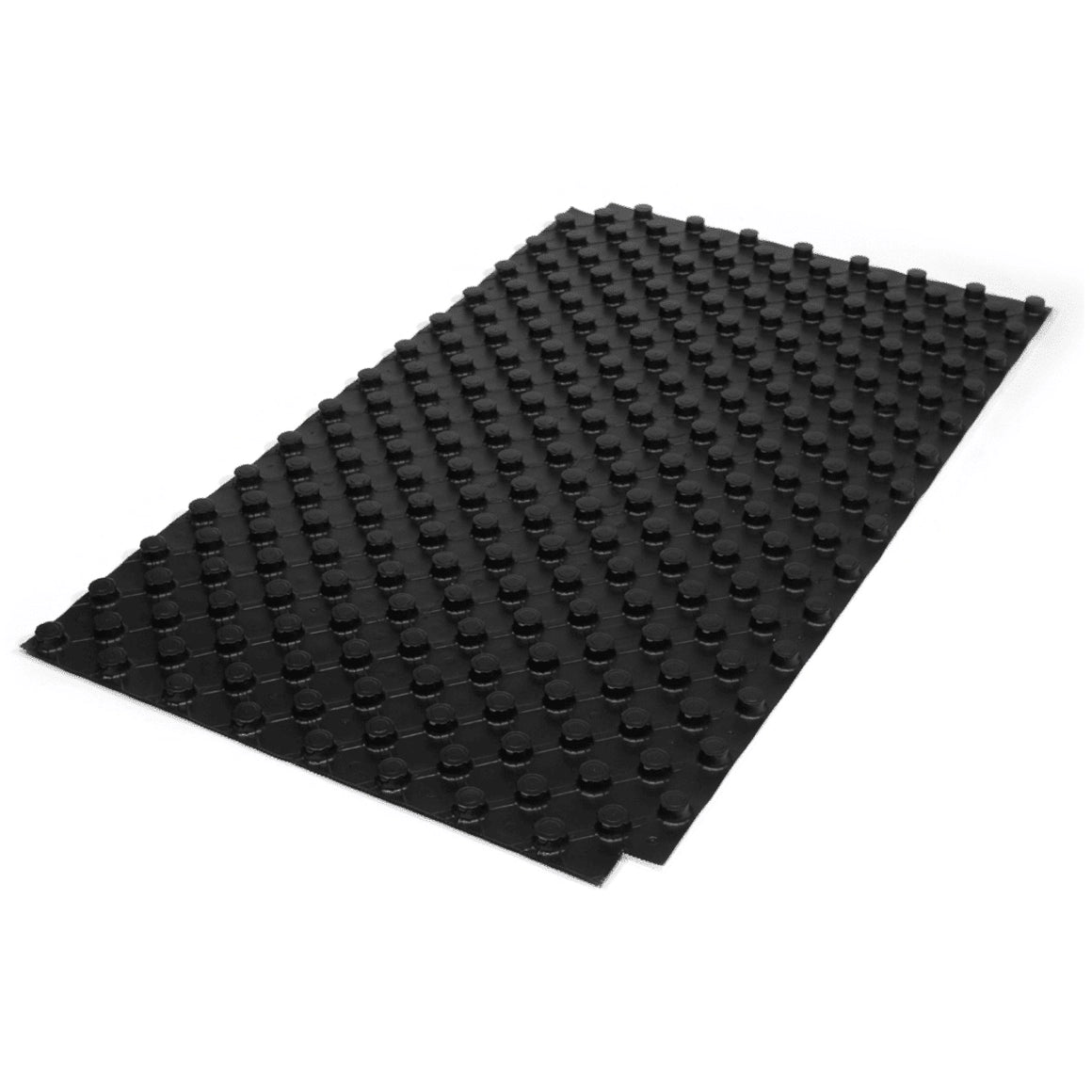

The Plastic Castellated Floor Panel is a low profile, fast-fit pipe retaining system designed for easy and accurate installation of 15mm and 16mm underfloor heating pipes. The castellated design securely grips the pipe without the need for additional clips, allowing quick piping installation ready for screeding.

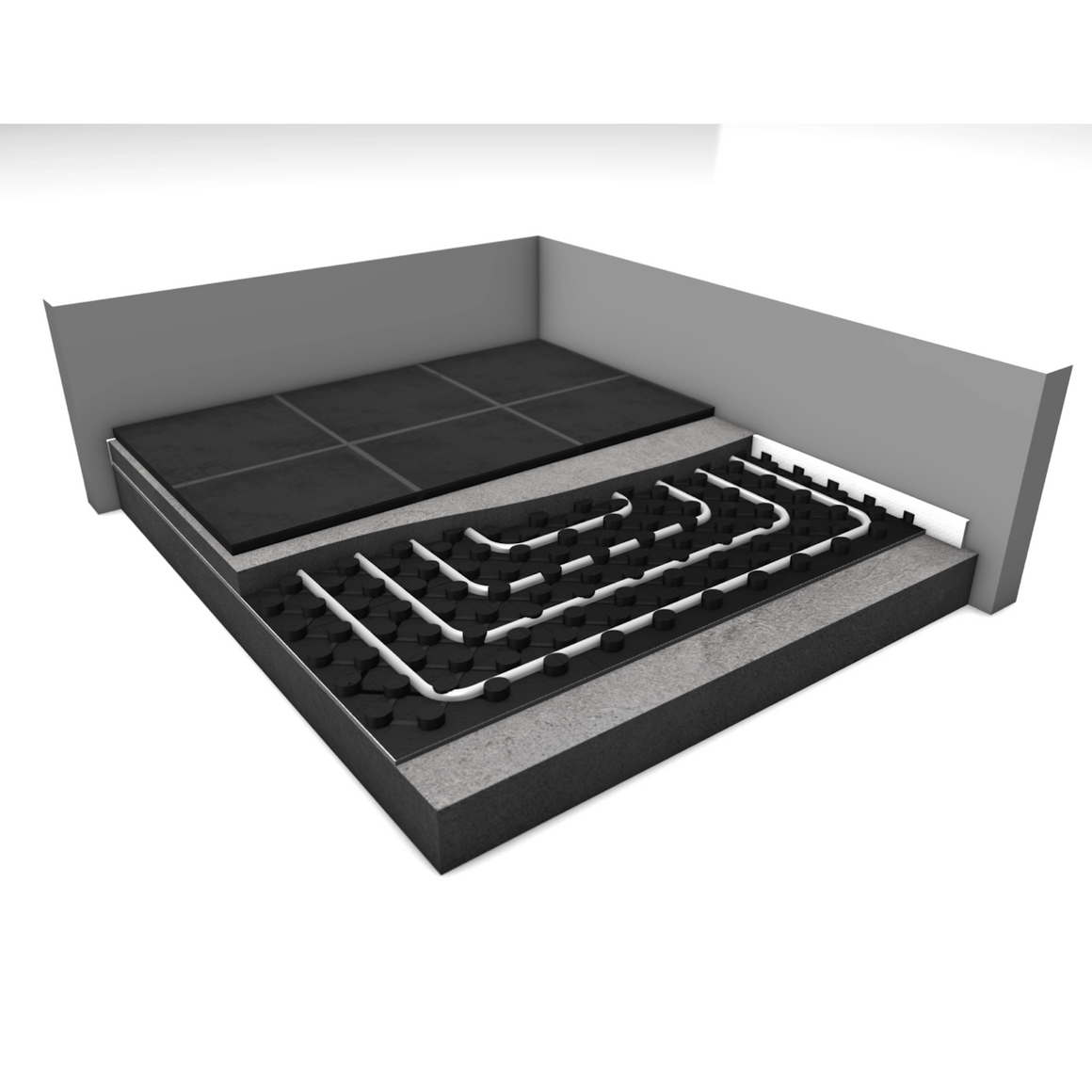

These injection-moulded durable plastic panels interlock to form a continuous underfloor grid that supports and spaces pipes precisely at selectable centres (50mm, 100mm, 150mm, or 200mm). Their low 20mm height minimizes floor build-up, making them ideal for renovations and new builds where floor height is limited.

What’s Included

Panels sized 1220mm x 820mm x 20mm (each panel covers 1.0m²)
Designed for 15mm & 16mm underfloor heating pipe diameters
Installation instructions included

Key Features

Low profile panel thickness: 20mm total height
Accurately spaced castellated knobs for pipe retention at multiples of 50mm pipe centres (50, 100, 150, 200mm)
Interlocking edges allow seamless panel alignment and continuous coverage
Compatible with 15mm and 16mm multilayer underfloor heating pipes
Strong, durable injection-moulded plastic for longevity and repeated screeding resistance
Eliminates need for separate pipe clips, speeding installation
Vacuum formed castellations securely hold pipes below surface level, protecting from damage during screeding and site traffic
Panels overlap for full coverage without gaps, removing need for additional damp proof membranes (DPM)

Benefits

Speeds up installation by providing a pipe fixing template and secure grip
Minimizes floor height buildup with low 20mm thickness
Ensures accurate pipe spacing for consistent heat distribution
Protects pipes from mechanical damage during construction
Strong and durable panels suitable for heavy site traffic and screed loading
Interlocking design promotes a nuisance-free, mess-free install

Technical Specifications

Panel Thickness	20 mm
Panel Dimensions	1220 mm x 820 mm
Coverage per Pack	22 m²
Pipe Diameter Compatibility	15 mm & 16 mm multilayer pipe
Pipe Centres	50, 100, 150, 200 mm (multiples of 50 mm)
Material	Injection moulded durable plastic
Colour	Typically black
Fire Classification	Typically Class E (confirm with supplier if critical)

The Plastic Castellated Floor Panel provides a professional, quick, and reliable solution for fixing underfloor heating pipes with minimal floor height impact and outstanding durability, perfectly suited to both new construction and refurbishment projects.
