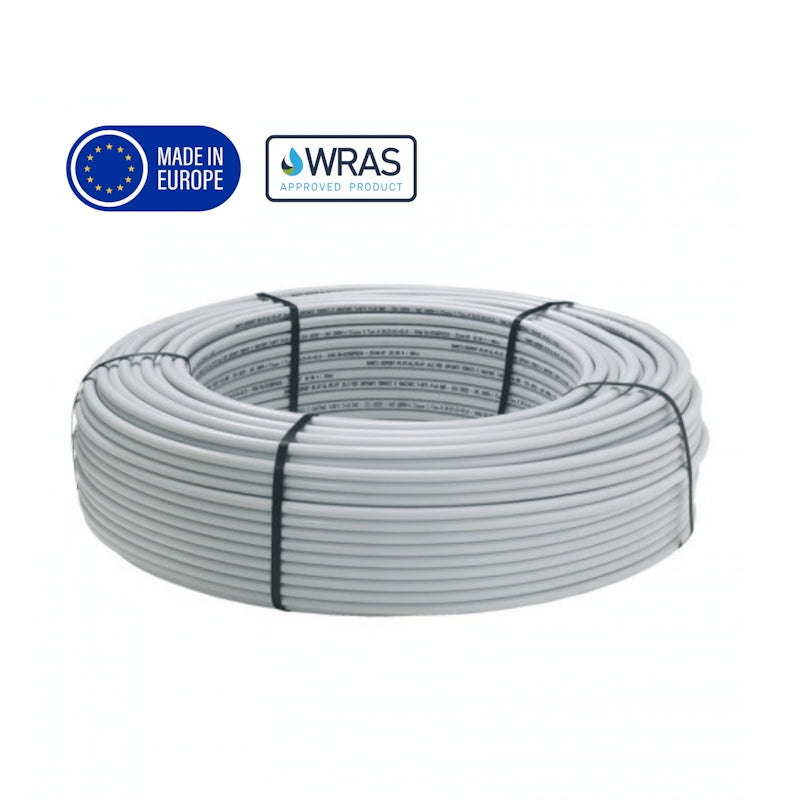

Pert-Al-Pert UFH Pipe | 12-16mm | WRAS 10 Bar Coils

Description

Pert-Al-Pert Underfloor Heating Pipe is a five-layer composite pipe built for wet underfloor heating and low-temperature radiator circuits. An inner and outer layer of PE-RT (raised-temperature polyethylene) sandwich a welded aluminium core, giving the pipe the flexibility and ease of handling of a plastic pipe with the oxygen barrier and dimensional stability of a metal one.

The aluminium layer acts as a full oxygen diffusion barrier, protecting the manifold, pump and other ferrous system components from the corrosion that untreated oxygen ingress can cause over time. Supplied WRAS approved in coil lengths from 50m to 500m across 12mm and 16mm diameters, it is backed by a 25-year manufacturer warranty.

10 bar

Max Working Pressure

95°C

Short-Term Max Temp

70°C

Continuous Max Temp

5-Layer

PE-RT/Al/PE-RT

WRAS

Approved

25 Yr

Manufacturer Warranty

Good to Know

The aluminium core also gives the pipe much lower thermal expansion than an all-plastic pipe, helping it hold its laid shape on site and reducing the number of fixing clips needed compared with unreinforced polymer pipe.

Please Note

The 95°C rating applies to short-term operation only; the pipe's continuous working temperature is 70°C. Ensure the heat source and controls are set up so the system does not run continuously at the higher figure.

Important Safety Information

Installation should be carried out by a competent heating engineer, with pipe runs, spacing and manifold connections designed to suit the specific underfloor heating system and floor construction. Always check compatibility with the manifold and fittings being used before ordering.

Five-Layer Composite Construction

PE-RT inner and outer layers bonded to a butt-welded aluminium core combine the flexibility of plastic pipe with the strength and stability of metal.

Full Oxygen Barrier

The aluminium core stops oxygen diffusing into the system water, protecting the manifold, pump and other metal components from corrosion over the life of the installation.

WRAS Approved

Approved for both heating and mains water applications, giving confidence the pipe meets UK water regulations.

Easy to Cut, Bend and Install

A smooth internal bore keeps pressure drop low, while the pipe stays easy to cut, bend and lay on site without specialist tools.

Wide Coil Range

Available in 12mm and 16mm diameters across coil lengths from 50m up to 500m, covering everything from small retrofits to large multi-loop installations.

25-Year Manufacturer Warranty

Backed by a long-term warranty, giving confidence in the pipe's durability over the working life of an underfloor heating system.

Pipe Specification

Manufacturer

Key Plumb

Pipe type

Pert-Al-Pert (PE-RT/Aluminium/PE-RT), 5-layer composite

Application

Wet underfloor heating, low-temperature radiator circuits

Max. working pressure

10 bar

Continuous operating temperature

Up to 70°C

Short-term maximum temperature

95°C

Oxygen barrier

Aluminium core, full diffusion barrier

Colour

Natural, with measurement markings

Warranty

25 years

Standards

WRAS approved, ISO 21003, DIN 4726

SKU

MPN

Diameter

Coil Length

K99113

PAP12080

12mm

80m

K99114

PAP16050

16mm

50m

K99115

PAP16080

16mm

80m

K99116

PAP16100

16mm

100m

K99162

PAP16200

16mm

200m

K99161

PAP16500-C

16mm

500m

What does the oxygen barrier do?

The welded aluminium core stops oxygen from diffusing through the pipe wall into the system water, which protects the manifold, pump and other ferrous components from the corrosion oxygen ingress would otherwise cause over time.

Can this pipe run continuously at 95°C?

No. 95°C is a short-term maximum; the pipe's continuous operating temperature is up to 70°C. System controls should be set so the pipe does not run continuously at the higher figure.

Is this pipe suitable for potable water as well as heating?

It is WRAS approved, which covers both mains water and heating applications, though this listing is aimed at underfloor heating and low-temperature radiator circuits.

Which coil length should I choose?

Coil length should be selected to suit each heating loop's total pipe run with minimal joins; longer continuous coils reduce the number of fittings needed but are heavier and bulkier to handle on site.

Will this pipe fit my existing manifold?

The pipe is compatible with most standard UFH manifolds and fittings sized for 12mm or 16mm pipe, but always check compatibility with your specific manifold before ordering.
