ThermoSphere Heating Foil Cusioning Underlay

ThermoSphere

£19.00 inc. VAT

Options

1 Board 0.6m² Cushioning Underlay 10 Boards - 6m² Cushioning Underlay

Payment details

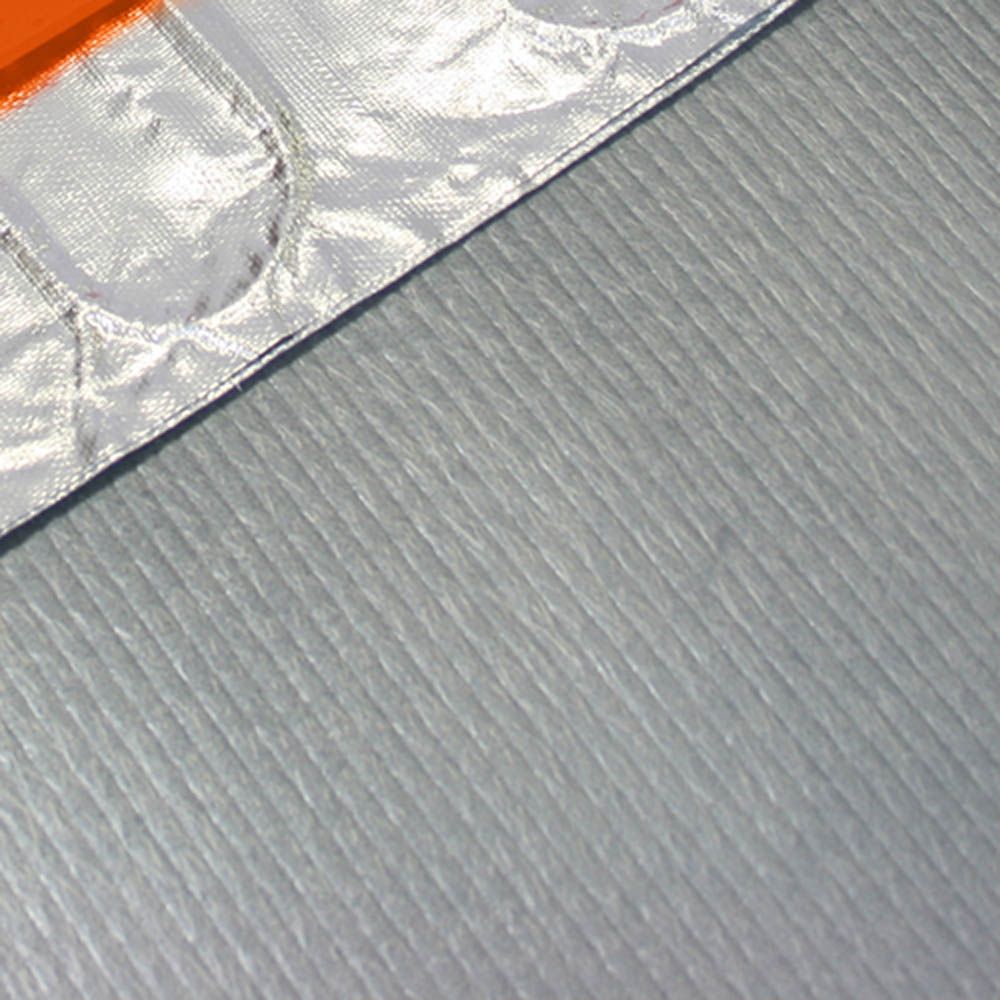

Thermosphere Heating Foil Cushioning Underlay

Protect and enhance your underfloor heating system with the Thermosphere Heating Foil Cushioning Underlay. Specially designed to provide a cushioning layer beneath Thermosphere heating foil, this underlay safeguards heating cables from impact and wear while delivering impressive 19dB impact sound insulation. Lightweight and easy to cut, it is the perfect companion for wood, carpet, and vinyl floor finishes.

Key Features

Protective Cushioning Layer: Absorbs impacts and protects delicate heating cables beneath the heating foil.
Sound Insulation: Provides up to 19dB impact sound reduction, ideal for flats and multi-level properties to minimise noise transmission.
Lightweight & Flexible: Easy to handle, cut, and install under a variety of floor types without adding unnecessary height.
Compatible with Thermosphere Foil Systems: Works perfectly as part of the complete Thermosphere underfloor heating solution.
Supports Rapid Heat-up: The underlay’s design allows efficient heat transfer, ensuring quick warming times.
Low Build-up Height: Adds only a minimal thickness to your floor, maintaining floor height requirements.

Technical Specifications

Brand	Thermosphere
Product Type	Cushioning Underlay
Thickness	5mm
Impact Sound Reduction	Up to 19dB (ΔLw)
Dimensions	Available in rolls sized up to 1m wide x 15m long (15m² coverage)
Material	High-density polyethylene (PE) foam with polypropylene foil facing
Compatibility	Designed for use beneath Thermosphere Heating Foil and suitable for wood, laminate, carpet, and vinyl floors
Weight	Lightweight for easy handling and installation
Build-up Height (With Foil & Overlay)	Combined 9mm thickness with Thermosphere foil and overlay board
EAN	5056257302300 and 5056257302607
MPN	WCVF-CUSHU

Applications

Ideal for residential and commercial installations requiring impact sound reduction.
Perfect for use under floating floors with electric foil underfloor heating systems.
Suits new build and refurbishment projects aiming for quick, efficient installation.

Why Choose Thermosphere Foil Cushioning Underlay?

Tested and certified for safety and thermal efficiency in the UK market.
Enhances durability and lifespan of your heating system cables.
Complemented by Thermosphere’s lifetime warranty and UK-based support.
Combines noise reduction with effective thermal conductivity for a comfortable, quiet home.
