Tesla Wall Connector – 7kW/22kW Type 2 Tethered Charger (Gen 3)

Tesla Wall Connector – 7kW/22kW Type 2 Tethered Charger (Gen 3)

The Tesla Wall Connector (Gen 3) is a high-performance, versatile EV charger designed for both Tesla and non-Tesla electric vehicles. Featuring a Type 2 tethered cable and supporting charging speeds up to 22kW (three-phase) or 7kW (single-phase), it is suitable for homes, apartments, hospitality venues, and workplaces^[1].

Key Features

• Adjustable charging speed: up to 7kW (single-phase) or 22kW (three-phase)
• Type 2 tethered cable for universal compatibility with most EVs
• Wi-Fi connectivity for over-the-air firmware updates and remote management
• Lightweight, compact design for easy indoor or outdoor installation
• Supports power sharing: install multiple units to charge several vehicles simultaneously
• Dynamic load management to optimize household energy use
• Compatible with scheduled charging and utility tariff optimization via vehicle settings
• Works with Tesla and non-Tesla EVs (Type 2 socket required)
• Designed for wall mounting; can be installed by any qualified electrician or Tesla-certified installer
• IP-rated for weather resistance
• 3-year warranty

Technical Specifications

• Power Output: 7kW (single-phase, 32A) / 22kW (three-phase, 32A)
• Cable Type: Type 2 tethered (length varies by region, typically 7.3m)
• Input Voltage: 230V (single-phase) / 400V (three-phase)
• Wi-Fi: 2.4GHz (for updates and monitoring)
• Dimensions: Approx. 345 × 155 × 110 mm
• Weight: 6.8 kg
• Protection: IP-rated for indoor/outdoor use

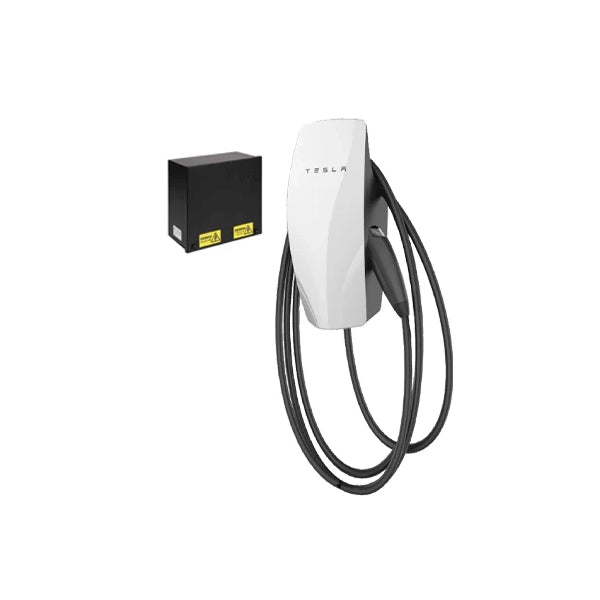

• Installation: Wall mount (requires PEN fault detection device for compliance in the UK)
• Warranty: 3 years

Applications

• Residential home charging (single or multiple vehicles)
• Apartment blocks and shared parking areas
• Workplaces, hospitality venues, and commercial properties
• Indoor or outdoor installation

Note: To comply with UK regulations, installation requires a PEN fault detection device for single-phase setups.
