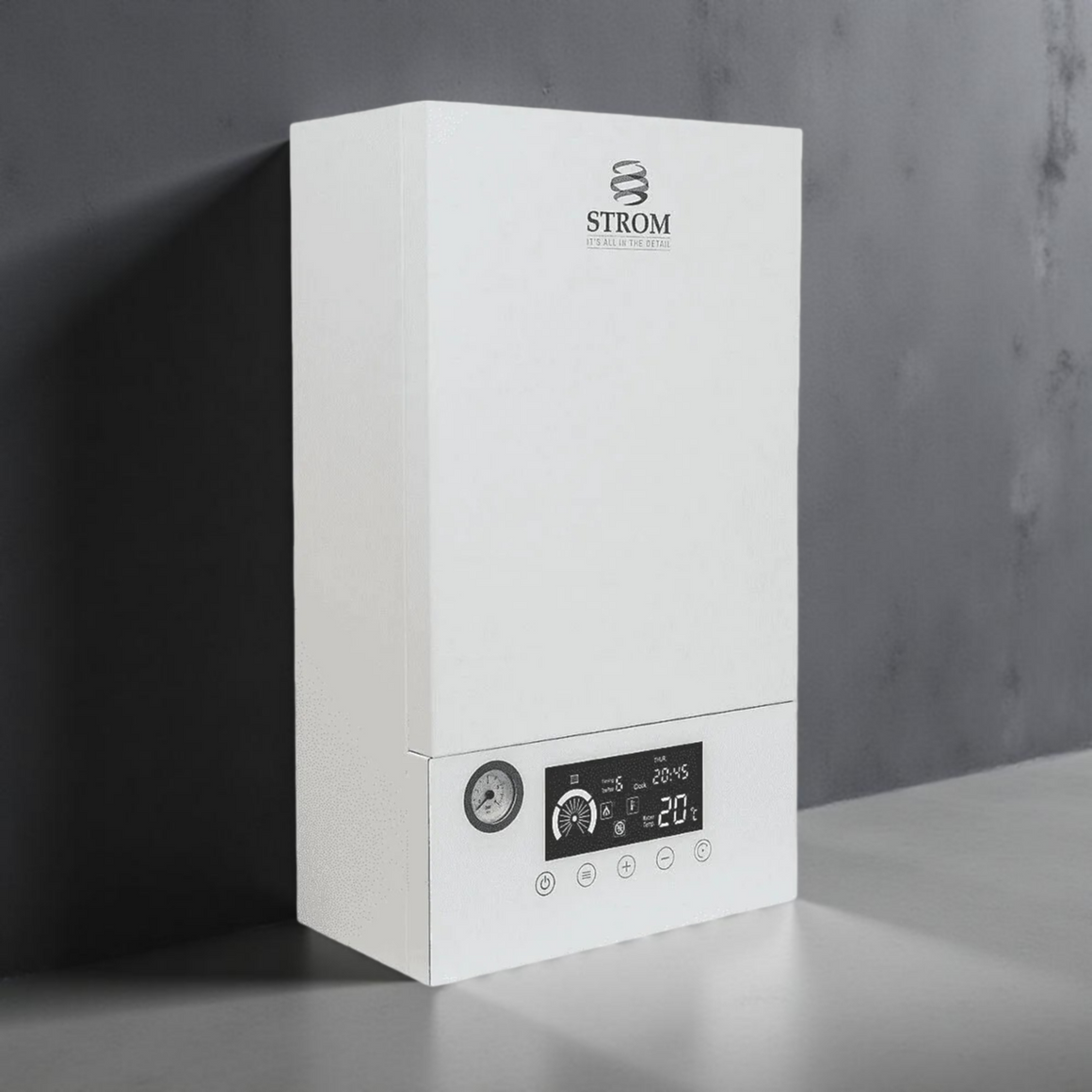

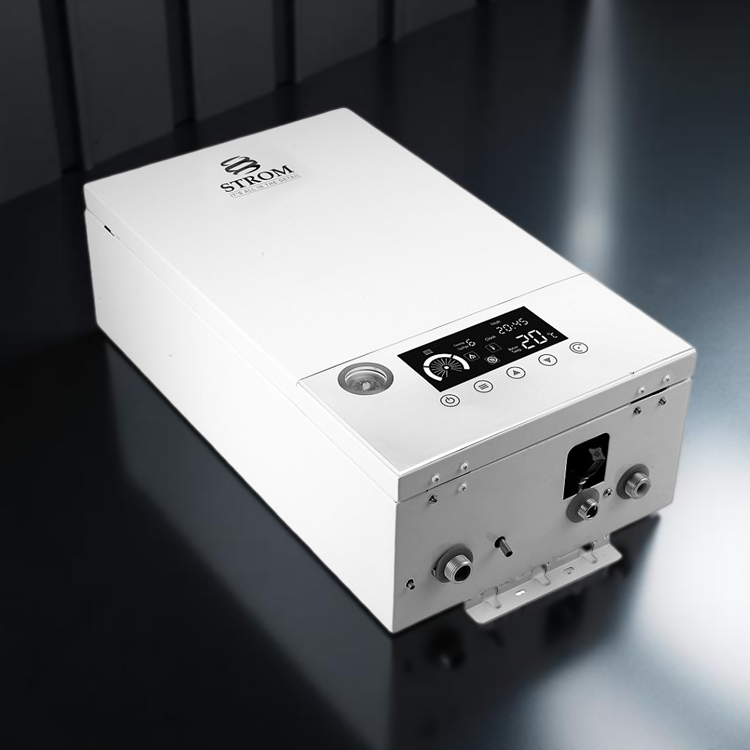

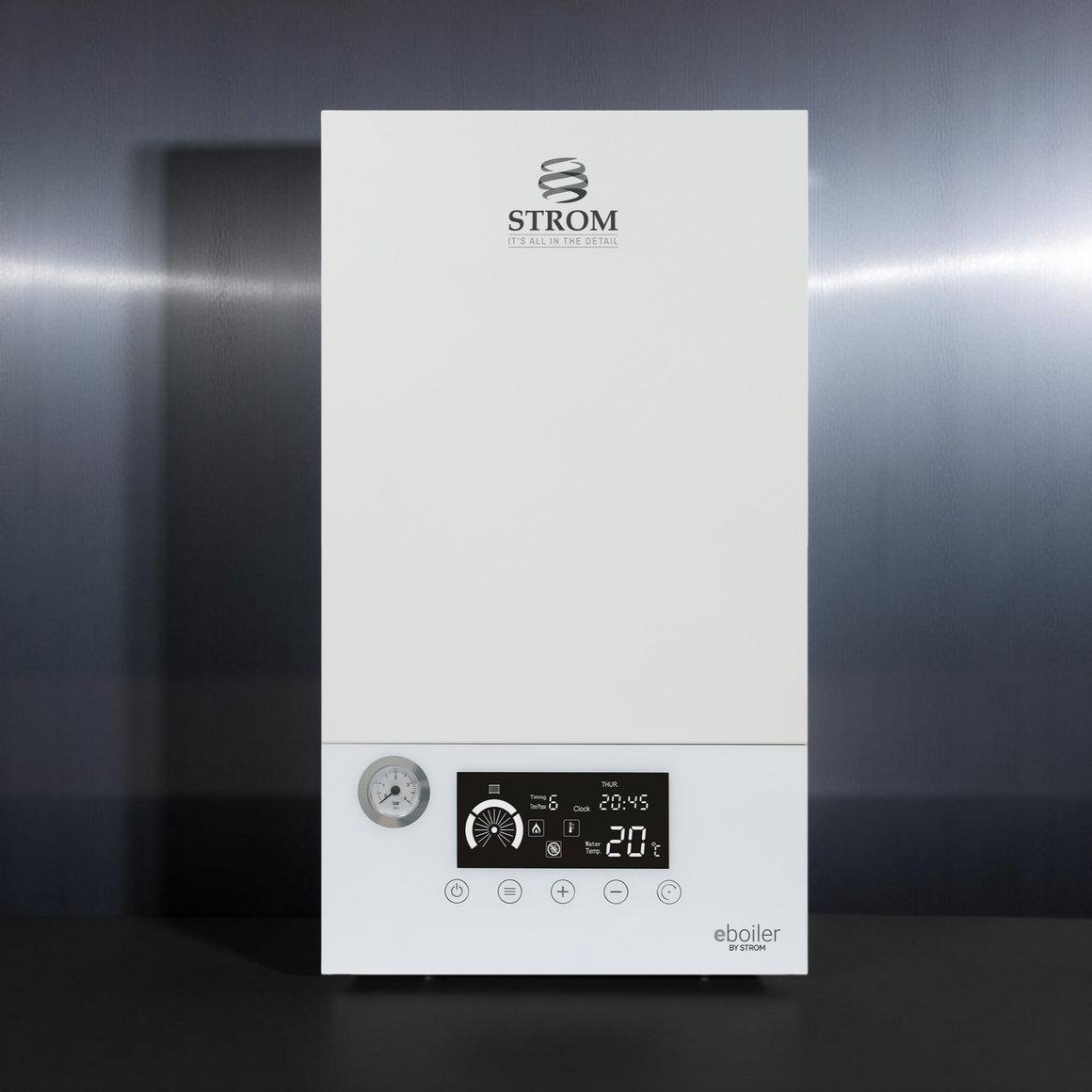

Strom 14.4kW Electric System Boiler – Single Phase

Description

Strom 14.4kW Electric System Boiler – Single Phase

The Strom 14.4kW Electric System Boiler is a powerful, flexible solution for larger homes or properties with higher heating demands. With advanced digital controls, integrated pump and expansion vessel, and compatibility with modern heating controls, it’s a future-ready choice for electric central heating.

Key Features

• Central heating only – for use with an indirect hot water cylinder
• Touchscreen digital control panel
• Integrated pump and expansion vessel
• Serpentine heating element for efficiency
• No flue required – zero emissions at point of use
• Minimal moving parts for near-silent operation
• Compatible with solar panels and underfloor heating
• 5-year manufacturer’s warranty (registration required)

Technical Specifications

Model	14.4kW System Boiler
EAN	5060797570159
Power Supply	230V, Single Phase
Output	14.4kW
Amps	62A
Recommended Breaker	63A
Recommended Cable Size	10mm²
Max Heating Pressure	1.5 bar
Min Heating Pressure	0.5 bar
Max Flow Temp	80°C
Min Flow Temp	20°C
Heating Connection	3/4" Male
PRV Connection	1/2" Female
Dimensions (H x W x D)	700 x 425 x 260 mm
Weight	20 kg
ERP Rating (Heating)	D
