Stiebel Eltron WPL-A Premium Air Source Heat Pump Pack 3 - with the SBB 300
Couldn't load pickup availability
Payment options
This mono block heat pump with output-dependent control and highly integrated indoor module is suitable for fast, space saving installation. Flow temperatures of up to 75 °C are available for room heating and DHW heating. It can be used in a wide range of different heat distribution systems, as the heat pump is separated from the heat distribution system by means of an integral buffer cylinder. The indoor module contains the following components: DHW cylinder, cylinder charging pump, circulation pump, 3/2-way diverter valve, safety valve, electric emergency/auxiliary heater and the heat pump manager, which is used to control the system
Benefits
- Air source heat pump set for maximum efficiency in new build or modernisation
- Mono block heat pump, with its variable speed compressors, ensures perfectly matched heating output and high flow temperatures all year round
- DHW cylinder and buffer cylinder with integral hydraulic components including heat pump manager for heat pumps and heating circuit connection in a single casing
- Thanks to flow separation, the heating system can be integrated easily and very safely

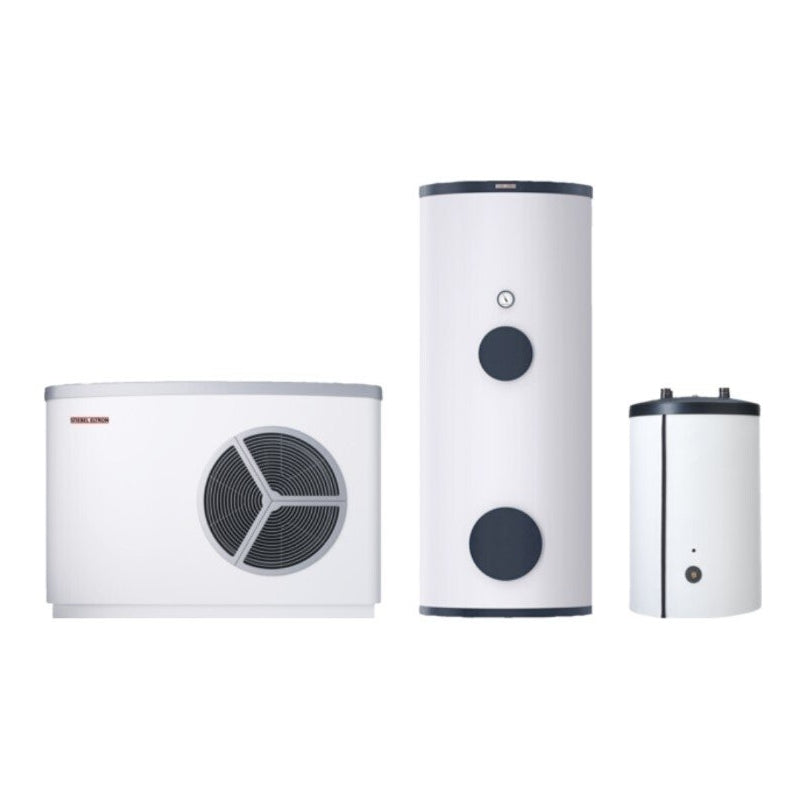

Set of components included in this pack:

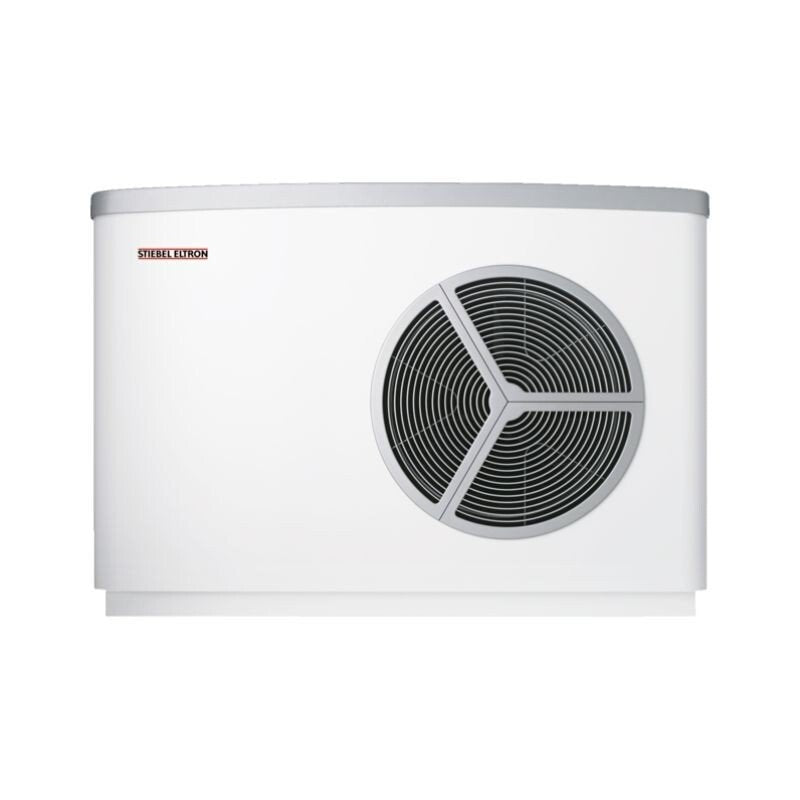

- Air source heat pump WPL-A 07 HK 230 Premium (200123)
- Domestic Hot Water Cylinder SBB 300 Trend - 2.8kW / 1x230V + HX 3.1m2 (206187)
- Remote control FET, control accessory (234723)
- Internet Service Gateway ISG web, control unit accessory (229336)
- Filter FS-WP 28 (28mm Filter) (233512)
- Buffer Vessel : SBP 100 classic - freestanding buffer tank (206279 or 235200 )
- 2 No. Circulation Pumps UP 25 / 7.5 PCV (201620)
- WPM (Heat pump control board and management system) (234727)
- WPKI-HK E (central heating pump) (233602 or 206627)
Technical specifications
| Air Source Heat Pump or Kit | Kit |
|---|---|
| Brand | Stiebel Eltron |
| Cylinder Capacity | 326 L |
| Cylinder Diameter | 650 mm |
| Cylinder Height | 1619 mm |
| Depth | 593 mm |
| Dimensions | 1270 x 900 x 593 mm |
| Empty Cylinder Weight | 111 Kg |
| Energy Efficiency Class | A+++/A+++ |
| Erp Rating | B |
| Expansion Vessel Size | 25 |
| Fuel Type | Electric |
| Full Cylinder Weight | 340 Kg |
| Heat Pump Output | 7 kW |
| Heat Pump Type | Air to water |
| Height | 900 mm |
| Phases | Single |
| Product Type | Air Source Heat Pump Kit |
| Standing Heat Loss (kWh/24h) | 1.32 |
| Voltage | 230V |
| Warranty | 5 years |
| Width | 1270 mm |
- Type Heat Pump Packages
- Vendor Stiebel Eltron
- SKU 204908
