Stäubli MC4-EVO2 Y-Splitter — Female (32.0334) / Male (32.0333)

Description

The Stäubli MC4-EVO2 Y-Splitter is a pre-assembled cable assembly for parallel or serial-parallel connection of PV modules without any additional tooling. Each Y-splitter brings two MC4-EVO2 legs together into a single output, using vulcanised connectors for a permanently weatherproof seal. Rated at 1500 V DC and 53 A, and certified by TÜV Rheinland. Available as a Female Y-Splitter (32.0334) — two female sockets to one male plug — or a Male Y-Splitter (32.0333) — two male plugs to one female socket.

1500 V DC

Rated voltage

53 A

Rated current (6 mm²)

IP68

Mated, 1 m / 1 h

0.5 m

Cable length

⚠ Installer Safety — Never connect or disconnect under load. Isolate the PV array fully before handling. Installation must be carried out by a qualified electrician.

⚡ Compatibility — For use with genuine Stäubli MC4 and MC4-EVO2 connectors only. Do not mix with third-party MC4-style products — mismatched contacts risk arcing and fire. Use one female and one male Y-splitter together to form a complete parallel string pair.

Choose Your Variant

Attribute	Female Y-Splitter — 32.0334	Male Y-Splitter — 32.0333
Type Code	PV-K/SPL-Y-6-15/15-15ESS/EP-0050	PV-K/SPL-Y-6-15/15-15EPP/ES-0050

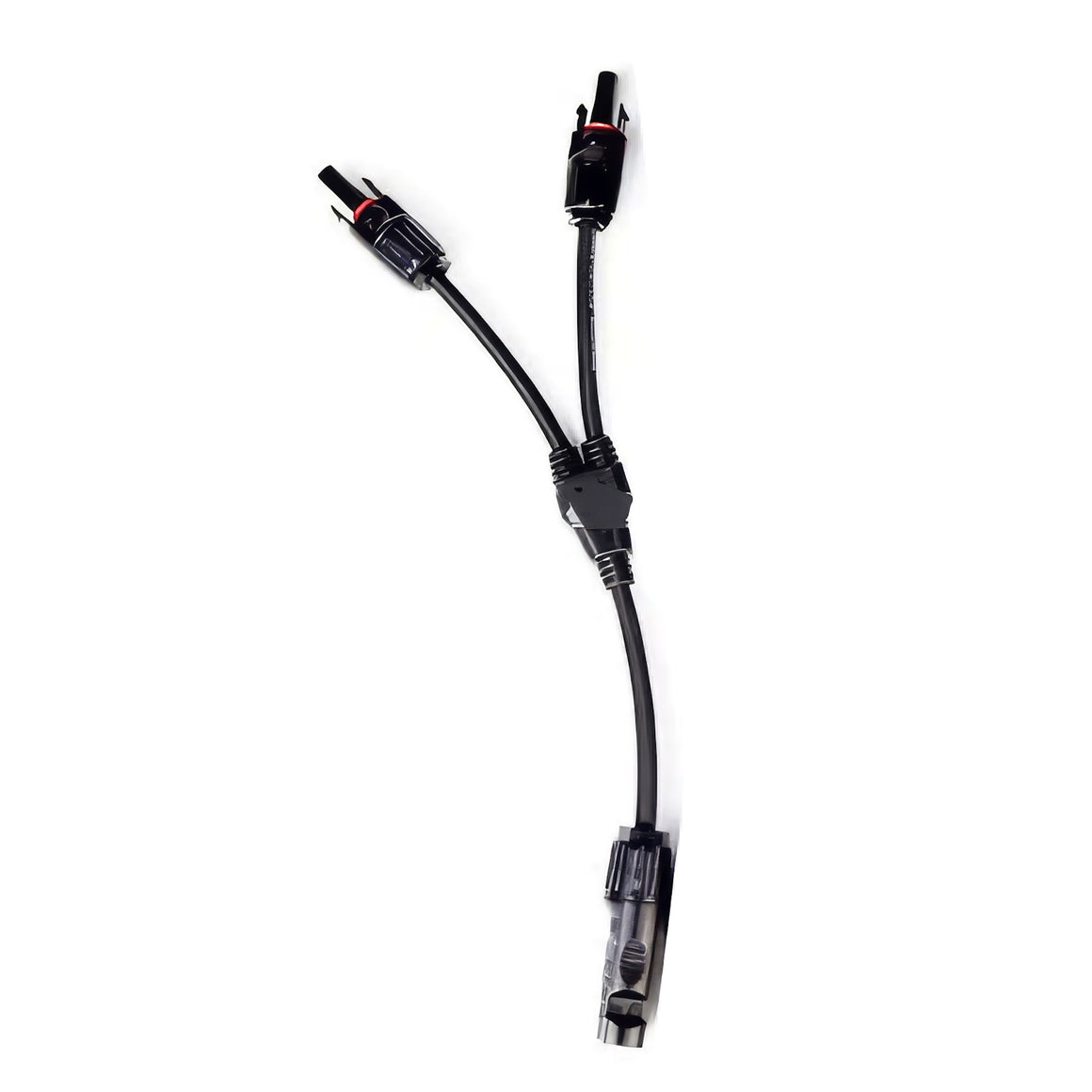

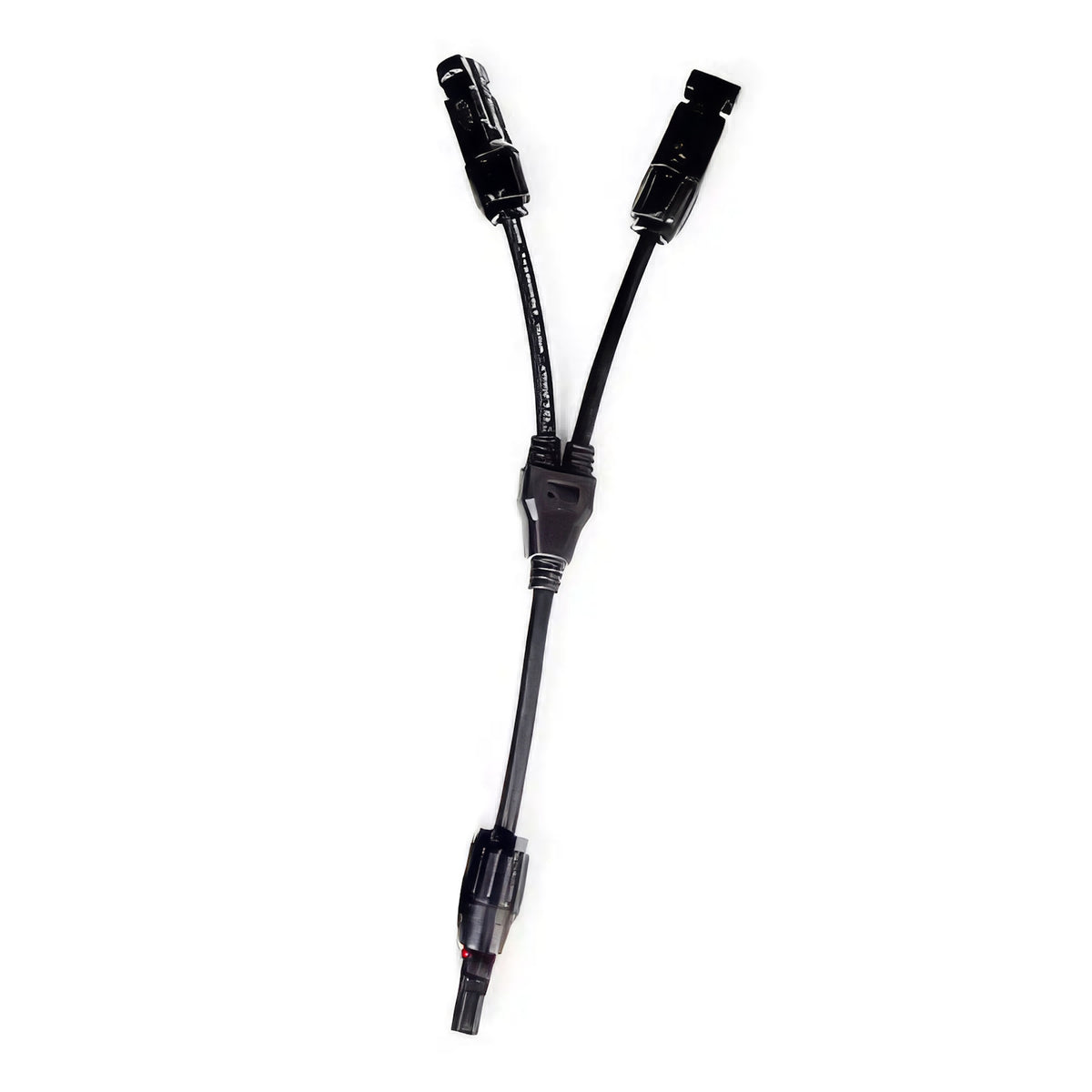

Configuration	2 female sockets → 1 male plug	2 male plugs → 1 female socket
Typical Use	Positive rail string combiner	Negative rail string combiner

Technical Specifications

Manufacturer	Stäubli Electrical Connectors
MPN — Female (32.0334)	PV-K/SPL-Y-6-15/15-15ESS/EP-0050
MPN — Male (32.0333)	PV-K/SPL-Y-6-15/15-15EPP/ES-0050
Rated Voltage	DC 1500 V
Rated Current	53 A (6 mm²)
Ambient Temperature	–40°C to +85°C
Ingress Protection (mated / unmated)	IP65 / IP68 (1 m, 1 h) / IP2X
Contact Resistance	< 0.5 mΩ
Cable Cross-Section	6 mm²
Cable Length	0.5 m
Contact Material	Copper, tin-plated
Housing / Cable Material	PA, EVA, XLPE — vulcanised seal
Certification	TÜV Rheinland

Frequently Asked Questions

Which variant do I need — female (32.0334) or male (32.0333)?

The female Y-splitter (32.0334) has two female socket legs that combine into one male plug output — used on the positive string rail. The male Y-splitter (32.0333) has two male plug legs that combine into one female socket output — used on the negative string rail. For a complete parallel string, use one of each as a pair.

What is the difference between a Y-splitter and a branch connector?

A Y-splitter (32.0333 / 32.0334) is a pre-assembled cable assembly with 0.5 m leads — the connectors are vulcanised directly onto the cable, providing a permanent weatherproof seal with no crimping required. A branch connector (e.g. 32.0196 / 32.0197) is a compact moulded unit that clicks directly onto existing MC4 cable connectors without any cable tail. Use a Y-splitter where you need short flexible leads; use a branch connector where cables are already terminated.

Are these compatible with standard MC4 connectors?

Yes — the MC4-EVO2 Y-splitter connectors mate with genuine Stäubli MC4 and MC4-EVO2 cable connectors. Do not use with third-party MC4-style connectors from other manufacturers, as contact pin differences can create poor mating, arcing, or fire risk.
