Staubli MC4 Male Connector - Single
Regular price
£1.90
inc. VAT
Couldn't load pickup availability
Payment options

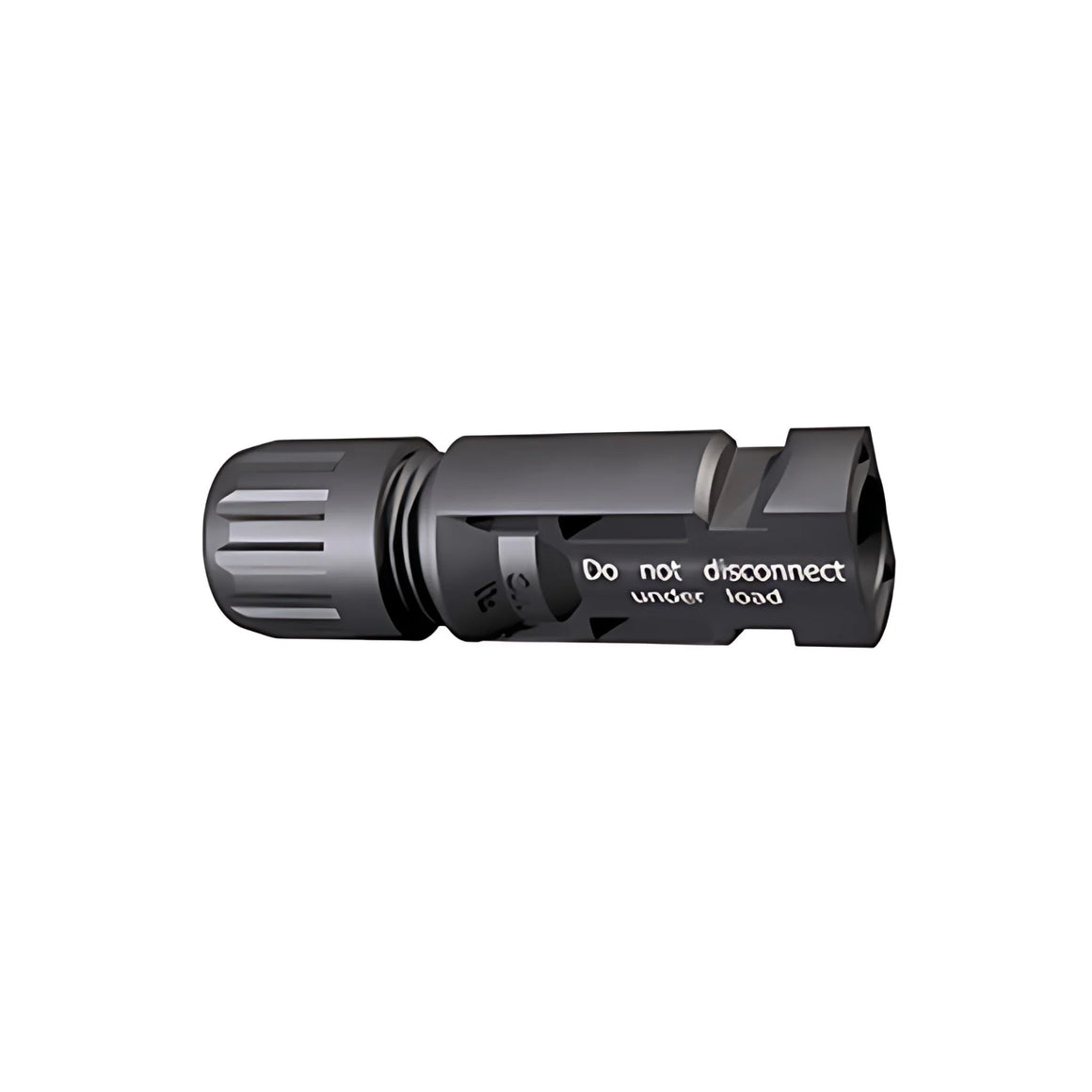

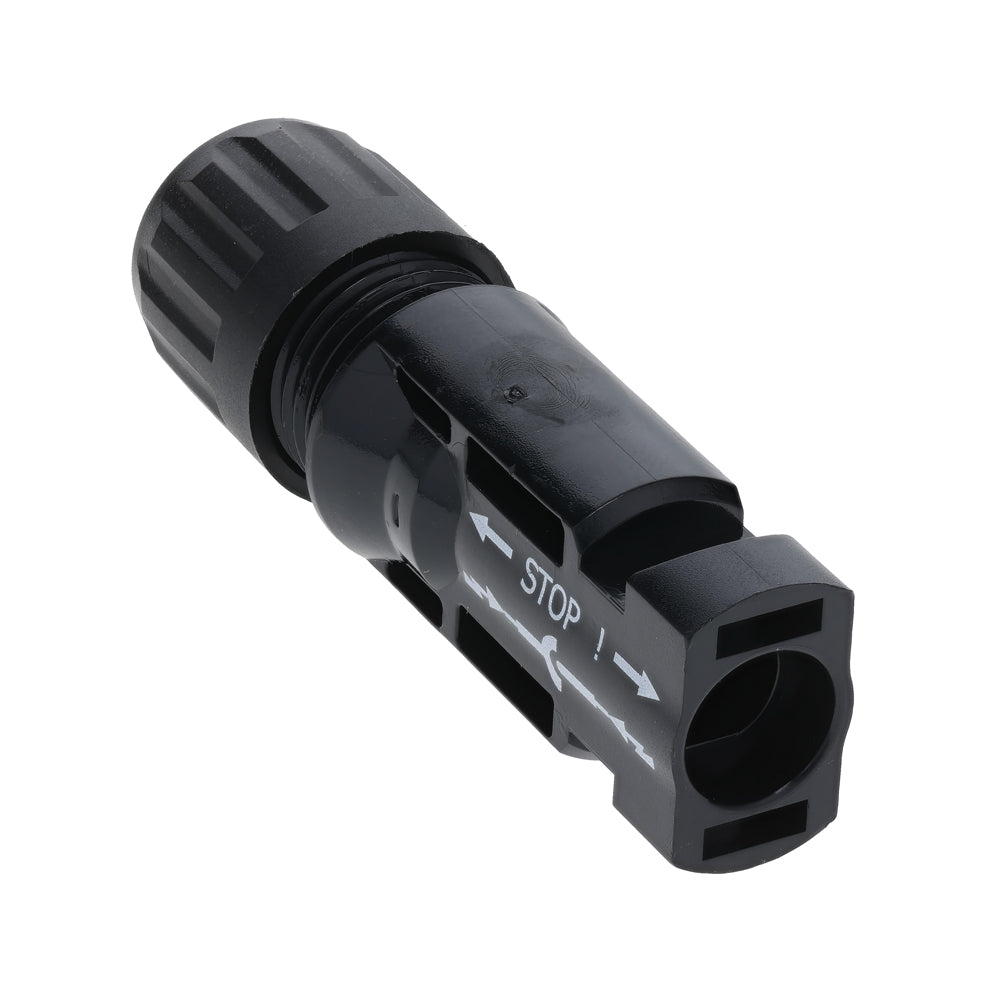

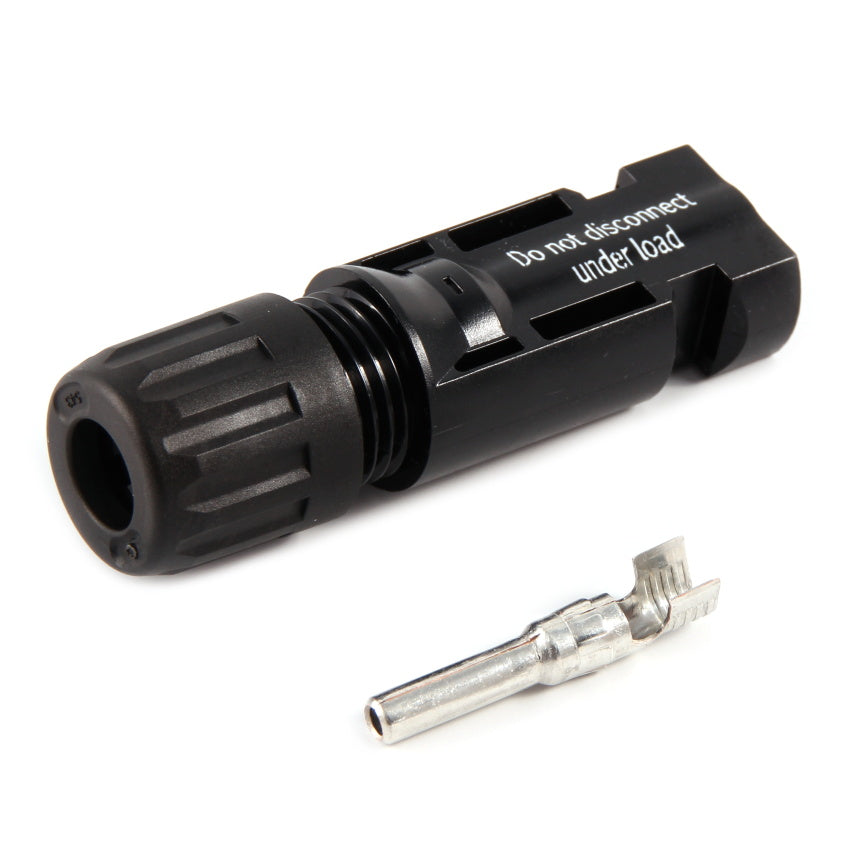

Staubli MC4 Male Connector - 0015 Single - 6 mm²
The Staubli MC4-15-MAL is a high-quality single MC4 male connector designed for photovoltaic systems utilizing 6 mm² cable. It features a secure snap-in locking mechanism complemented by a safety lock clip in accordance with NEC 2011 standards, ensuring connections are secure and can only be released with a special tool. Manufactured with proven MULTILAM technology, it offers excellent long-term stability and maintains low power loss across its lifespan. This connector is made from UV-resistant, weatherproof thermoplastic housing with tinned copper contacts and stainless steel clips, rated for 39 A current and 1500 V DC voltage, suitable for durable outdoor solar panel installations.
- Part No: MC4-15-MAL
- Suitable for 6 mm² cable cross-section
- Snap-in lock with safety lock clip (tool required for release)
- Proven MULTILAM contact technology
- Rated current: 39 A, voltage: 1500 V DC
- UV-resistant thermoplastic housing, tinned copper contacts
- Weatherproof with IP67 rating
- Compatible with standard MC4 connectors
- MC4 Male Connector 6mm2
- MC4-15-MAL solar connector single
- photovoltaic MC4 male plug
- MULTILAM MC4 male clip weatherproof
- solar panel MC4 male connector
- Type MC4 Connectors
- Vendor Staubli
- SKU MC4-15-MAL
