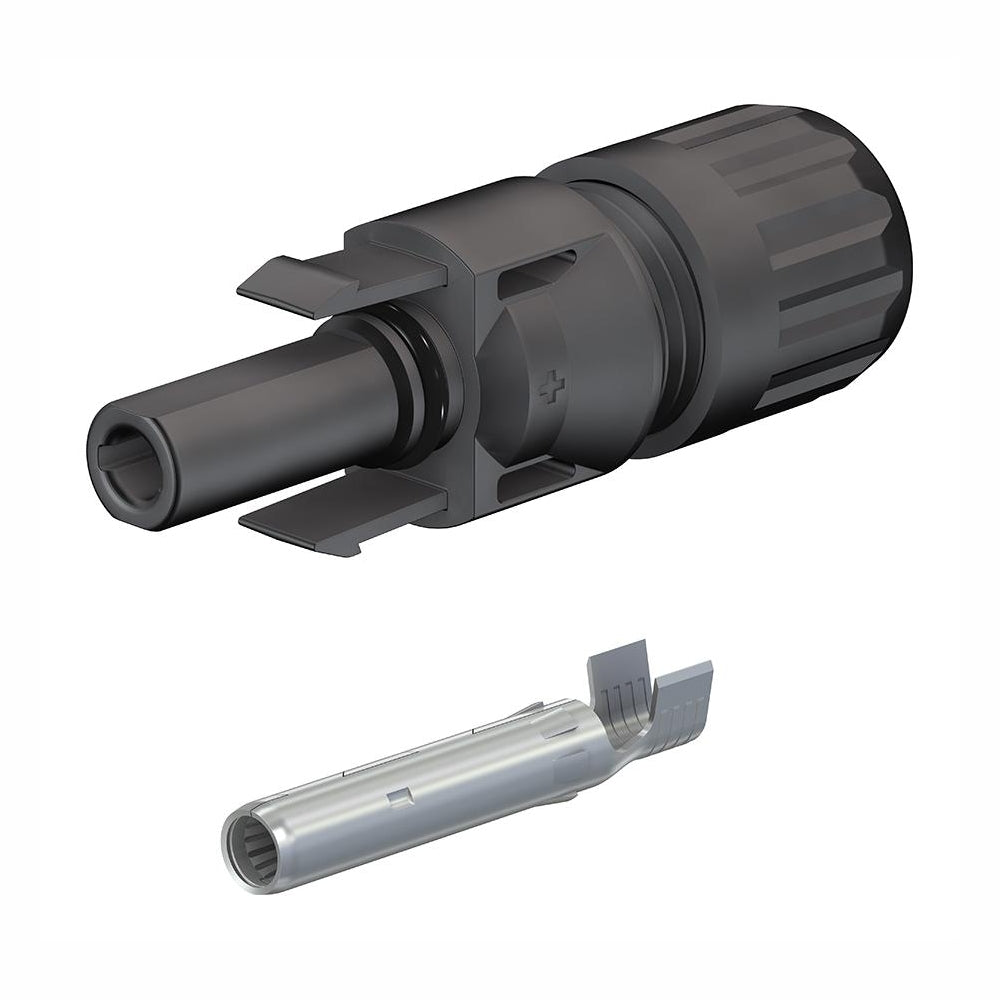

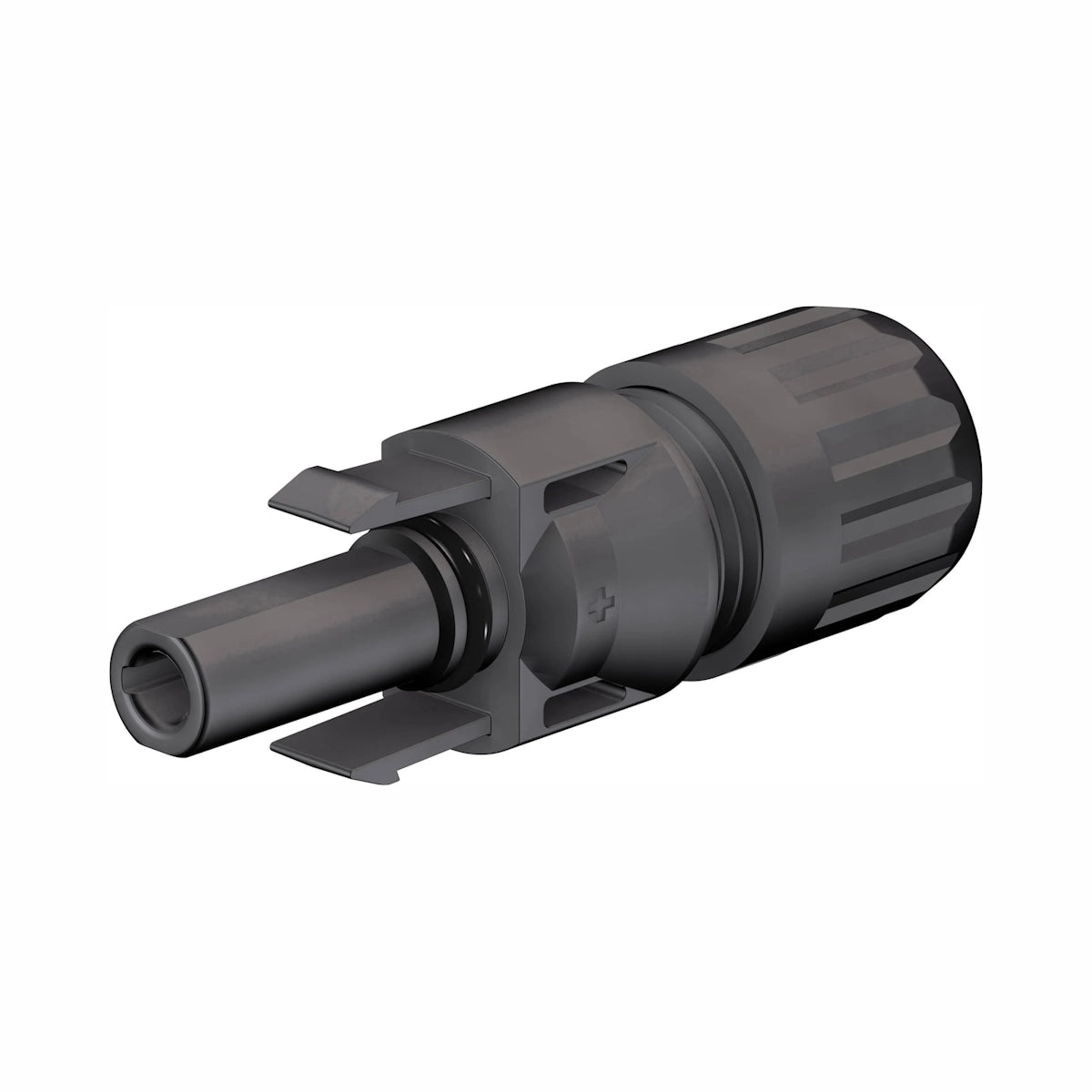

Staubli MC4 Female Connector - Single

MC4 Female Connector - 0014 Single - 6 mm²

The MC4-14-FEM is a high-quality single MC4 female connector designed for photovoltaic systems using 6 mm² cable. Featuring a secure snap-in lock and a safety lock clip compliant with NEC 2011 standards, this connector ensures stable and safe connections that can only be released with a special tool. Built with proven MULTILAM technology for long-term stability, it provides consistently low power loss throughout its lifetime. Made from UV-resistant, weatherproof plastic with tinned copper contacts and stainless steel clips, it is rated for up to 39 A current and 1500 V DC voltage, making it ideal for reliable outdoor solar panel connections.

• Part No: MC4-14-FEM
• Suitable for 6 mm² cable cross-section
• Snap-in lock with safety lock clip (requires tool for release)
• Proven MULTILAM contact technology for low power loss
• Rated current: 39 A, Rated voltage: 1500 V DC
• Material: UV-resistant thermoplastic housing, tinned copper contacts, stainless steel clips
• Weatherproof with IP67 rating
• Compatible with standard MC4 connectors
