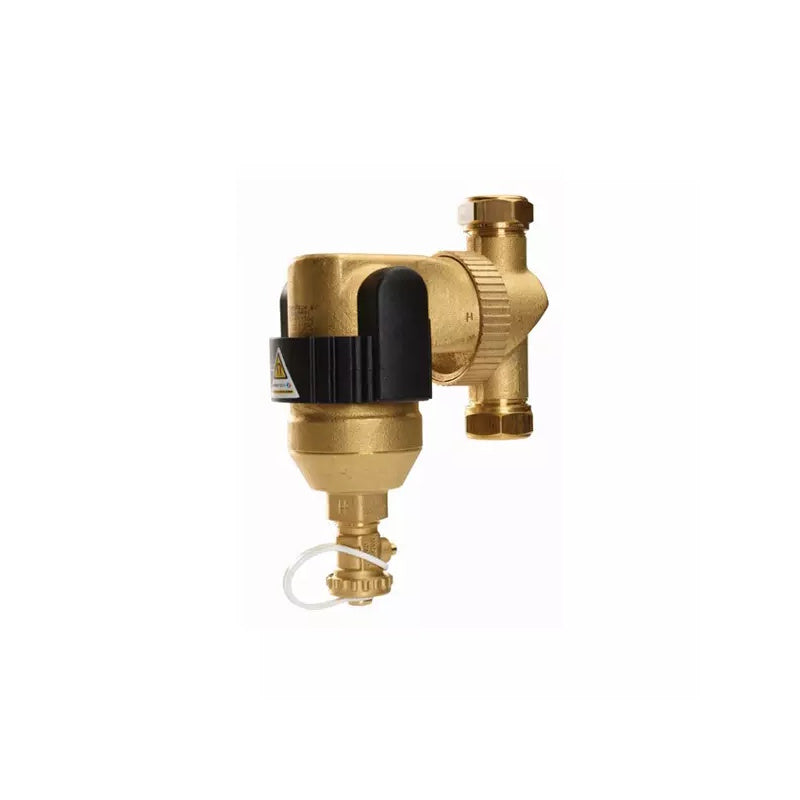

The Spirotech SpiroTrap MBC1 Micro (UE022WHA01) is a compact, cost-effective 22mm
magnetic dirt separator that delivers core MB3-level protection at an entry-level price.
Equipped with a powerful removable magnet and a patented rotating swivel connector,
it can be installed in horizontal, vertical, and even diagonal pipework — giving installers
flexibility where access or pipe orientation is less than ideal. Particularly well suited for
boiler upgrades, social housing retrofits, and budget-sensitive residential installations
where a full MB3 is cost-prohibitive.
5 μm
Min particle removal
WARRANTY DIFFERENCE vs MB3
The MBC1 Micro carries a 10-year SpiroLIFE warranty, compared with the 20-year warranty on the SpiroTrap MB3 (UE022WJ). Both products share the same operating limits (10 bar, 110 °C) and flow capacity, but the MB3 represents a longer-term investment. Choose the MBC1 for budget-constrained installations; choose the MB3 where a longer service life commitment is required.
INSTALLER NOTE — VERTICAL PREFERRED
While the rotating swivel permits diagonal or horizontal installation where necessary, the vertical position with socket downward remains the optimal orientation for efficient gravity-assisted dirt settlement. In non-vertical installations, ensure the drain valve is accessible and note that collection efficiency may be marginally reduced.
ROTATING SWIVEL CONNECTOR
The MBC1's 360° rotating compression connector is a genuine differentiator. On renovation jobs where the pipework can't be repositioned, the swivel lets you rotate the separator body and drain valve after fitting to achieve the best access — something the fixed MB3 body does not allow without adding an additional union.
Compact Micro Format

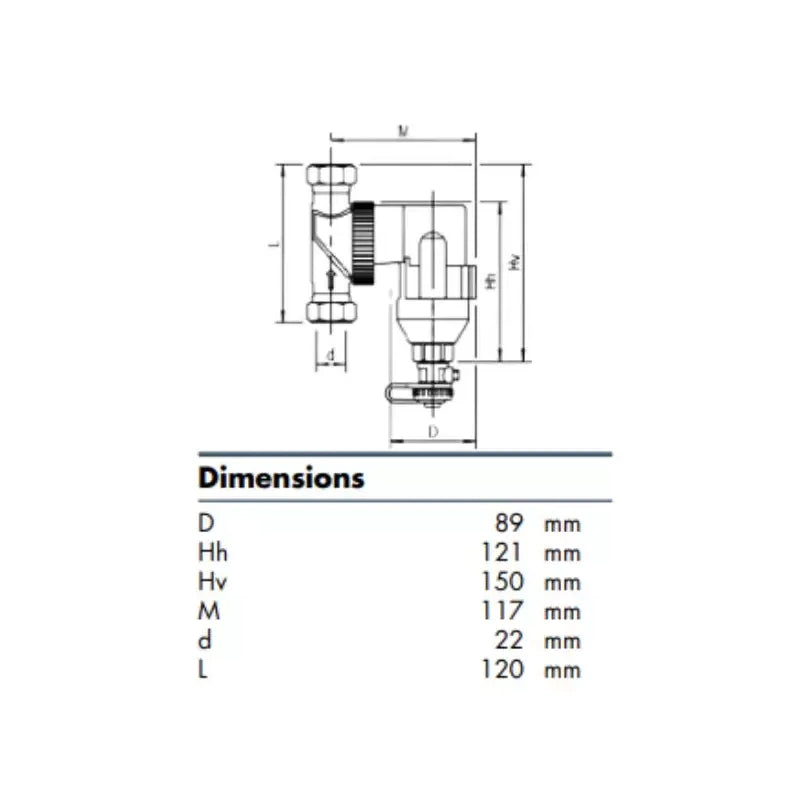

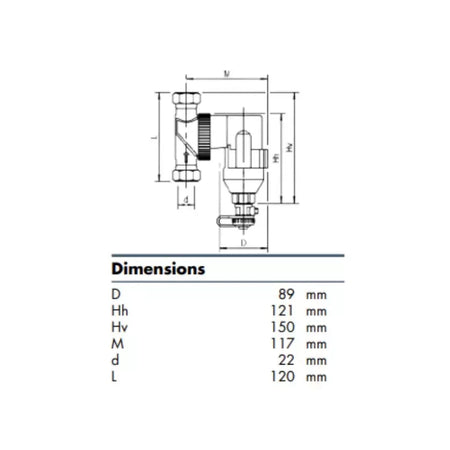

The MBC1 has a slightly longer construction length (120mm vs 92mm) than the MB3 22mm but a smaller overall envelope. This makes it easier to install in tight boiler cupboards and under-stair plantroom spaces where the MB3 body may not clear adjacent fittings.
Removable Magnetic Sleeve
Like the MB3, the MBC1's magnet sleeve pulls off cleanly before draining. The captured magnetite stays attached to the magnet as the sleeve is removed, making disposal clean and simple. Refit the sleeve and the unit is immediately operational again — no tools, no system shutdown.
Same Particle Removal as MB3
Despite its lower price point, the MBC1 still removes particles from 5 μm — the same specification as the MB3. This means it delivers meaningful protection for boiler heat exchangers, pump impellers, and zone valves. It should not be confused with basic magnetic strap-on magnets that offer only partial magnetite capture.
Standard 22mm Pipework
The 22mm universal compression connection fits directly onto 22mm copper or plastic (CPVC / PEX-Al) pipework — the most common size in UK domestic central heating. No adaptors, no reducers, no additional fittings required on a standard combi-boiler circuit.
Technical Specification — SpiroTrap MBC1 Micro 22mm (UE022WHA01)
| Connection & Hydraulics |
|---|
| Article Number |
UE022WHA01 |
| Product Type |
SpiroTrap MBC1 — 22mm — Magnet — Universal Connection (Micro) |
| Connection |
22mm compression ring (rotating swivel) |
| Max Flow Rate |
1.3 m³/h |
| Kvs Value |
9.07 m³/h |
| Flow Direction |
Variable (reversible) |
| Installation Angle |
Horizontal, vertical, diagonal |
| Operating Limits |
|---|
| Max Operating Pressure |
10 bar (PN 10) |
| Temperature Range |
0 – 110 °C (continuous) |
| Max Glycol (Ethylene) |
50% v/v |
| Suitable for Heating |
Yes |
| Suitable for Cooling |
Yes |
| Closed System |
Yes |
| Open System |
No |
| Physical & Construction |
|---|
| Housing Material |
Brass |
| Magnet Type |
Neodymium (removable external sleeve) |
| Separator Principle |
Full-flow with settling and magnet |
| Filter Volume |
0.36 litres |
| Construction Length |
120 mm |
| With Drain Tap |
Yes |
| Compliance & Warranty |
|---|
| Design Standard |
EN 13445 |
| CE Marking |
2014/68/EU (Pressure Equipment Directive) |
| Warranty |
10 years — SpiroLIFE |
Frequently Asked Questions
What makes the MBC1 Micro different from the MB3?
The main differences are: (1) rotating swivel connector for multi-angle installation, (2) 10-year warranty vs 20-year on the MB3, and (3) a different body geometry (120mm long vs 92mm). The magnetic particle removal performance and hydraulic specifications are identical. The MBC1 is the right choice when installation flexibility or budget is the priority; the MB3 is preferable when warranty longevity matters.
Can the MBC1 be installed horizontally?
Yes — the rotating swivel connector specifically enables horizontal and diagonal installation. However, Spirotech notes that the vertical-with-socket-down orientation gives the best settlement efficiency. In a horizontal installation, gravity no longer assists particles into the collection chamber, so the magnetic sleeve does proportionally more of the separation work.
Is UE022WHA01 compatible with combi-boilers?
Yes. The MBC1 Micro 22mm is designed for use with standard 22mm combi-boiler return pipework. It is the most straightforward product to install on a typical UK combination boiler system and is widely specified by boiler manufacturers and Gas Safe engineers as a commissioning or service accompaniment.
Does the shorter warranty mean the MBC1 is lower quality?
Not necessarily in absolute terms — the 10-year warranty reflects Spirotech's product tiering rather than a material quality deficiency. Both products are manufactured from brass and operate to the same pressure and temperature limits. The MB3's 20-year warranty is underpinned by its more established long-term field data and is the appropriate choice for installations where the product will remain in situ for 15–20 years.
