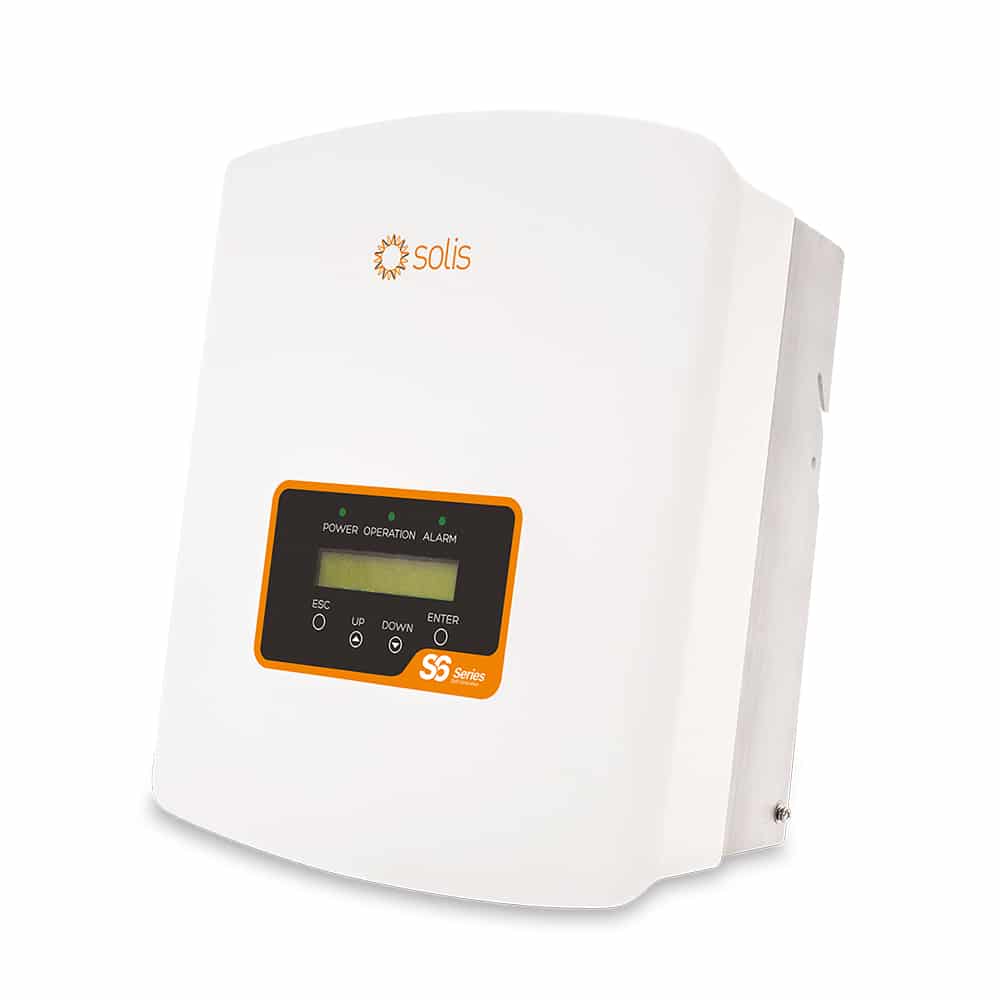

Solis S6 0.7kW Mini Single Tracker with DC Isolator

The Solis S6 0.7kW Mini Single Tracker with DC Isolator is a compact, efficient single-phase grid-tie inverter designed for small residential solar PV systems, featuring a single MPPT tracker and integrated DC isolator for easy installation and enhanced safety.

Product Description

The Solis S6 Mini series inverter is ideal for space-limited installations, offering super high-frequency switching technology for maximum efficiency up to 96.6%. Its fanless design ensures ultra-quiet operation below 20 dBA, while the wide input voltage range (60-600V) supports high-efficiency modules and bifacial panels. With built-in export power management (EPM) and demand response mode (DRM), it complies with grid requirements seamlessly. The integrated DC isolator and AFCI protection enhance safety and simplify maintenance.

Key Features

• Compact and lightweight: Easy to install, weighing only 7.4 kg.
• Fanless design: Minimal noise under 20 dBA for quiet operation.
• High efficiency: Maximum 96.6%, Euro efficiency 95%.
• Single MPPT tracker: Wide voltage range 60–500V for optimal energy harvest.

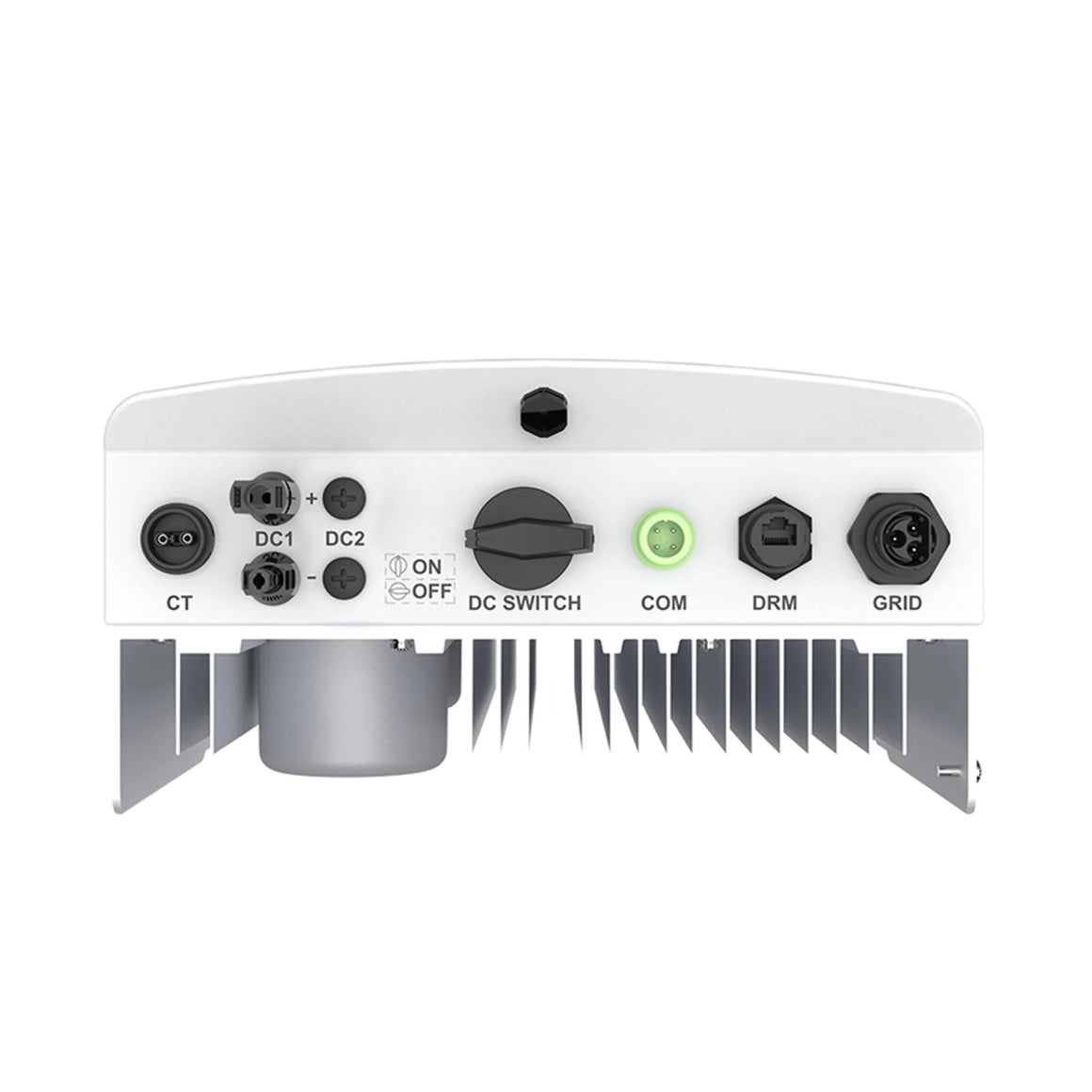

• Integrated DC isolator: Enhances safety and simplifies wiring.
• AFCI protection: Built-in arc-fault circuit interrupter for fire prevention.
• Smart grid features: DRM and EPM for export control and grid compliance.
• Transformerless topology: Improves efficiency and reduces weight.

Technical Specifications

• Model: SOL-0.7-MINI-S6-DC – S6 Mini 0.7kW Single Tracker with DC Isolator.
• Rated AC power output: 700 W.
• Maximum AC power (5 min): 770 W.
• Surge AC power (1 sec): 770 W.
• Maximum DC power: 1100 W.
• MPPT voltage range: 60–500 V.
• Startup voltage: 60 V.
• Shutdown voltage: 50 V.
• Maximum input voltage: 600 V.
• Maximum DC current: 14 A.
• DC inputs: 1 (MC4 connector included).
• Efficiency (max): 96.6%.
• Euro efficiency: 95%.
• Topology: Transformerless.
• Protection rating: IP65.
• Certifications: G100 compliant.

Dimensions & Weights

• Width: 310 mm.
• Depth: 160 mm.
• Height: 373 mm.
• Weight: 7.4 kg.

System & Application Notes

• Ideal for small residential PV systems with 2-4 panels.
• Compatible with high-efficiency and bifacial solar modules.
• Suitable for grid-tie applications with no export limitation option available.
• Supports monitoring via Solis app or portal.
• Installation by qualified solar professionals following Solis guidelines and local regulations.
• Warranty: 5 years standard.
