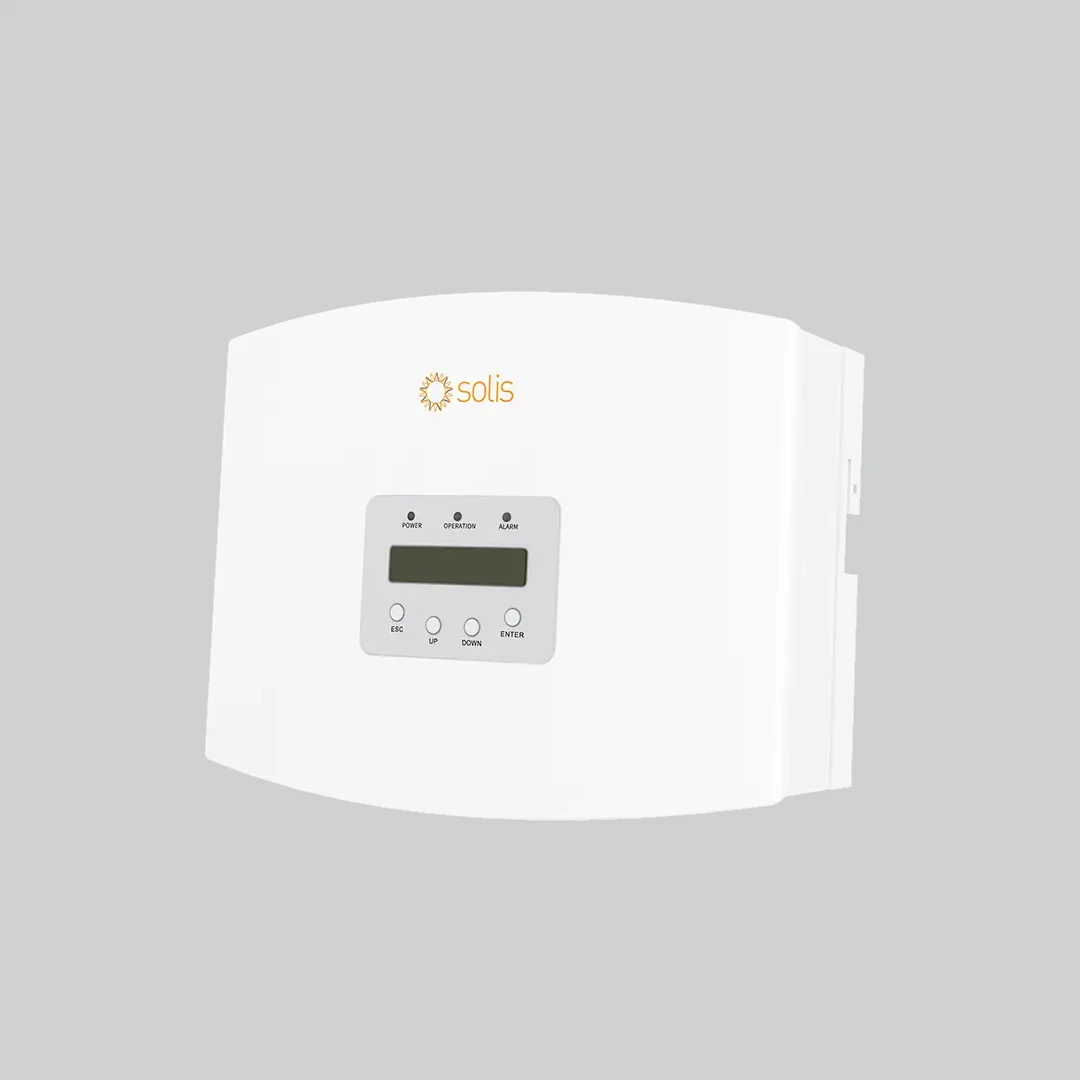

Solis Export Power Manager 5 Gen single phase

The Solis Export Power Manager 5 Gen - 1ph (Part No: Solis-EPM1-5G) is an intelligent energy management device for single-phase solar PV systems, enabling precise control of power export to the grid and optimizing self-consumption.

Product Description

The Solis EPM1-5G is designed to manage export power in grid-tied solar installations, supporting up to 10 Solis inverters simultaneously. It allows for active power limitation at the grid connection point, automatic load control, and real-time monitoring of power generation and consumption. With versatile connectivity options like RS485 Modbus, it ensures compliance with grid requirements and enhances system efficiency. Its compact, IP65-rated enclosure makes it suitable for both indoor and outdoor use.

Key Features

• Export power control: Active limitation and management at the grid-connection point.
• Multi-inverter support: Controls up to 10 Solis inverters of varying powers.
• Intelligent monitoring: Real-time tracking of generation and load for optimized self-consumption.
• Automatic load control: Smart management to maximize on-site energy use.
• Versatile communication: RS485 Modbus for seamless integration.
• Robust design: IP65 protection for harsh environments.

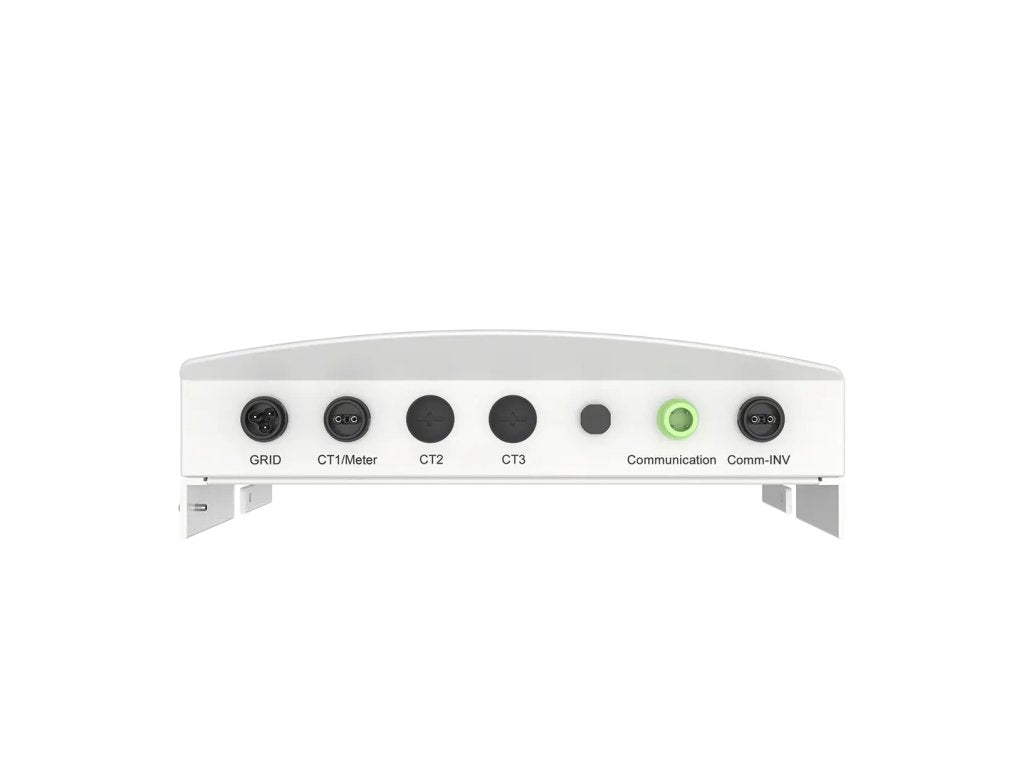

• Easy installation: Compact size and simple wiring.

Technical Specifications

• Model: Solis-EPM1-5G – Export Power Manager 5 Gen Single Phase.
• Phase: Single phase.
• Input voltage range: 100–277 V (L to N).
• Input frequency range: 45–65 Hz.
• Communication: RS485 Modbus (inverter communication).
• Maximum inverters supported: 10.
• Protection rating: IP65.
• Operating temperature: -25°C to +60°C.

Dimensions & Weights

• Width: 205 mm.
• Depth: 40 mm.
• Height: 120 mm.
• Weight: 4.19 kg.

System & Application Notes

• Ideal for residential and small commercial PV systems requiring export control.
• Compatible with Solis hybrid and string inverters.
• Supports grid compliance with features like zero-export or limited export.
• Installation by qualified solar professionals following Solis guidelines.
• Suitable for single-phase setups; for three-phase, use EPM3-5G model.
• Warranty: 5 years standard.
