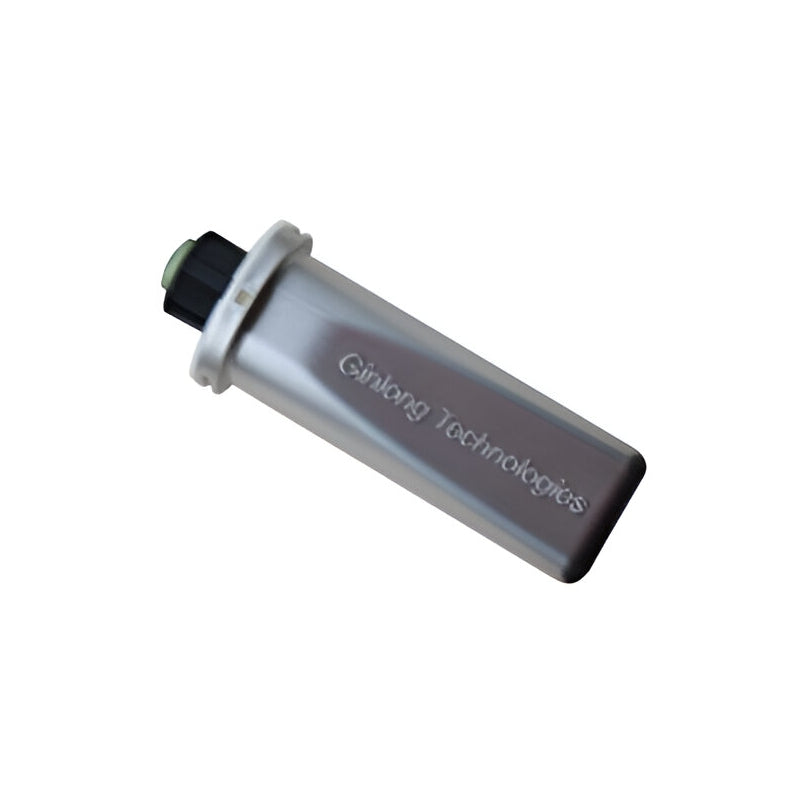

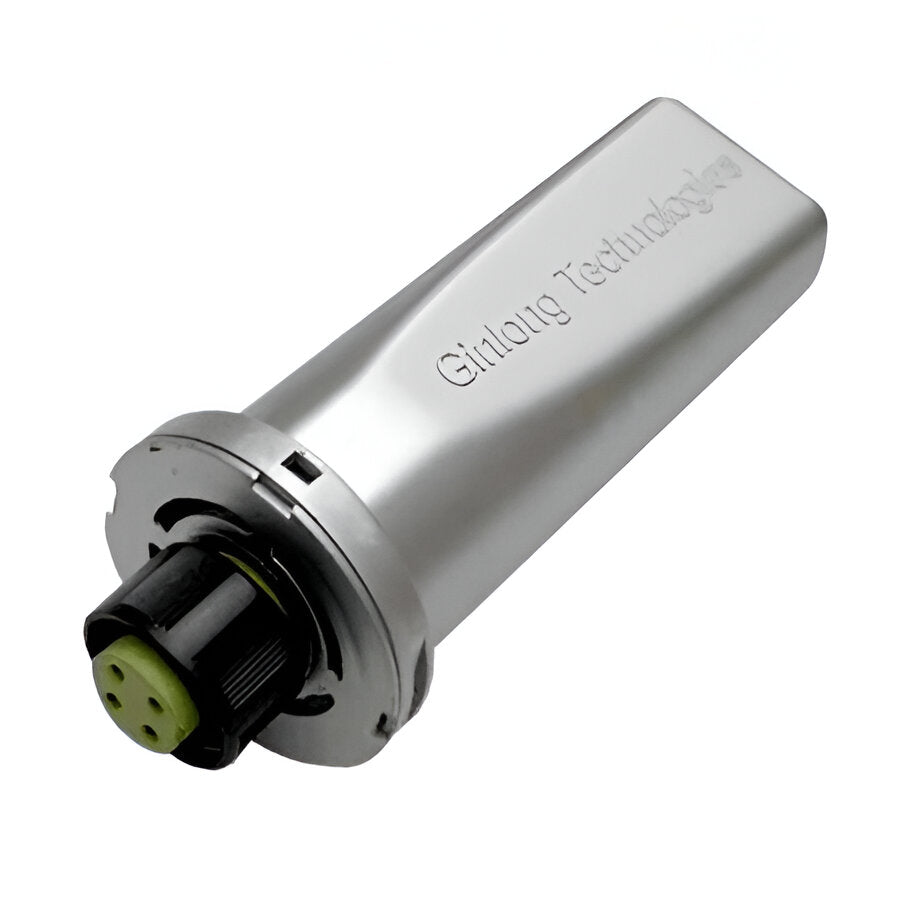

Solis Data Logging Stick - GPRS (GSM)

The Solis Data Logging Stick - GPRS (GSM) is a compact data logger dongle designed for Solis inverters, providing reliable GPRS/GSM connectivity for remote monitoring and management of solar PV systems without needing WiFi or an internet router.

Product Description

The Solis DLS-GSM is an advanced plug-and-play data logger that enables seamless communication between Solis inverters and the Solis Cloud platform via mobile networks. It supports GPRS/GSM for areas without WiFi, ensuring real-time data upload. The device is hardware-only, requiring a user-supplied SIM card and data package. This stick facilitates system monitoring, fault detection, and performance optimization via the Solis app or web portal.

Key Features

• GPRS/GSM connectivity: Uses mobile networks for remote data transmission, no WiFi required.
• Plug-and-play: Simple connection to Solis inverters.
• Fault alarm: Real-time monitoring and notifications.
• Status indicator: LED lights for easy working status display.
• RESET button: One-key operation for quick reset.
• Compact design: Small form factor for discreet installation.
• SIM card flexibility: Hardware only; SIM and data package not included.

Technical Specifications

• Model: SOL-DLS-GSM – Data Logging Stick GPRS (GSM).
• Connectivity: GPRS/GSM (mobile networks, 3G compatible).
• Interface: Plug-in to inverter's COM port.
• Power supply: From inverter (5V DC).
• Power consumption: Low power, typically <2W.
• SIM card: Standard SIM (not included).
• Operating temperature: -30°C to +65°C.
• Protection rating: IP65.

Dimensions & Weights

• Width: 48 mm.
• Depth: 25 mm.
• Height: 128 mm.
• Weight: 0.1 kg.

System & Application Notes

• Ideal for remote monitoring of Solis inverters in areas without WiFi.
• Compatible with Solis Cloud for data logging, alerts, and performance analysis.
• Requires user-supplied SIM card with data package; setup via SMS for APN configuration.
• Installation: Plug into inverter's COM port; ensure inverter address is 01.
• Suitable for residential and small commercial PV systems.
• Warranty: 2 years standard.
