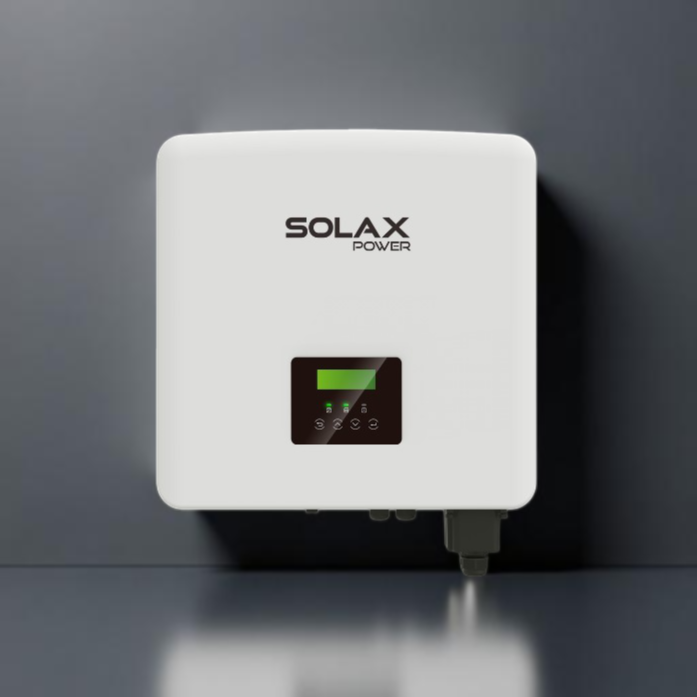

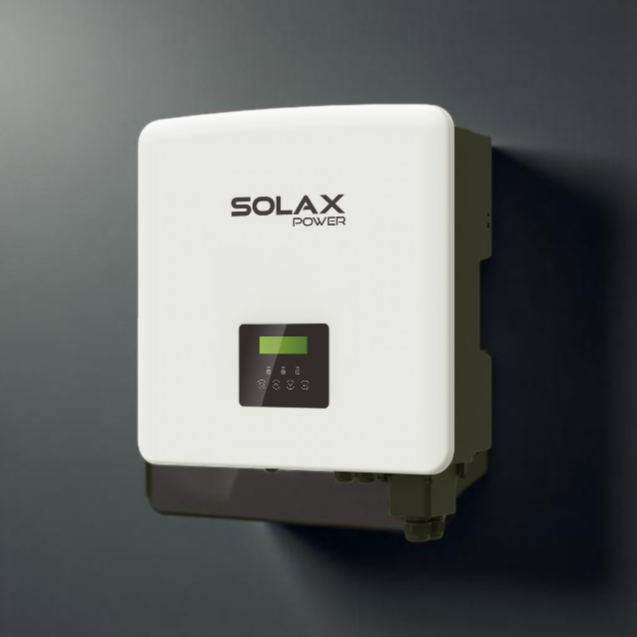

SolaX X3-PRO G2 10-30kW 3-Phase String Inverter

Description

The SolaX X3-PRO G2 is a three-phase on-grid string inverter for homes and light commercial buildings, available here in 10kW, 12kW, 15kW, 20kW, 25kW and 30kW ratings. Every model accepts up to 1100V DC, starts up at just 200V and tracks across a wide 160 to 980V MPPT range, so it keeps harvesting in low light and variable conditions.

Each MPP tracker handles 32A for high-power solar panels, with 150% DC oversizing, a built-in global MPP scan and up to 98.5% maximum efficiency. The 10 to 20kW models have 2 trackers and the 25kW and 30kW models have 3 trackers, each with 2 strings, so you can split an array across different roof faces.

Protection and control are built in: IP66, Type II surge protection on AC and DC, built-in export power control and smart load management for heat pumps and EV chargers. It supports 24-hour monitoring over WiFi, LAN or 4G, and AFCI arc-fault protection is listed as an option.

10 to 30kW

Six AC Ratings

1100V

Max DC Input

160-980V

MPPT Range

32A

Per MPP Tracker

Up to 98.5%

Max Efficiency

IP66

Ingress Protection

Important Safety Information

Solar PV must be installed by a competent person to BS 7671, with the connection notified to or agreed with the DNO under G98 or G99 as appropriate for the size of system. Follow MCS requirements where relevant. DC strings can reach 1100V, which carries a serious shock and arc risk, so isolate before any work.

Choosing Your Model

Six ratings are covered on this page and the inputs differ by model: the 10, 12, 15 and 20kW have 2 MPP trackers and the 25 and 30kW have 3. Maximum recommended PV array is 15, 18, 22.5, 30, 37.5 and 45kWp respectively. The 30kW model's maximum apparent power is listed at 30.0kVA, the same as its rating, so the AC overload headroom shown on smaller models does not apply to it. Select the exact rating in the table and confirm it on your order.

AFCI Is Optional

SolaX lists AFCI arc-fault protection as an optional feature and marks it as a feature to be upgraded in the future. If your project needs arc-fault protection, confirm availability with SolaX before ordering.

Export Control Needs a Meter

The X3-PRO G2 has built-in export power control, but SolaX states that a meter is needed for export control and that three-phase on-grid inverters work with a meter rather than a CT. SolaX's guide lists the M3-40 meter for the X3-PRO G2, connected over RS485.

Wide MPPT Window

A 160 to 980V MPPT range with a 200V start-up voltage and built-in global MPP scan keeps energy flowing in low light and partial shade.

High-Current Inputs

32A per MPP tracker and 40A short-circuit current support high-power panels, with 150% DC oversizing for more yield per inverter.

Flexible String Design

2 trackers on the 10 to 20kW and 3 trackers on the 25 and 30kW, each with 2 strings, for arrays on several roof faces.

Built-In Protection

IP66, Type II SPD on AC and DC, DC isolation, residual current and anti-islanding protection as standard.

Export Control & Smart Loads

Built-in export power control plus smart load management for loads such as heat pumps and smart EV chargers.

High Power Density

A single 482 x 417 x 186mm housing across the whole range, weighing 24.5 to 28kg depending on model.

Model

Rated AC Power

Max PV Input

MPPTs / Strings

Rated Current (380V)

Max Apparent Power

Weight

X3-PRO-10K-G2

10kW

15.0kWp

2 / 4

15.2A

11.0kVA

24.5kg

X3-PRO-12K-G2

12kW

18.0kWp

2 / 4

18.2A

13.2kVA

24.5kg

X3-PRO-15K-G2

15kW

22.5kWp

2 / 4

22.8A

16.5kVA

26.0kg

X3-PRO-20K-G2

20kW

30.0kWp

2 / 4

30.3A

22.0kVA

26.0kg

X3-PRO-25K-G2

25kW

37.5kWp

3 / 6

37.9A

27.5kVA

28.0kg

X3-PRO-30K-G2

30kW

45.0kWp

3 / 6

45.5A

30.0kVA

28.0kg

DC Input (all models)

Max. PV input voltage

1100V

Rated PV input voltage

650V

Operating voltage range

135 to 985V

MPPT voltage range

160 to 980V

Start-up voltage

200V

Strings per MPP tracker

2

Max. input current per MPPT

32A

Max. short-circuit current per MPPT

40A

AC Output (all models)

Rated AC voltage

3/N/PE, 220/380V or 230/400V

Rated AC frequency

50 / 60Hz

AC frequency range

50 ± 5Hz / 60 ± 5Hz (varies with grid code)

Adjustable power factor range

~1 (0.8 lagging to 0.8 leading)

THDi (rated power)

Below 3%

Max. output continuous current (10 / 12 / 15 / 20 / 25 / 30kW)

16.0 / 19.3 / 24.2 / 33.6 / 41.8 / 45.5A

Efficiency

Max. efficiency

98.2% to 98.5% depending on model

European efficiency

97.7% to 98.0% depending on model

General

Dimensions (W x H x D)

482 x 417 x 186mm

Net weight

24.5 to 28.0kg depending on model

Cooling

Natural cooling or smart air cooling, depending on model

Ingress protection

IP66

Operating temperature range

-30 to 60°C

Max. operating altitude

4,000m

Relative humidity

0 to 100% RH (condensing)

Overvoltage category

Mains: III, PV: II

Night-time power consumption

Below 3W

Topology

Non-isolated

Communication interfaces

RS485 / DRM, optional: meter

AC auxiliary power supply (APS)

Optional

Protection & Standards

Surge protection (DC / AC)

Type II / Type II

Arc-fault circuit interrupter (AFCI)

Optional

Active anti-islanding method

Frequency shift

Protections

Over/under voltage, DC isolation, DC reverse polarity, grid monitoring, DC injection monitoring, back-feed current monitoring, residual current detection, over-temperature, AC overcurrent, AC short-circuit

Certifications and standards

VDE 4105, EN 50549, AS 4777.2, IEC 61727, IEC 62116, IEC 61683, IEC 60068, EN 50530, NB/T 32004, IEC/EN 62109-1, IEC/EN 62109-2

Which size do I need?

Choose by the AC rating your supply and DNO approval allow, then check the array fits within the maximum recommended PV power, which is 150% of the rating: 15, 18, 22.5, 30, 37.5 and 45kWp for the 10, 12, 15, 20, 25 and 30kW models.

How many strings can I connect?

The 10, 12, 15 and 20kW models have 2 MPP trackers with 2 strings each (4 strings). The 25kW and 30kW models have 3 trackers with 2 strings each (6 strings). Every tracker takes up to 32A.

Do I need a meter for export limiting?

Yes. SolaX states that a meter is needed for export control and that three-phase on-grid inverters work with a meter rather than a CT. SolaX's guide lists the M3-40 for the X3-PRO G2, connected to the inverter's RS485 terminals.

Is this a hybrid inverter?

No. It is an on-grid string inverter with PV inputs only and no battery port. If you want battery storage, SolaX makes separate hybrid inverters.

Can it control a heat pump or EV charger?

Yes. SolaX lists smart load management for loads such as heat pumps and smart EV chargers. SolaX's earlier literature notes that an Adapter Box is required for heat pump control, so check the accessories your setup needs.

Does it have AFCI?

AFCI is listed as optional, and SolaX marks it as a feature to be upgraded in the future. Confirm availability with SolaX if arc-fault protection is a requirement.

How is it monitored?

SolaX lists 24-hour monitoring over WiFi, LAN or 4G. The inverter's built-in interfaces are RS485 and DRM, with the monitoring connection provided by an optional SolaX dongle, so confirm the dongle you need with your order.

Can I install it outdoors?

Yes. It is rated IP66 and operates from -30 to 60°C, so it suits indoor or outdoor installation. Follow the SolaX installation guide for mounting position and clearances.

Can I run several inverters under one export limit?

SolaX's knowledge base describes two options: a Modbus solution that supports up to 5 X3-PRO G2 inverters, and the DataHub, which supports up to 60 SolaX string inverters. Confirm the design for your site with SolaX.
