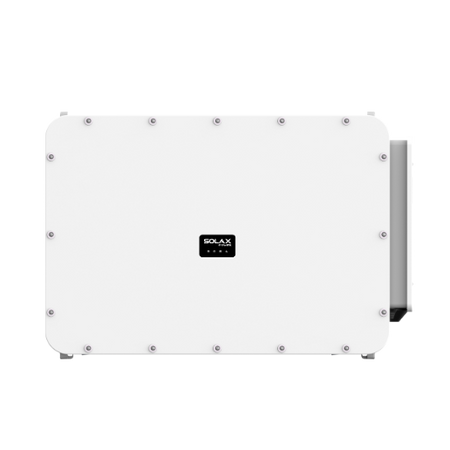

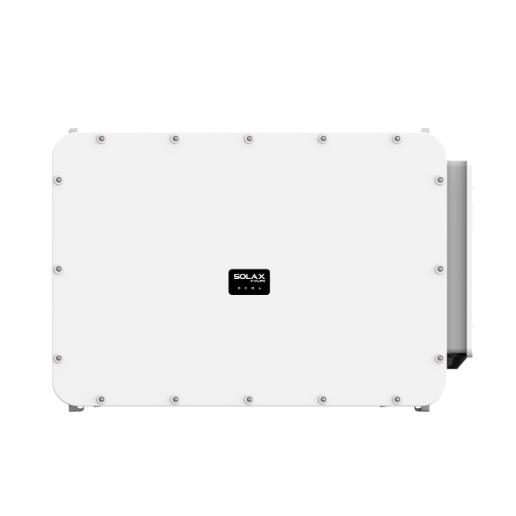

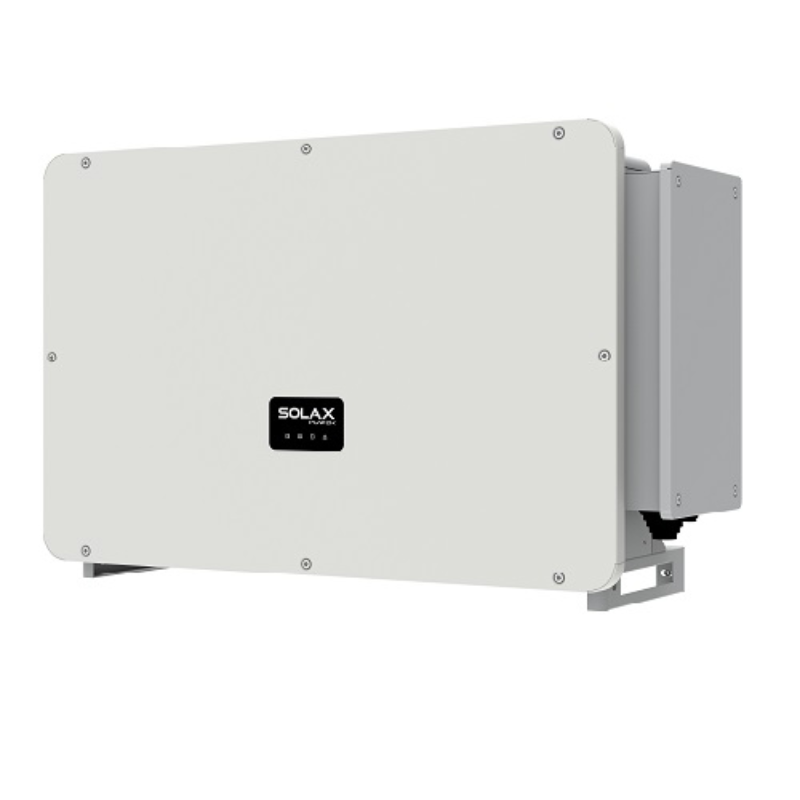

SolaX X3-FORTH 80-125kW 3-Phase String Inverter | Up to 12 MPPT

Description

The SolaX X3-FORTH is a three-phase commercial string inverter range built for large rooftop, industrial and ground-mount solar. Choose from 80kW, 100kW, 110kW, 120kW and 125kW ratings, each delivering 98.6% maximum efficiency (98.3% European efficiency), with a wide 180 to 1000V MPPT range and a low 200V start-up voltage so it keeps generating in weaker light.

Every model supports 150% PV oversizing and 110% AC overloading, with 32A per MPP tracker and 2 strings per tracker. The 80kW has 9 MPPTs (18 strings) and the 120kW and 125kW have 12 MPPTs (24 strings), while the 100kW and 110kW are available with either 9 or 12 MPPTs as an option, so you can match the inverter to your array and roof layout.

Safety and monitoring are built in: IP66 enclosure, Type II surge protection on AC and DC, AC terminal temperature detection, string current monitoring and I-V curve diagnosis, with optional AFCI. Commercial installers also get built-in export power control, night-time reactive power compensation and aluminium AC cable connection.

80 to 125kW

Five AC Ratings

98.6%

Max Efficiency

9 or 12

MPP Trackers

32A

Per MPP Tracker

150%

PV Oversizing

IP66

Ingress Protection

Important Safety Information

Commercial PV must be designed and installed by competent persons to BS 7671, with grid connection agreed with the DNO under G99 (or G98 where applicable). Follow MCS requirements where relevant. String voltages up to 1100V DC carry a serious shock and arc-flash risk, so isolate and lock off before any work.

Choosing Your Model

Five ratings are covered on this page, and the data differs by model: the 80kW has 9 MPPTs, the 120kW and 125kW have 12, and on the 100kW and 110kW the 9 or 12 MPPT configuration is a factory option. Maximum recommended PV array is 120, 150, 165, 180 and 188kWp for the 80, 100, 110, 120 and 125kW models. Confirm the exact rating and MPPT configuration on your order. AFCI is optional.

Maximum Energy Harvest

98.6% max efficiency and 98.3% European efficiency, with a 180 to 1000V MPPT range and just 200V start-up voltage for longer generating hours.

Flexible String Design

Up to 12 MPPTs with 2 strings each and 32A per tracker let you combine different roof orientations and pitches on separate trackers.

Oversizing & Overload

150% PV oversizing and 110% AC overloading let you install more panels per inverter and capture more energy in the shoulders of the day.

Built-In Safety

IP66, Type II SPD on both AC and DC, AC terminal temperature detection and optional AFCI arc-fault protection.

Smart Diagnostics

String current monitoring, I-V curve diagnosis and 24-hour operation monitoring.

Easier Commercial Install

Aluminium AC cable support, built-in export power control, remote setting and upgrading, and night-time reactive power compensation.

Model

AC Rated Power

Max PV Input

MPPTs / Strings

Rated AC Current (380V / 400V)

Max AC Apparent Power

X3-FTH-80K

80kW

120kWp

9 / 18

121.3A / 116A

88kVA

X3-FTH-100K

100kW

150kWp

9 or 12 (option) / 18 or 24

151.6A / 145A

110kVA

X3-FTH-110K

110kW

165kWp

9 or 12 (option) / 18 or 24

166.7A / 159.5A

121kVA

X3-FTH-120K

120kW

180kWp

12 / 24

181.9A / 174A

132kVA

X3-FTH-125K

125kW

188kWp

12 / 24

189.4A / 181.2A

132kVA

Model

Net Weight

X3-FTH-80K

83kg

X3-FTH-100K

83kg

X3-FTH-110K

83kg

X3-FTH-120K

87kg

X3-FTH-125K

87kg

DC Input (all models)

Max. PV input voltage

1100V

Nominal input voltage

580 / 600V

Operating voltage range

200 to 1000V

MPPT voltage range

180 to 1000V

Start-up voltage

200V

Strings per MPP tracker

2

Max. input current per MPPT

32A

Max. short-circuit current per MPPT

46A

AC Output (all models)

Nominal AC voltage

3/N/PE 220/380V, 230/400V (3/PE also supported)

Nominal AC frequency

50 / 60Hz

AC frequency range

50 ± 5Hz / 60 ± 5Hz (varies by country code)

THDi (rated power)

Below 3%

Adjustable power factor range

~1 (0.8 lagging to 0.8 leading)

Efficiency & Performance (80 to 125kW)

Max. efficiency

98.6%

European efficiency

98.3%

PV oversizing

Up to 150%

AC overloading

Up to 110%

General (all models)

Ingress protection

IP66

Operating ambient temperature

-25 to +60°C

Max. operating altitude

4,000m

Dimensions (W x H x D)

985 x 660 x 327.5mm

Cooling

Smart cooling

Relative humidity

0 to 100% RH

Overvoltage category

Mains: III, PV: II

Topology

Non-isolated

Night-time power consumption

Below 10W

Surge protection (DC / AC)

Type II / Type II

AFCI

Optional

Anti-PID

External

AC auxiliary power supply (APS)

Built in

Communication

RS485, DRM

Protection & Standards

Protection functions

Over/under voltage, DC reverse polarity, DC isolation, grid monitoring, DC injection monitoring, back-feed current monitoring, residual current detection, over-temperature, string fault detection, AC overcurrent, AC short-circuit

Active anti-islanding method

Frequency shift

Safety standards

IEC/EN 62109-1, IEC/EN 62109-2, NB/T 32004

Grid and other standards

EN 50549, AS 4777.2, VDE 4105, IEC 61727, IEC 62116, IEC 61683, IEC 60068, EN 50530

Which sizes does this page cover?

The 80kW, 100kW, 110kW, 120kW and 125kW X3-FORTH models. The variant table shows each model's PV input, MPPT count and AC current so you can compare them side by side.

How many strings can I connect?

The 80kW has 9 MPPTs (18 strings) and the 120kW and 125kW have 12 MPPTs (24 strings). The 100kW and 110kW are available with 9 or 12 MPPTs as an option. Each tracker takes 2 strings and up to 32A.

How much PV can I oversize?

The X3-FORTH supports 150% PV oversizing, giving a maximum recommended array of 120, 150, 165, 180 and 188kWp for the 80, 100, 110, 120 and 125kW models.

Does it have export limiting?

Yes, built-in export power control is listed on the SolaX datasheet. Practical export limiting normally needs suitable metering, so confirm the arrangement with your installer or SolaX, and agree any export limit with your DNO under G99.

Can I connect it with aluminium cable?

Yes, aluminium AC cable connection is supported, which can lower cable cost on large commercial runs.

Can I run several inverters together?

Large sites commonly use several inverters. SolaX offers a DataHub for managing multiple string inverters, but the X3-FORTH datasheet does not specify parallel limits, so confirm the maximum number and system design with SolaX before ordering.

Is AFCI included?

AFCI arc-fault protection is listed by SolaX as optional. Check that your order specifies the AFCI version if your project needs it.
