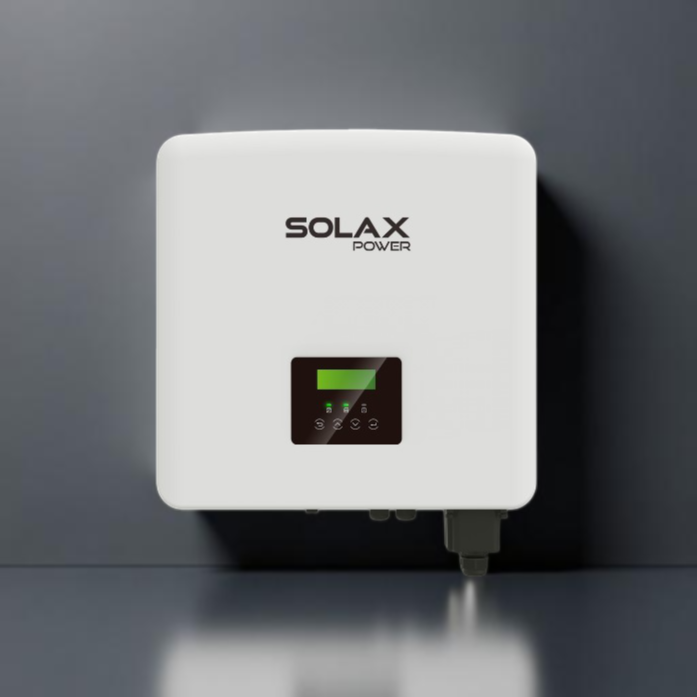

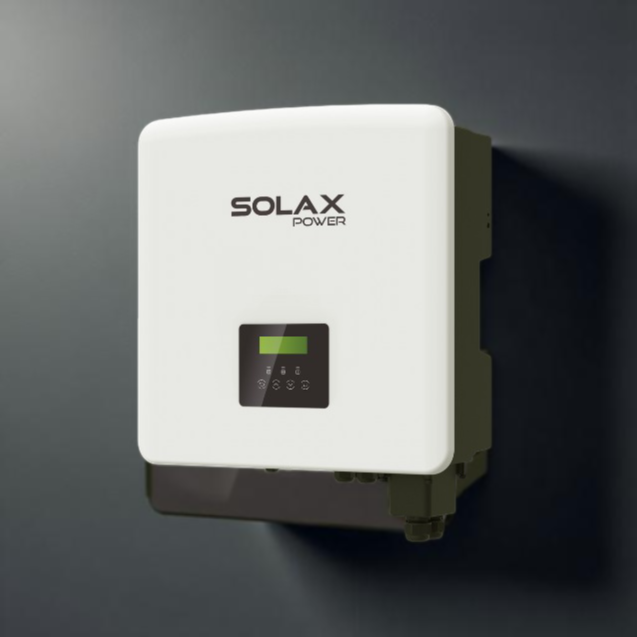

SolaX X3-FIT G4 8-15kW 3 Phase AC Battery Inverter | X3-FIT-G4

Description

The SolaX X3-FIT G4 is a three-phase AC-coupled battery inverter for adding energy storage to a solar PV system. It is supplied here in 8 kW, 10 kW and 15 kW ratings, connecting on the AC side alongside your existing generation.

It offers up to 110% AC overload output, up to 98.5% charge and discharge efficiency and three-phase unbalanced output of up to 5 kW per phase. EPS backup switches over in under 10 ms and delivers up to 150% EPS output for 60 seconds on the 8 kW and 10 kW ratings.

A 180–800 V battery input, CT compatibility with 0.3 second load response, intelligent load management for heat pumps and on- and off-grid parallel operation up to 150 kW make it suited to larger homes and commercial sites, in an IP65 enclosure with integrated SPD.

98.5%

Battery charge efficiency

110%

AC overload output

<10 ms

EPS switchover

180–800 V

Battery voltage range

150 kW

On / off-grid parallel

IP65

Ingress protection

Installation and grid connection: Must be installed by a qualified, competent person in line with BS 7671 and the manufacturer's manual, including the wiring of the EPS backup circuit. Calculated from nominal output power at 230 V per phase, the 8 kW (11.6 A) and 10 kW (14.5 A) ratings fall within the G98 limit of 16 A per phase, while the 15 kW (21.7 A) exceeds it and needs a G99 application before installation.

AC-coupled system: The datasheet lists AC and battery connections only, with no PV string inputs. The X3-FIT G4 therefore connects on the AC side of your installation, and needs a compatible battery within 180–800 V.

EPS peak differs by rating: Peak EPS output is 150% for 60 seconds on the 8 kW and 10 kW ratings, but 110% for 60 seconds on the 15 kW (16,500 VA). Check your peak backup load against the rating you choose.

Cooling and noise: The 8 kW and 10 kW ratings use natural cooling, and the 15 kW uses smart cooling. Typical noise is below 35 dB on the 8 kW and below 45 dB on the 10 kW and 15 kW.

Key features

AC overload output

Up to 110% AC overload output for short-term demand above rated power.

High storage efficiency

Up to 98.5% charge and 97.5% discharge efficiency with less energy lost between battery and inverter.

Powerful EPS backup

Up to 150% EPS output for 60 seconds on the 8 kW and 10 kW ratings, with switchover under 10 ms.

Three-phase unbalanced output

Supports uneven loading with a maximum of 5 kW output on a single phase.

Smart control

CT compatibility (0.3 s load response), 5 work modes, 2 charging periods, intelligent load management for heat pumps and VPP ready.

Scalable and protected

On- and off-grid parallel function up to 150 kW, IP65, integrated SPD and quick configuration with a U-disk.

Technical specifications

Battery

Battery type

Lithium-ion / lead-acid

Battery voltage range

180–800 V

Max. continuous charge / discharge current

30 A

Battery charge / discharge efficiency

98.5% / 97.5%

AC grid connection

Nominal AC voltage

380 / 220, 400 / 230 or 415 / 240 V

Nominal grid frequency

50 / 60 Hz

Displacement power factor

0.8 leading to 0.8 lagging

THDi (rated power)

<3%

Max. efficiency

98.0%

European efficiency

97.7%

EPS (backup) output, with battery

Nominal voltage / frequency

400 V / 230 V, 50 / 60 Hz

Switch time

<10 ms

Parallel operation

Yes

General

Degree of protection

IP65

Operating temperature range

-35 to +60°C (derating above +45°C)

Max. operating altitude

<3,000 m

Relative humidity

0–100%

Storage temperature

-40 to +70°C

Dimensions (W × H × D)

503 × 503 × 199 mm

Net weight

30 kg

Internal consumption at night

<40 W standby, <5 W idle

Communication

CT / meter (optional), external control RS485, Pocket WiFi (Pocket LAN / 4G optional), DRM, USB upgrade, NTC (optional)

Standards

Safety

EN / IEC 62109-1/-2

EMC

EN 61000-6-1/2/3/4, EN 61000-3-2/3/11/12

Certification

VDE4105, G99, G98, AS4777, EN50549, CEI 0-21, IEC61727, PEA / MEA, NRS-097-2-1, RD1699, TOR

Model range

Rated power

Datasheet model

Max. AC output (VA / A)

Max. AC input (VA / A)

EPS nominal / peak (60 s)

EPS max. current

Cooling

8 kW

X3-FIT-8.0-W

8,800 / 12.9 A

16,000 / 25.8 A

8,000 W / 12,000 VA

11.6 A

Natural

10 kW

X3-FIT-10.0-W

11,000 / 16.1 A

20,000 / 32 A

10,000 W / 15,000 VA

14.5 A

Natural

15 kW

X3-FIT-15.0-W

15,000 / 24.1 A

20,000 / 32 A

15,000 W / 16,500 VA

21.8 A

Smart cooling

Frequently asked questions

What is an AC-coupled battery inverter?

It connects to the AC side of your installation rather than to PV strings. The datasheet lists AC and battery connections only, so the X3-FIT G4 stores and releases energy through the battery, alongside your existing three-phase solar generation.

Which ratings are available?

The X3-FIT G4 is supplied in 8 kW, 10 kW and 15 kW. All share the same 180–800 V battery range, 30 A charge and discharge current and 503 × 503 × 199 mm enclosure.

What does three-phase unbalanced output mean?

The inverter can supply loads that are not evenly spread across the three phases, up to a maximum of 5 kW on a single phase.

How does the EPS backup work?

With a battery connected, the EPS output supplies 400 V / 230 V and switches over in under 10 ms. The peak is 150% for 60 seconds on the 8 kW and 10 kW ratings and 110% for 60 seconds on the 15 kW.

Can I run several units in parallel?

Yes. The X3-FIT G4 supports on- and off-grid parallel operation up to 150 kW.

Do I need DNO approval in the UK?

Yes. Calculated from nominal output power at 230 V per phase, the 8 kW (11.6 A) and 10 kW (14.5 A) ratings fall within the G98 limit of 16 A per phase. The 15 kW (21.7 A) exceeds it and needs a G99 application before installation. The inverter is certified to both G98 and G99.
