SolaX X1 Single Phase String Inverter Range

Description

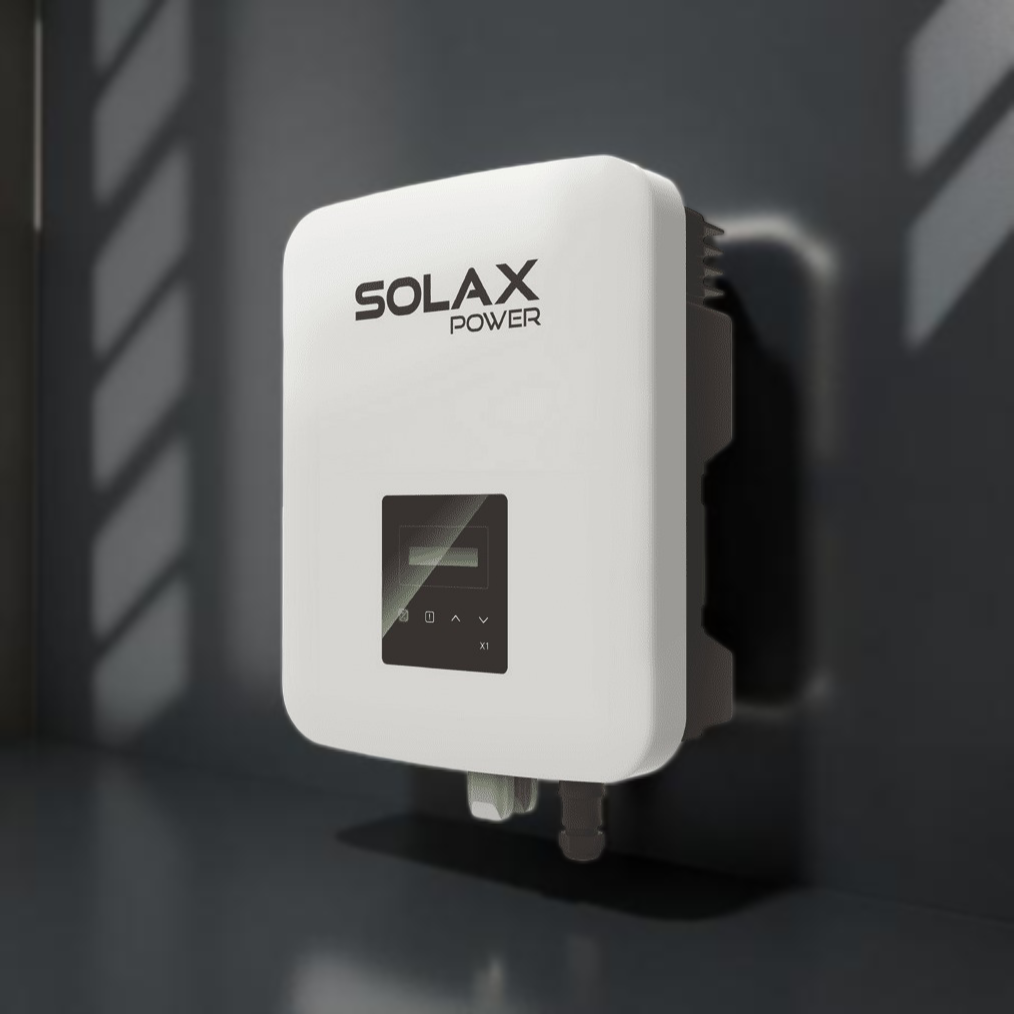

The SolaX X1-Boost G4 is a compact single-phase string inverter for residential solar PV. It is supplied here in 3.68 kW and 6.0 kW ratings, giving you a right-sized, grid-tied inverter for smaller and larger domestic arrays.

With 200% DC oversizing, 16 A per MPPT input, a low 50 V start-up voltage and a wide 40–560 V MPPT range, it starts earlier and works later each day. It reaches 98% maximum efficiency, weighs just 11 kg and runs almost silently with natural cooling at 25 dB.

Protection is IP66 rated, with an in-built export control function, I-V curve diagnosis and optional Type II SPD, DC AFCI and external rapid shutdown support. It is adaptable to home EV chargers and heat pumps.

98%

Max. efficiency

200%

DC oversizing

16 A

Per MPPT input

50 V

Start-up voltage

IP66

Ingress protection

25 dB

Typical noise

Installation and grid connection: Must be installed by a qualified, competent person in line with BS 7671 and the manufacturer's manual. The 3.68 kW variant (16 A) is notified under G98, while the 6.0 kW variant (26.1 A) needs a G99 application before installation.

Naming note: The 3.68 kW variant is SolaX model X1-BOOST-3.6K-G4, with a rated output of 3,680 W. Its maximum apparent power is 4,048 VA, limited to 3,680 VA for G98 / G99.

Optional extras: Type II SPD, DC AFCI, AC auxiliary power supply, DC switch and the monitoring dongle (Pocket WiFi, LAN or 4G) are listed as optional, and the meter / CT is not included in the package. Confirm the options you need when ordering.

On-grid string inverter: The X1-Boost G4 is an on-grid inverter with no battery input. For battery storage, choose a hybrid inverter.

Key features

200% DC oversizing

Connect up to 200% PV oversizing with 16 A per input and 22 A short-circuit current. Maximum PV array power is 7,200 Wp (3.68 kW) or 12,000 Wp (6.0 kW).

Early start, wide range

A 50 V start-up voltage, 40–560 V MPPT range and global MPP scan raise yield efficiency across the day.

Easy monitoring

10-second data updates (optional, new WiFi dongle required), quick set-up via WiFi and app, and a 2 × LED plus 16 × 2 LCD display.

Assured safety

IP66, I-V curve diagnosis, optional Type II SPD, optional DC AFCI and external RSD support, plus full grid and residual-current protection.

Export control and integration

In-built export control, home EV charger and heat pump solution adaptable, Datahub mass management and master / slave parallel via Modbus.

Compact and quiet

Just 404 × 274 × 146 mm and 11 kg, with natural cooling and 25 dB typical noise for quiet, easy wall mounting.

Technical specifications

PV input

Max. PV input voltage

600 V

Start-up voltage

50 V

Nominal input voltage

360 V

MPPT voltage range

40–560 V

MPP trackers / strings per tracker

2 / 1

Max. PV input current

16 A / 16 A

Isc PV array short-circuit current

22 A / 22 A

AC output

Nominal AC voltage / range

220 / 230 / 240 V; 90–290 V

Nominal AC frequency / range

50 / 60 Hz; ±5 Hz

Power factor range

0.8 leading to 0.8 lagging

THDi (rated power)

<3%

System data

Max. efficiency

98%

European efficiency

97%

Standby consumption at night

<3 W

Ingress protection

IP66

Operating ambient temperature

-25 to +60°C

Max. operating altitude

4,000 m

Relative humidity

0–100%

Typical noise emission

25 dB (30 dB on optional internal-fan models)

Storage temperature

-30 to +70°C

Dimensions (W × H × D)

404 × 274 × 146 mm

Weight

11 kg

Cooling

Natural cooling

Communication

USB / RS485 / DRM; optional meter / CT (not included)

Optional monitoring dongle

Pocket WiFi / LAN / 4G

Display

2 × LED + LCD (16 × 2) / app

Protection

Over / under voltage, DC isolation, ground fault, grid monitoring, DC injection, back-feed current, residual current, anti-islanding, over-temperature

Yes

SPD (DC / AC)

Type II / Type II (optional)

Arc-fault circuit interrupter (AFCI)

Optional

AC auxiliary power supply (APS)

Optional

DC switch

Optional

Standards

Safety

IEC / EN 62109-1 / -2

EMC

EN 61000-6-1/2/3/4, EN 61000-3-2/3/11/12

Certification

IEC61727, EN50549, G98 / G99, AS 4777.2, VDE4105, CEI 0-21, VFR, PPDS, TOR

Model range

Rated power

Datasheet model

Rated AC output / current

Max. AC apparent / current

Max. PV array power

3.68 kW

X1-BOOST-3.6K-G4

3,680 W / 16 A

4,048 VA / 17.6 A (3,680 VA / 16 A for G98 / G99)

7,200 Wp

6.0 kW

X1-BOOST-6K-G4

6,000 W / 26.1 A

6,000 VA / 27.3 A

12,000 Wp

Frequently asked questions

Which ratings are available?

The X1-Boost G4 is supplied here in 3.68 kW and 6.0 kW. Both use two MPPT trackers with one string each, so you can split an array across two roof faces.

How much solar can I connect?

The inverter supports up to 200% PV oversizing, with a maximum PV array power of 7,200 Wp on the 3.68 kW and 12,000 Wp on the 6.0 kW. Each input is rated 16 A, with a 40–560 V MPPT range.

Do I need DNO approval in the UK?

Yes. The 3.68 kW variant (16 A) is notified under G98. The 6.0 kW variant (26.1 A) exceeds 16 A and needs a G99 application before installation. The inverter is certified to both G98 and G99.

Can it limit export to the grid?

Yes. It has an in-built export control function. An external meter or CT is optional and is not included in the package, so order it separately if your export limit requires one.

Can I add a battery?

The X1-Boost G4 is an on-grid string inverter and has no battery input. If you want battery storage on the same system, choose a hybrid inverter such as the X1 Hybrid G4.

What safety features and options are available?

It is IP66 rated with I-V curve diagnosis. Type II SPD, DC AFCI, external rapid shutdown support, an AC auxiliary power supply and a DC switch are listed as options, so confirm which you need for your installation.
