SolaX X1 Hybrid G4 3-7.5kW Single Phase Inverter | X1-HYBRID-G4

Description

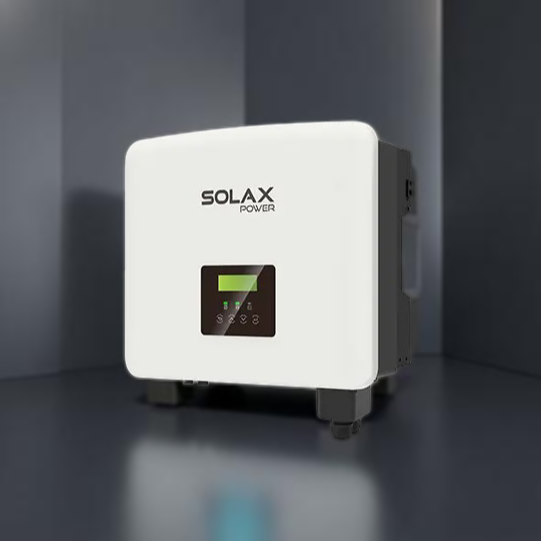

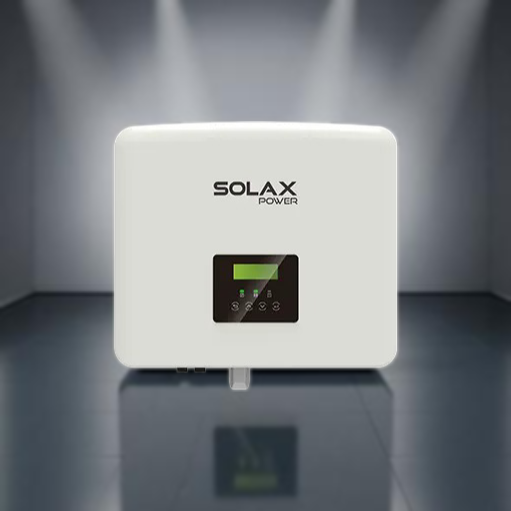

The SolaX X1 Hybrid G4 is a single-phase hybrid inverter that combines a solar PV inverter and a battery storage controller in one wall-mounted unit. It is supplied here in 3.0 kW, 3.7 kW, 5.0 kW, 6.0 kW and 7.5 kW ratings, so you can match the inverter to the size of the array and the household load.

With 200% PV oversizing, up to 110% AC output and up to 97% charging and discharging efficiency, it captures more of the available solar energy. If the grid drops, the EPS backup output takes over in under 10 ms and can deliver up to 150% of rated output for 10 seconds to start demanding loads. It works with lithium-ion and lead-acid batteries (80–480 V), supports smart load management for heat pumps and EV chargers, and is VPP ready.

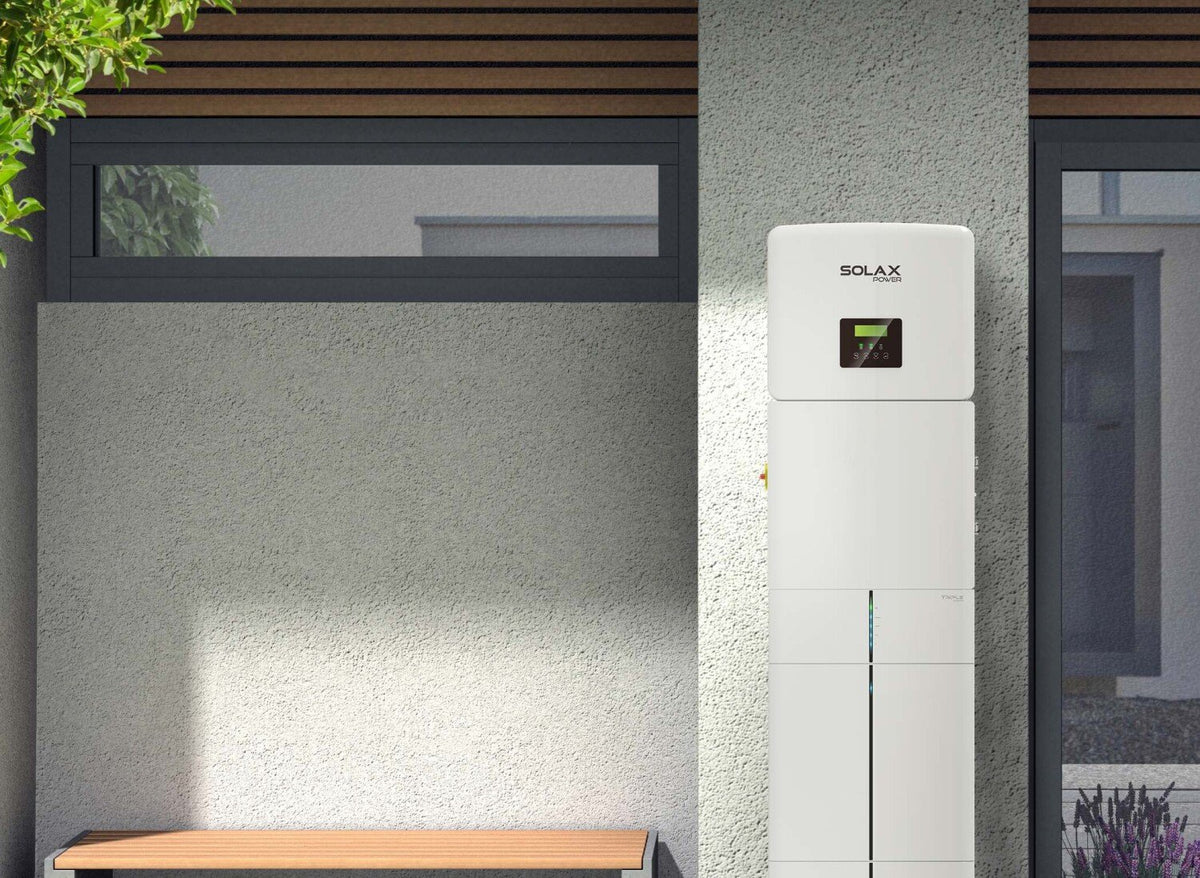

Rated IP65 with Type II SPD on both the AC and DC sides, it is designed for reliable installation indoors or outdoors, with quick configuration from a U-disk and monitoring through SolaX Pocket WiFi.

200%

PV oversizing

97%

Charge / discharge efficiency

<10 ms

EPS switchover

80–480 V

Battery voltage range

15 kW

On / off-grid parallel

IP65

Ingress protection

Installation and grid connection: Must be installed by a qualified, competent person in line with BS 7671 and the manufacturer's manual, including the wiring of any EPS backup circuit. Notify your DNO under G98 (up to 16 A per phase, which includes the 3.68 kW variant) or apply in advance under G99 for the 5.0, 6.0 and 7.5 kW ratings.

PV input limit: PV input (PV1 and PV2) to 5,000 W, and the model's total PV input limit takes precedence. Check your string layout before ordering.

Monitoring and control: Monitoring is via SolaX Pocket WiFi, with Pocket LAN or 4G optional. A CT or meter (optional) gives fast load response within 0.3 seconds.

Key features

200% PV oversizing

Connect up to 200% PV oversizing with up to 110% AC output. Two MPPT trackers accept 16 A per input, and a global MPP scan finds the best operating point under partial shading.

Fast EPS backup

Switchover in under 10 ms with EPS output of up to 150% of rated power for 10 seconds, so critical loads ride through grid outages.

Battery flexibility

Compatible with lithium-ion and lead-acid batteries across 80–480 V, with 30 A continuous charge and discharge current and up to 97% charge and discharge efficiency.

Smart energy management

5 work modes and 2 charging periods support time-of-use tariffs, while smart load management controls loads such as heat pumps and smart EV chargers.

Scalable and grid-ready

On- and off-grid parallel operation up to 15 kW, VPP ready for ancillary services, and certified to G98 and G99.

Rugged and protected

IP65 enclosure, -35 to +60°C operation (derating above 45°C) and Type II SPD on both AC and DC sides. Quick set-up with a U-disk.

Technical specifications

PV input

Max. PV input voltage

600 V

Start-up voltage

90 V

Nominal input voltage

360 V

MPPT voltage range

70–550 V

MPP trackers / strings per tracker

2 (1 / 1)

Max. input current per MPPT

16 A / 16 A

Max. short-circuit current per MPPT

20 A / 20 A

Battery

Battery type

Lithium-ion / lead-acid

Battery voltage range

80–480 V

Max. continuous charge / discharge current

30 A

Battery charge / discharge efficiency

97.0% / 97.0%

AC grid connection

Nominal AC voltage

1/N/PE, 220 / 230 / 240 V

Nominal grid frequency

50 / 60 Hz

Displacement power factor

0.8 leading to 0.8 lagging

THDi (rated power)

<2%

Max. efficiency

97.6%

European efficiency

97.0%

EPS (backup) output, with battery

Nominal voltage / frequency

230 V, 50 / 60 Hz

Switchover time

<10 ms

Parallel operation

Yes

General

Degree of protection

IP65

Operating temperature range

-35 to +60°C (derating above +45°C)

Storage temperature

-40 to +65°C

Max. operating altitude

<3,000 m

Relative humidity

0–100%

Dimensions (W × H × D)

482 × 417 × 181 mm

Night consumption

<17 W standby, <2.7 W idle

Communication

CT / meter (optional), external control RS485, Pocket WiFi (Pocket LAN / 4G optional), DRM, USB upgrade, NTC (optional)

Standards

Safety

EN/IEC 62109-1

EMC

EN 61000-6-1/2/3/4, EN 61000-3-2/3/11/12

Grid codes

VDE4105, G99, G98, AS4777, EN50549, CEI 0-21, IEC61727, RD1699, NRS 097-2-1, PEA / MEA, VFR2019, C10/11

Model range

Rated power

Datasheet model

Rated AC output

EPS output / peak (10 s)

Max. recommended PV

Weight

3.0 kW

X1-HYBRID-3.0-D / -M

3,000 W

3,000 VA / 6,000 VA

6.0 kWp

24 kg

3.68 kW

X1-HYBRID-3.7-D / -M

3,680 W

3,680 VA / 6,000 VA

7.4 kWp

25 kg

5.0 kW

X1-HYBRID-5.0-D / -M

5,000 W

5,000 VA / 7,500 VA

10.0 kWp

24 kg

6.0 kW

X1-HYBRID-6.0-D / -M

6,000 W

6,000 VA / 9,000 VA

12.0 kWp

24 kg

7.5 kW

X1-HYBRID-7.5-D / -M

7,500 W

7,500 VA / 11,250 VA

15.0 kWp

25 kg

Frequently asked questions

Which power ratings are available?

The X1 Hybrid G4 is supplied in 3.0 kW, 3.68 kW, 5.0 kW, 6.0 kW and 7.5 kW. Choose the rating from your PV array size (see the maximum recommended PV in the model table) and your typical household load.

Does it provide backup power during a grid outage?

Yes. With a battery connected, the EPS output switches over in under 10 ms and can supply up to 150% of rated power for 10 seconds. The backup circuit must be wired to BS 7671 by a competent person.

Which batteries can I connect?

The X1 Hybrid G4 accepts lithium-ion and lead-acid batteries across 80–480 V with up to 30 A continuous charge and discharge current. Always check battery compatibility in the manufacturer's documentation before ordering.

How much solar can I connect?

The inverter supports up to 200% PV oversizing across two MPPT trackers, each rated for 16 A. The maximum recommended array runs from 6.0 kWp (3.0 kW) to 15.0 kWp (7.5 kW), and each PV input is limited to 5,000 W.

Can it manage a heat pump or EV charger?

Yes. Smart load management lets the inverter control loads such as heat pumps and smart EV chargers, using its 5 work modes and 2 programmable charging periods. A CT or meter (optional) allows loads to respond within 0.3 seconds.

Do I need DNO approval in the UK?

Yes. Systems up to 16 A per phase (including the 3.68 kW variant) are notified under G98. The 5.0, 6.0 and 7.5 kW ratings exceed 16 A per phase and need a G99 application before installation. The inverter is certified to both G98 and G99.
