SolaX X1-FIT G4 3.68-7.5kW AC Battery Inverter | X1-FIT-G4

Description

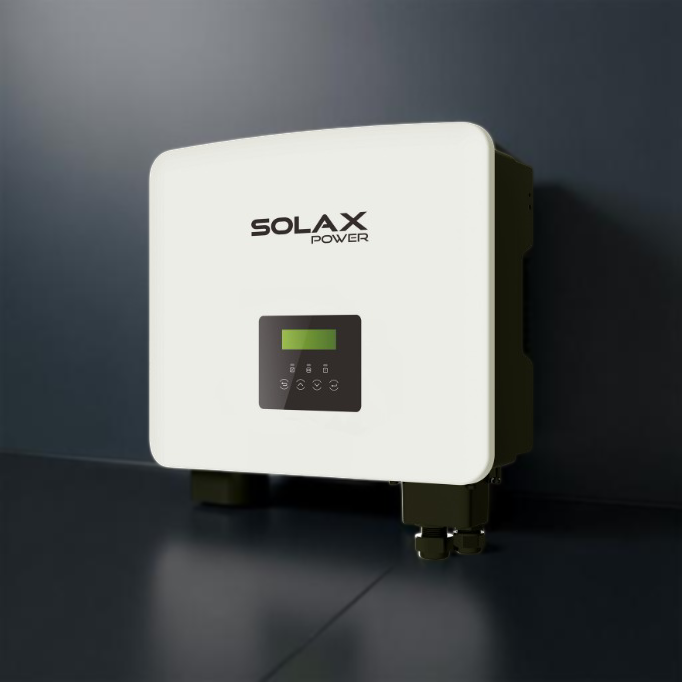

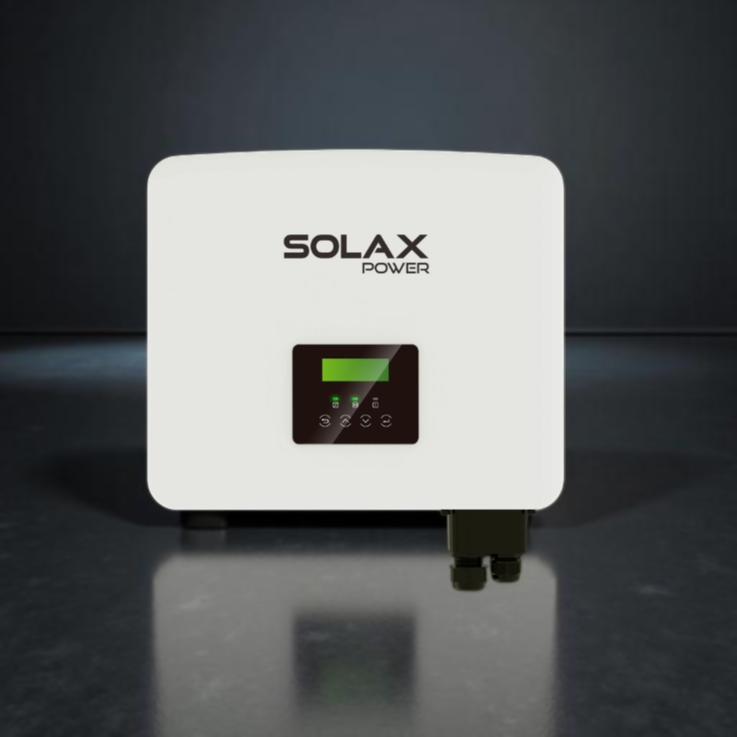

The SolaX X1-FIT G4 is a single-phase AC-coupled battery inverter for adding energy storage to a solar PV system. It is supplied here in 3.68 kW, 5.0 kW and 7.5 kW ratings, connecting on the AC side alongside your existing generation.

It delivers 110% overload output on-grid and a maximum 120% overload output off-grid for one hour, with up to 97% charge and discharge efficiency. EPS backup switches over in under 10 ms, and the inverter is CT compatible so loads respond within 0.3 seconds.

It works with lithium and lead-acid batteries (80–480 V), offers 5 work modes with 2 charging periods, supports intelligent load management for heat pumps and is VPP ready, all in an IP65 enclosure with integrated SPD.

97%

Charge / discharge efficiency

110%

On-grid overload output

<10 ms

EPS switchover

80–480 V

Battery voltage range

15 kW

On / off-grid parallel

IP65

Ingress protection

Installation and grid connection: Must be installed by a qualified, competent person in line with BS 7671 and the manufacturer's manual, including the wiring of the EPS backup circuit. The 3.68 kW variant (16 A) is notified under G98, while the 5.0 kW and 7.5 kW ratings exceed 16 A and need a G99 application before installation.

Off-grid overload: Peak EPS output is 120% of rated power for up to 60 minutes on the 3.68 kW and 5.0 kW ratings. The 7.5 kW peak equals its rated 7,500 VA.

Key features

Overload capability

110% overload output on-grid and a maximum of 120% overload output off-grid for one hour on the smaller ratings.

Efficient storage

Stores surplus energy in the battery with less loss between battery and inverter and up to 97% charge and discharge efficiency.

Fast EPS backup

Switchover in under 10 ms keeps essential circuits running when the grid fails.

Battery flexibility

Compatible with lithium and lead-acid batteries across 80–480 V and up to 30 A charge and discharge current.

Smart control

5 work modes, 2 charging periods, CT compatibility (0.3 s load response) and intelligent load management for heat pumps. VPP ready.

Scalable and protected

On- and off-grid parallel function up to 15 kW, IP65, integrated SPD and quick configuration with a U-disk.

Technical specifications

Battery

Battery type

Li-ion / lead-acid

Battery voltage range

80–480 V

Max. continuous charge / discharge current

30 A

Battery charge / discharge efficiency

97.0% / 97.0%

AC grid connection

Nominal AC voltage

220 / 230 / 240 V

Nominal grid frequency

50 / 60 Hz

Displacement power factor

0.8 leading to 0.8 lagging

THDi (rated power)

<2%

EPS (backup) output, with battery

Nominal voltage / frequency

230 V, 50 / 60 Hz

Switch time

<10 ms

Parallel operation

Yes

General

Standby consumption at night

<3 W

Degree of protection

IP65

Operating temperature range

-35 to +60°C (derating above +45°C)

Max. operating altitude

<3,000 m

Relative humidity

0–100%

Storage temperature

-40 to +70°C

Dimensions (W × H × D)

482 × 417 × 181 mm

Net weight

23 kg

Communication

CT / meter (optional), external control RS485, Pocket series (optional), DRM, USB upgrade

Standards

Safety

EN/IEC 62109-1/-2

EMC

EN 61000-6-1/2/3/4, EN 61000-3-2/3/11/12

Certification

VDE4105 / G99 / G98 / AS4777 / EN50549 / CEI 0-21 / IEC61727 / C10/11

Model range

Rated power

Datasheet model

Max. AC output (VA / A)

Max. AC input (VA / A)

EPS nominal / peak

EPS max. current

Noise / cooling

3.68 kW

X1-FIT-3.7-W

3,680 / 16 A

7,360 / 32 A

3,680 W / 4,416 VA (60 min)

16 A

<30 dB, natural

5.0 kW

X1-FIT-5.0-W

5,500 / 23.9 A

9,200 / 40 A

5,000 W / 6,000 VA (60 min)

21.7 A

<30 dB, natural

7.5 kW

X1-FIT-7.5-W

7,500 / 32.6 A

9,200 / 40 A

7,500 W / 7,500 VA

32.6 A

<45 dB, smart cooling

Frequently asked questions

What is an AC-coupled battery inverter?

It connects to the AC side of your installation rather than to PV strings. The datasheet lists AC and battery connections only, so the X1-FIT G4 stores and releases energy through the battery, alongside your existing solar generation.

Which ratings are available?

The X1-FIT G4 is supplied in 3.68 kW, 5.0 kW and 7.5 kW. All three run on 230 V single-phase and share the same 80–480 V battery range and 30 A charge and discharge current.

Does it provide backup power in an outage?

Yes. With a battery connected, the EPS output switches over in under 10 ms. Off-grid, the 3.68 kW and 5.0 kW ratings can deliver 120% of rated power for 60 minutes. The backup circuit must be wired to BS 7671.

Which batteries can I connect?

Lithium-ion and lead-acid batteries within 80–480 V, with up to 30 A continuous charge and discharge current. Check battery compatibility in the manufacturer's documentation before ordering.

Can I run several units in parallel?

Yes. The X1-FIT G4 supports on- and off-grid parallel operation up to 15 kW, so capacity can grow with demand.

Do I need DNO approval in the UK?

Yes. The 3.68 kW variant (16 A) is notified under G98. The 5.0 kW (23.9 A) and 7.5 kW (32.6 A) ratings exceed 16 A and need a G99 application before installation. The inverter is certified to both G98 and G99.
