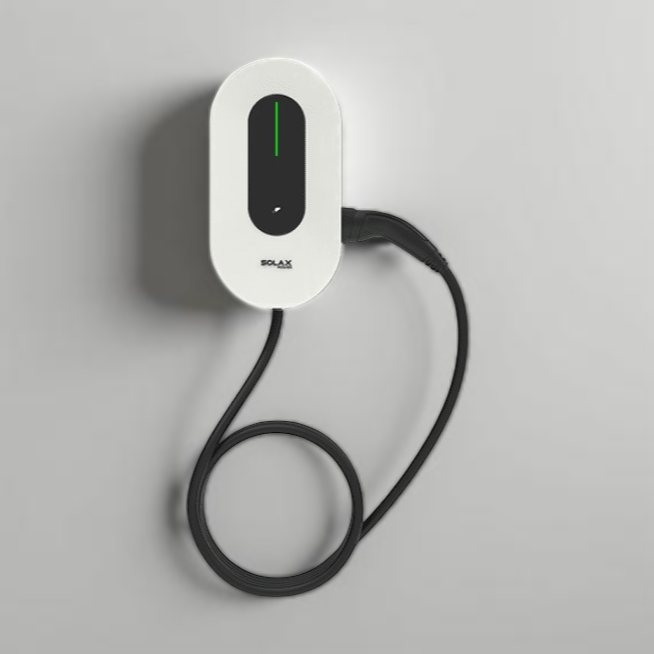

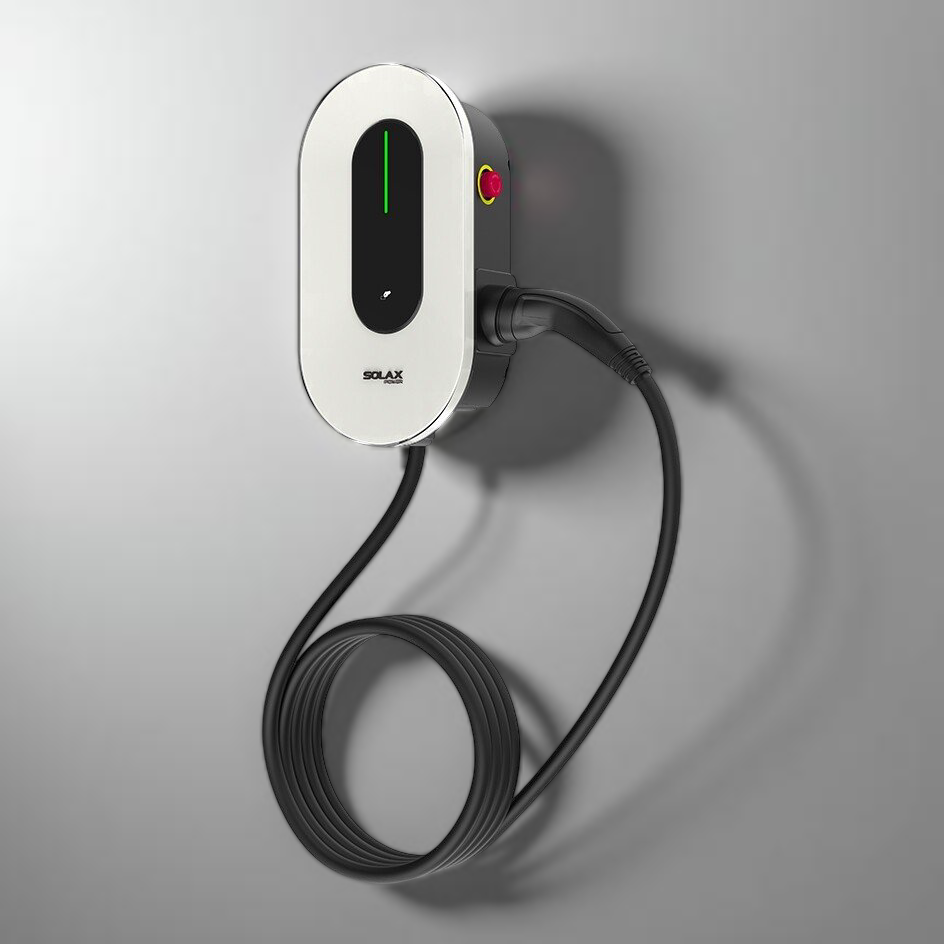

The SolaX Smart EV Charger G2 (7kW, single-phase, tethered, model X1-HAC-7P-E) is a next-generation home charging point built for households running SolaX solar and battery systems, or simply wanting a smart, connected EV charger. It delivers up to 7.2kW from a standard single-phase 230V supply and comes with a tethered Type 2 (IEC 62196) cable, so there's nothing extra to buy before charging.
The charger integrates with new or existing PV systems for 100% green energy charging, and includes smart dynamic load balance control to keep total household demand within the property's supply capacity. Charging is managed through the SolaX Cloud App over WiFi, Ethernet or optional 4G, with RFID authentication and built-in PEN fault protection designed to meet BS 7671:2018 requirements without needing a separate earth rod in most installations.
7.2 kW
Max Output (1-Phase)
6-32 A
Current Range
Tethered
Type 2 Cable
IP65 / IK10
Weather & Impact Rating
PEN Protected
BS 7671:2018 Compliant
WiFi/LAN/4G
Connectivity
Qualified Electrician Required
Installation must be carried out by a qualified electrician in accordance with BS 7671:2018 wiring regulations and the manufacturer's installation manual. The charger includes built-in PEN fault protection technology compliant with BS 7671:2018 requirements, but the electrical supply and earthing arrangement must still be assessed on site.
Three Charging Modes
Switch between Green Mode (solar PV only), ECO Mode (fixed power level) and Fast Mode (maximum charging rate) directly from the SolaX Cloud App, to suit whichever balance of speed and self-consumption fits the household.
Solar System Not Required
This charger integrates with new or existing SolaX PV systems for green energy charging, but it also works as a fully capable standalone AC charger on properties without solar panels installed.
Tethered Type 2 Cable Included
Supplied with an integrated Type 2 (IEC 62196) charging cable, so there's no separate cable to source or carry.
Smart Dynamic Load Balancing
Built-in dynamic load balance control monitors household demand in real time to help prevent overloading the property's electrical supply.
100% Green Energy Capable
Designed to integrate with new or existing PV systems, allowing the charger to prioritise self-generated solar or wind power where available.
RFID & App-Based Access Control
Secure access via RFID (ISO-14443-A) authentication, plug & charge, or the SolaX Cloud App, suited to both private and shared driveways.
Robust IP65 / IK10 Construction
Rated IP65 (plug type) and IK10 for the housing, with a wide -30°C to +50°C operating range, suitable for indoor or outdoor installation.
Multi-Protocol Connectivity
Supports WiFi, Ethernet, optional 4G and dual RS485, with OCPP 1.6J, Modbus TCP/RTU and Cloud API for smart scheduling and integration.
General
Model
X1-HAC-7P-E
Product Family
SolaX Smart EV Charger G2
Rated Output
1.4 - 7.2 kW
Phase
Single-phase
Rated Current
6 - 32 A
Connector
Type 2 (IEC 62196) tethered
Weight
5 kg (plug type)
Dimensions (W x H x D)
390 x 206 x 139 mm
Electrical Input
Nominal Voltage
230 V
Frequency
50 Hz / 60 Hz
Grid Earth Type
TN, TT, IT
Connectivity & Control
Communication
WiFi / Ethernet / 4G (optional) / RS485 x2
Protocol
OCPP 1.6j, Modbus TCP, Modbus RTU, Cloud API
Standard
IEC 61851-1, ISO 15118 (optional)
Authentication
Plug & Charge / RFID (ISO-14443-A) / App
HMI
RGB LED / App / LCD (optional)
Remote Control
SolaX App & Web
Charging Modes
Green Mode / ECO Mode / Fast Mode
Protection & Environment
Earth Fault Protection
Built-in PEN fault technology, per BS 7671:2018 requirements
Leakage Protection
Integrated current failure monitoring (30 mA AC & 6 mA DC)
Other Protection
Over/under-voltage, overload, short-circuit, grounding, surge and over-temperature protection
Cable Protection
Cable lock (App control)
Relay Protection
Relay weld detection
Degree of Protection
IP65 (plug type), IK10 housing / IK08 screen
Operating Temperature
-30°C to +50°C
Storage Temperature
-40°C to +60°C
Working Humidity
5% - 95%, without condensation
Working Altitude
Up to 2000 m
Cooling
Natural convection
Application Site
Indoor / outdoor, residential, destination or public
Does this charger come with a charging cable?
Yes. The X1-HAC-7P-E is the tethered version, supplied with an integrated Type 2 (IEC 62196) charging cable, so it's ready to connect to a compatible vehicle out of the box.
Do I need solar panels or a SolaX inverter to use this charger?
No. It integrates with new or existing SolaX PV systems for green energy charging, but works equally well as a standalone AC charger on properties without any solar installation.
What is PEN fault protection and why does it matter?
PEN fault protection is a safety feature required on many UK electrical supplies. The charger's built-in PEN fault technology, compliant with BS 7671:2018 requirements, monitors for a loss of the combined neutral/earth conductor and disconnects charging if a fault is detected.
Can I install this charger outdoors?
Yes, the charger carries an IP65 rating (plug type) and IK10 impact rating, with an operating range of -30°C to +50°C, making it suitable for both indoor and outdoor wall installation.
What charging modes are available?
The SolaX Cloud App lets you choose between Green Mode (solar-only charging), ECO Mode (a fixed charging power) and Fast Mode (maximum available rate).
