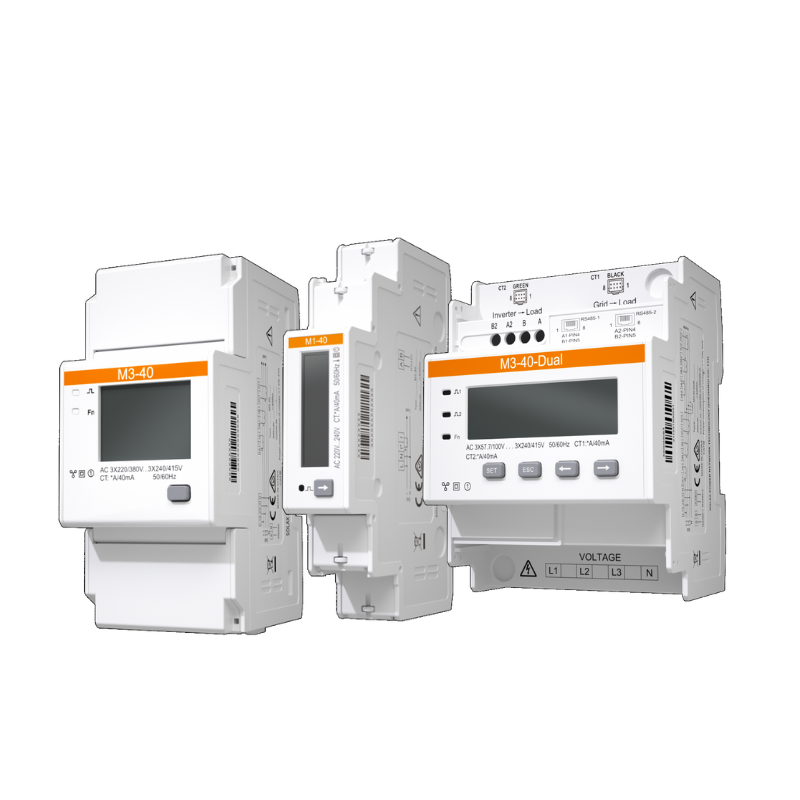

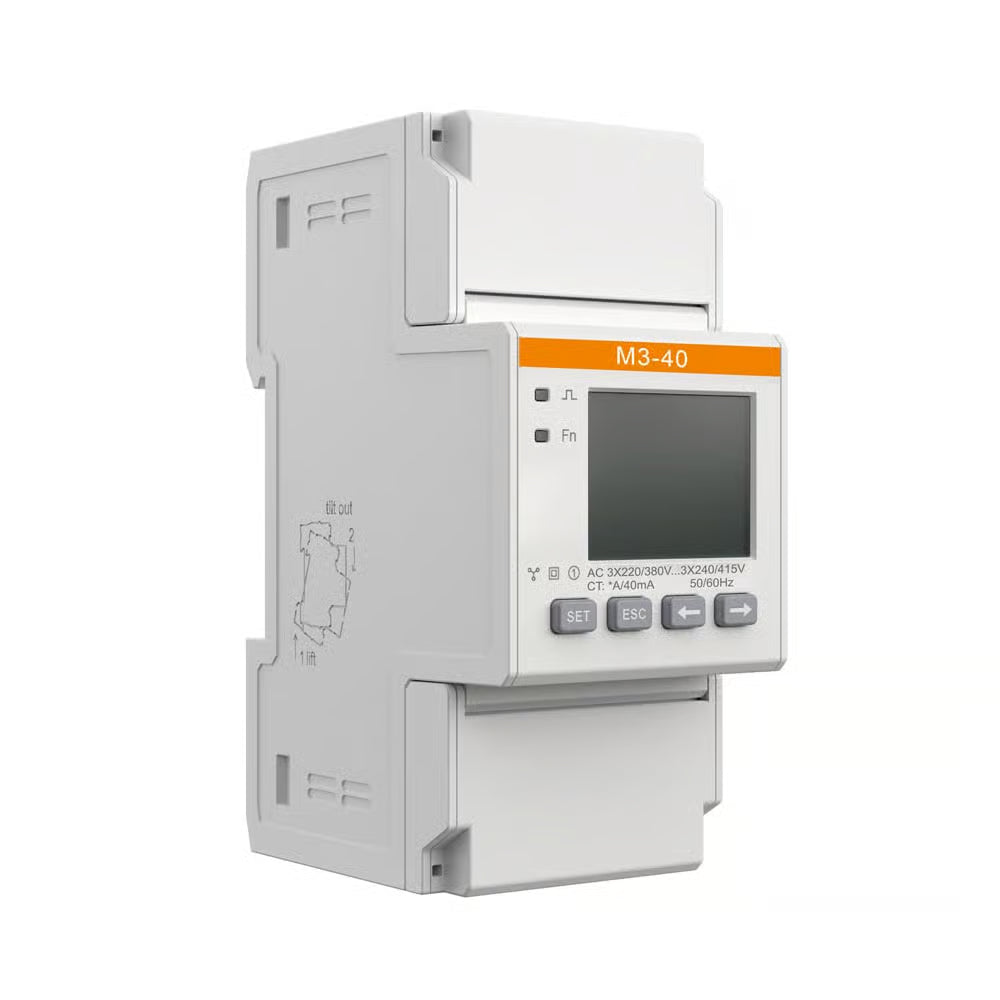

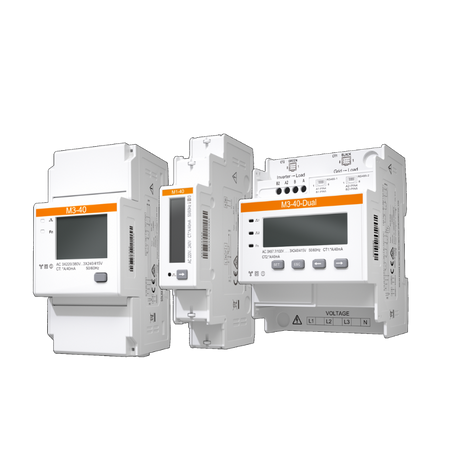

SolaX M3-40 Three Phase CT Energy Meter

SolaX M3-40 Three Phase CT Energy Meter

Product Description

Elevate your energy oversight with the SolaX M3-40 Three Phase CT Energy Meter from SolaX Power, a robust solution tailored for three-phase solar installations and commercial applications. This intelligent smart meter delivers comprehensive monitoring of electrical parameters including voltage, current, power, and frequency across multiple phases, facilitating precise grid import/export tracking, zero-export control, and efficient power management. Perfect for larger residential or business solar PV systems, the M3-40 integrates seamlessly with SolaX three-phase inverters, supporting 3P3W/3P4W configurations for versatile deployment.

With its high-speed 50ms refresh rate, automatic phase sequence correction, and remote configuration via the SolaX Cloud app, this three-phase power meter simplifies installation and enhances system reliability. Monitor grid and inverter performance in real time to optimise energy consumption, lower utility expenses, and advance sustainable practices. Rely on SolaX Power's cutting-edge metering technology for accurate, secure, and efficient energy solutions that drive renewable adoption and long-term savings.

Technical Specifications

• Kit Components: Includes three-phase energy meter, 3 x 100A/40mA CT clamps with 2m cables each, RS485 communication cable (5m), 4-pin terminal block, and DIN-rail mounting kit
• Compatibility: Compatible with three-phase SolaX inverters and hybrid systems (3P3W/3P4W grid type); ideal for solar PV, battery storage, and multi-phase energy monitoring
• Detection Capability: Bi-directional tracking of voltage, current, active/reactive power, and frequency; Class 0.5 accuracy for voltage/current, Class 1 for active power; 50ms refresh rate; remote app integration for settings
• Benefits: Supports zero-export and export limitation, improves energy optimisation, cuts costs, and meets regulatory standards; automatic CT direction adjustment for easy installation
• Warranty: 2 years (as standard from manufacturer)
• Additional Features: Compact DIN-rail design (dimensions: 45mm W x 100mm H x 65.5mm D); IP20 protection; operating temperature -40°C to 70°C; power consumption <1.5W; RS485 networking; humidity up to 95% RH; altitude up to 4000m; durable British-made construction for superior reliability
