SolarEdge S440 Power Optimizer
Couldn't load pickup availability
Payment details

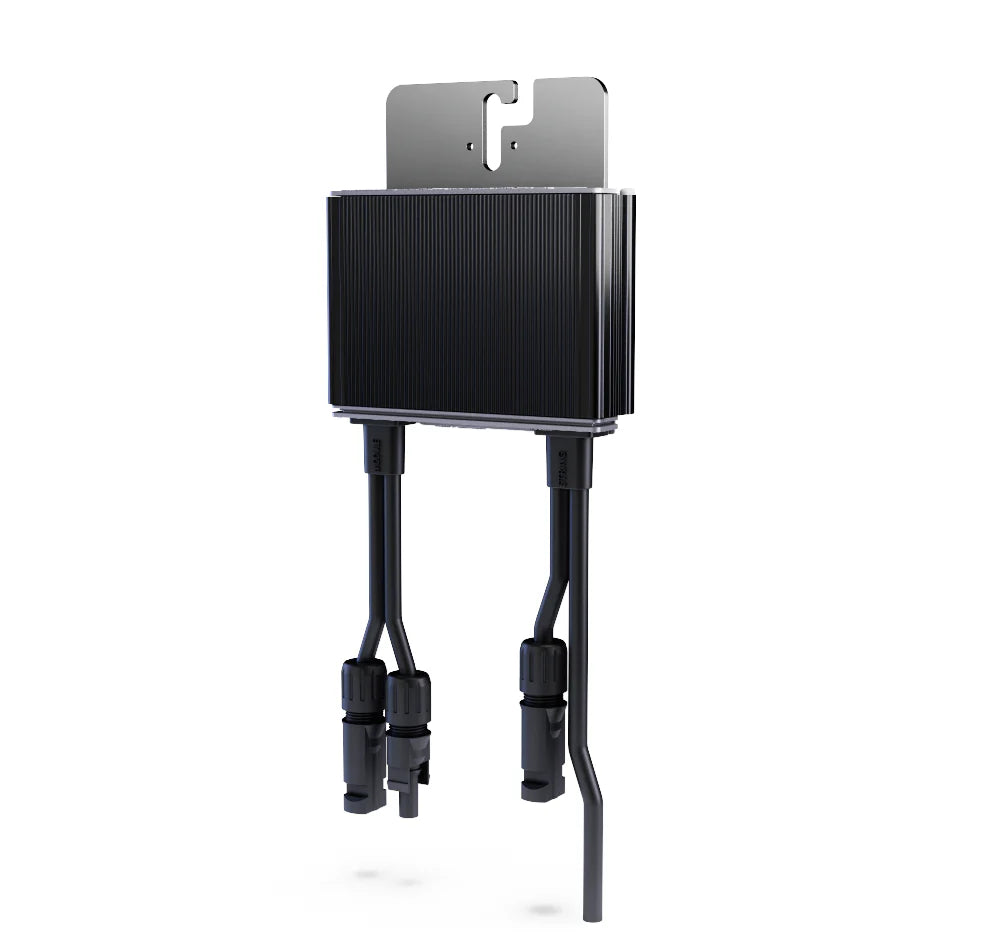

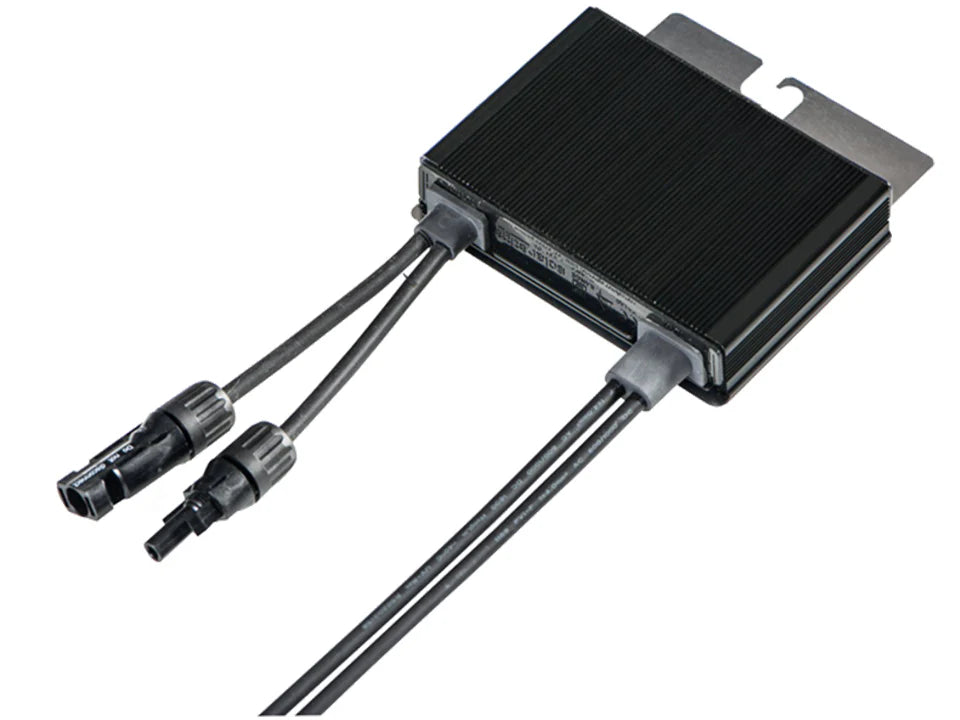

SolarEdge S440 Power Optimizer
Product Description
The SolarEdge S440 Power Optimizer brings module-level power optimization to your solar PV array, ensuring maximum energy harvest and advanced safety. Designed specifically for use with SolarEdge inverters, the S440 tracks the maximum power point (MPPT) of each panel individually, overcoming losses from shading, mismatch, or differing roof orientations. Intelligent monitoring and SafeDC™ technology ensure both performance and peace of mind, making it ideal for demanding residential solar systems.
- Module-Level MPPT: Extracts the maximum power from each panel to maximize overall system output.
- Superior Efficiency: 99.5% peak efficiency, 98.6% weighted efficiency.
- Advanced Safety: SafeDC™ automatically reduces voltage to safe levels when the inverter or grid is switched off.
- Flexible Design: Allows for longer and uneven strings, supporting multiple orientations and panel types.
- Compatible with High-Power and Bifacial Modules: Supports up to 440W modules and advanced panel technologies.
- Rugged Reliability: Designed for use in extreme environmental conditions. 25-year warranty.
- Quick Installation: Toolless rail or single-screw mounting and simplified cable management.
Key Technical Specifications
| Rated Input DC Power | 440 W* |
| Absolute Maximum Input Voltage (Voc) | 60 V |
| MPPT Operating Voltage Range | 8 – 60 V |
| Max Module Short Circuit Current (Isc) | 14.5 A |
| Maximum Output Current | 15 A |
| Maximum Output Voltage | 60 V |
| Max Efficiency | 99.5% |
| Weighted Efficiency | 98.6% |
| Protection Rating | IP68 |
| Operating Temperature | -40°C to +85°C |
| Dimensions (W × L × H) | 129 × 155 × 30 mm |
| Weight | 0.655 kg |
| Input Connector / Wire Length | MC4 / 0.1 m |
| Output Connector / Wire Length | MC4 / (+) 2.3 m, (–) 0.1 m |
| Warranty | 25 years |
*For installations after April 2024, up to 490W modules and 15A Isc are supported.
Applications
- Residential PV systems using SolarEdge inverters
- Projects requiring maximum shade tolerance or complex roof layouts
- Installations with bifacial or high-current modules
What's Included?
- SolarEdge S440 Power Optimizer (S440-1GM4MRM)
- MC4 connectors, factory-installed
- User and mounting guide
Why Choose the SolarEdge S440?
- Ensures highest possible yield from every panel
- Proven reliability and extended warranty for peace of mind
- Meets the latest safety codes and installer/firefighter protections
- Flexible for upgrades, including bifacial modules and custom array layouts
- Type Solar
- Vendor SolarEdge
- SKU S440-1GM4MRM
