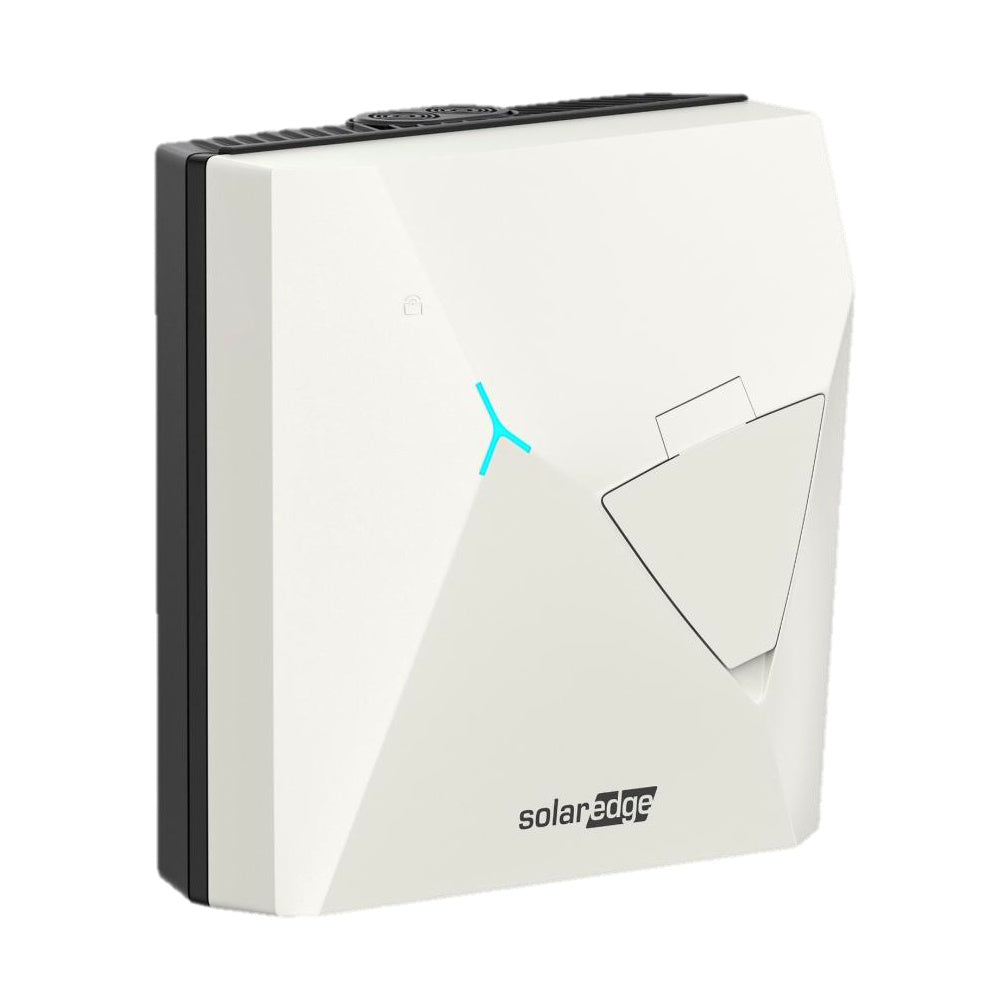

The SolarEdge ONE EV Charger (7.4kW, single-phase, socketed, model EVN74SU0-01) is SolarEdge's residential AC charging point, built to work as a standalone home charger or as part of a wider SolarEdge ONE energy ecosystem alongside SolarEdge inverters, batteries and home energy management. Its slim, compact housing uses snap-on wall mounting and multiple cable entry points, so installers can typically fit it in a few minutes.

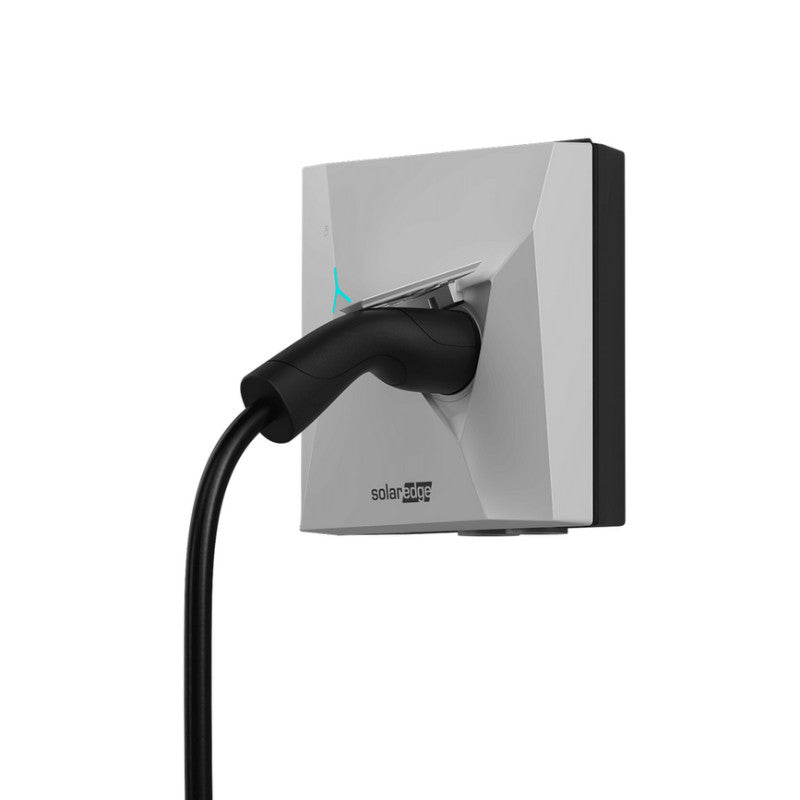

This socketed version accepts any compatible IEC 62196 Type 2 charging cable rather than including a fixed tethered lead, giving the household flexibility to use their own cable or upgrade it independently of the charge point. Authentication is handled through RFID, the mySolarEdge app, or plug-and-play, and the unit connects via WiFi or Ethernet for remote monitoring, scheduling and firmware updates.
7.4 kW
Max Output (1-Phase)
32 A
Rated Current
Type 2
Socket Outlet
RFID / App
Authentication
WiFi / Ethernet
Connectivity
PEN Detect
Fault Protection
Built-In PEN Fault Detection
The EVN74SU0-01 includes integrated PEN (Protective Earth Neutral) fault detection, a safety feature required on TN-C-S ('PME') electrical supplies in the UK. This continuously monitors for a loss of the combined neutral/earth conductor upstream of the property and disconnects the charger if a fault is detected, protecting against an exported earth fault reaching the vehicle.
Socketed Outlet - Cable Not Included
This is the socket outlet version of the SolarEdge ONE EV Charger: it does not come with a tethered charging cable. A separate Type 2 to Type 2 (or Type 2 to Type 1) cable is required to connect a vehicle. If a fixed cable is preferred, check for the tethered variant of this charger instead.
Solar-Optimised Charging
When paired with a compatible SolarEdge inverter and monitored through the mySolarEdge app, the charger can prioritise surplus solar generation to reduce grid-drawn charging costs. It also works as a fully standalone AC charger on properties without a SolarEdge PV system.
Compact, Slim Design
A newly engineered, space-saving enclosure with snap-on wall mounting and multiple cable entry points for faster, more flexible installation.
Single & Three-Phase Ready Platform
Part of the same SolarEdge ONE EV Charger family that supports both single-phase and three-phase modes with automatic phase switching on compatible models, simplifying stock for installers working across different supply types.
RFID, App & Plug-and-Play Access
Secure charging access via RFID card, the mySolarEdge app, or automatic plug-and-play authentication, suited to private driveways as well as shared or managed parking.
Integrated Residual Current Protection
Built-in DC leakage (residual current) detection helps protect the circuit without always requiring an external Type B RCD, subject to installation design.
Remote Monitoring & Updates
WiFi and Ethernet connectivity allow remote monitoring, scheduling and over-the-air firmware updates through the SolarEdge cloud platform.
Seamless SolarEdge Ecosystem Fit
Designed to integrate with SolarEdge inverters and the SolarEdge ONE energy management platform for solar-aware charging, while also functioning as a standalone charger.
General
Model
EVN74SU0-01
Product Family
SolarEdge ONE EV Charger
Rated Output
7.4 kW
Phase
Single-phase
Rated Current
32 A
Connector
Type 2 (IEC 62196) socket outlet
Cable
Not included - user-supplied Type 2 cable required
Connectivity & Control
Authentication
RFID / mySolarEdge app / Plug-and-play
Connectivity
WiFi / Ethernet
Monitoring
mySolarEdge app and cloud platform
Ecosystem
Compatible with SolarEdge inverters and SolarEdge ONE energy management
Protection & Installation
Earth Fault Protection
Integrated PEN fault detection
Leakage Protection
Integrated DC residual current detection
Mounting
Wall-mounted, snap-on bracket
Installation
Indoor or outdoor, by a qualified electrician
Does this charger come with a charging cable?
No. The EVN74SU0-01 is the socketed version, so it has a Type 2 socket outlet rather than a fixed cable. You will need your own Type 2 charging cable (Type 2-to-Type 2 or Type 2-to-Type 1, depending on your vehicle's inlet) to connect and charge.
Do I need a SolarEdge solar system to use this charger?
No. The SolarEdge ONE EV Charger works as a standalone AC charger on any compatible electrical supply. If you do have a SolarEdge inverter installed, the charger can additionally take advantage of solar-aware charging features through the SolarEdge ecosystem.
What is PEN fault detection and why does it matter?
PEN fault detection is a safety feature that monitors the combined neutral/earth conductor on a TN-C-S ('PME') supply. If that conductor fails upstream, a PEN fault could make the vehicle's chassis live; the charger's built-in PEN fault detection disconnects charging automatically if this condition is detected.
Can this charger be installed outdoors?
Yes, the SolarEdge ONE EV Charger is designed for both indoor and outdoor wall-mounted installation. Installation must be carried out by a qualified electrician in line with current UK wiring regulations.
How is the charger controlled and monitored?
The charger connects over WiFi or Ethernet and is monitored and controlled through the mySolarEdge app, which supports scheduling, usage history and remote diagnostics.
