SolarEdge ONE Controller for Commercial & Industrial

SolarEdge
£795.00 Inc. VAT £662.50 Exc. VAT
  • FREE Express Delivery (1-3 days) in UK Mainland on most orders
  • Excluding: Solar Panels (£170 delivery / free above £2,500), Batteries (£49 delivery), Small Items (£4.95 delivery / free above £500)
  • Contact Us to check for Next Working Day Delivery or Same-day Delivery options
  • Contact Us for Click & Collect options
  • Custom quote available on request
*See checkout or shipping policy for full details

Payment options

  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Documentation

Downloads

Do you have a question
about this product?

One of our expert advisors will be happy to help you!

Contact Us
Question Image

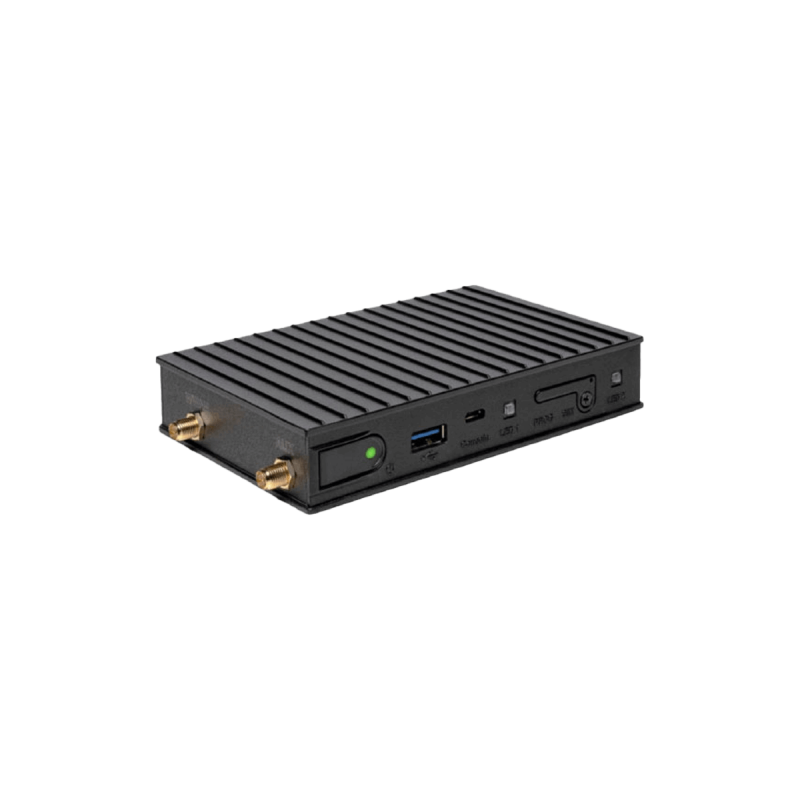

The SolarEdge ONE Controller for C&I (ONE-CLC1-RWWB0-P) is an on-site energy management gateway designed for commercial and industrial solar PV sites. It connects SolarEdge inverters, batteries, meters, and third-party environmental sensors into a single managed system, enabling the SolarEdge ONE for C&I optimisation platform to maximise self-consumption, comply with grid regulations via its built-in Power Production Control (PPC), and deliver centralised SafeDC™ fire safety shutdown through the integrated Firefighter Gateway function. A fanless, passively cooled design with 802.11ax Wi-Fi, Bluetooth 5.3, dual RS485, CAN Bus, and dual gigabit LAN ensures broad compatibility and secure over-the-air firmware updates.

Wi-Fi 6
802.11ax + BT 5.3
2× RS485
+ CAN Bus I/O
Firefighter
SafeDC™ gateway
IP30
–40 to +80°C
5 years
Warranty
⚠ Installer Note — Installation and configuration must be carried out by a qualified installer with SolarEdge C&I training. The ONE Controller must be powered from a suitable 100–240 Vac supply via the included PSU. Never connect high-voltage DC lines directly to the controller.
⚡ Platform Compatibility — The ONE Controller for C&I is designed exclusively for commercial and industrial SolarEdge installations. It requires access to the SolarEdge ONE for C&I optimisation platform. For residential smart energy management, see the SolarEdge ONE Controller residential variant instead.
Technical Specifications
Manufacturer SolarEdge Technologies
Part Number ONE-CLC1-RWWB0-P
USB 2× USB 2.0 (Type-A) + 1× USB 3.0 (Type-A)
RS485 2× isolated, terminal-block connectors
CAN Bus 1× isolated, terminal-block connector
Digital I/O 4× digital outputs + 4× digital inputs (isolated, 24V, EN 61131-2)
HDMI 1× (for optional external Firefighter Gateway display)
LAN 2× RJ45, 1000 Mbps
Wireless 802.11ax Wi-Fi 6 (2.4 / 5 GHz) + Bluetooth 5.3 BLE
Security TPM 2.0
Protocols Modbus RTU (RS485), Modbus TCP (LAN)
Power Supply Included, 100–240 Vac / 50–60 Hz, interchangeable EU/UK/US/AUS plugs
Typical Power Consumption 2.4 W idle / 5.4 W under load
Dimensions (L × W × H) 132 × 84 × 25 mm
Weight 550 g
Cooling Passive / fanless
Operating Temperature –40°C to +80°C
Protection Rating IP30
Mounting DIN rail or wall mount (brackets included)
Warranty 5 years
Frequently Asked Questions
What does the Firefighter Gateway function do?
The ONE Controller includes an integrated Firefighter Gateway capability. By receiving input signals from connected fire alarm panels or emergency stop devices, it triggers SafeDC™ automatic DC voltage shutdown across the PV array — reducing DC voltages to safe levels for firefighters. An optional external HDMI-connected display (sourced locally) can provide visible voltage confirmation at a safe distance from the array.
What devices can the ONE Controller connect to?
The ONE Controller connects SolarEdge commercial PV inverters, SolarEdge commercial storage systems, energy meters (via RS485/Modbus), and selected third-party environmental sensors. The digital I/O ports allow integration with external control signals, relays, and grid protection devices. Full device compatibility lists are in the ONE Controller C&I User Guide.
Does the ONE Controller require cloud connectivity to operate?
No — the ONE Controller includes extended local data retention to maintain site operation and logging if cloud connectivity is interrupted. However, the SolarEdge ONE for C&I optimisation platform's advanced features (remote monitoring, fleet-level analytics, PPC commands) require a working internet connection for full functionality.
