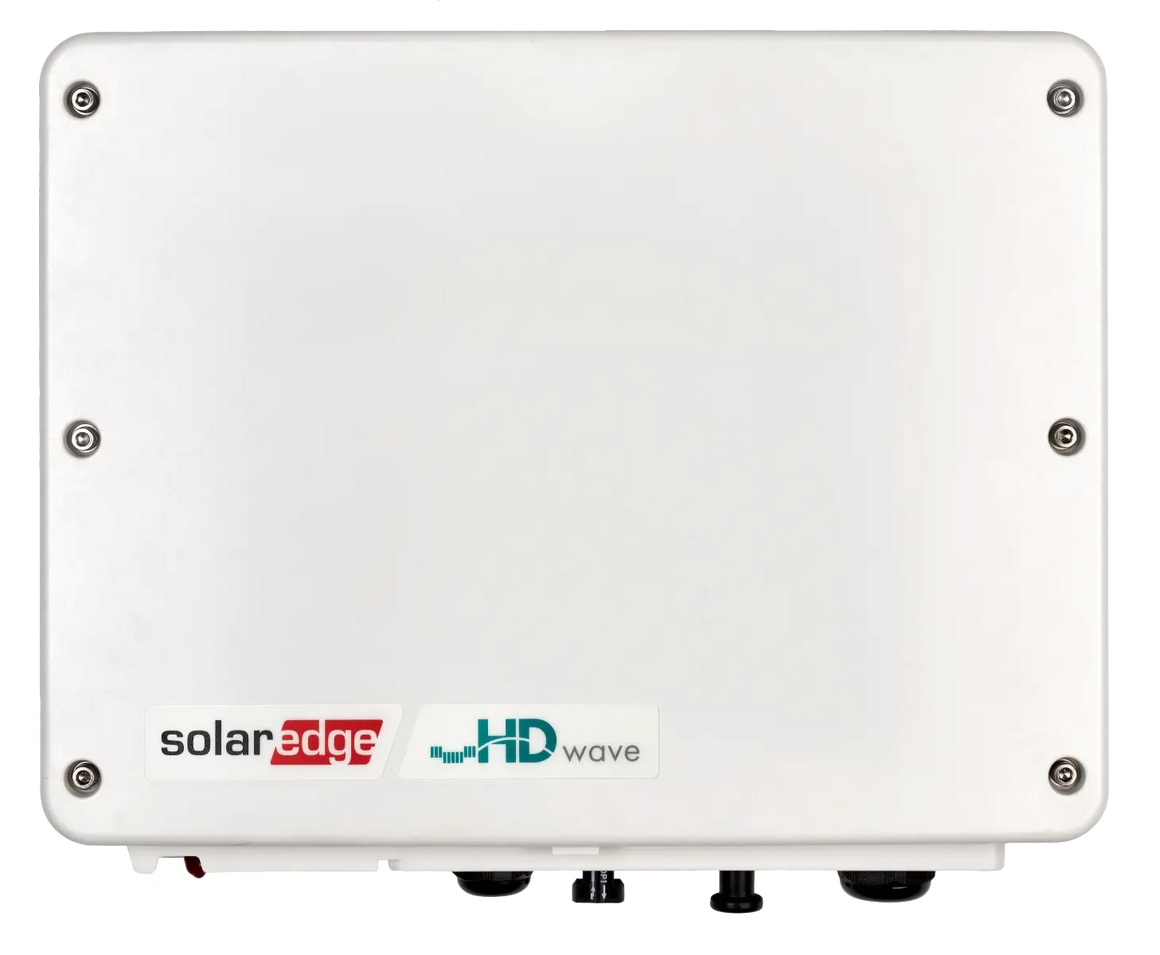

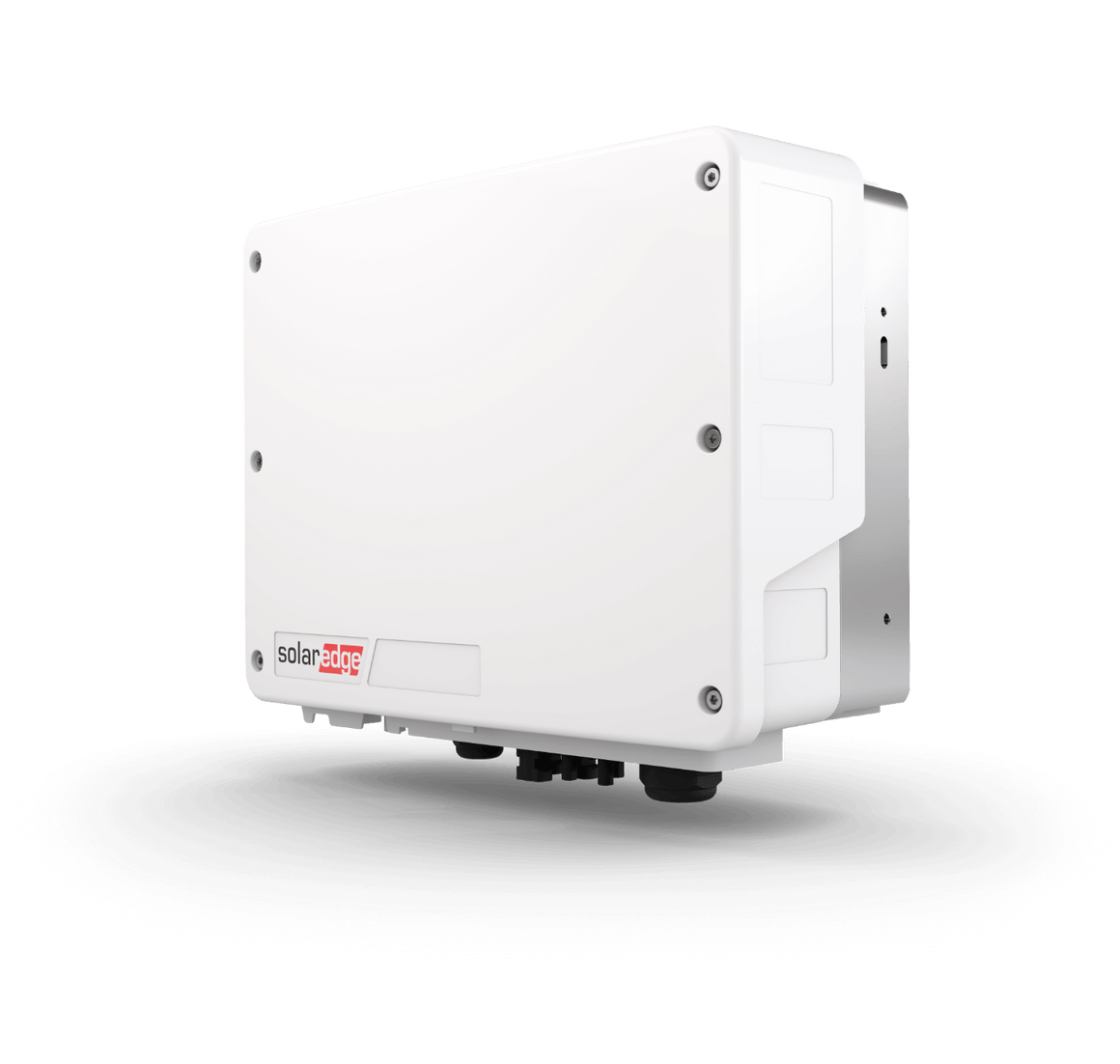

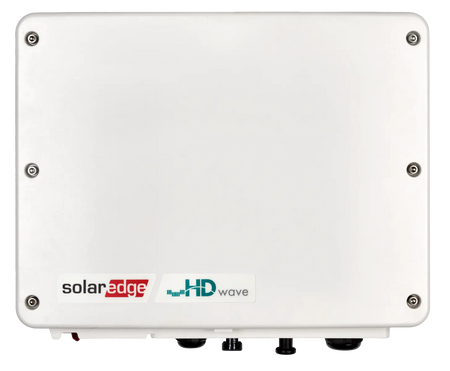

SolarEdge 6,000W Home Wave Inverter – Single Phase
Couldn't load pickup availability
Payment details
SolarEdge 6,000W Home Wave Inverter – Single Phase
Product Description
The SolarEdge 6,000W Home Wave Inverter – Single Phase delivers industry-leading efficiency and smart energy management in a compact package, purpose-built for residential solar installations. Using groundbreaking HD-Wave technology, this inverter is designed to work exclusively with SolarEdge’s Power Optimizers, maximizing energy harvest, enabling module-level monitoring, and boosting safety through integrated protection features. Its sleek, lightweight design allows for easy indoor or outdoor mounting and fast, app-based commissioning via SolarEdge SetApp.
- Exceptional Conversion Efficiency: Achieves up to 99.2% maximum efficiency and 99% Euro-weighted, ensuring more usable energy from your solar panels.
- HD-Wave Technology: Provides record-breaking energy conversion, extremely compact size, and high reliability.
- Exclusive Optimizer Pairing: Must be used with SolarEdge Power Optimizers for module-level monitoring, shade tolerance, and safety shutdown.
- Advanced Safety: Features integrated arc fault protection, rapid shutdown, built-in DC isolator, and ground fault detection.
- Smart Monitoring: Built-in module-level monitoring with seamless SolarEdge cloud platform integration.
- Future-Ready: Fully compatible with the SolarEdge Home Battery, smart EV charging, and additional smart energy devices.
- Installer-Friendly: Extremely light (10.6 kg), silent (fanless, <25 dBA), with app-based SetApp commissioning.
- Durable and Versatile: IP65 rated for outdoor/indoor installation; natural convection cooling, no display (requires SetApp).
- Long Warranty: Standard 12-year warranty, extendable to 25 years.
Key Technical Specifications
| Rated AC Power Output | 6,000 W (6 kVA) |
| Maximum AC Power Output | 6,000 VA |
| Maximum DC Power | 9,300 W |
| DC Input Voltage (Nominal / Max) | 380 V / 480 V |
| Maximum DC Input Current | 16.5 A |
| AC Output Voltage (Nominal) | 220 / 230 V |
| AC Output Voltage Range | 184 – 264.5 V |
| Frequency | 50/60 Hz ± 5 Hz |
| Maximum Output Current | 27.5 A |
| Communication | RS485, Ethernet, WiFi (optional), ZigBee (optional), Cellular (optional) |
| Integrated DC Switch | Yes |
| Protection Rating | IP65 (indoor/outdoor) |
| Noise | < 25 dBA |
| Dimensions (HxWxD) | 450 × 370 × 174 mm |
| Weight | 10.6 kg |
| Operating Temperature | -40°C to +60°C |
| Warranty | 12 years (extendable to 25 years) |
Applications
- Residential solar PV systems with module-level monitoring and smart energy control
- Projects requiring maximum string length and high layout flexibility, particularly for shaded or complex roofs
- Installations planning future upgrades with home batteries, EV chargers, or smart home energy products
What's Included?
- SolarEdge 6,000W Home Wave Inverter (Single Phase)
- Mounting bracket kit
- Integrated DC switch
- Installation guide and warranty card
Why Choose SolarEdge 6,000W Home Wave?
- World-leading efficiency and optimised energy yield
- Advanced safety and smart monitoring features
- Lightweight, silent, and quick to install
- Seamless integration with SolarEdge Power Optimizers, Home Battery, and smart energy solutions
- Long manufacturers’ warranty and robust outdoor design
- Type Solar
- Vendor SolarEdge
- SKU SE6000H
