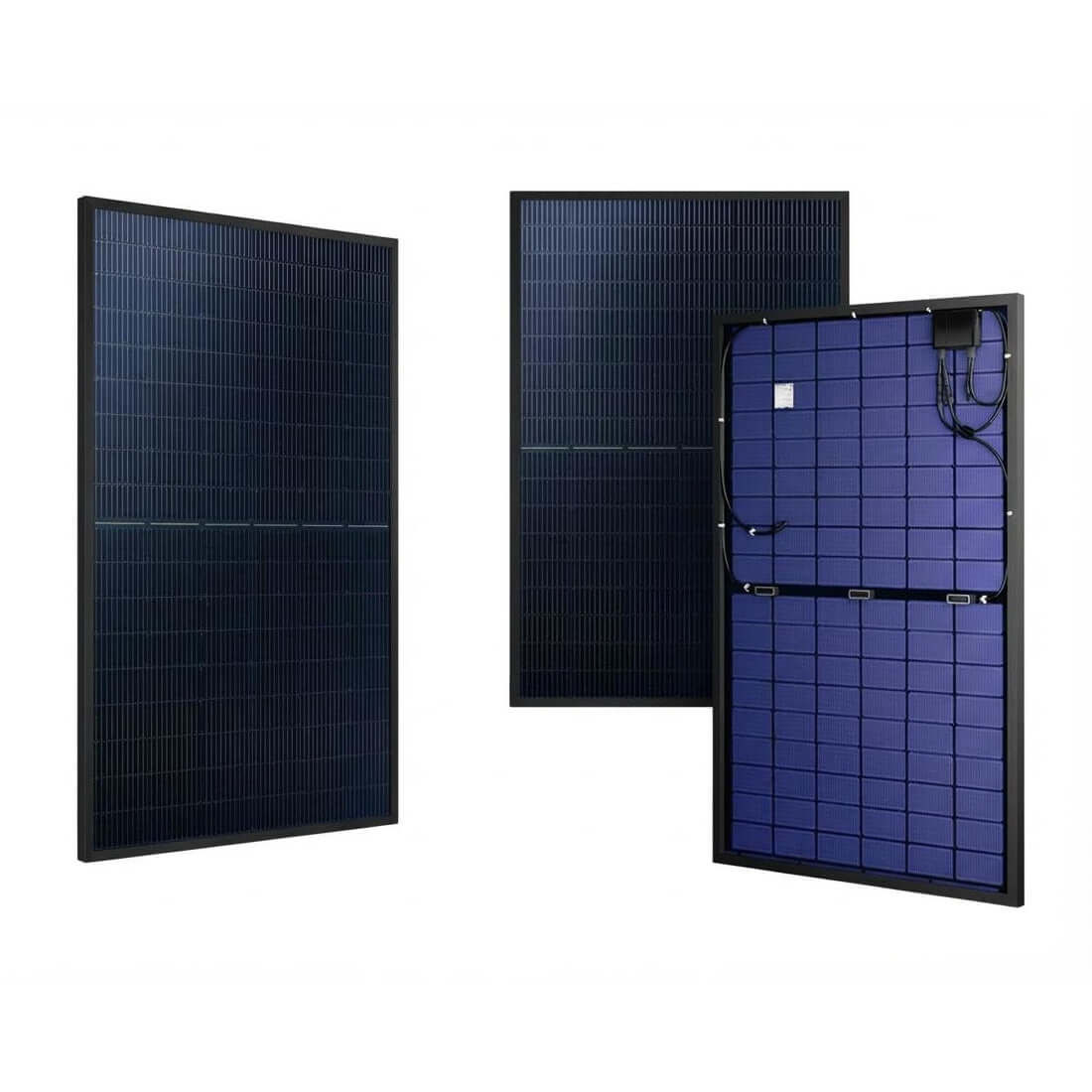

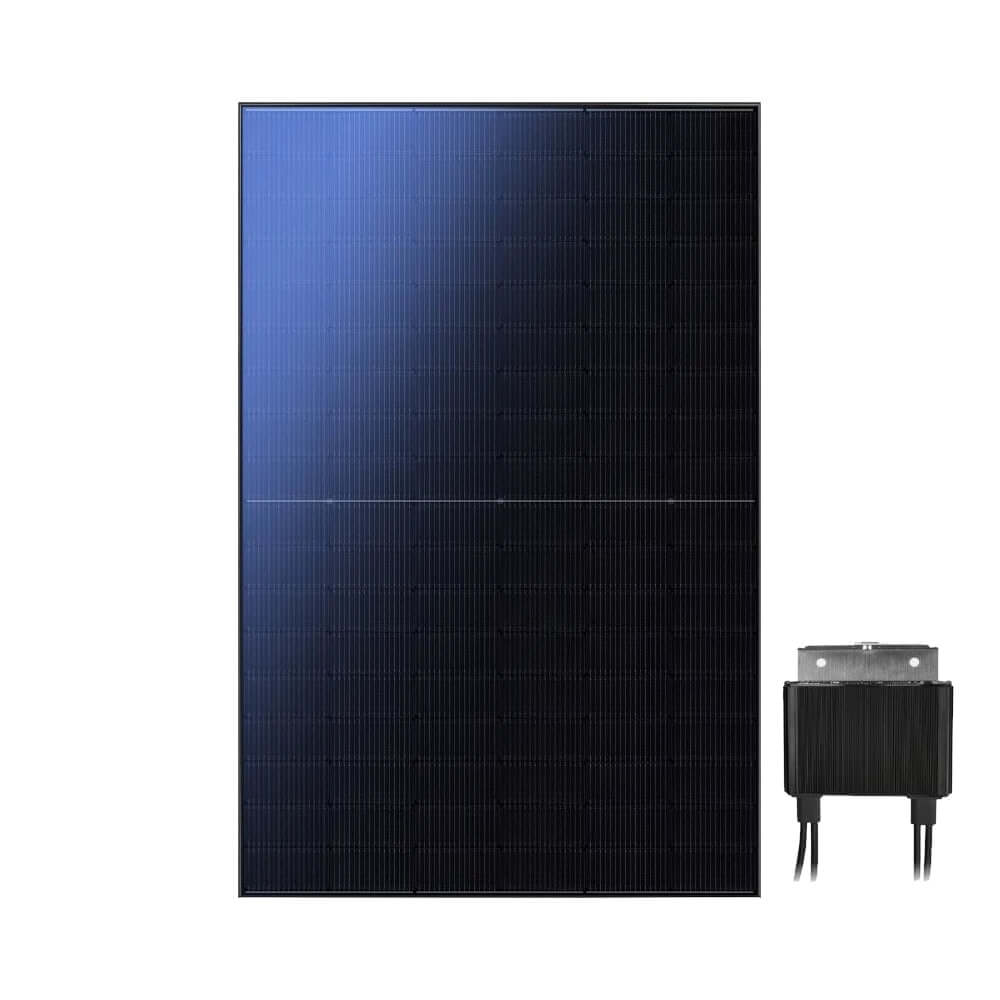

The SolarEdge 430W Smart Module (SPV430-R54PDTL) is a N-type TOPCon, half-cut, bifacial dual-glass solar panel supplied with a factory-fitted S440 power optimiser. Instead of bolting a separate optimiser to the frame on the roof, the optimiser arrives pre-assembled, so every panel gets its own module-level MPPT, module-level monitoring and SafeDC voltage shutdown straight out of the box.

Rated at 430 W (STC) with 22.02% module efficiency, the panel uses 108 half-cut cells (6 x 18) behind 1.6 mm tempered glass front and rear. The bifacial design lets the rear side contribute extra power, with SolarEdge quoting up to 516 W at a 25% rear-side gain. Shading on one panel, or panels facing different directions, no longer drags the whole string down, which makes it a strong fit for complex, shaded or multi-orientation UK roofs.

Built for the long term, it carries a 25-year product warranty and a 30-year linear performance warranty, with a rated 5400 Pa front snow load, a 35 mm hail test and ammonia, salt mist and PID testing. It is designed to work with a SolarEdge inverter and integrates with the SolarEdge Home ecosystem.

430 W
Rated power (STC)
22.02%
Module efficiency
516 W
Max bifacial power (25% rear gain)
99.5%
Optimiser peak efficiency
25 yr
Product warranty
30 yr
Linear performance warranty
Smart Module: panel and optimiser in one
The S440 optimiser is already fitted, so no separate optimiser is needed for this panel. It is intended for use with a SolarEdge inverter. System design limits per string are listed further down this page.
Compatibility
In new installations S-series and P-series power optimisers must not be mixed in the same string. Sense Connect arc-fault functionality is subject to inverter model and firmware version, so confirm your chosen inverter supports it.
Safety and regulation
Installation must be carried out by a competent person in line with BS 7671 and the manufacturer's instructions. The 1 V per optimiser safety output applies only when the inverter is off or the optimiser is disconnected from it; treat the string as live whenever the system is running.

Key features

Integrated S440 optimiser
Pre-assembled on the panel for true module-level MPPT across an 8 to 60 Vdc operating range, with 99.5% peak and 98.6% weighted efficiency. Simplified cable management speeds up installation.
N-type TOPCon half-cut cells
108 half-cut monocrystalline cells (182 x 91 mm) using advanced N-type TOPCon technology for high efficiency, high power and high-level reliability, reaching 22.02% at STC.
Bifacial dual glass
1.6 mm dual-layer tempered glass on both faces captures light from the rear as well, with 80 +/- 5% power bifaciality and up to 447 W, 482 W or 516 W at 5%, 15% and 25% rear gain.
SafeDC and Sense Connect
SafeDC brings each optimiser down to a 1 V safety output when the inverter or AC power is switched off, protecting installers and firefighters. Sense Connect is designed to detect and prevent potential electric arcs at connector level.
Monitoring and Home ecosystem
Module-level monitoring gives full visibility of system performance from roof to grid, and the panel integrates with the complete SolarEdge Home ecosystem through the SolarEdge Home Network.
Tough in extreme weather
Rated for 5400 Pa snow load on the front and 2400 Pa wind load on the rear, with a 35 mm hail test, IP68 junction box and an operating range of -40 to +85 C.

Technical specifications

Identification
Brand
SolarEdge
Model / MPN
SPV430-R54PDTL
Product type
Smart Module: N-type TOPCon bifacial dual-glass module with integrated S440 power optimiser
Module electrical properties (STC)
Module power
430 W
Module efficiency
22.02 %
Maximum power voltage (Vmp)
32.34 V
Maximum power current (Imp)
13.30 A
Open circuit voltage (Voc)
39.03 V
Short circuit current (Isc)
13.95 A
Maximum system voltage
1000 Vdc
Maximum series fuse rating
30 A
Module electrical properties (NMOT)
Module power
326 W
Maximum power voltage (Vmp)
30.45 V
Maximum power current (Imp)
10.72 A
Open circuit voltage (Voc)
37.39 V
Short circuit current (Isc)
11.24 A
Operating cell temperature (NMOT)
42 +/- 2 C
Bifacial electrical values (power bifaciality 80 +/- 5%)
5% rear gain
447 W maximum power, 22.90 % efficiency
15% rear gain
482 W maximum power, 24.66 % efficiency
25% rear gain
516 W maximum power, 26.42 % efficiency
Temperature characteristics
Temperature coefficient of power (Pm)
-0.30 % / C
Temperature coefficient of voltage (Voc)
-0.25 % / C
Temperature coefficient of current (Isc)
0.045 % / C
Module mechanical properties
Cells
108 half-cut cells (6 x 18)
Cell type
Monocrystalline N-type TOPCon
Cell dimensions
182 x 91 mm
Dimensions (L x W x H)
1722 x 1134 x 30 mm
Weight (with power optimiser)
21.74 kg
Front / rear glass
1.6 mm / 1.6 mm dual-layer tempered glass
Frame
Black anodised aluminium
Junction box
IP68
Connector type
MC4
Front side maximum load (snow)
5400 Pa
Rear side maximum load (wind)
2400 Pa
Operating temperature
-40 to +85 C
Packaging (units per pallet)
36
Certifications and warranty
Module certifications
IEC 61215:2016, IEC 61730:2016
Ammonia test
IEC 62716:2013
Salt mist test
IEC 61701:2016
PID test
IEC TS 62804-1:2015
Hail test
35 mm hail test per IEC 61215-2:2016
Module warranty
25 years
Power optimiser warranty
25 years
Linear performance warranty
30 years: 99% in year 1 and 89.4% power output over 30 years
Integrated S440 power optimiser: input and output
Rated input DC power
440 W
Absolute maximum input voltage (Voc)
60 Vdc
MPPT operating range
8 to 60 Vdc
Maximum Isc of connected PV module
14.5 Adc
Maximum efficiency
99.5 %
Weighted efficiency
98.6 %
Overvoltage category
II
Maximum output current
15 Adc
Maximum output voltage
60 Vdc
Safety output voltage (inverter off or optimiser disconnected)
1 +/- 0.1 Vdc per optimiser
Integrated S440 power optimiser: installation and compliance
Dimensions (W x L x H)
129 x 155 x 30 mm
Weight (including cables)
740 g
Input connector / wire length
MC4 / 0.1 m
Output connector / wire length
MC4 / (+) 2.3 m, (-) 0.10 m
Protection rating
IP68
Relative humidity
0 to 100 %
Operating temperature range
-40 to +85 C
EMC
FCC Part 15 Class B, IEC 61000-6-2, IEC 61000-6-3, CISPR 11, EN 55011
Safety
IEC 62109-1 (class II safety), UL 1741
Material
UL94 V-0, UV resistant
RoHS
Yes
Fire safety
VDE-AR-E 2100-712:2018-12

String design with SolarEdge inverters

Power optimiser string limits
Per string
Home Wave, single phase
Home Short String, three phase
Three phase, 230/400 V grid
Three phase, 277/480 V grid
Minimum string length (optimisers)
8
9
16
18
Maximum string length (optimisers)
25
20
50
50
Maximum continuous power
5700 W
5625 W
11,250 W
12,750 W
Maximum allowed connected power
6800 W (see note)
See SolarEdge guidelines
13,500 W
15,000 W
Parallel strings of different lengths or orientations
Yes
Yes
Yes
Yes
Design note
On the single phase Home Wave inverter, the 6800 W maximum connected power is permitted for inverters with rated AC power of 8000 W or more connected to at least two strings. In multiple string designs, the maximum is permitted only when the difference in connected power between strings is 2000 W or less.

Frequently asked questions

Do I need to buy a separate power optimiser?
No. The S440 power optimiser is pre-assembled on the panel, so you only need to connect the panels in a string to a compatible SolarEdge inverter.
Which inverters does this panel work with?
It is designed for use with SolarEdge inverters. The manufacturer lists string limits for the SolarEdge Home Wave single phase, Home Short String three phase and three phase inverters (see the string design table above). Do not mix S-series and P-series optimisers in the same string in new installations.
What does bifacial mean for real-world output?
The 430 W rating is measured on the front side only. The rear glass can add power from reflected and diffused light, and SolarEdge quotes 447 W, 482 W and 516 W at 5%, 15% and 25% rear gain. Actual gain depends on how the panels are mounted and how much light reaches the rear, so raised or ground-mounted arrays over reflective surfaces typically benefit more than flush roof installations.
How does SafeDC protect installers and firefighters?
SafeDC provides module-level voltage shutdown whenever the inverter or AC power is turned off. Each optimiser drops to a safety output of 1 +/- 0.1 V, which greatly reduces the DC voltage present on the roof.
What is Sense Connect?
Sense Connect is SolarEdge's patented safety feature designed to automatically detect and prevent potential electric arcs at connector level that could cause fire events. Functionality is subject to inverter model and firmware version.
What warranty and packaging does the panel have?
The module and the integrated optimiser each carry a 25-year warranty, backed by a 30-year linear performance warranty guaranteeing 99% output in year 1 and 89.4% over 30 years. Panels are packed 36 per pallet and each weighs 21.74 kg including the optimiser.
