Solar Cable 4mm² Single-Core DC Cable - 100m, Black

Solar Cable 4mm² Single-Core DC Cable - 100m, Black

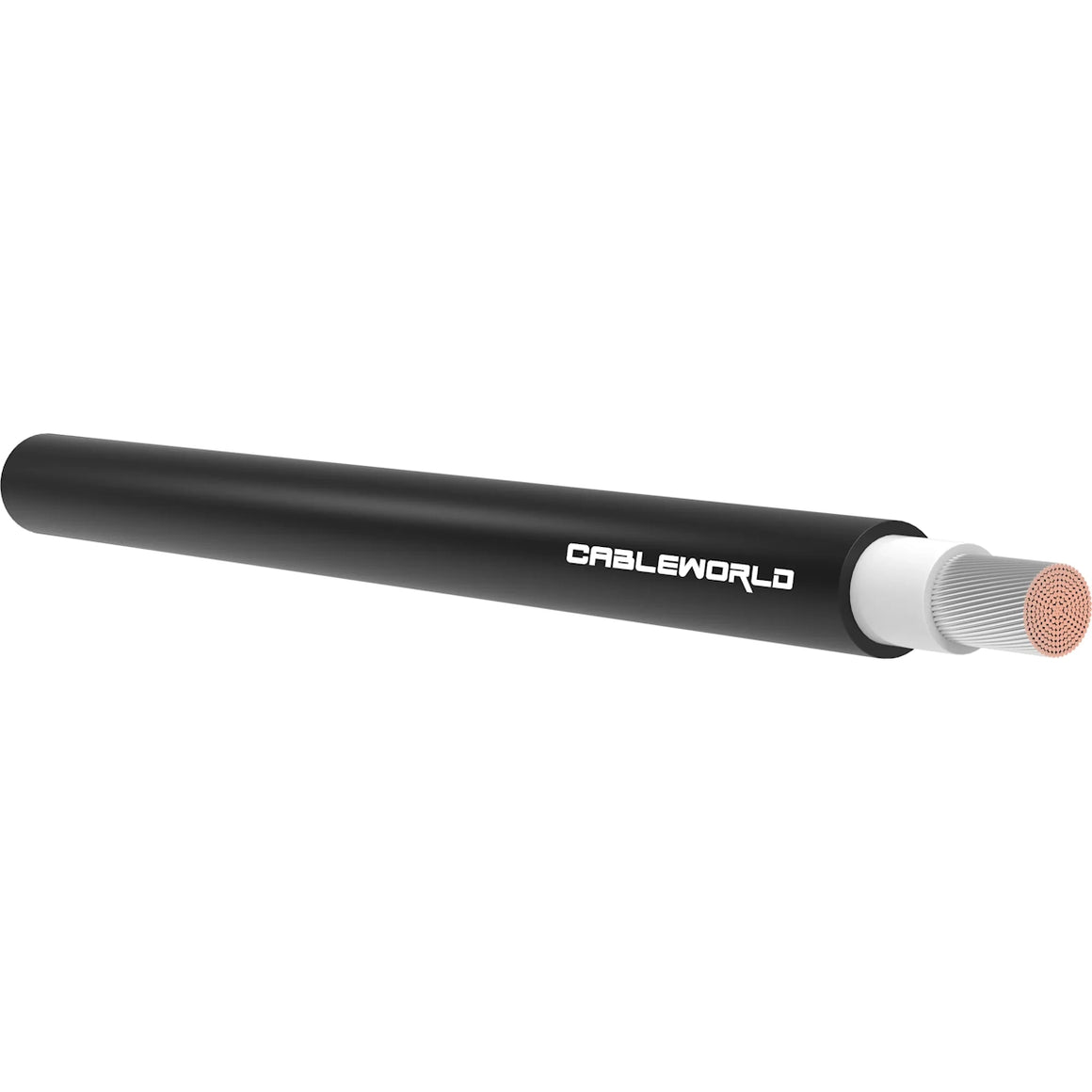

The CABLE4-1-100 is a high-quality 4mm² single-core DC solar cable, supplied in a 100-meter length with black UV-resistant PVC insulation. Engineered specifically for photovoltaic (PV) and renewable energy systems, this cable features a flexible, stranded, tinned copper conductor for durability and excellent conductivity. Rated for system voltages up to 1500 V DC and suitable for currents up to 32-55 A depending on installation conditions, it supports safe and efficient power transfer in solar arrays. The sheath is halogen-free, flame-retardant, and resistant to UV, water, oils, and chemicals, ensuring long service life in outdoor conditions. It complies with European standards EN 50618 and H1Z2Z2-K for PV cables, making it ideal for roof and ground-mounted solar installations.

• Part No: CABLE4-1-100

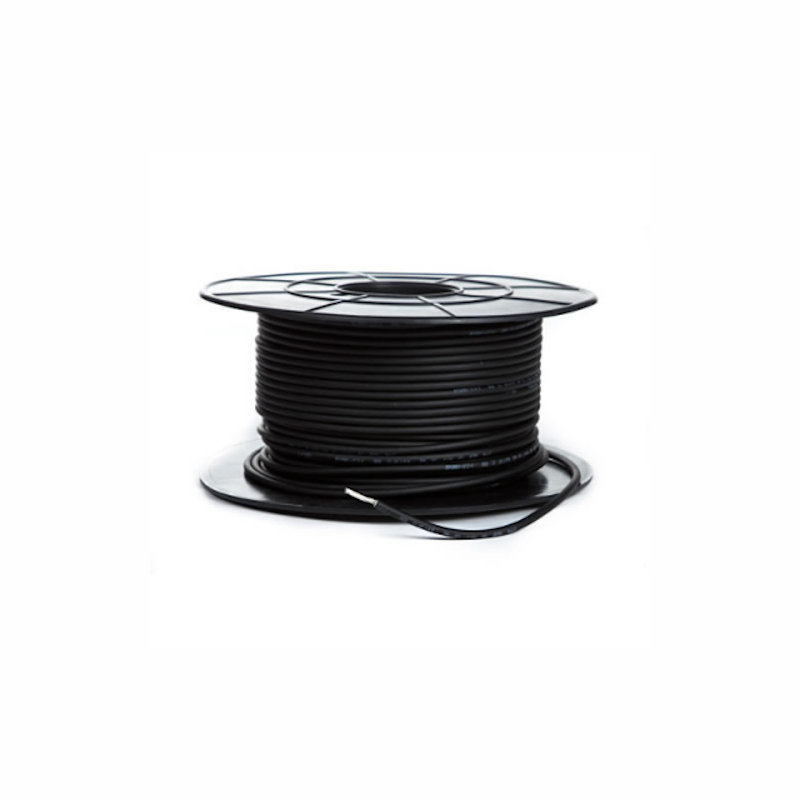

• Length: 100 meters
• Cable type: Single-core DC solar cable
• Cross-sectional area: 4 mm²
• Conductor: Flexible tinned copper (Class 5)
• Sheath: Black, UV-resistant, halogen-free PVC
• Voltage rating: Up to 1500 V DC
• Current rating: 32-55 A (installation dependent)
• Standards: EN 50618, H1Z2Z2-K certified
• Temperature range: -40°C to +90°C
