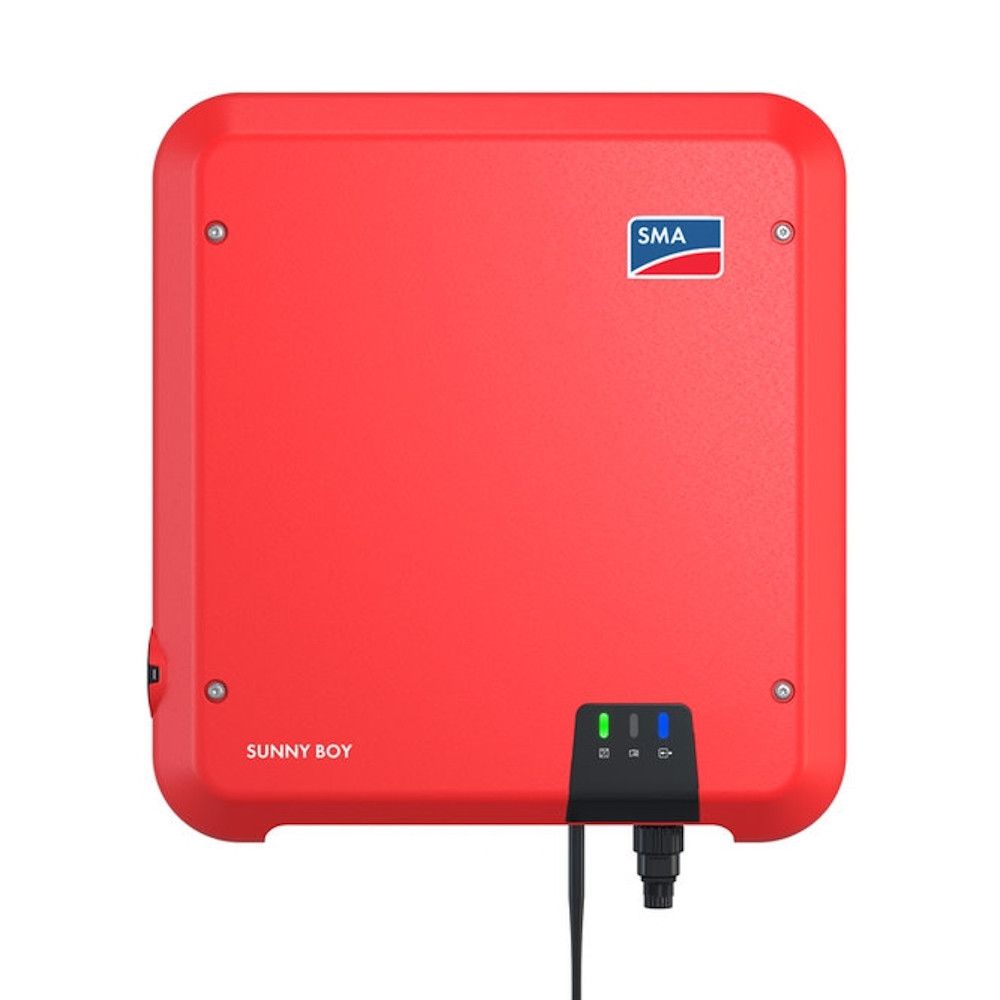

SMA Sunny Boy 5.0kW Solar Inverter - Single Phase with Smart Connect

The SMA Sunny Boy 5.0kW Solar Inverter - Single Phase with Smart Connect (MPN: SB5.0-1AV-41) is a transformerless grid-tied inverter for residential PV systems, combining dual MPPTs, integrated web connectivity and SMA Smart Connected proactive monitoring.

Product Description

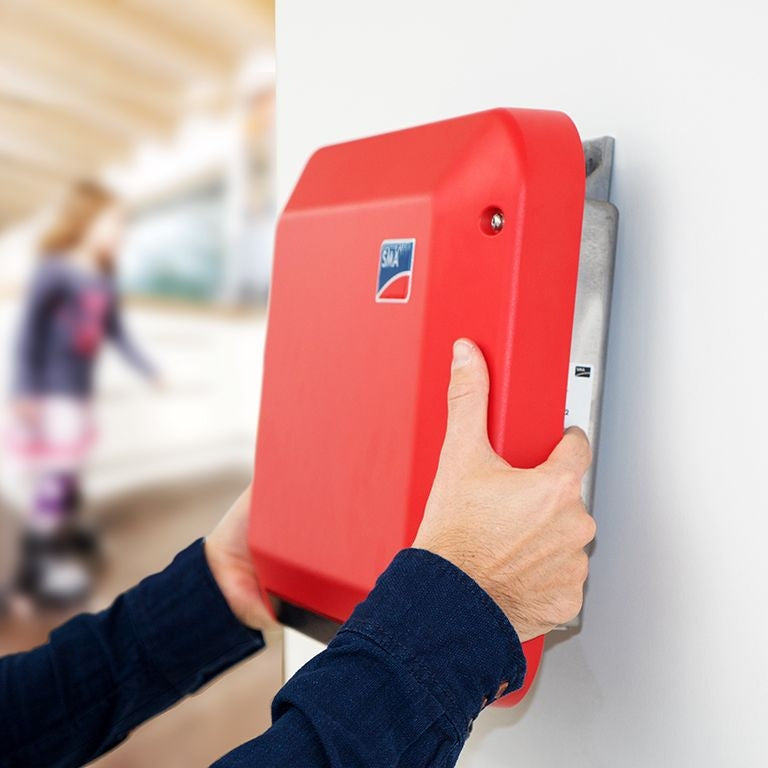

Designed for single-phase self-consumption systems up to 5kW, the Sunny Boy 5.0 converts DC from the PV array into grid-compliant AC with up to 97% efficiency. The compact, lightweight design supports one-person installation, while built-in WLAN/Ethernet and web server enable fast commissioning via smartphone, tablet or laptop and ongoing monitoring through Sunny Portal and SMA Energy App.

Key Features

• SMA Smart Connected: Free automated inverter monitoring with proactive fault notification and fast replacement service.
• Dual MPPT: 2 independent MPP trackers for flexible string design and partial shading management (SMA ShadeFix compatible).
• Integrated web server: Direct access via browser over WLAN or Ethernet for setup and diagnostics.
• Battery-ready: AC-coupled storage (e.g. Sunny Boy Storage) can be added later without replacing the inverter.
• Optimizer compatibility: Fully compatible with Tigo TS4-R optimisers for module-level optimisation and monitoring.
• Quiet, fanless design: Natural convection cooling with low operating noise.

Electrical Specifications

• Rated AC power: 5000 W at 230V, 50 Hz.
• Max. apparent AC power: 5000 VA.
• Max. efficiency: up to 97.0%; European efficiency approx. 96.5%.
• AC voltage range: 180–280 V.
• Max. AC output current: approx. 22.8 A.
• Power factor: 1 at rated power, adjustable 0.8 inductive to 0.8 capacitive.
• Max. DC input voltage: 600 V.
• MPP voltage range: 175–500 V.
• Rated DC input voltage: 365 V.
• Min. / start-up DC voltage: 100 V / 125 V.
• Max. DC input current (A/B): 15 A / 15 A (20 A per string).
• MPPTs / strings: 2 MPP trackers, up to 2 strings per tracker.

Physical Specifications

• Dimensions (W × H × D): 435 × 470 × 176 mm.
• Weight: approx. 16–17.5 kg (one-person lift).
• Enclosure rating: IP65, suitable for indoor or outdoor wall mounting.

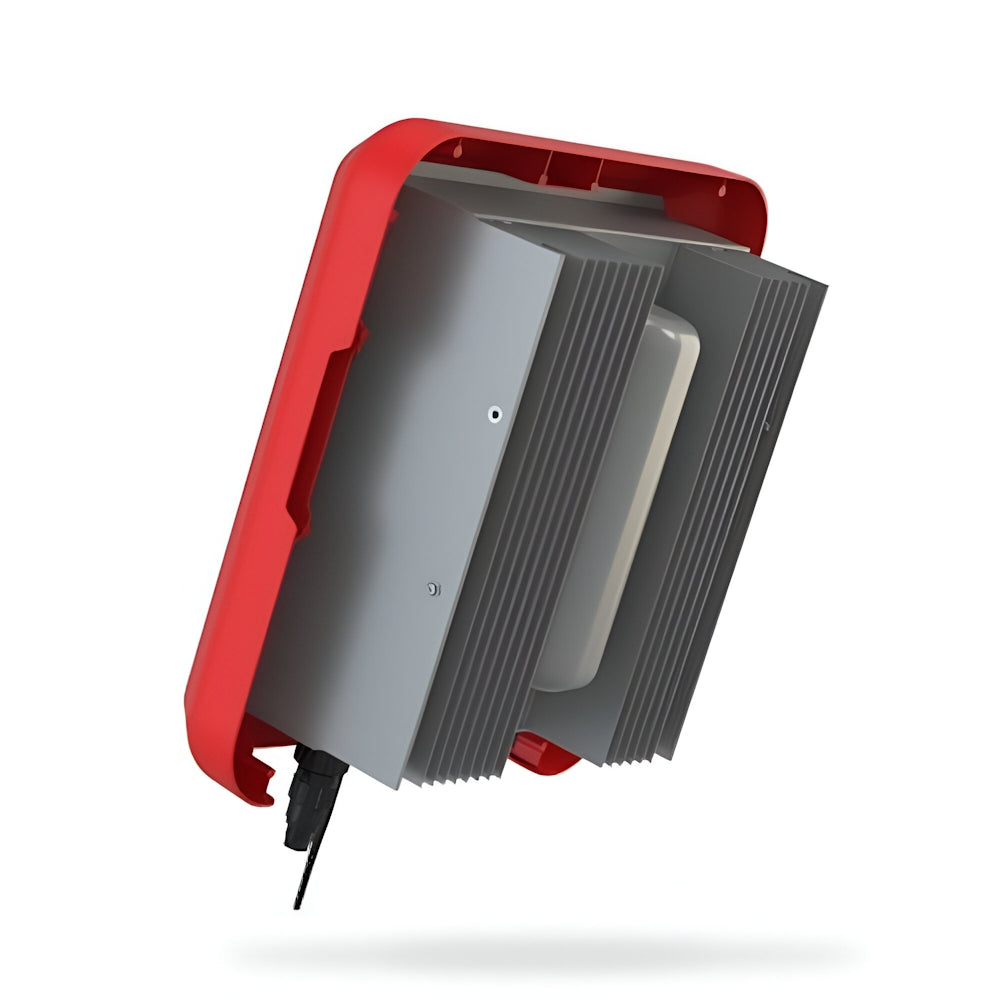

• Cooling: Passive (fanless) convection.
• Display & interface: LEDs plus integrated web UI via WLAN/Ethernet.
• Connections: AC terminal block, DC Sunclix connectors, Ethernet, WLAN/Speedwire.

System & Application Notes

• Application: Single-phase grid-tied residential PV systems up to 5kW, with option to add AC-coupled battery later.
• Monitoring: Sunny Portal / Sunny Places / SMA Energy App via SMA Smart Connected.
• Shade management: SMA ShadeFix plus optional Tigo TS4-R optimisers for complex roofs.
• Grid compliance: Certified to relevant EN and national grid codes (e.g. G98/G99 where applicable, depending on region variant).
• Warranty: 5-year standard SMA warranty, extendable via SMA warranty packages.
